第09讲 - 专用IP - 毫米波雷达的基本概念与雷达数字基带

../_images/%E5%B9%BB%E7%81%AF%E7%89%871154.JPG

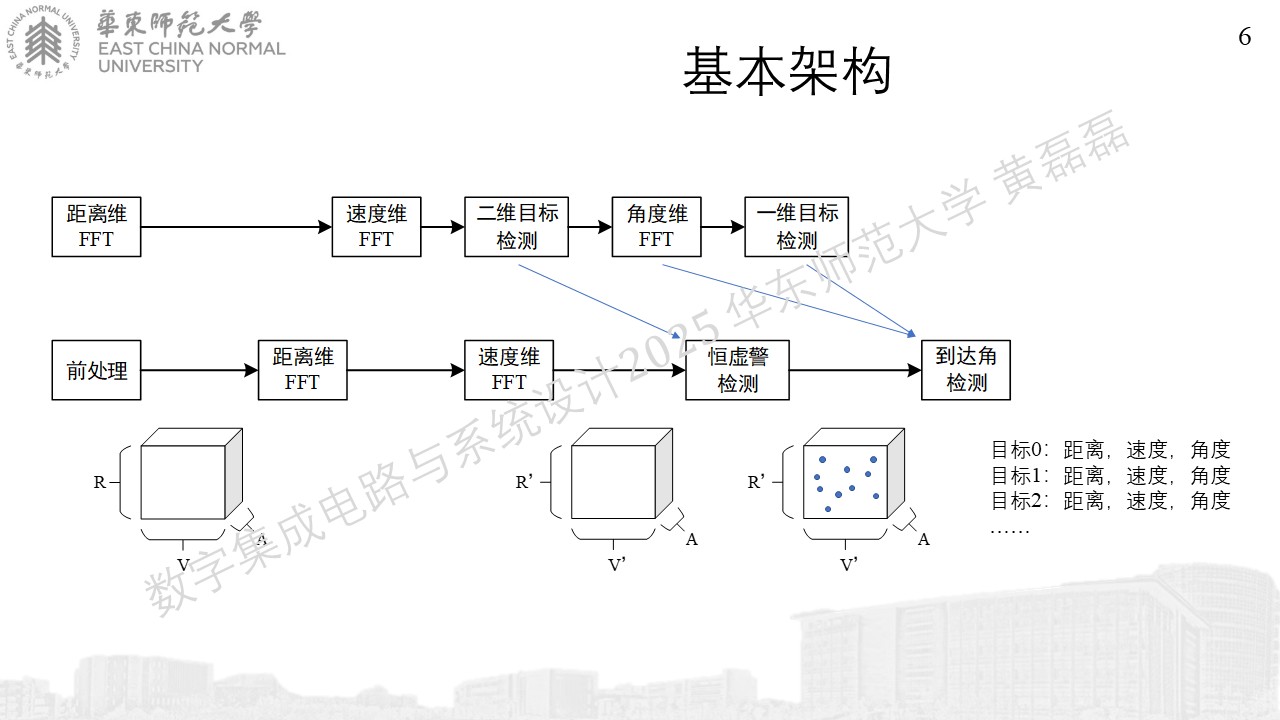

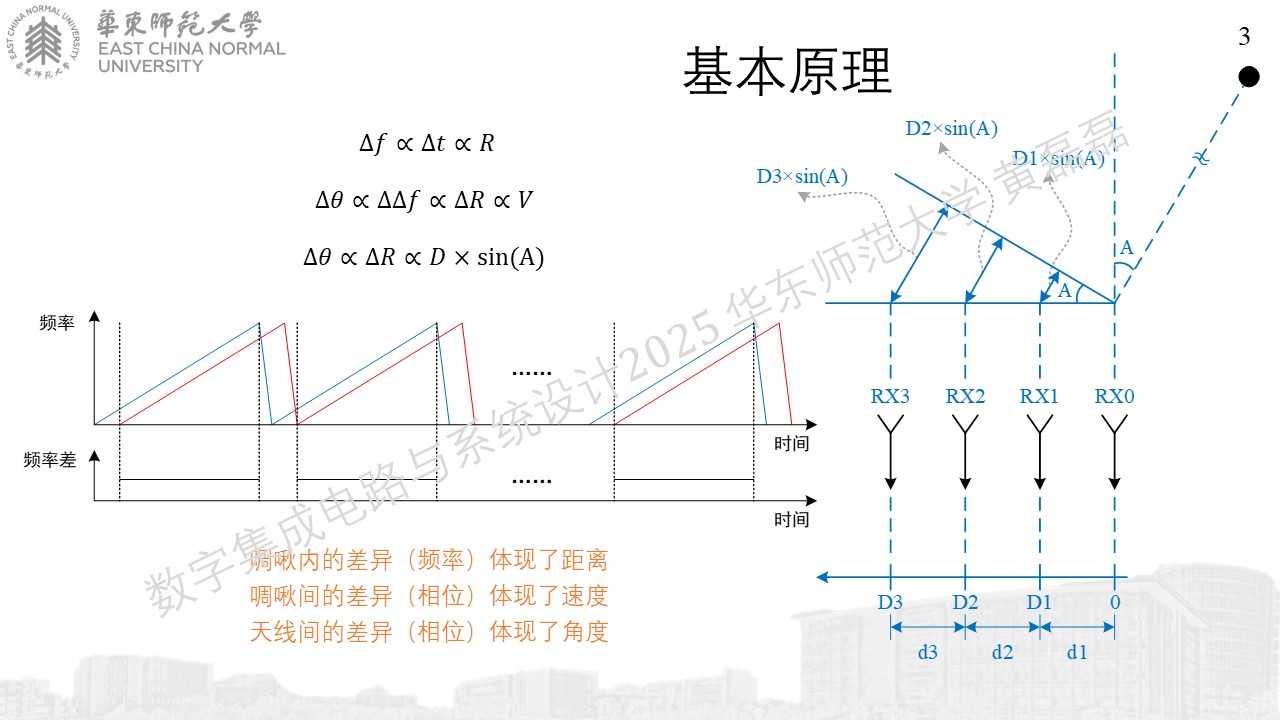

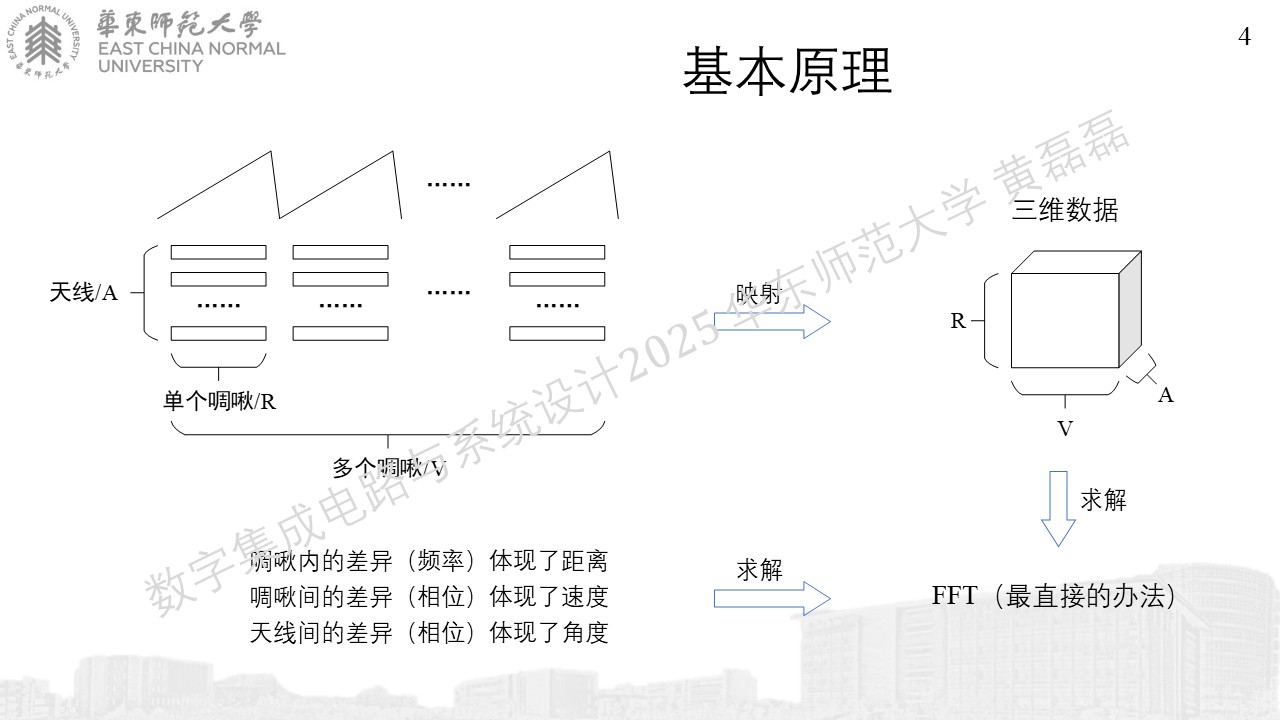

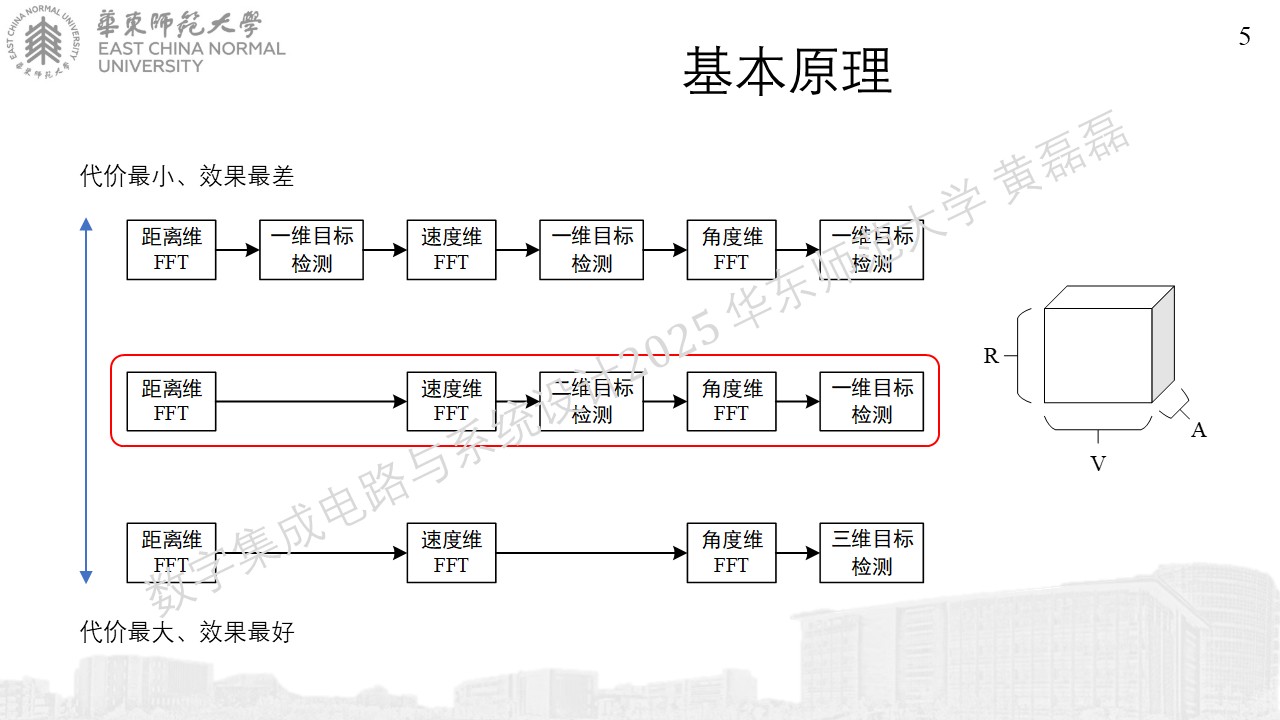

毫米波雷达概述

../_images/%E5%B9%BB%E7%81%AF%E7%89%872135.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873103.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87470.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87547.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87644.JPG

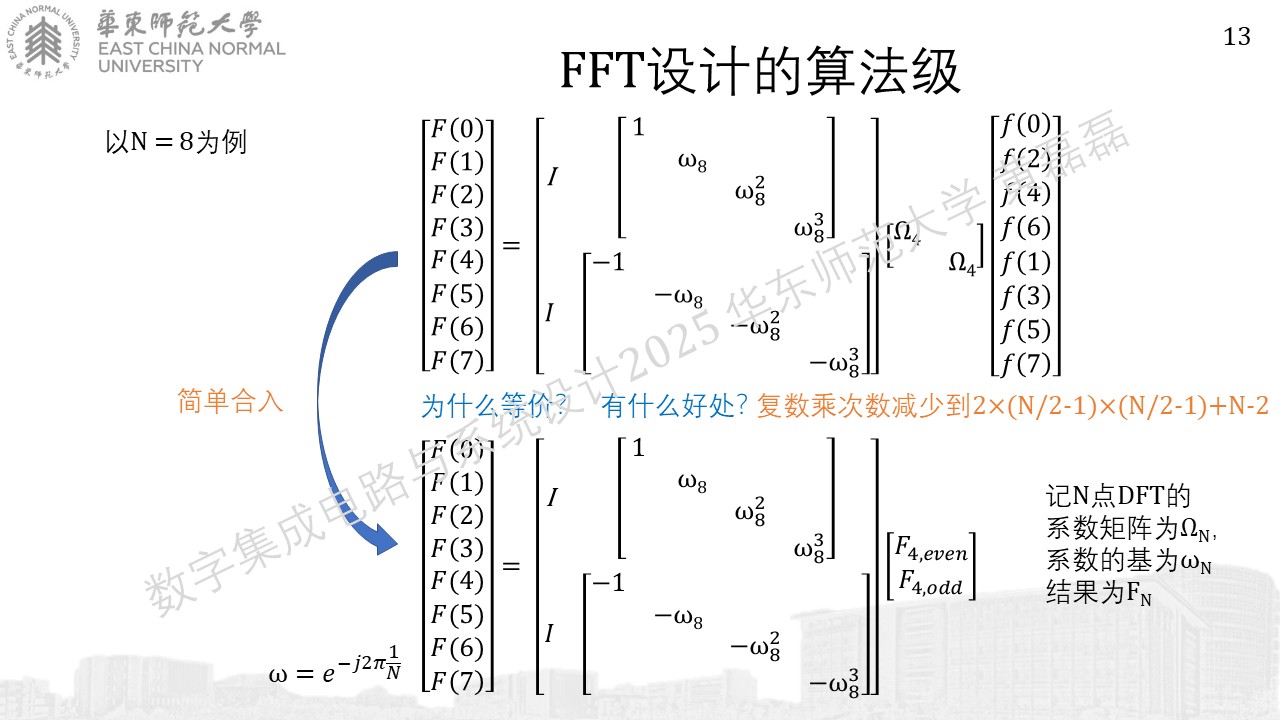

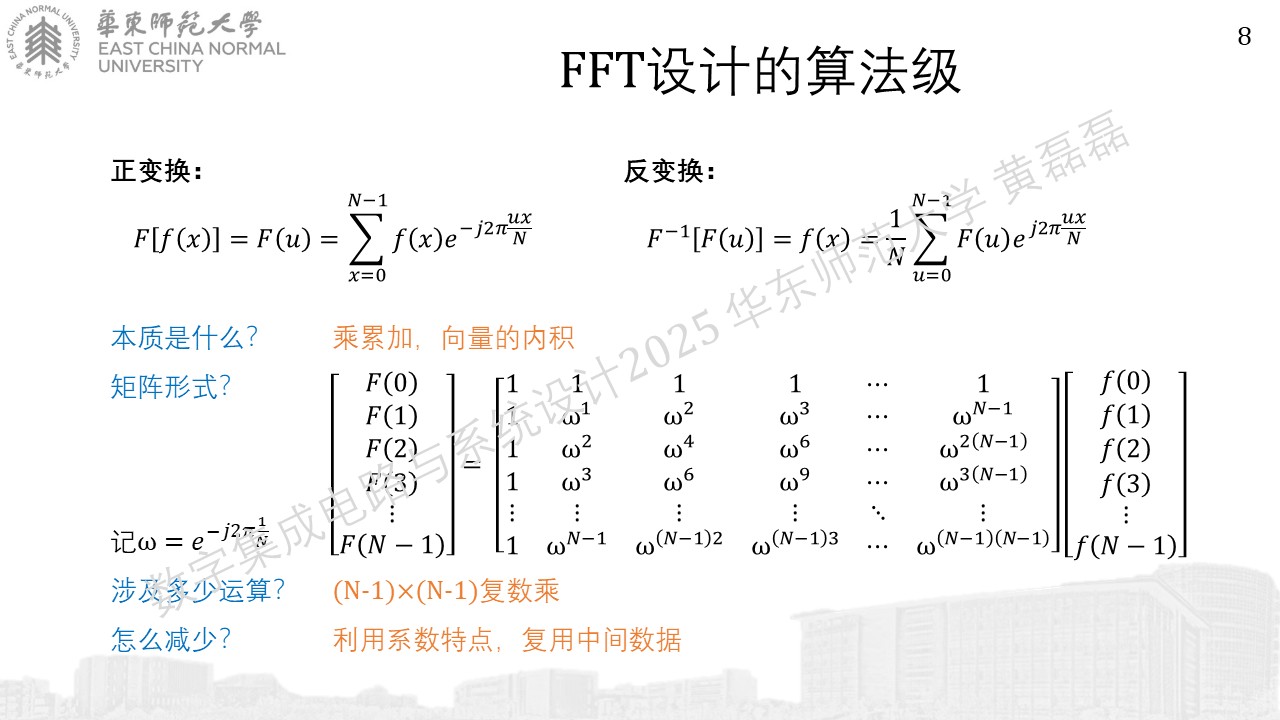

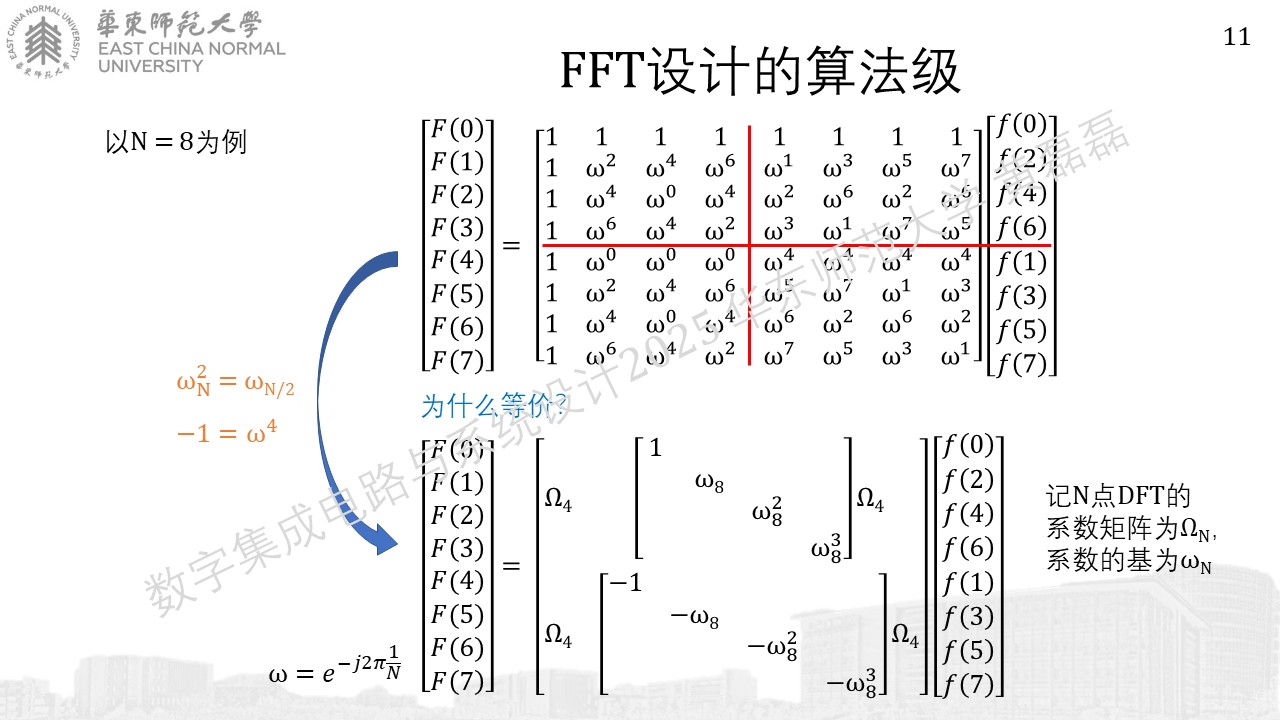

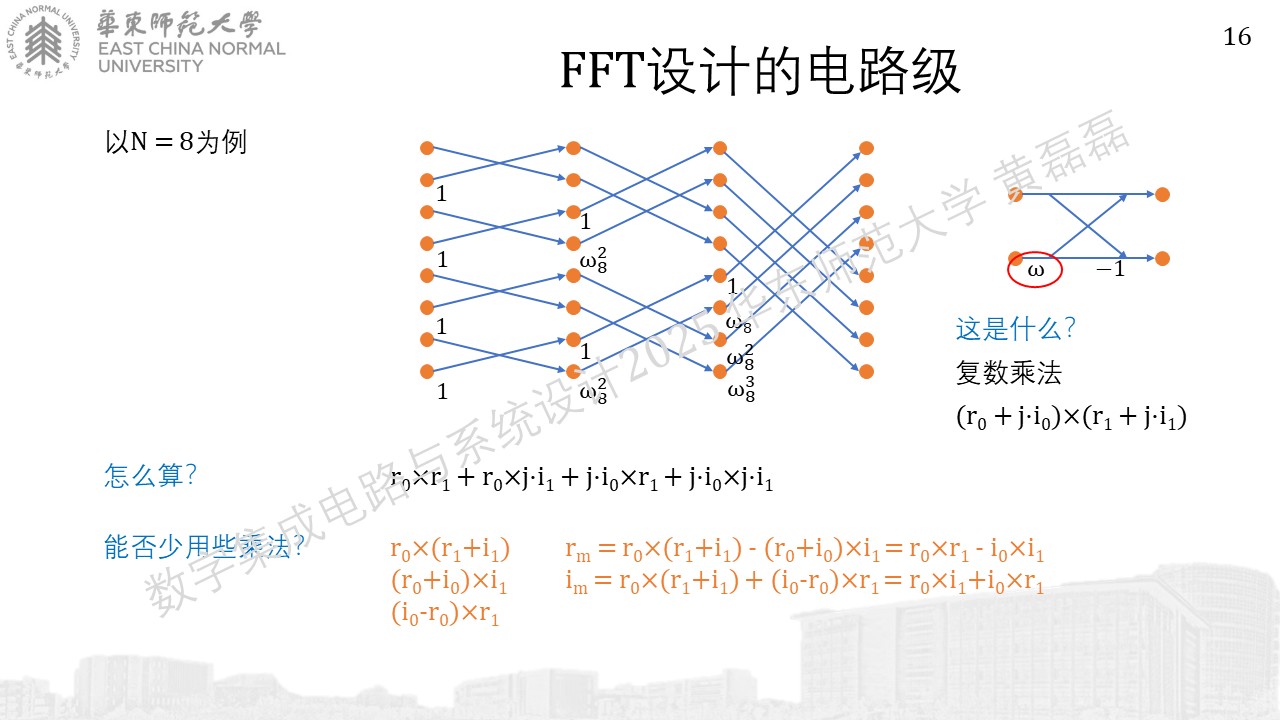

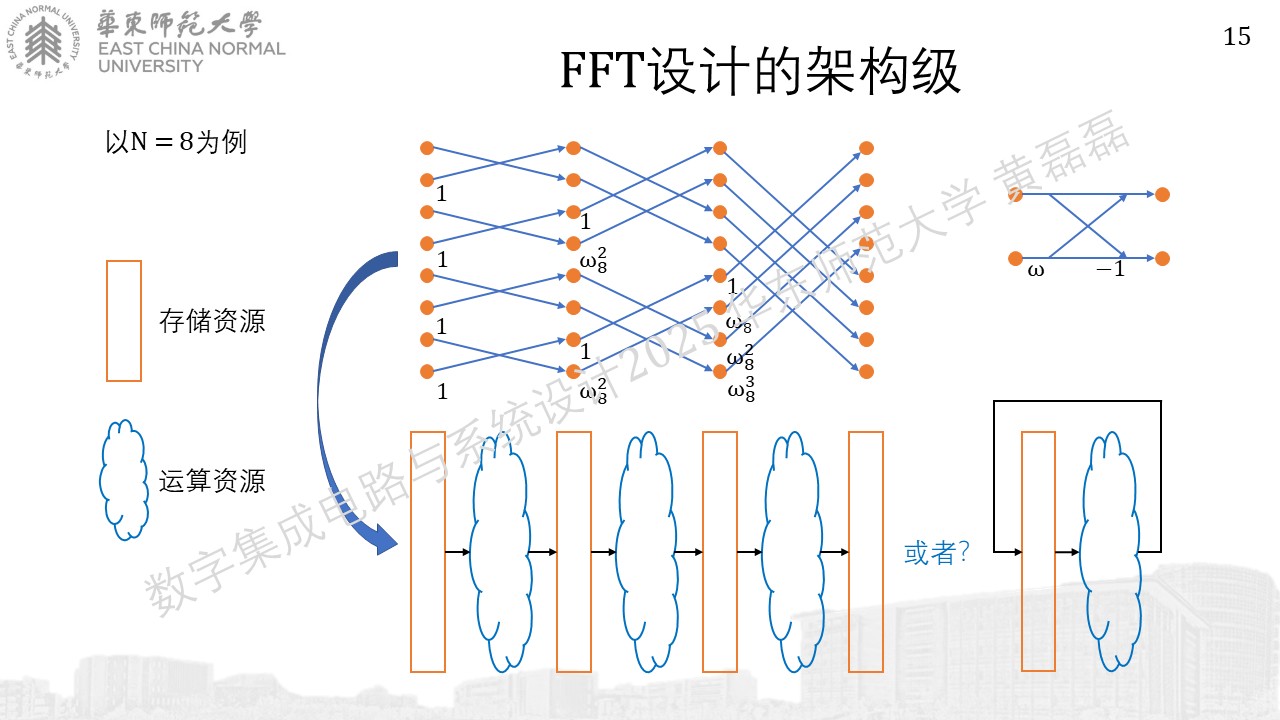

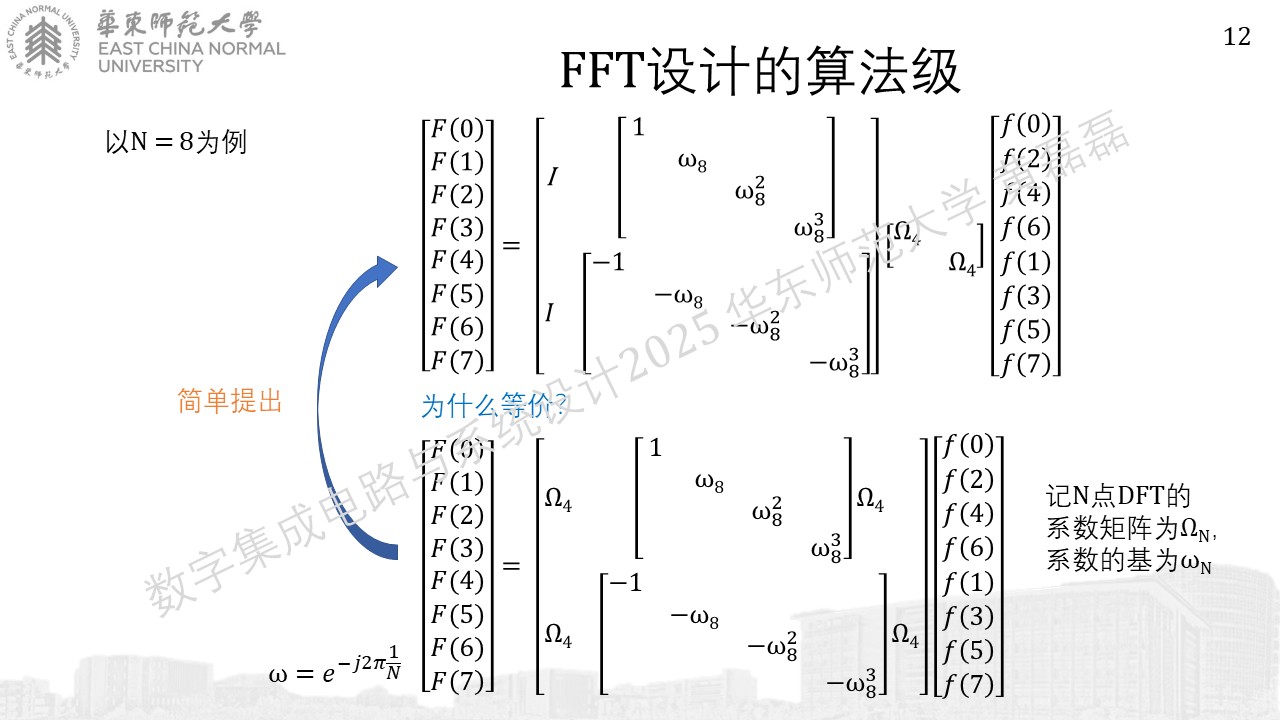

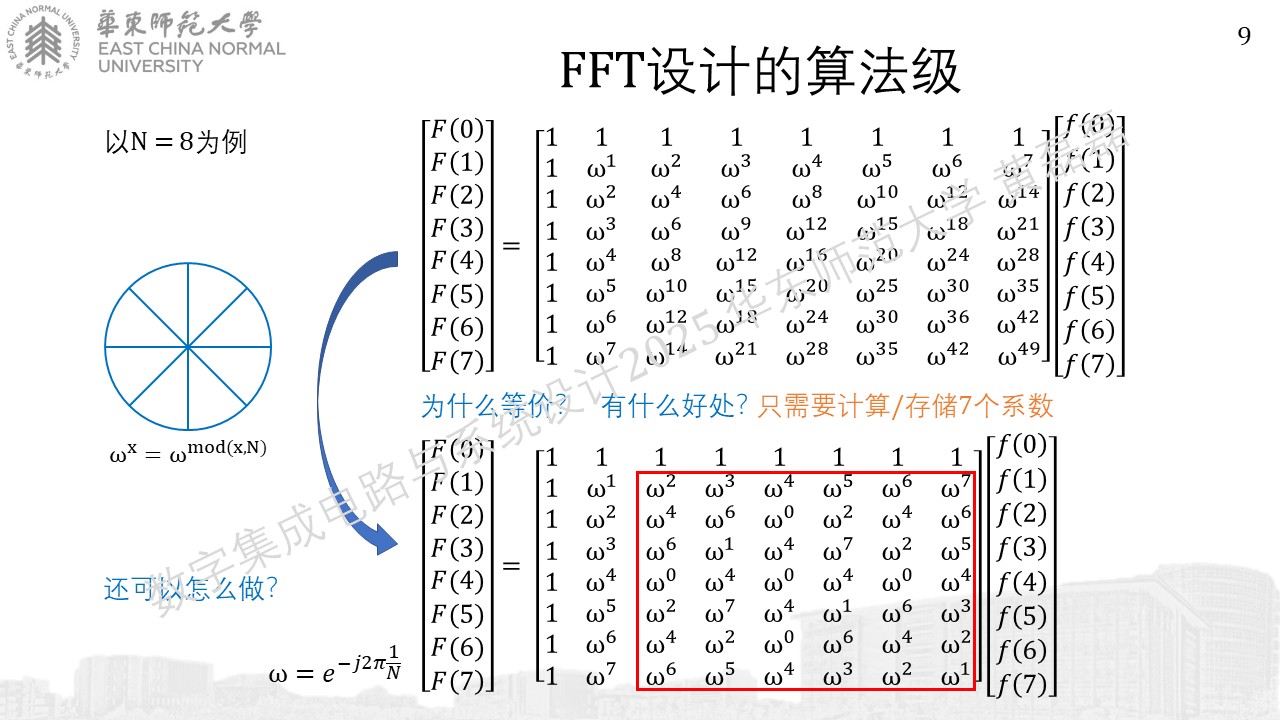

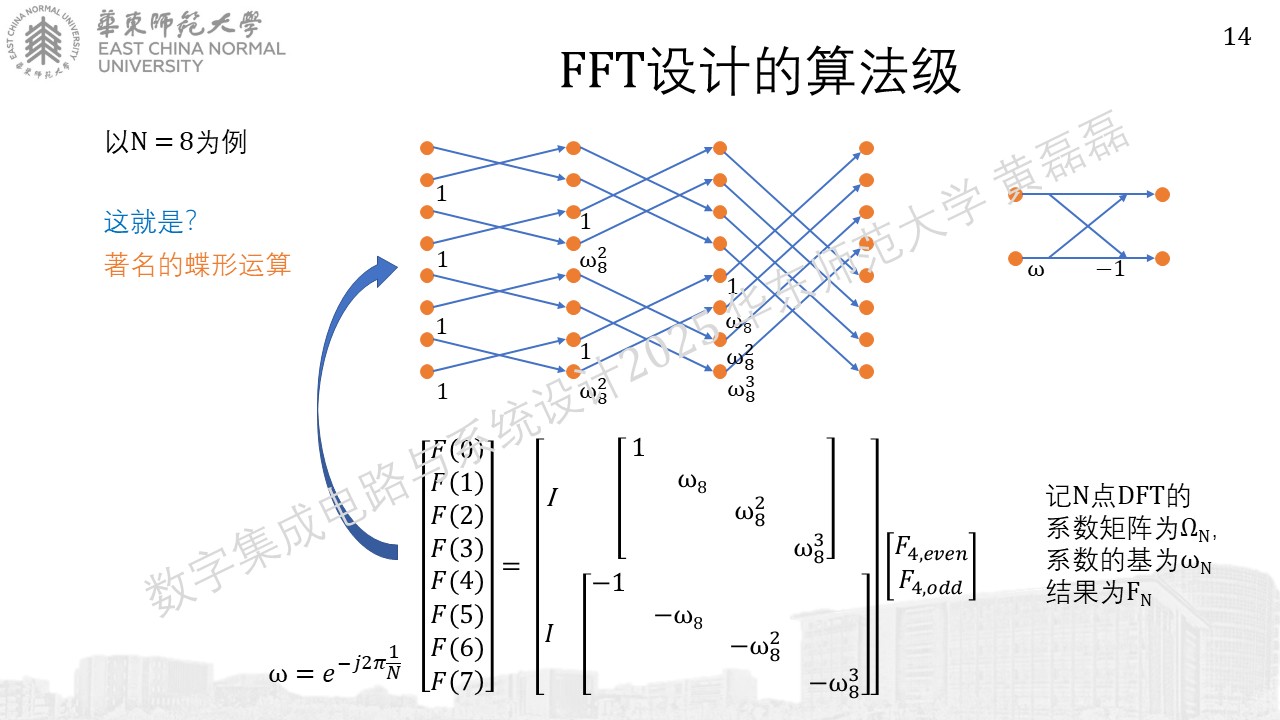

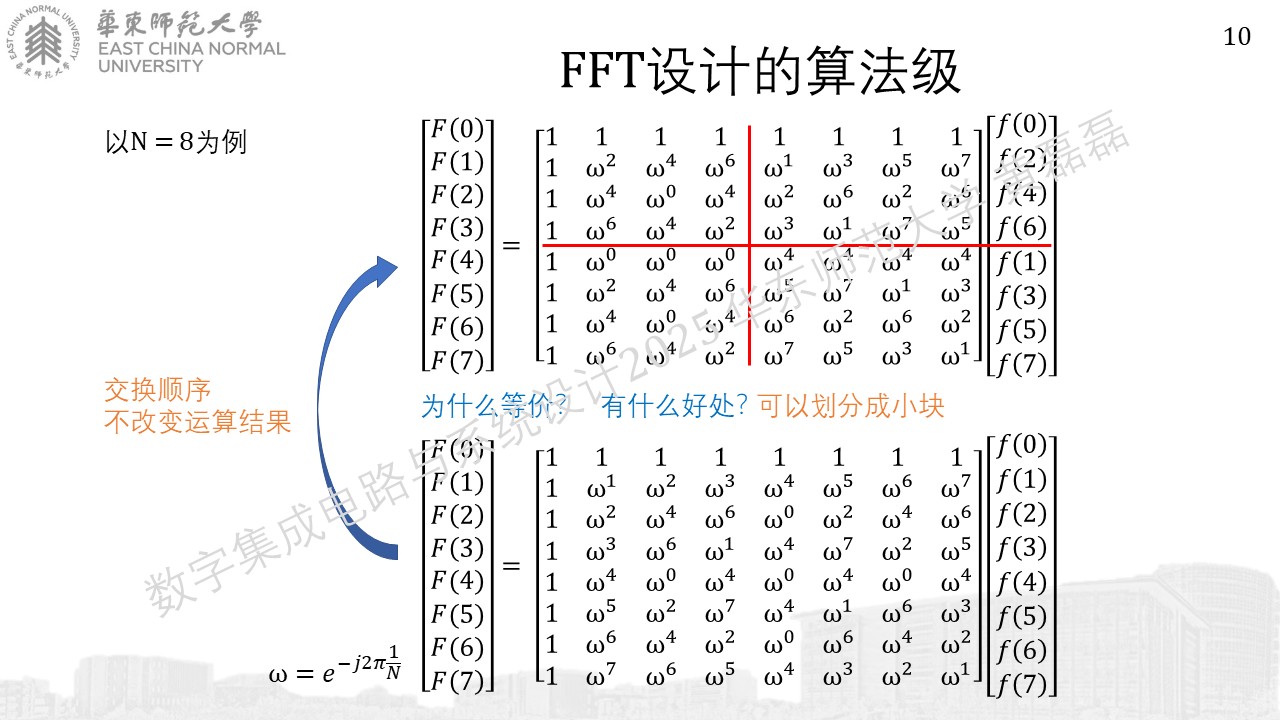

一个小例子（FFT）

../_images/%E5%B9%BB%E7%81%AF%E7%89%87744.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87840.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87938.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871038.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871155.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871240.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871337.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871437.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871537.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871636.JPG

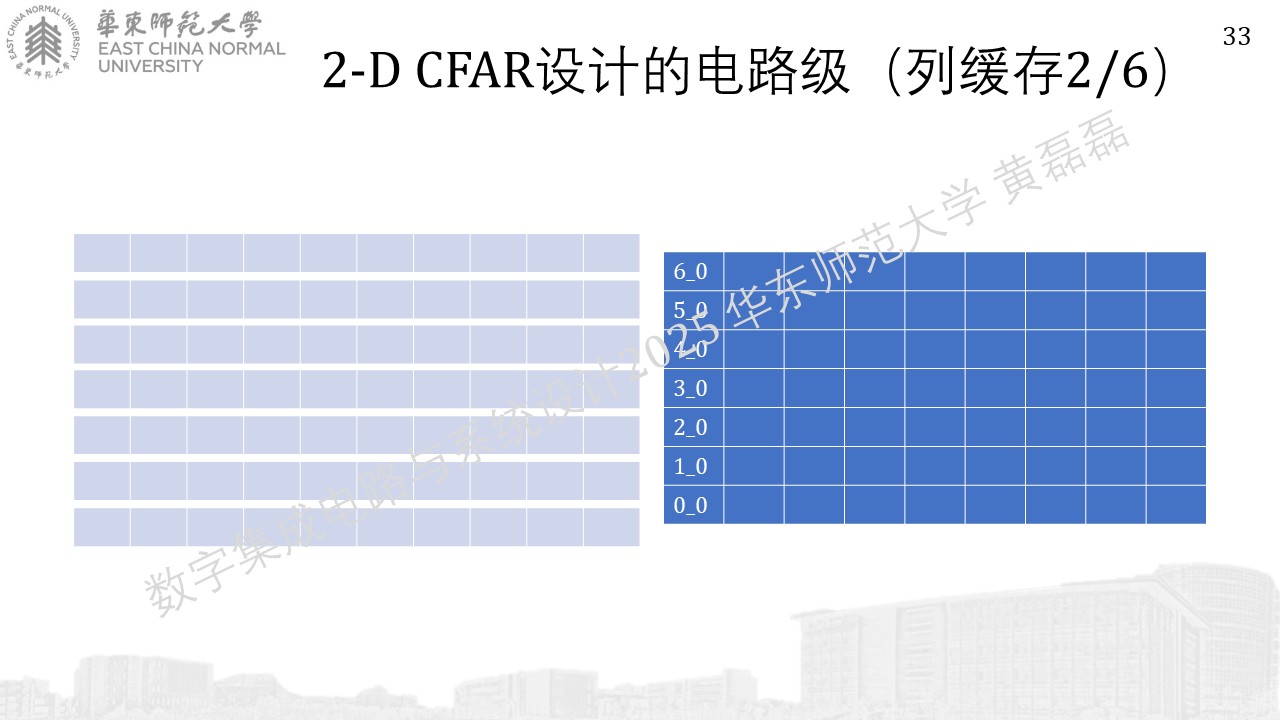

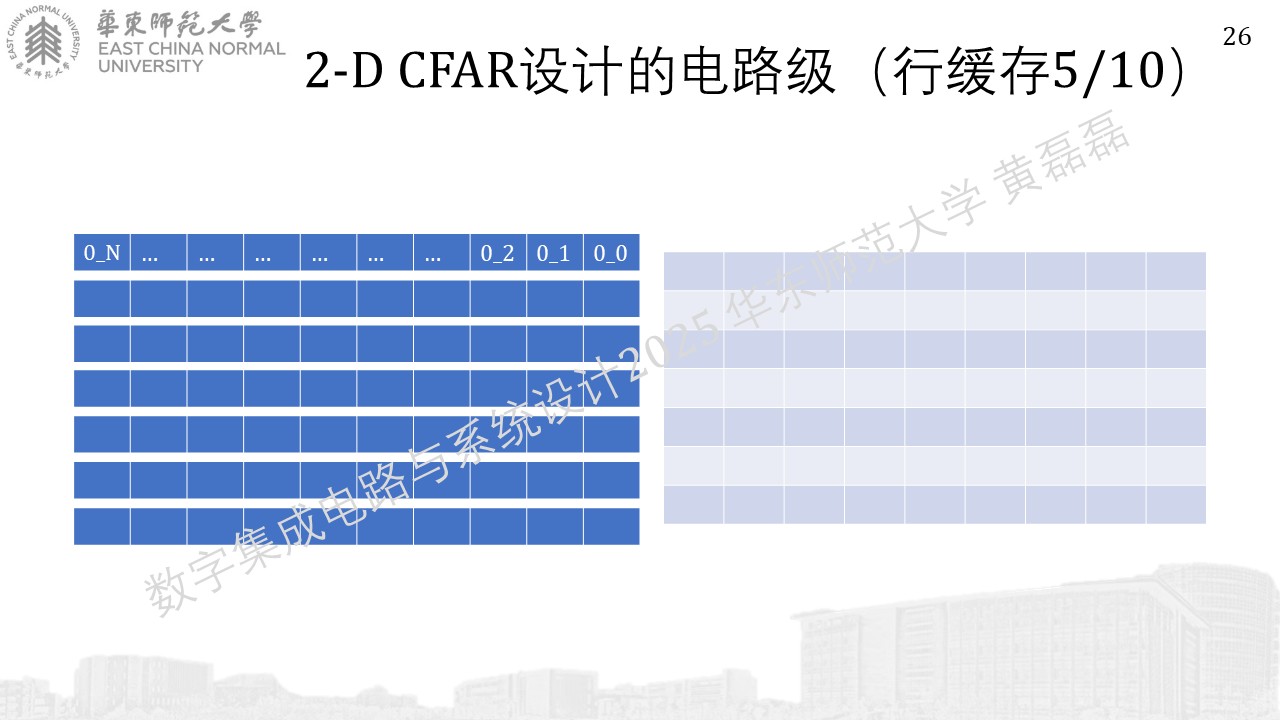

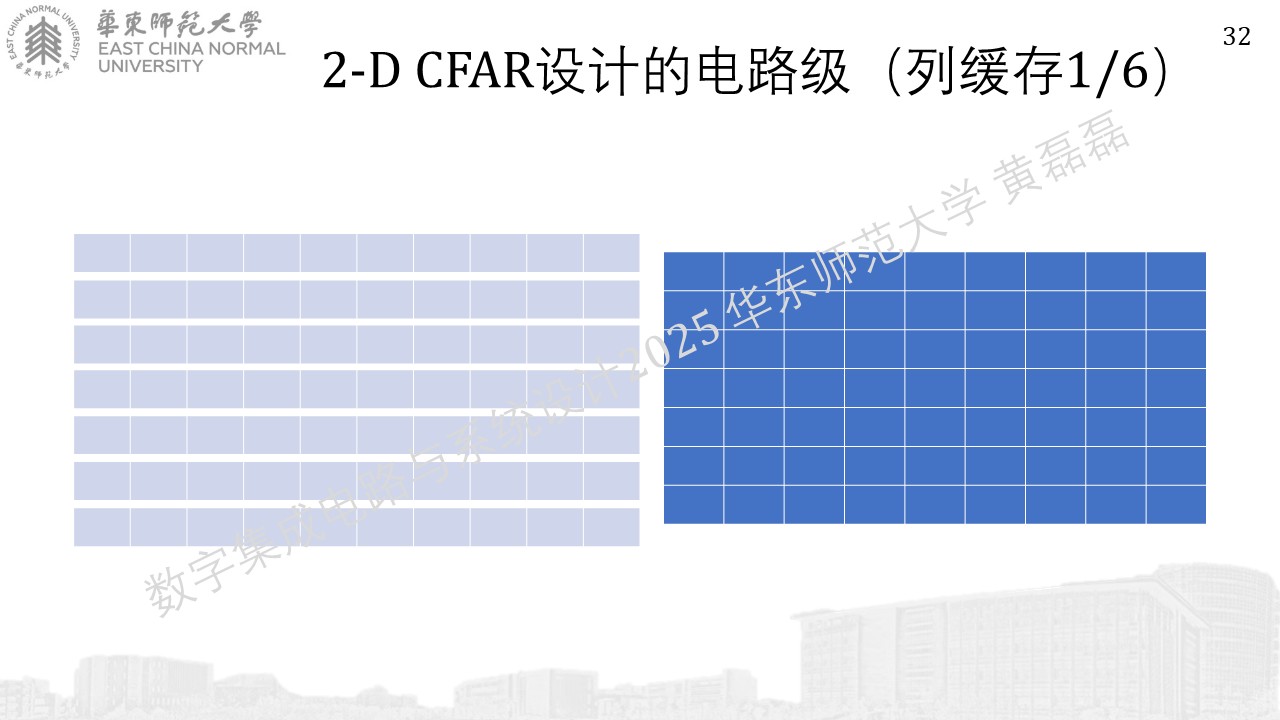

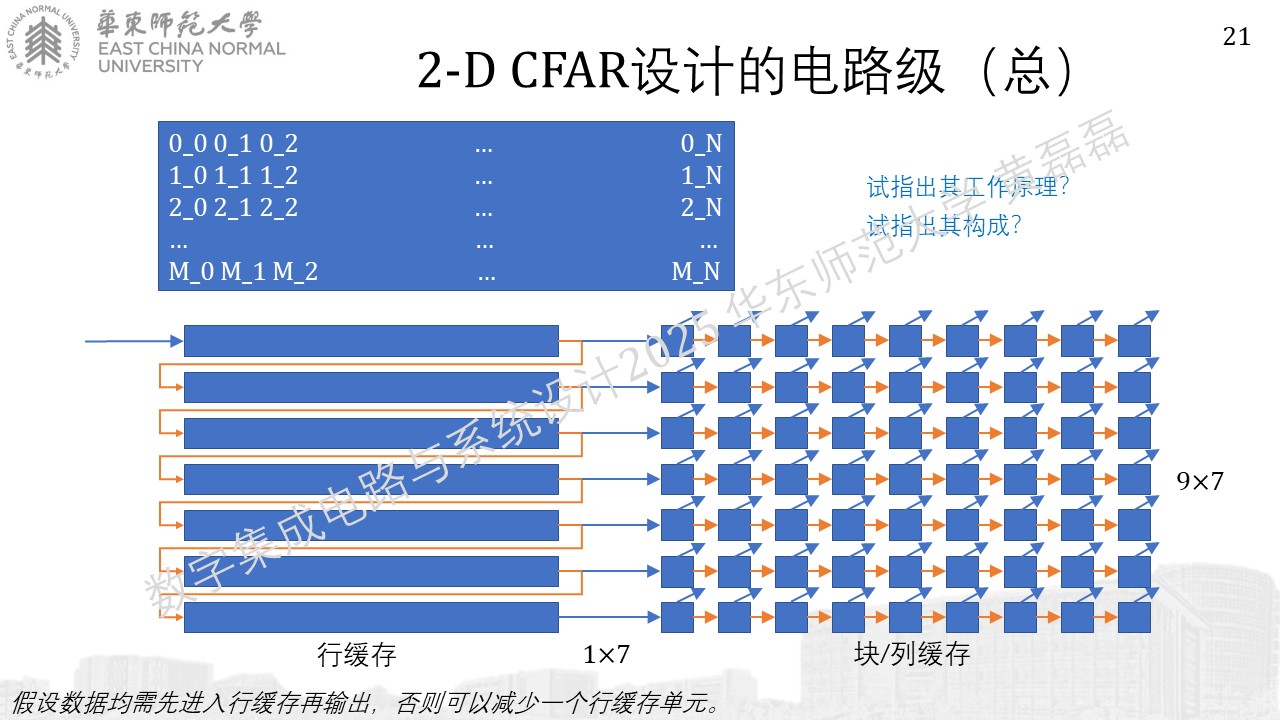

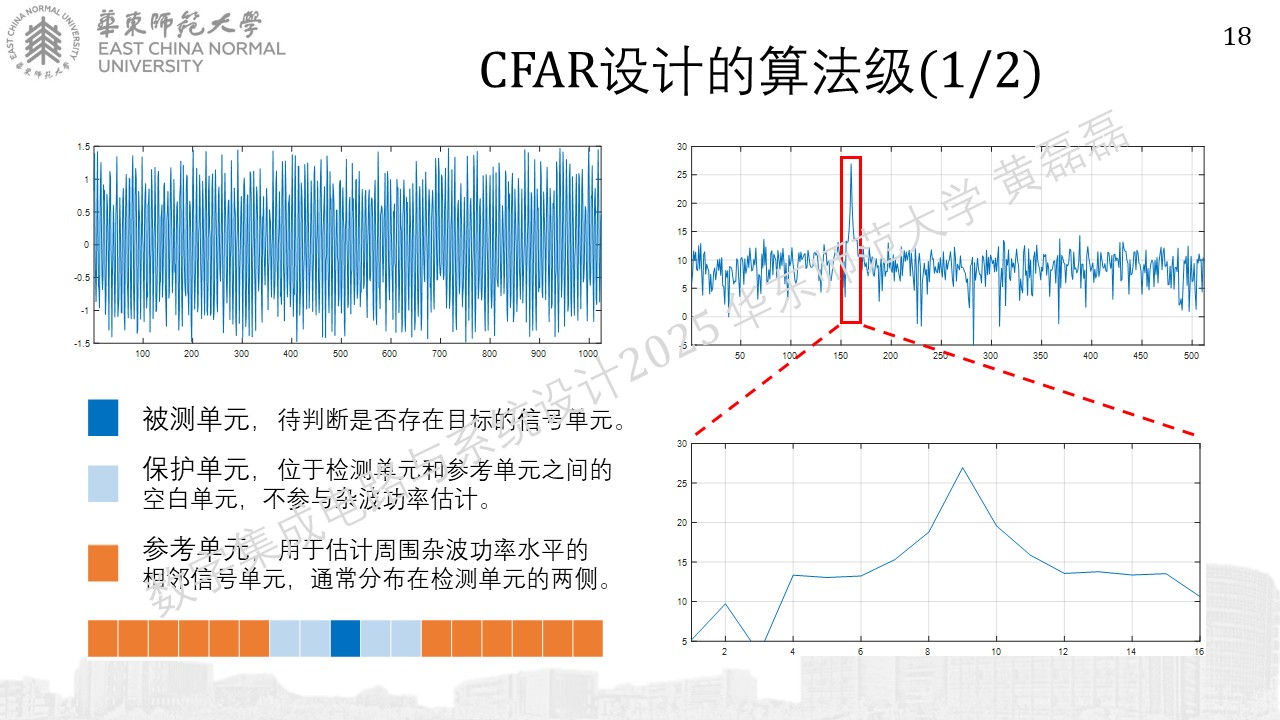

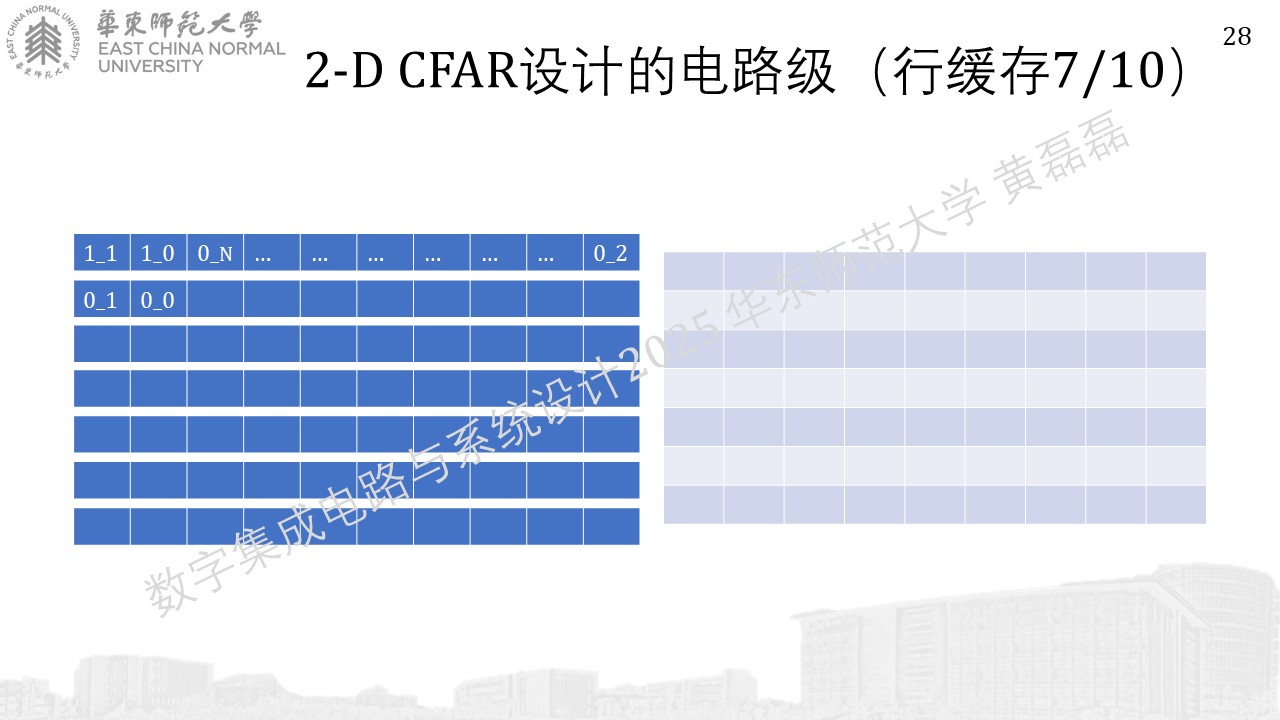

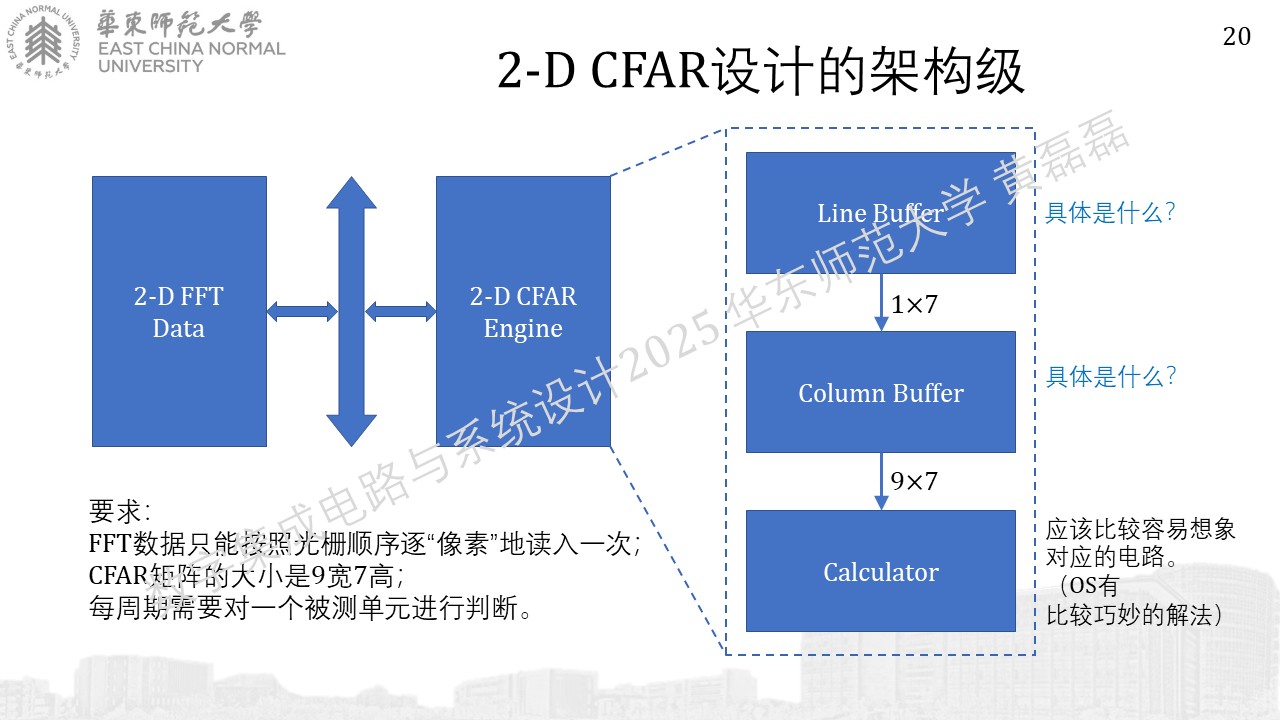

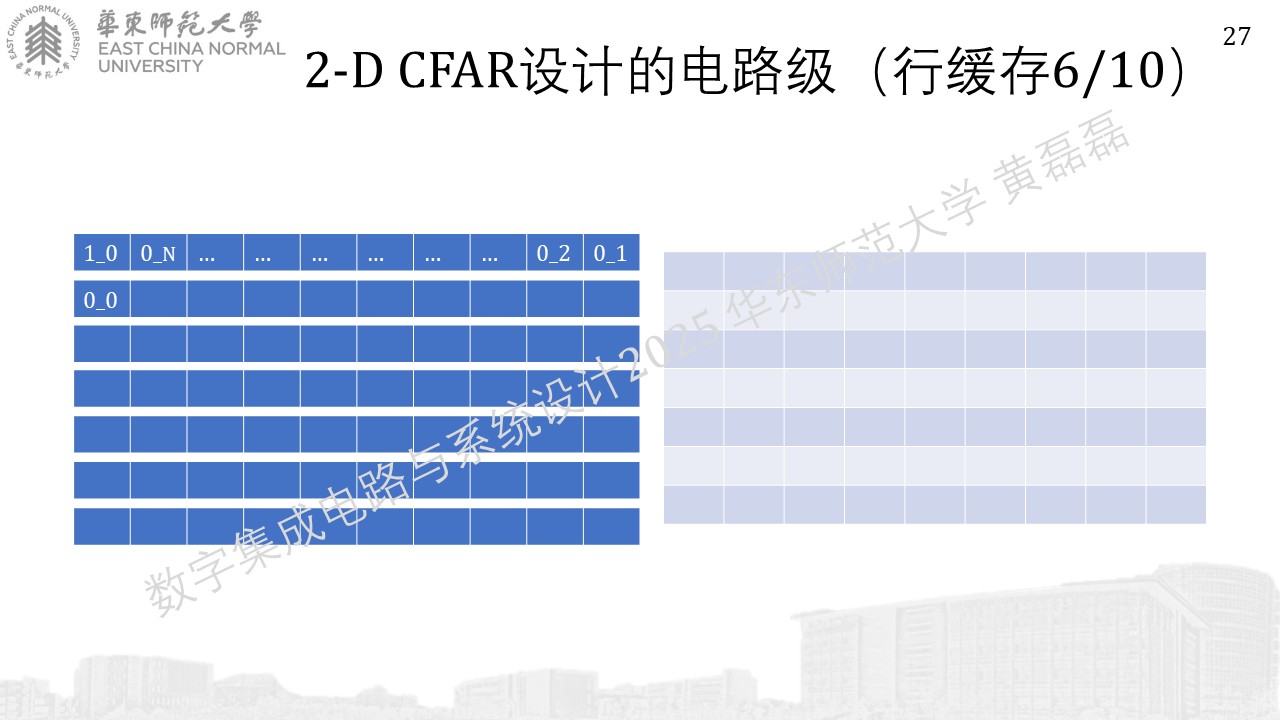

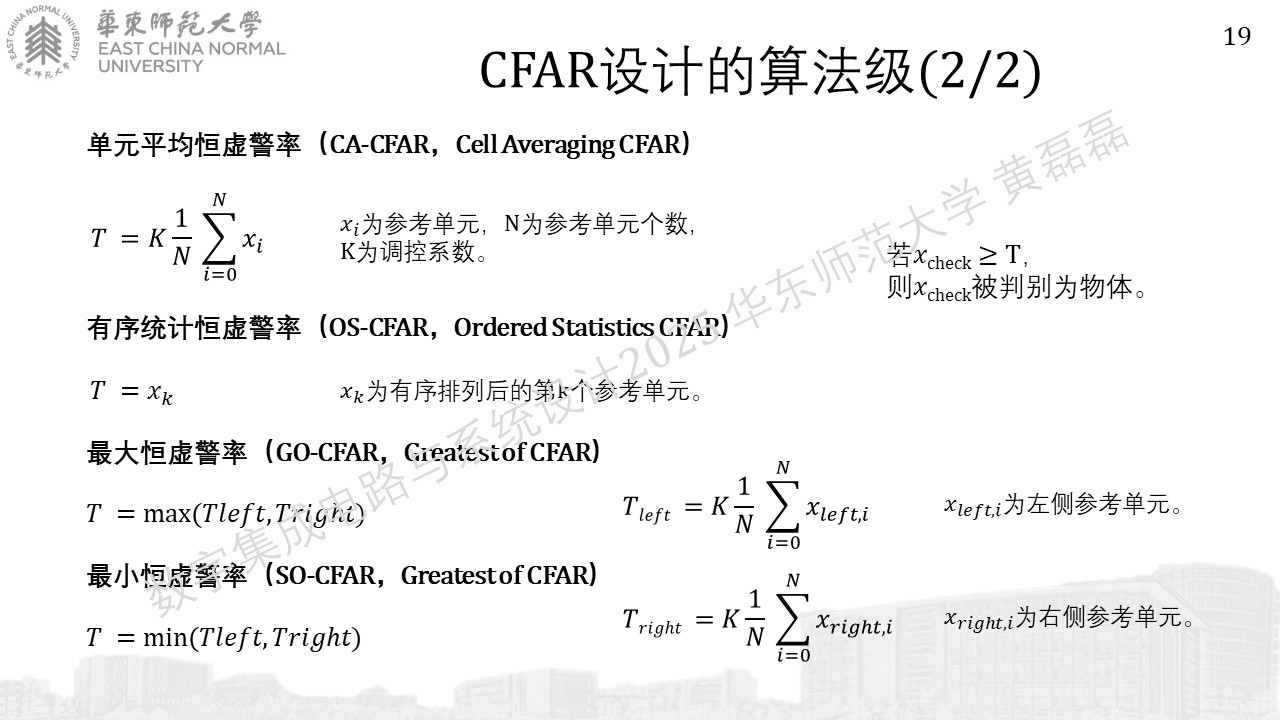

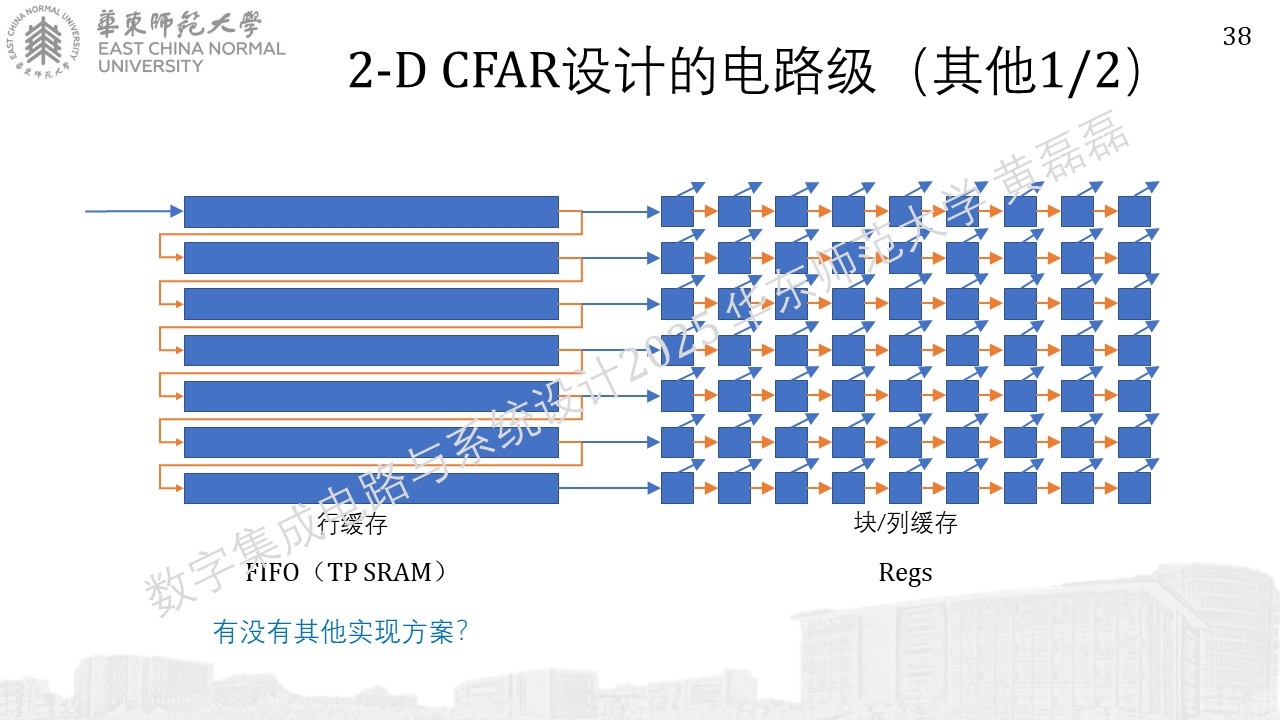

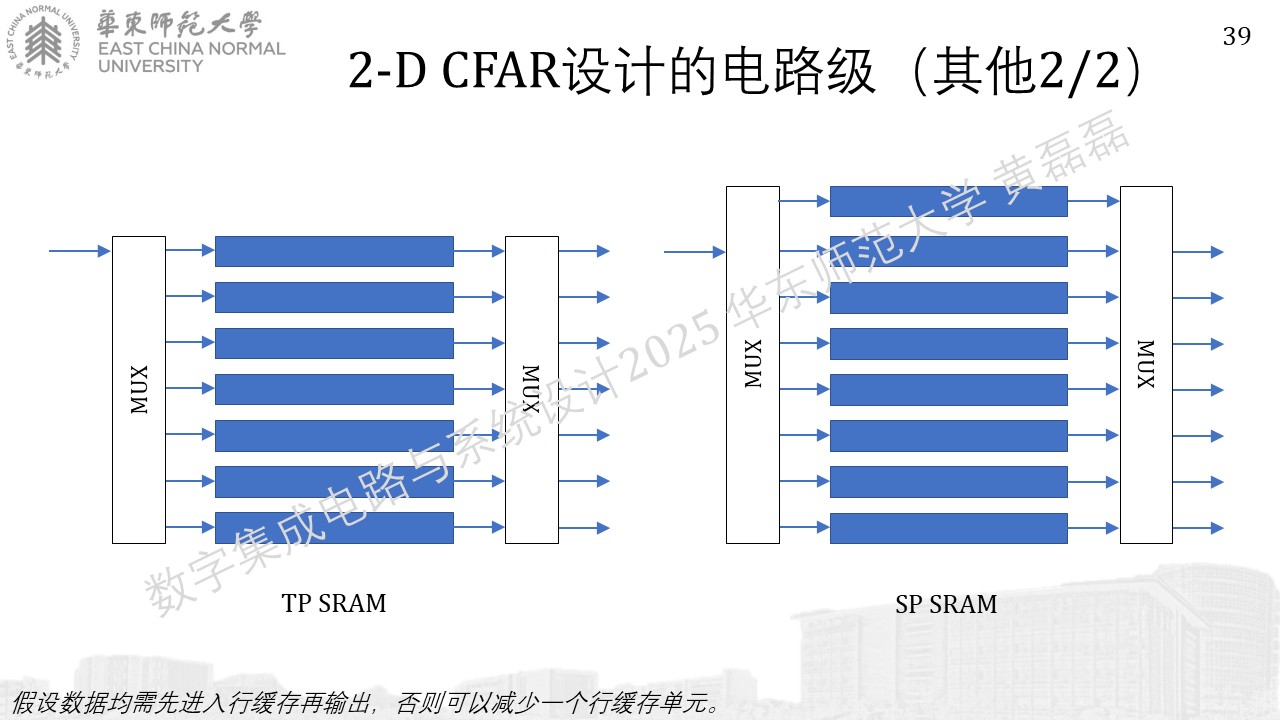

一个小例子（CFAR）

../_images/%E5%B9%BB%E7%81%AF%E7%89%871735.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871833.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871932.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872031.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872136.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872229.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872327.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872425.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872523.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872622.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872721.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872820.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872919.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873018.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873123.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873221.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873320.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873417.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873515.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873613.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873713.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873812.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873911.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87409.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874116.JPG
