第01讲 - 逻辑代数 - 概述

../_images/%E5%B9%BB%E7%81%AF%E7%89%871.JPG

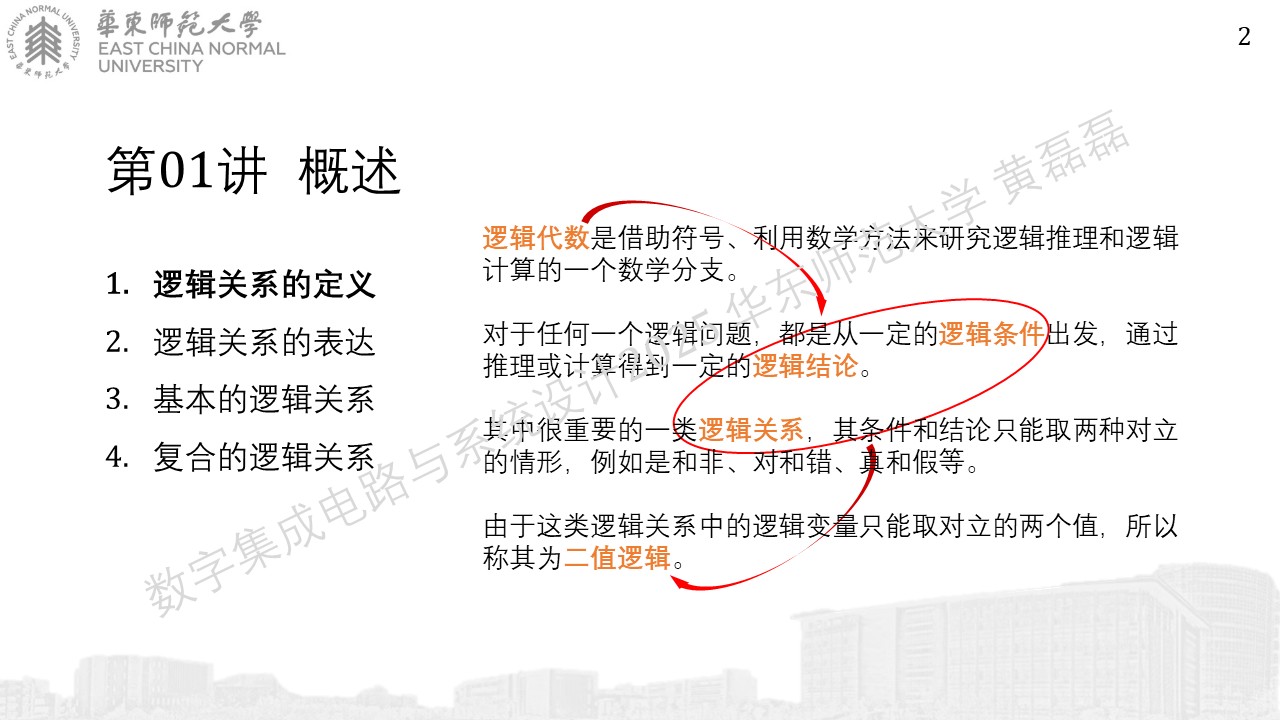

逻辑关系的定义

../_images/%E5%B9%BB%E7%81%AF%E7%89%872.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873.JPG

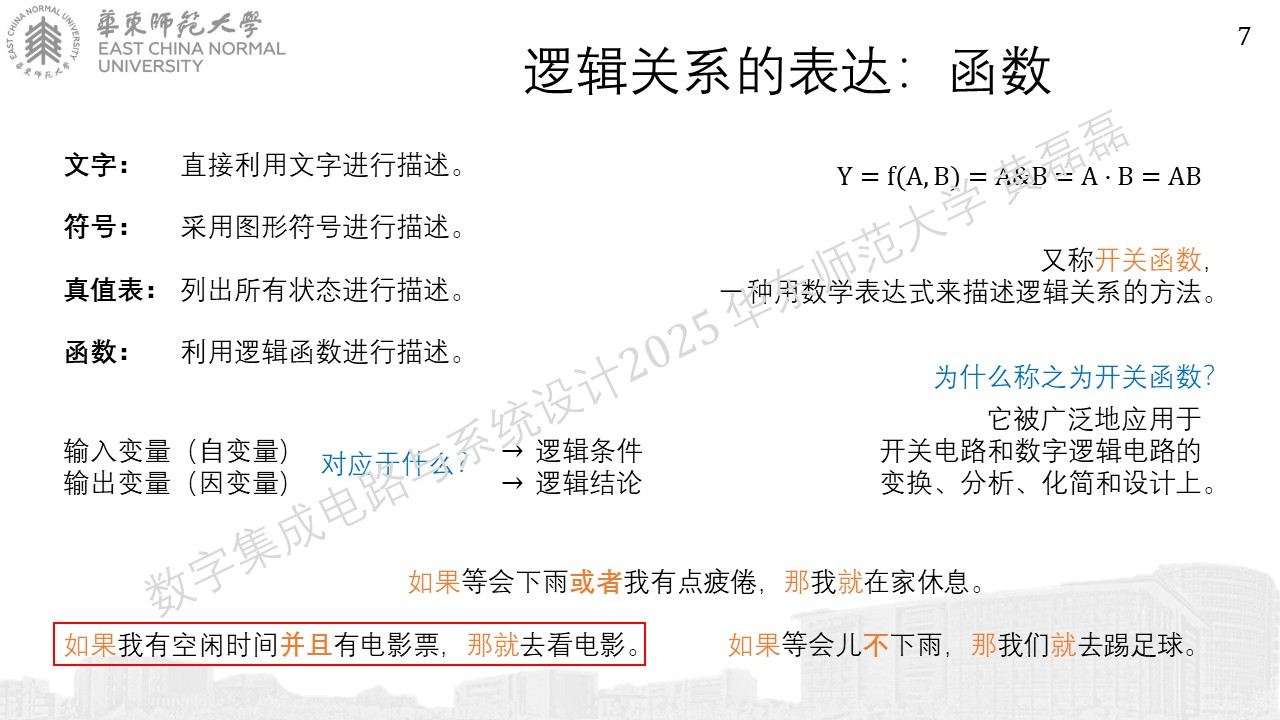

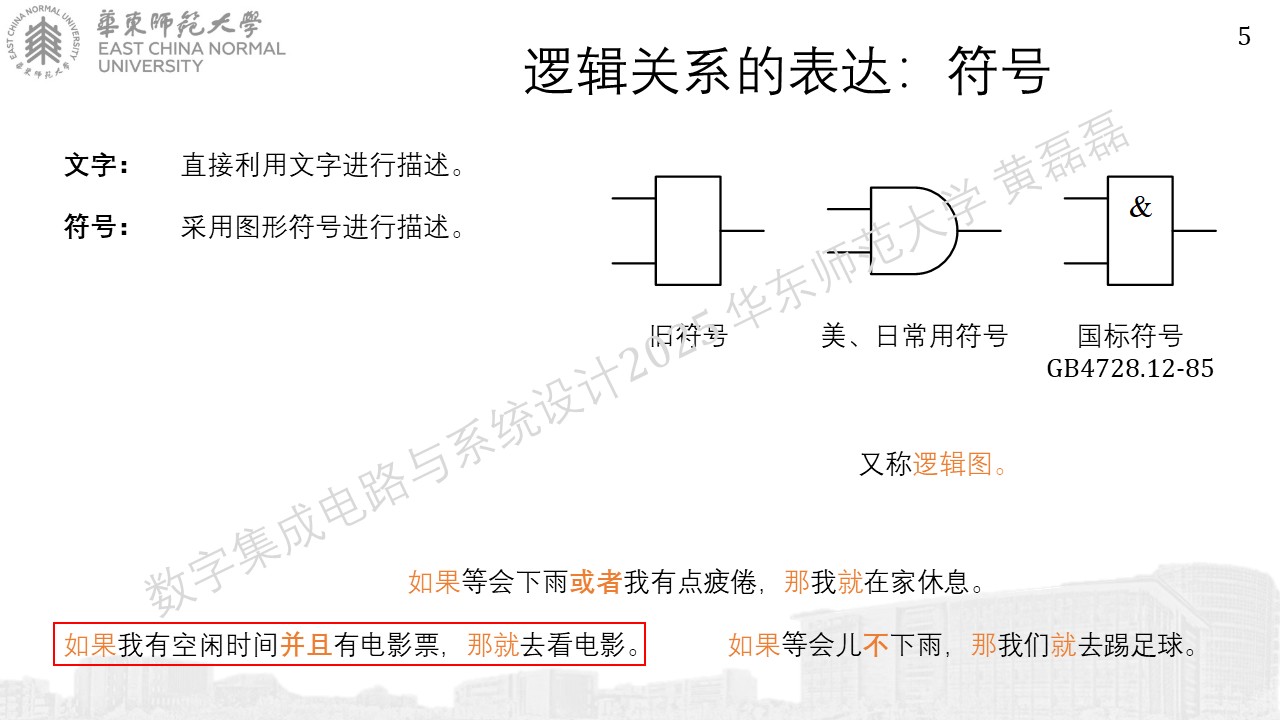

逻辑关系的表达

../_images/%E5%B9%BB%E7%81%AF%E7%89%874.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%875.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%876.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%877.JPG

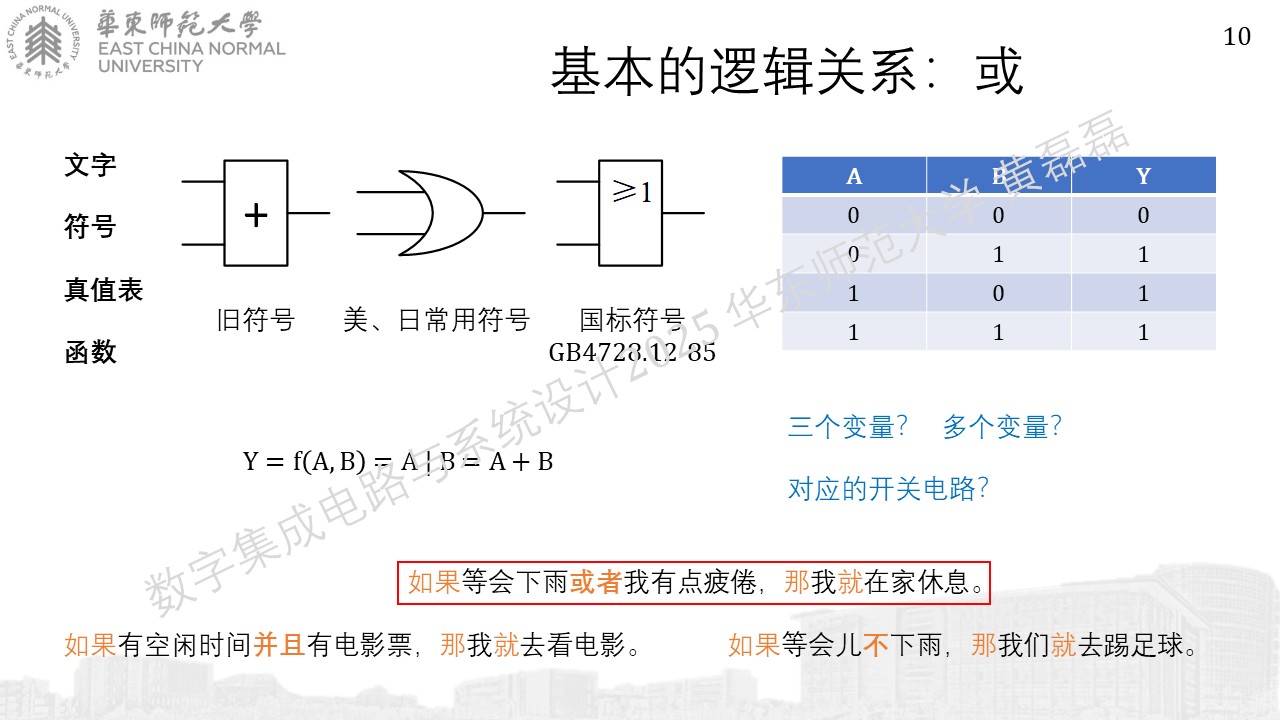

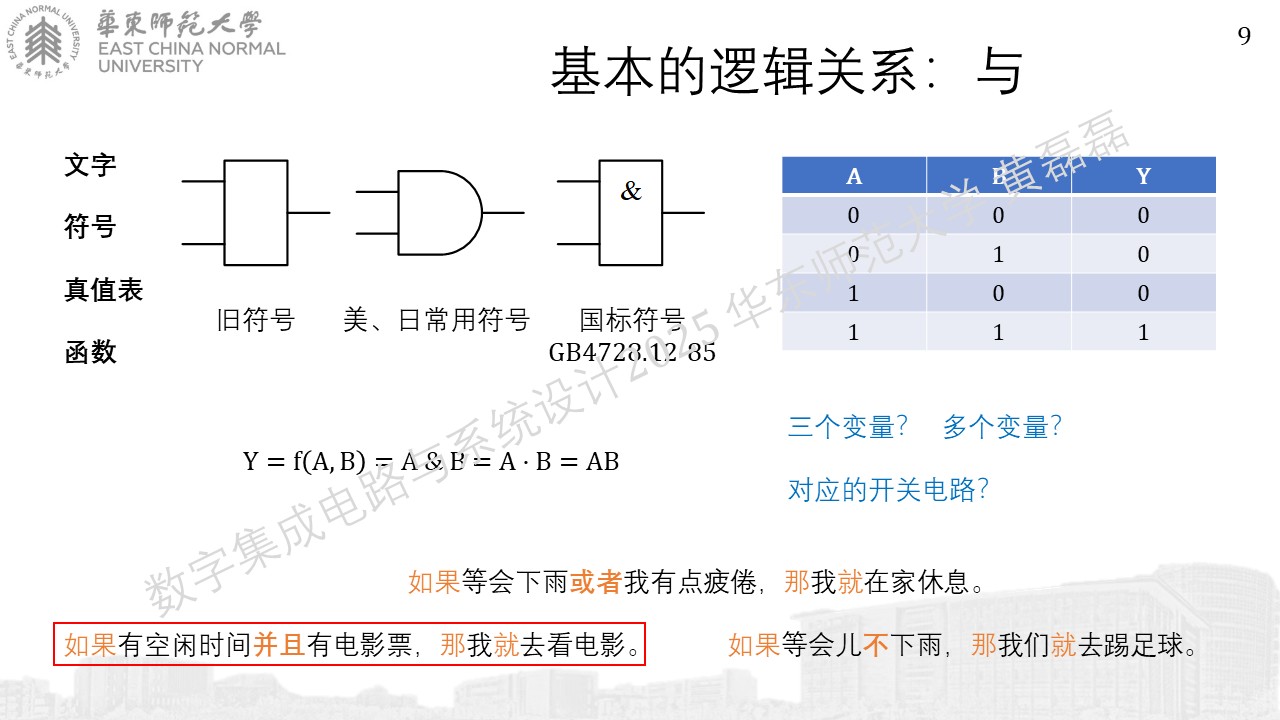

基本的逻辑关系

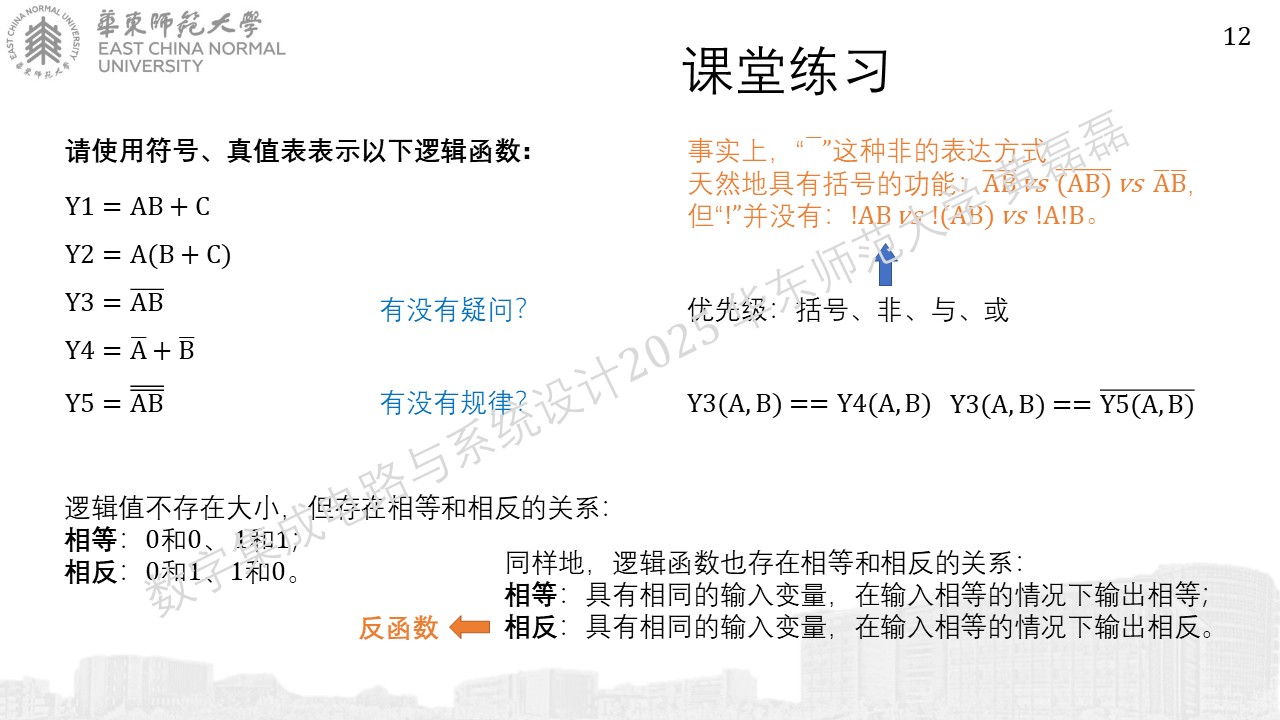

../_images/%E5%B9%BB%E7%81%AF%E7%89%878.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%879.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8710.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8711.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8712.JPG

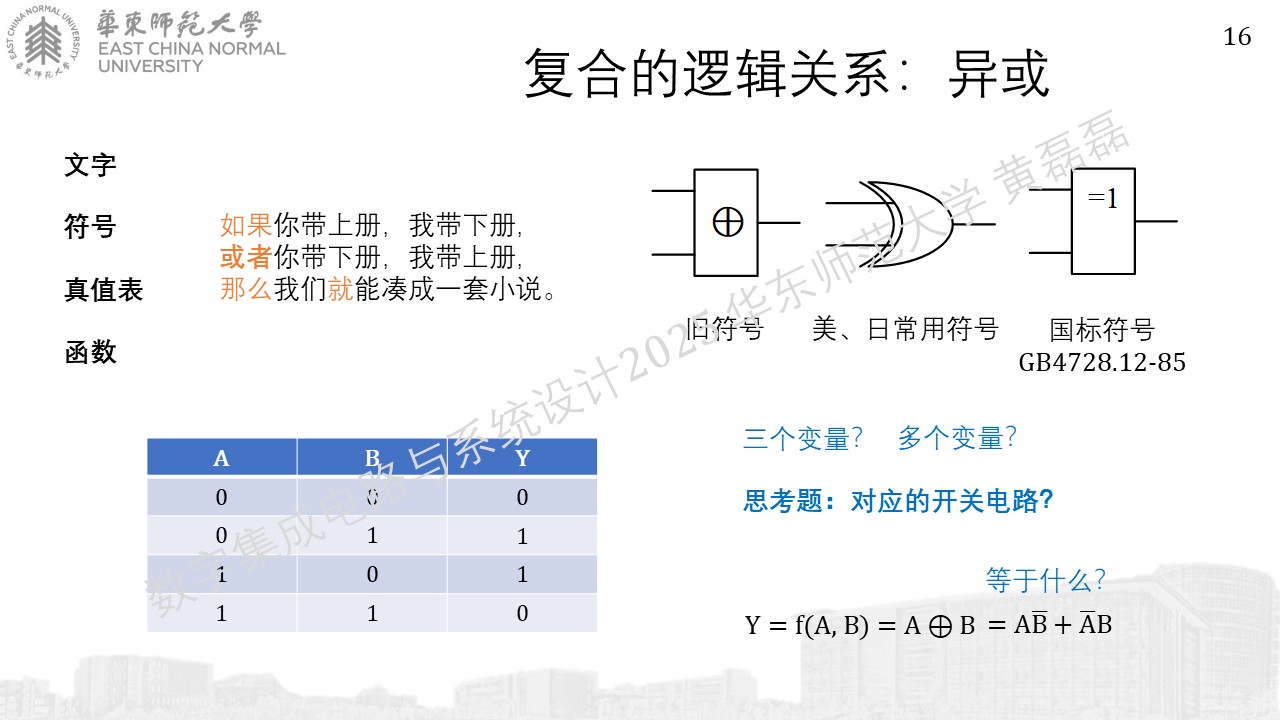

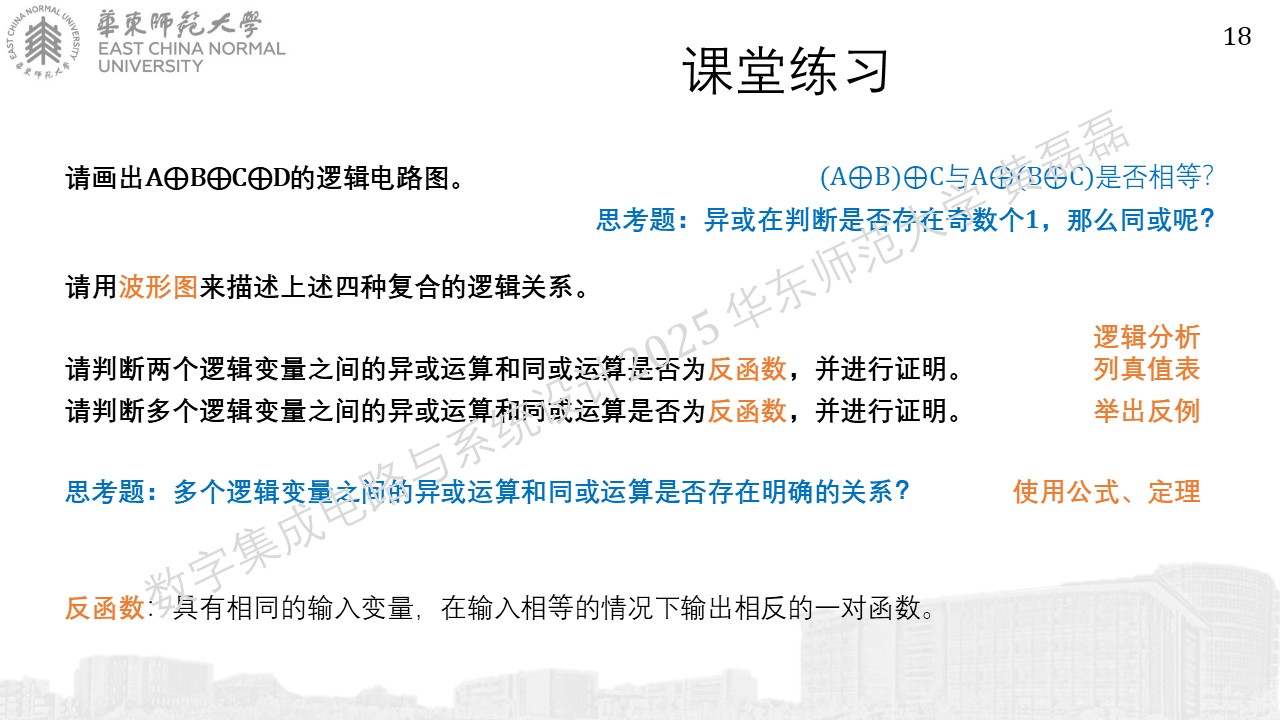

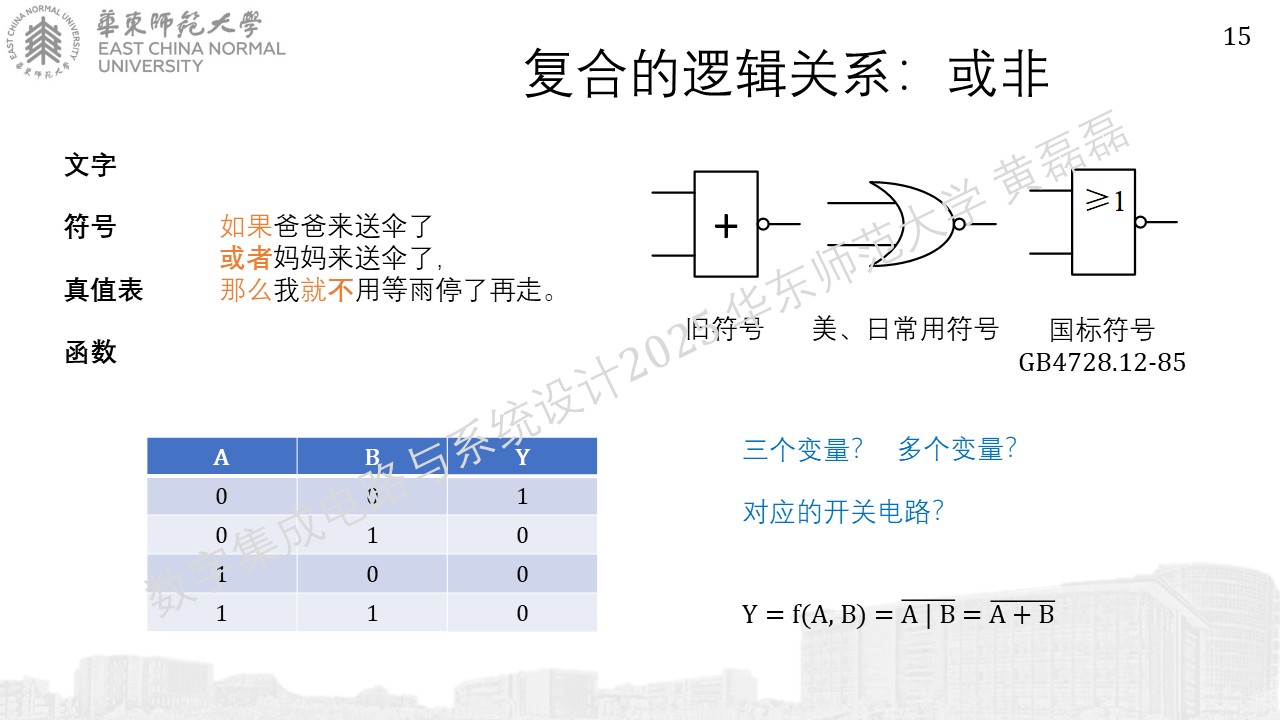

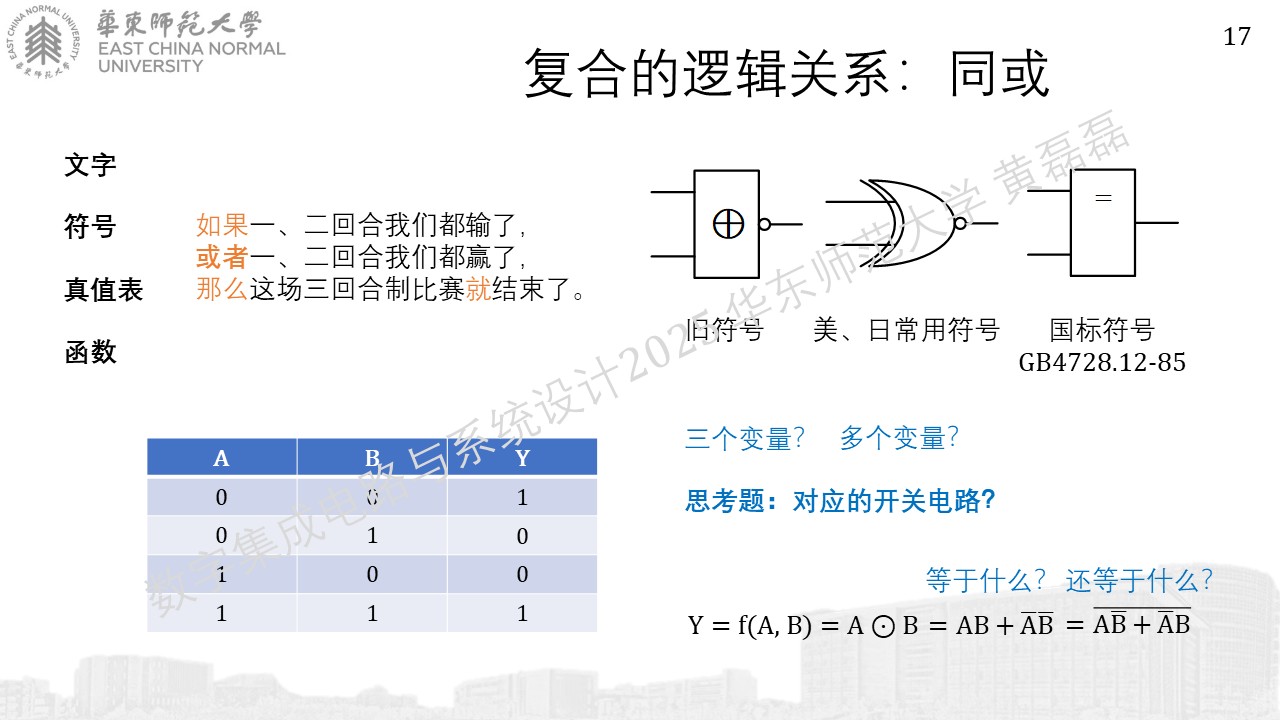

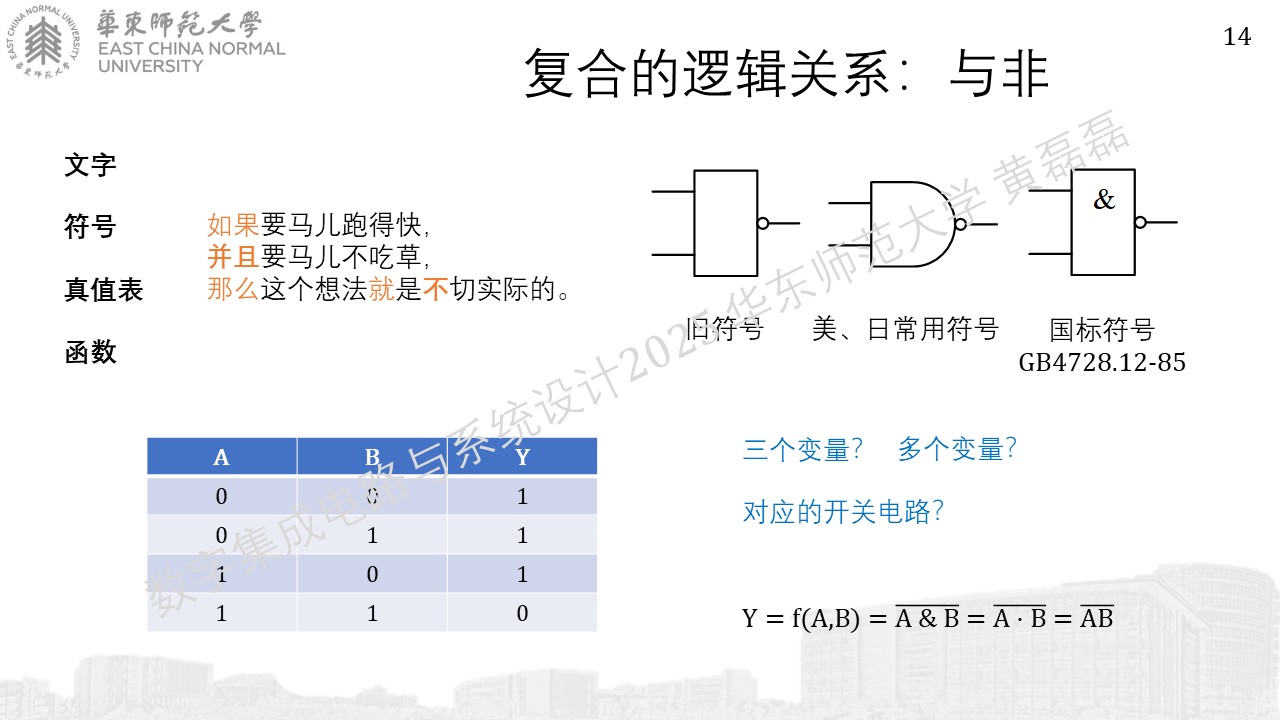

复合的逻辑关系

../_images/%E5%B9%BB%E7%81%AF%E7%89%8713.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8714.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8715.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8716.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8717.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8718.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8719.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8720.JPG
