第04讲 - 组合逻辑 - 电路的分析

../_images/%E5%B9%BB%E7%81%AF%E7%89%871108.JPG

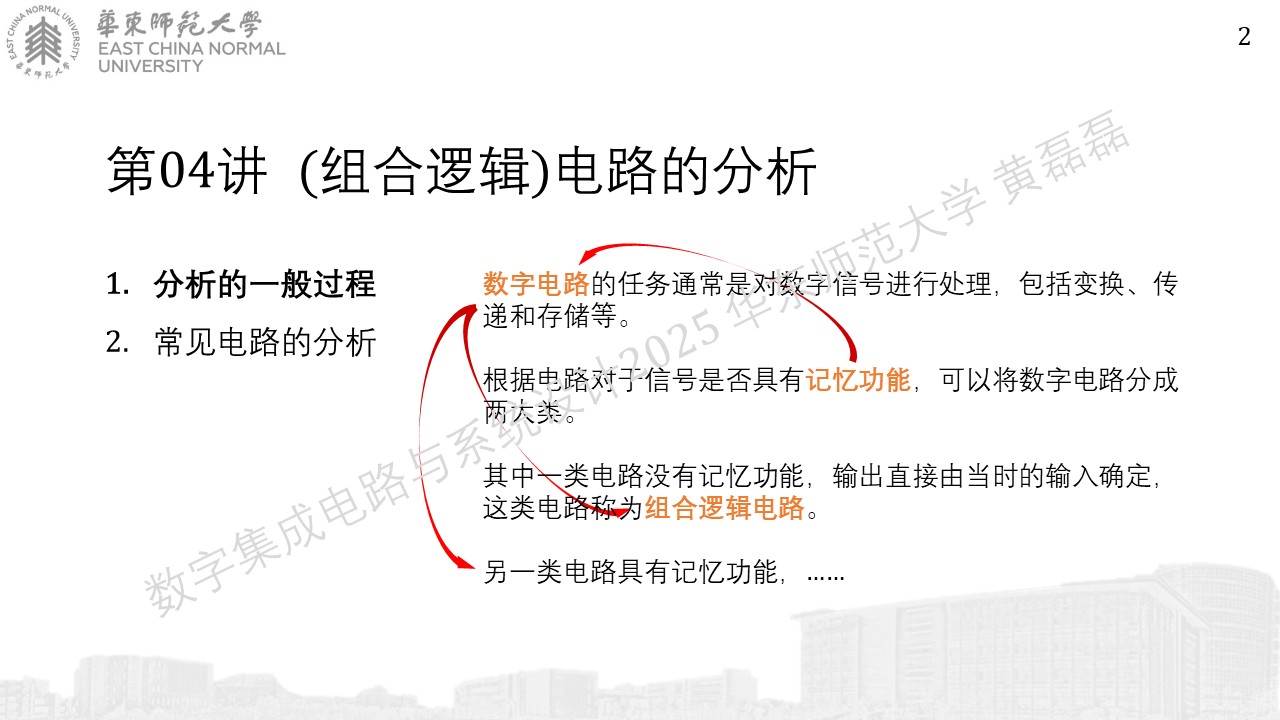

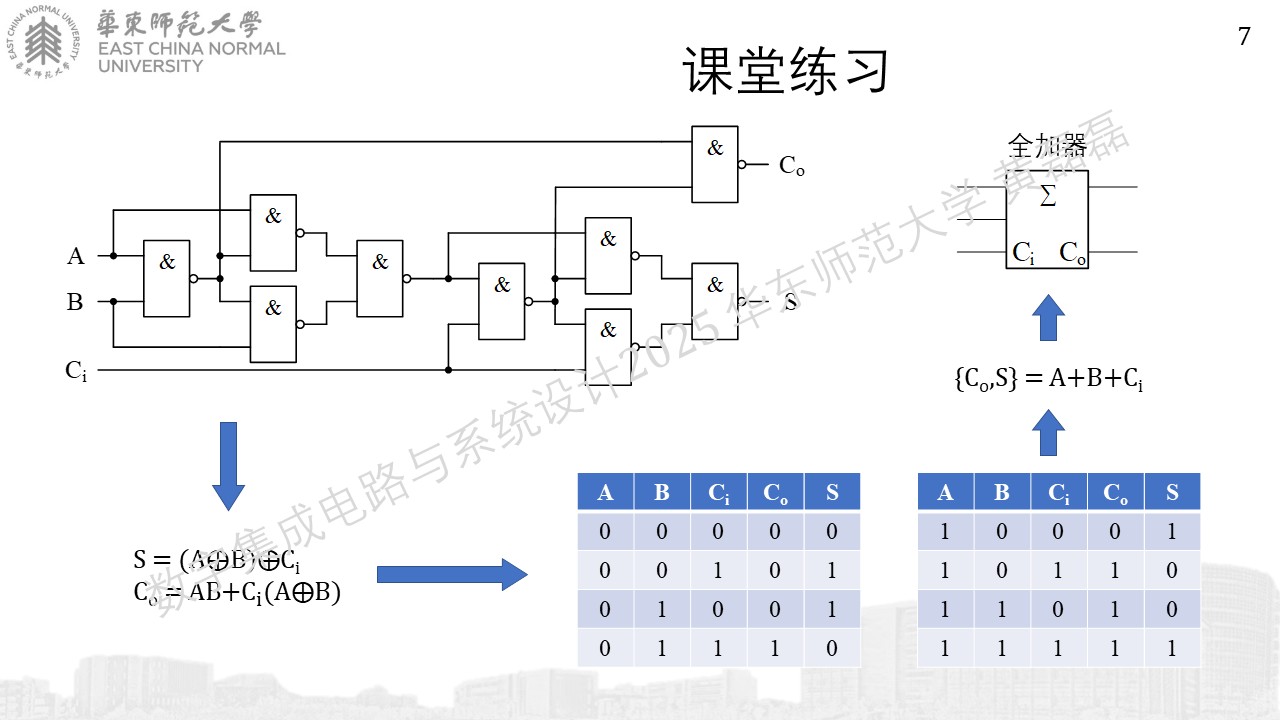

分析的一般过程

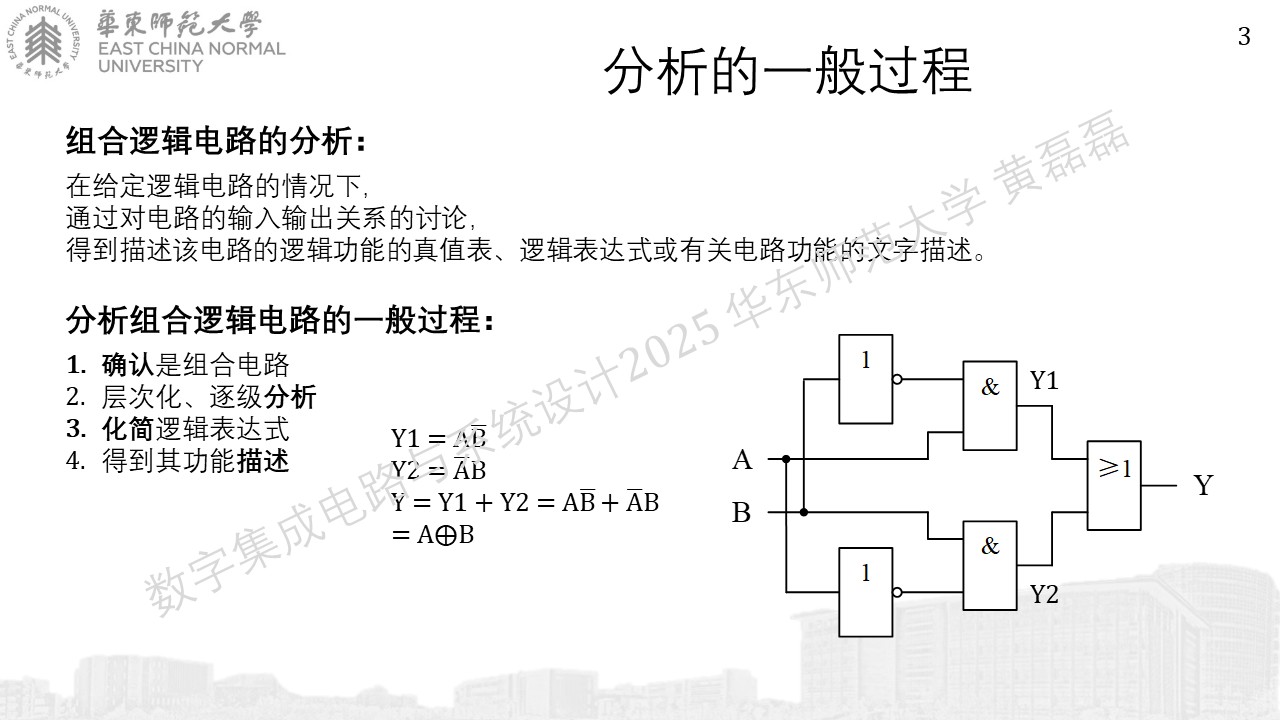

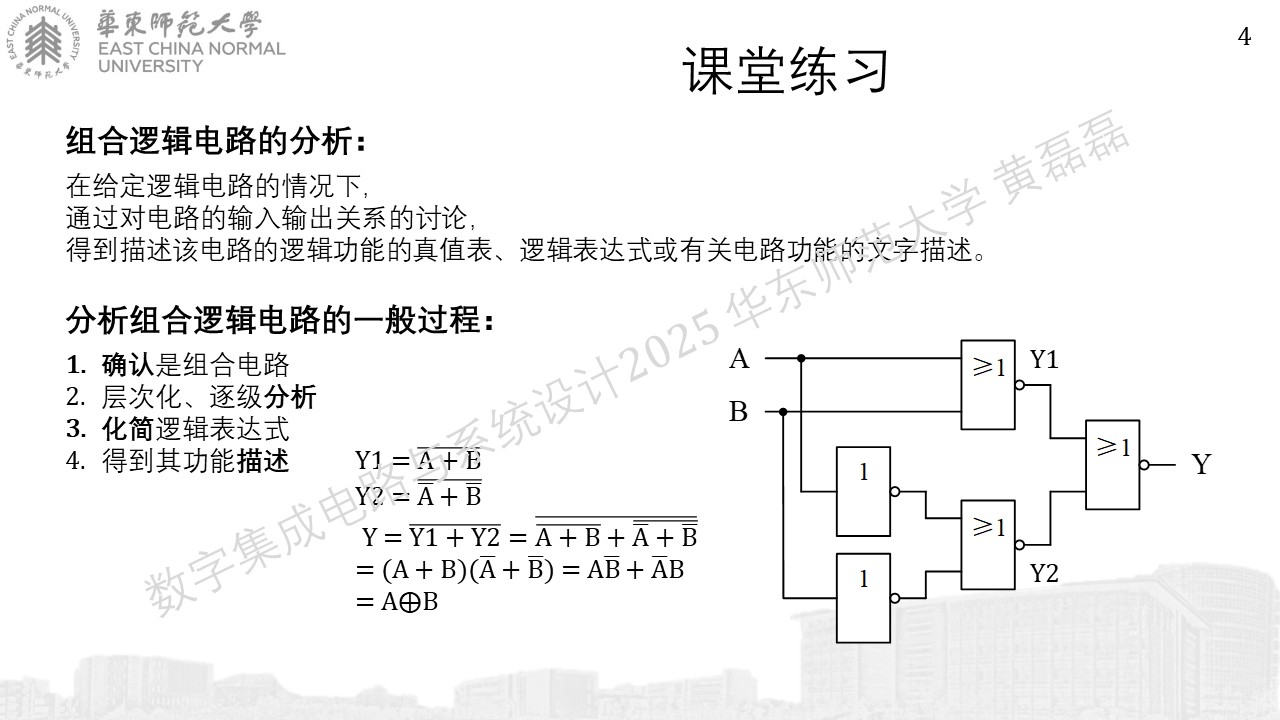

../_images/%E5%B9%BB%E7%81%AF%E7%89%87299.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87349.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87435.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87527.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87624.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87724.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87824.JPG

常见电路的分析

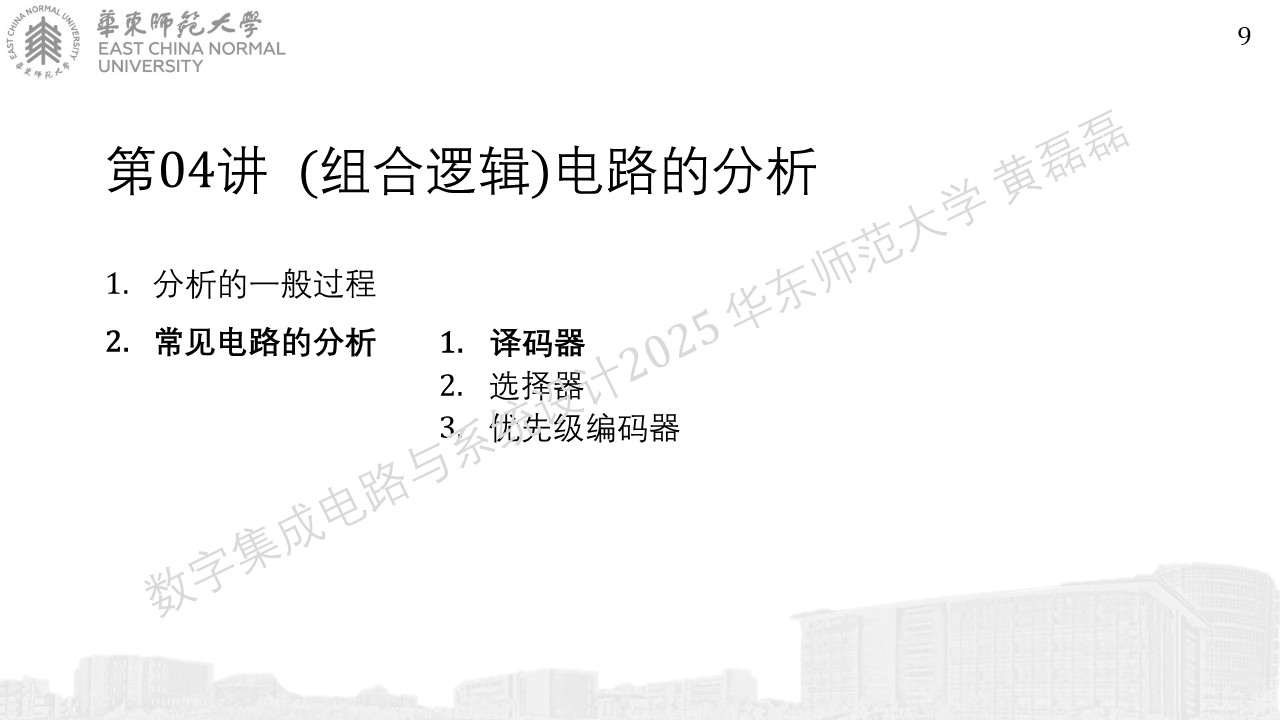

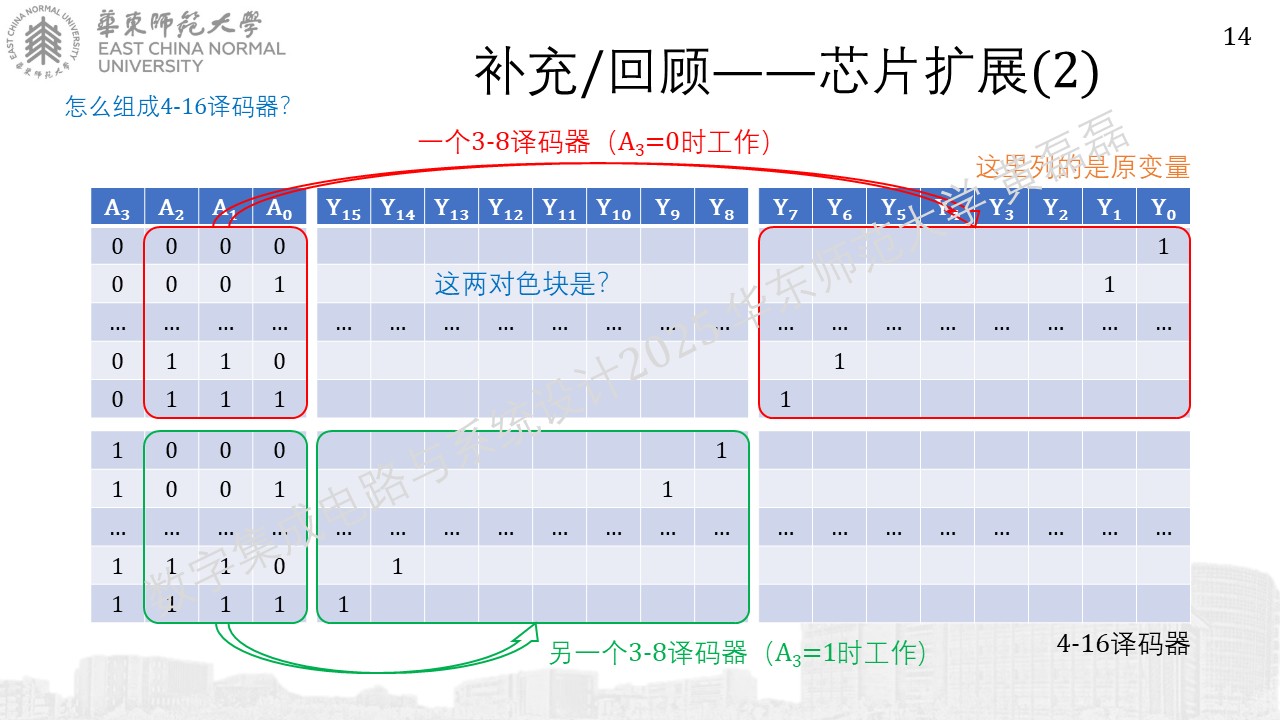

译码器

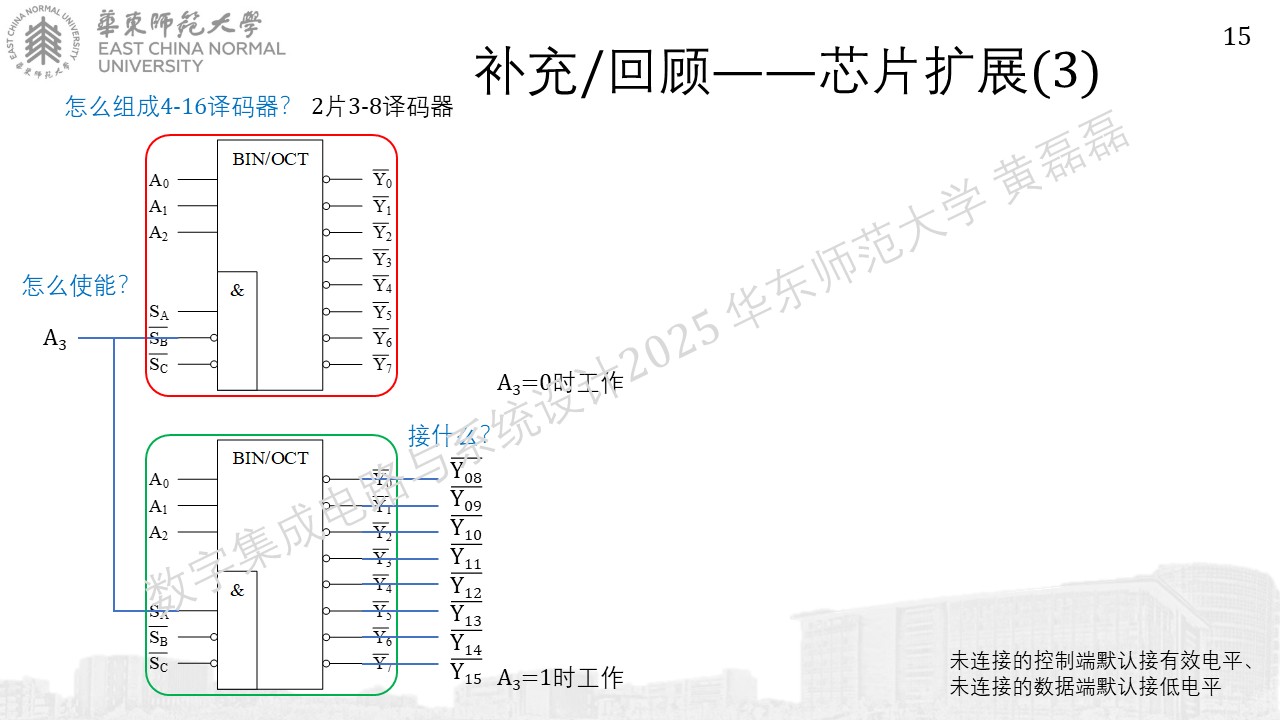

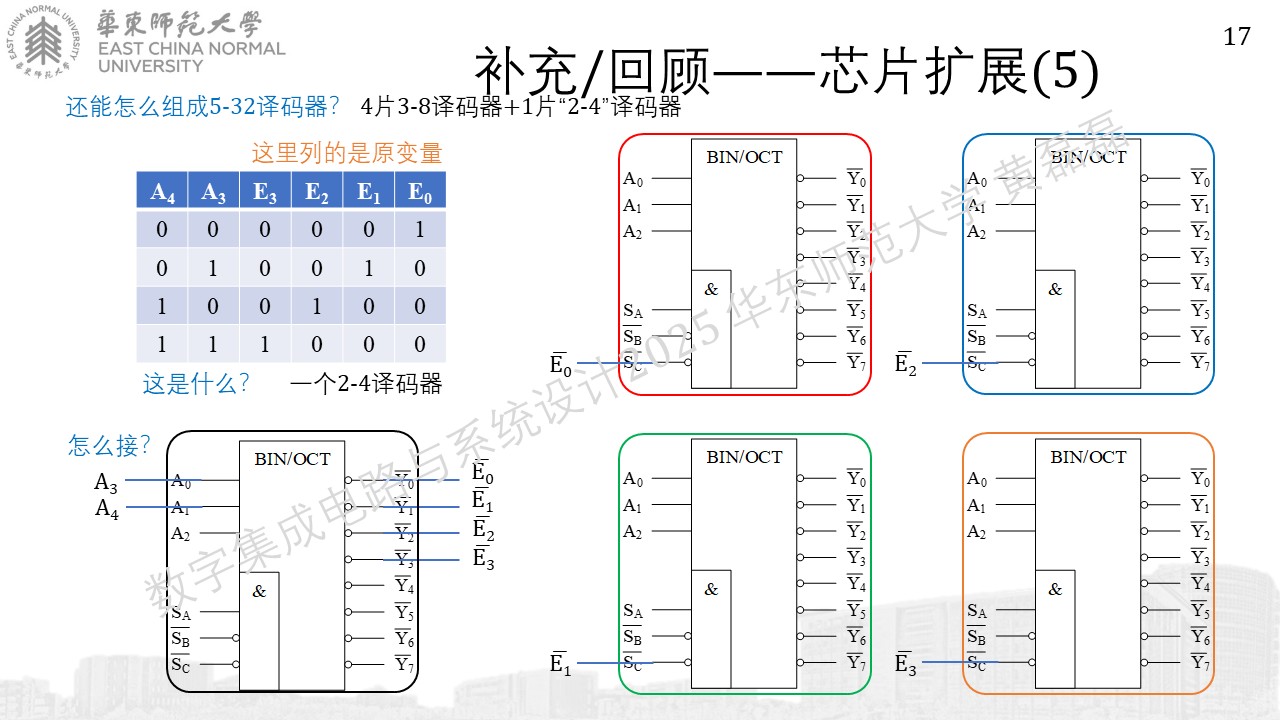

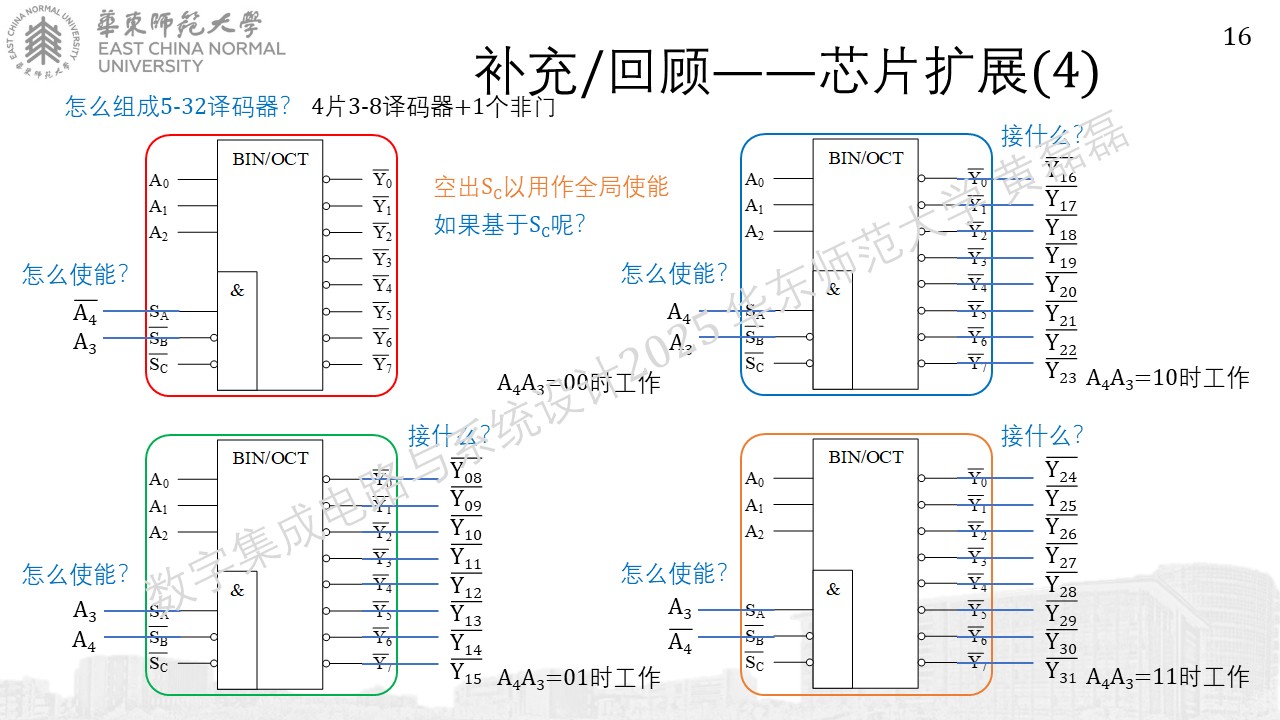

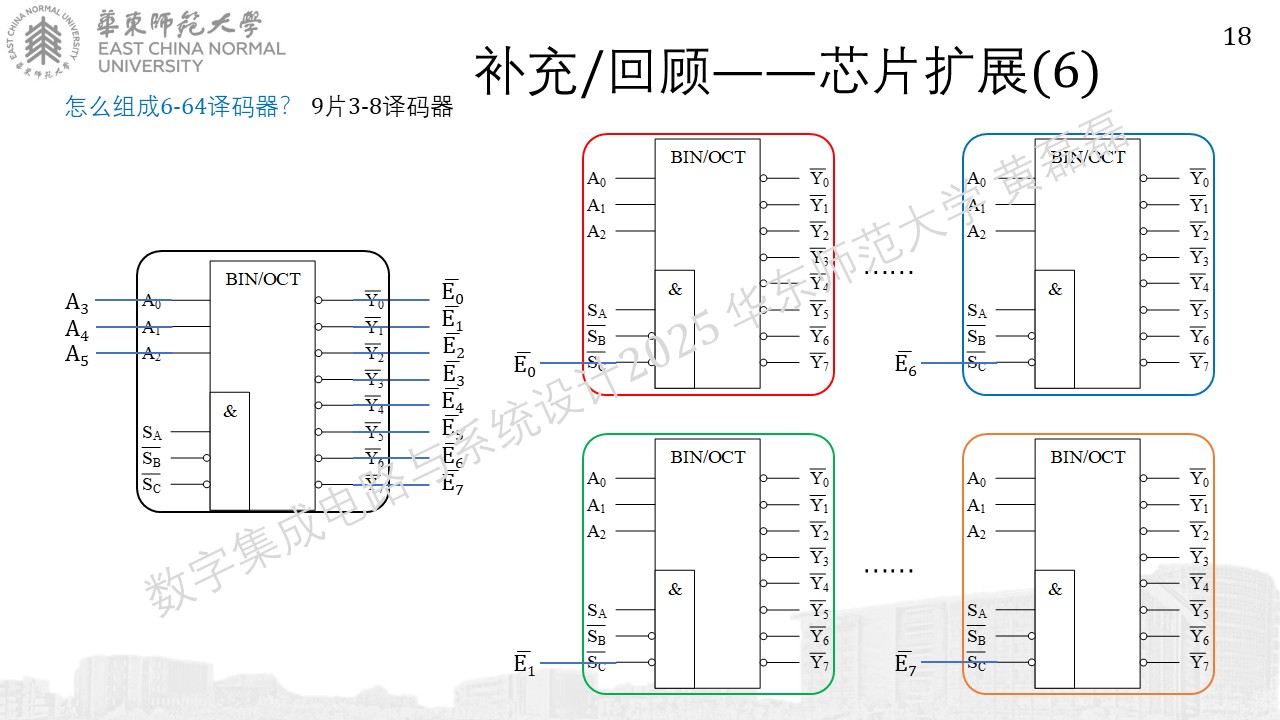

../_images/%E5%B9%BB%E7%81%AF%E7%89%87924.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871024.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871128.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871226.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871324.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871424.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871524.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871623.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871722.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871820.JPG

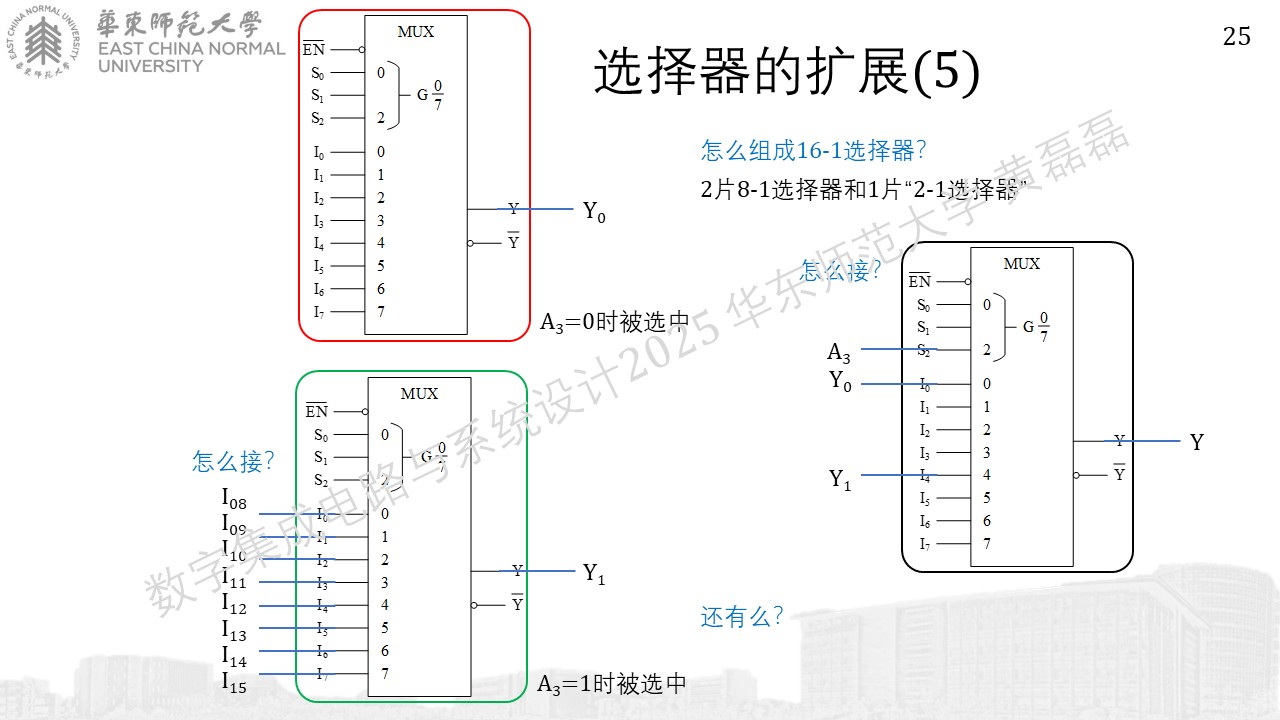

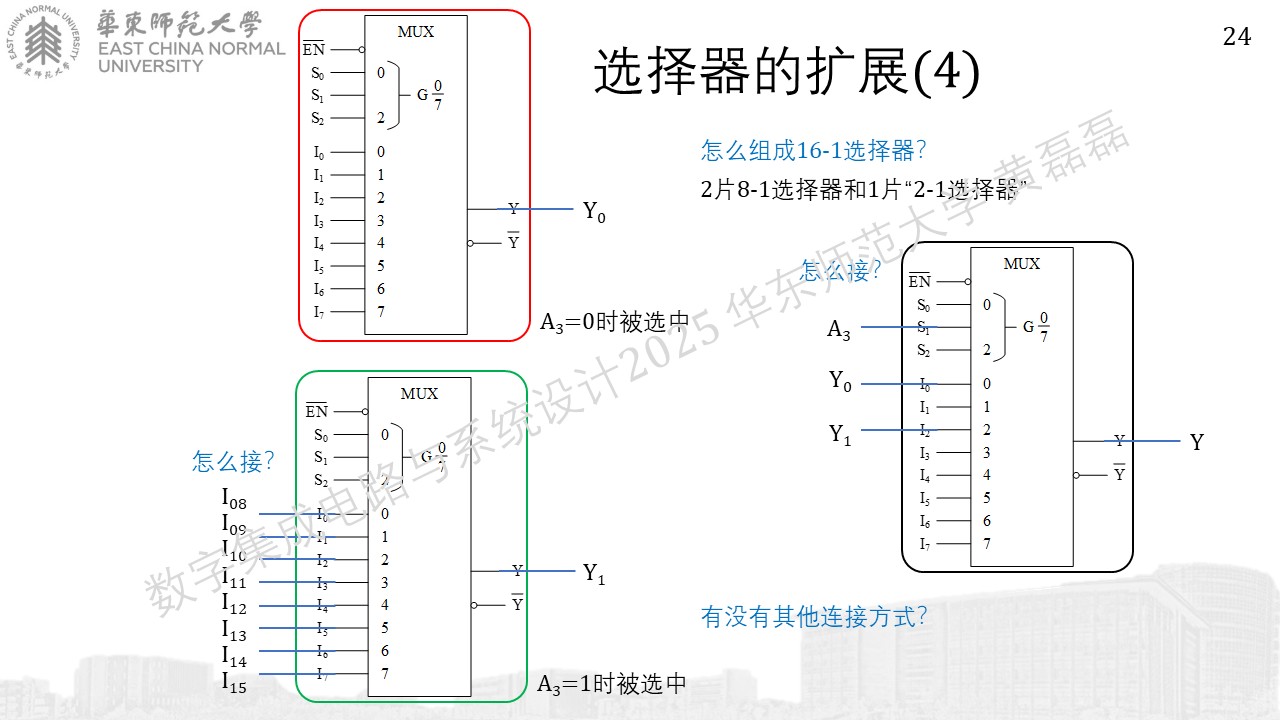

选择器

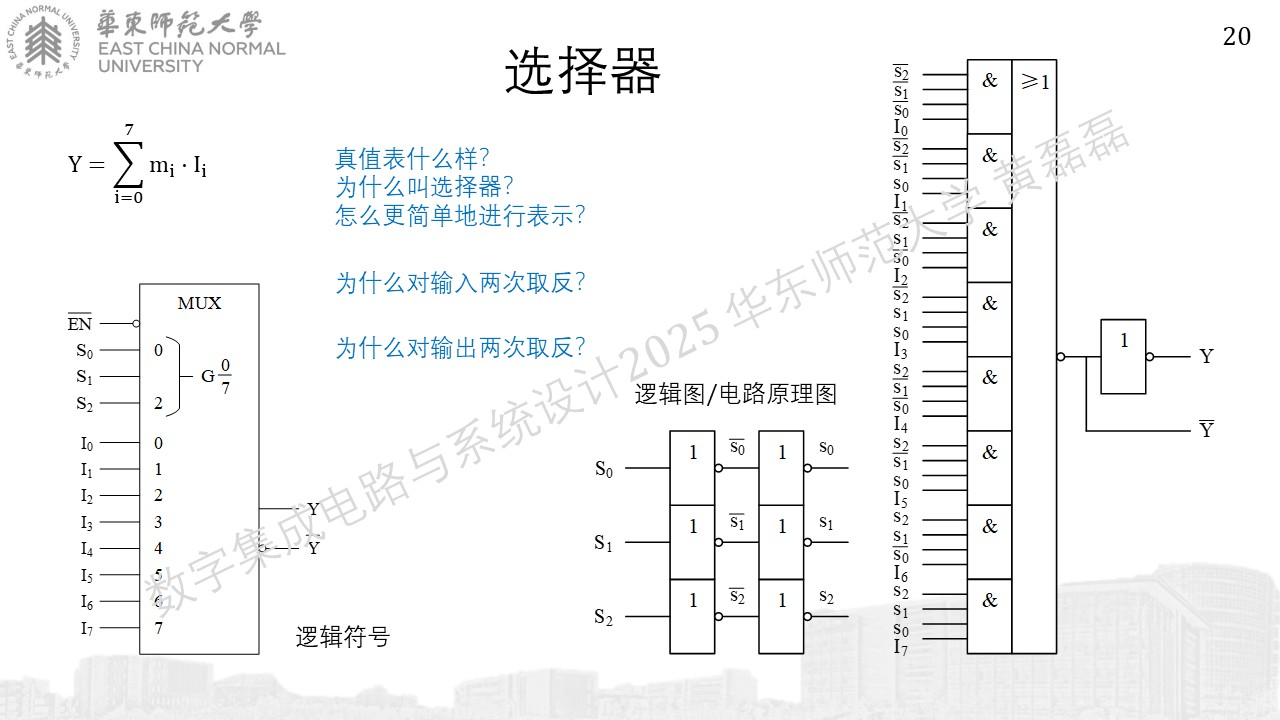

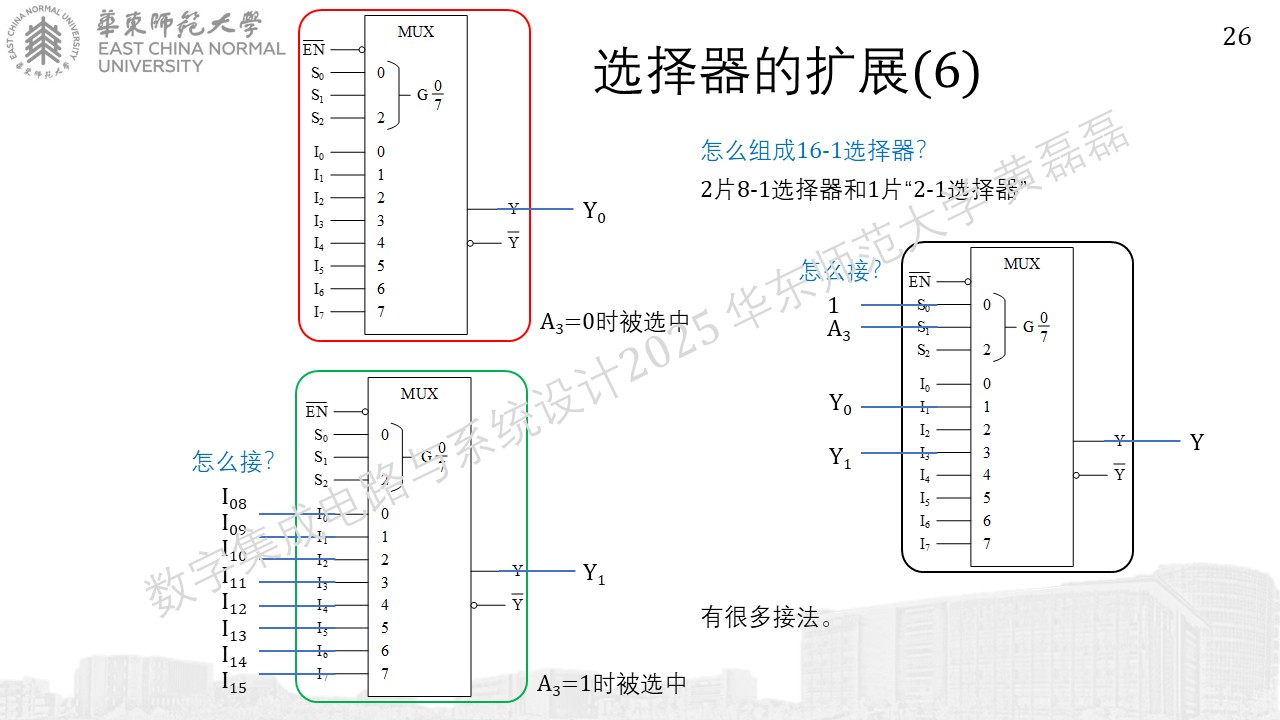

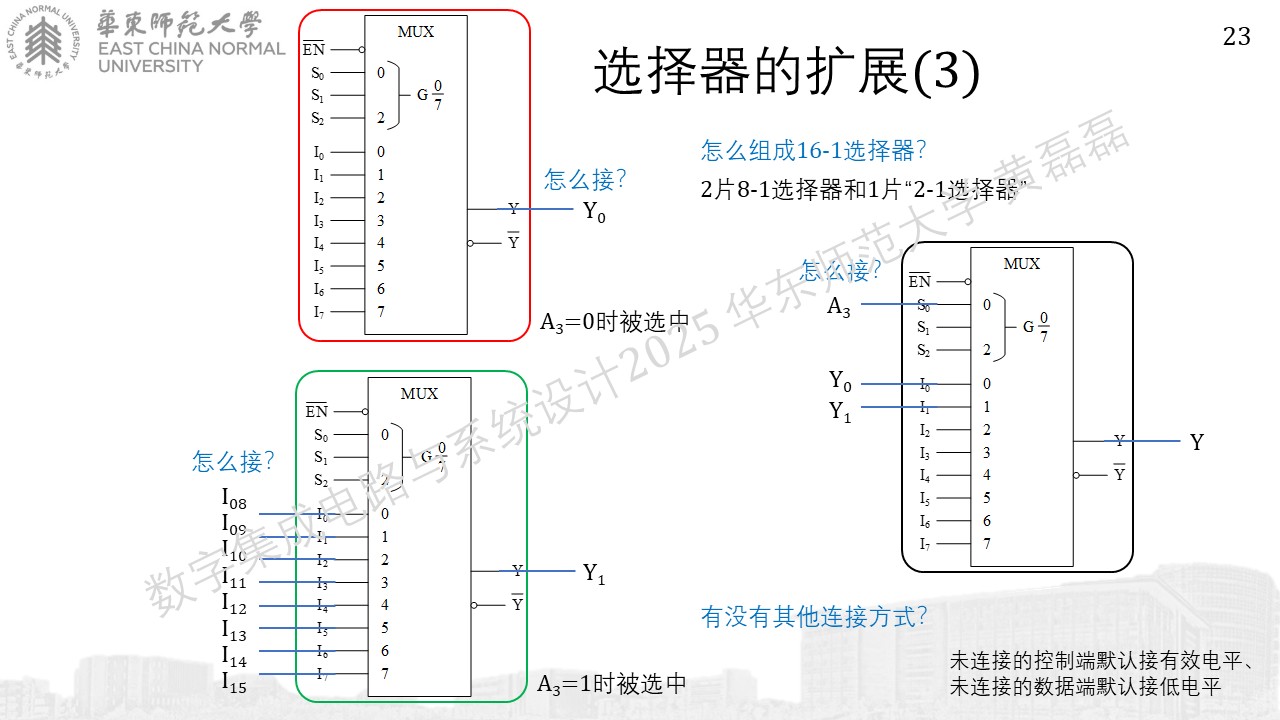

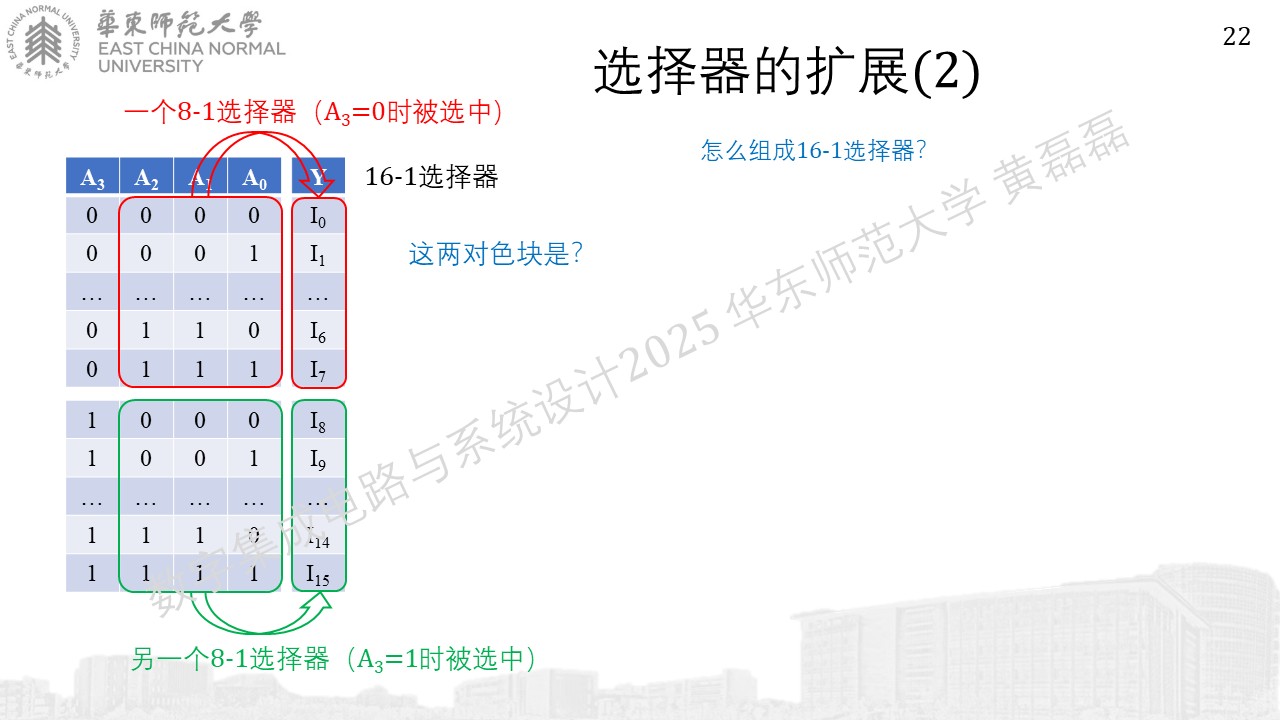

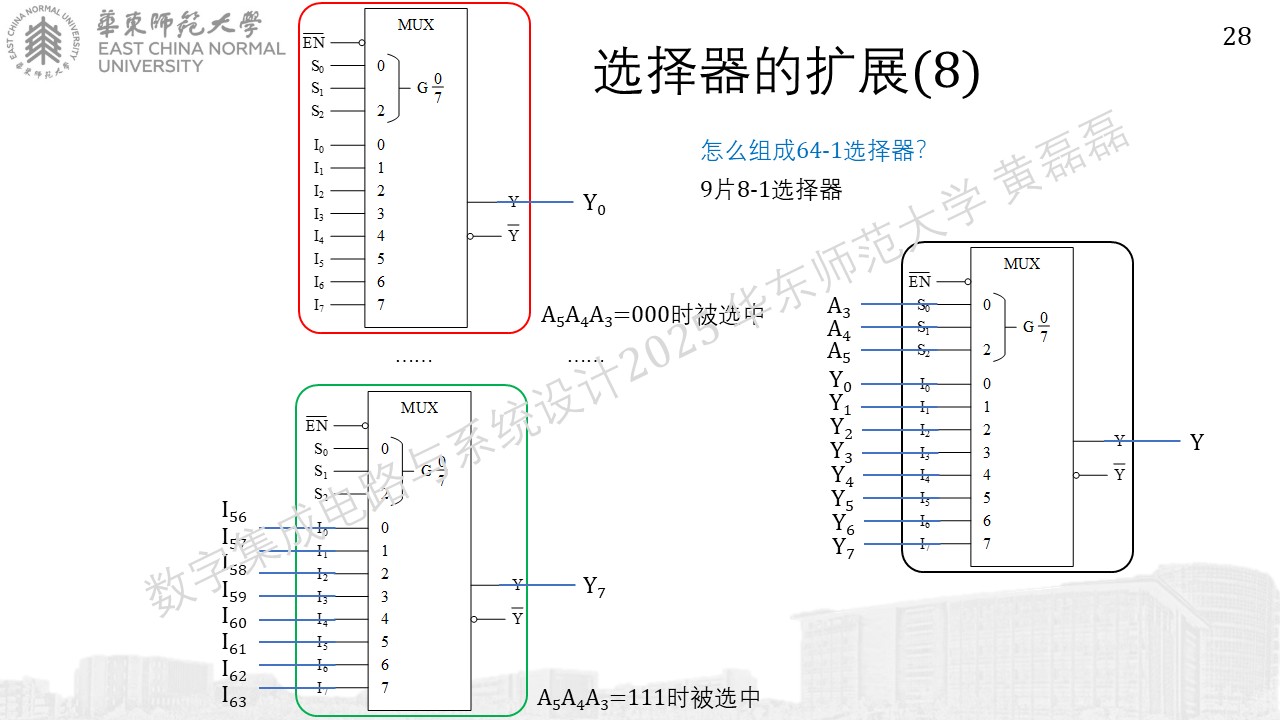

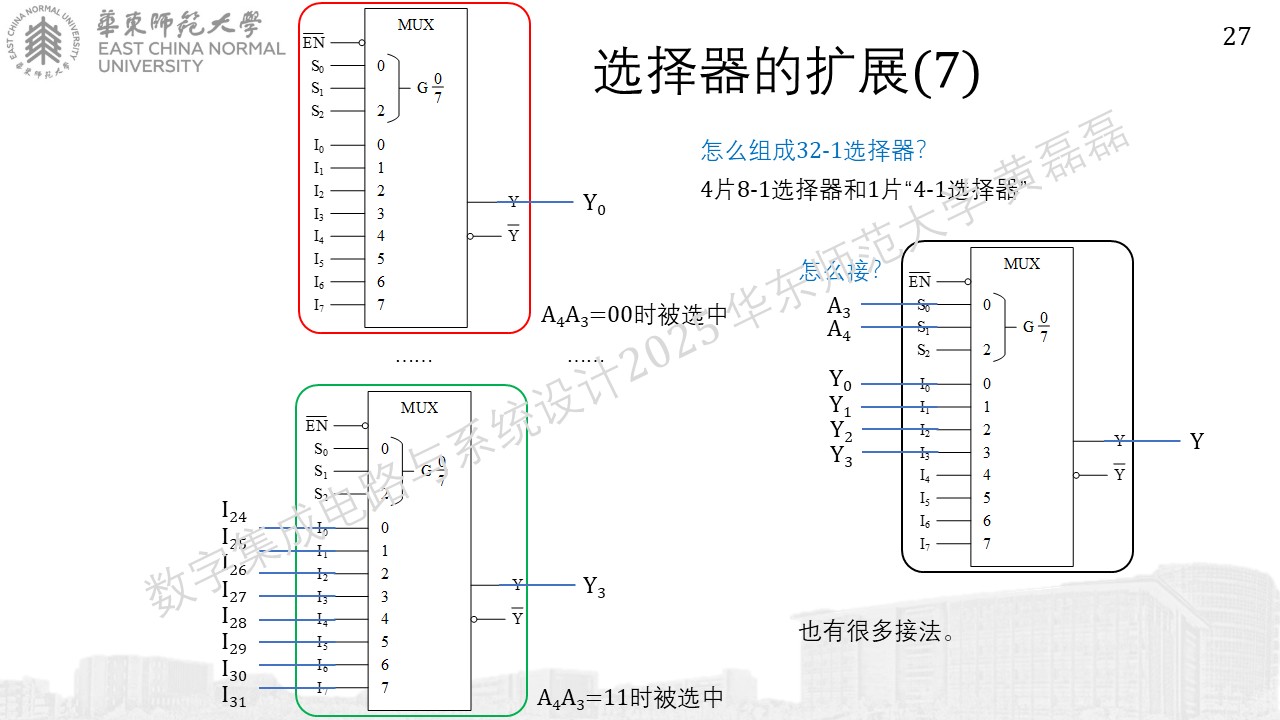

../_images/%E5%B9%BB%E7%81%AF%E7%89%871919.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872018.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872120.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872218.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872316.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872415.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872514.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872613.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872712.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872811.JPG

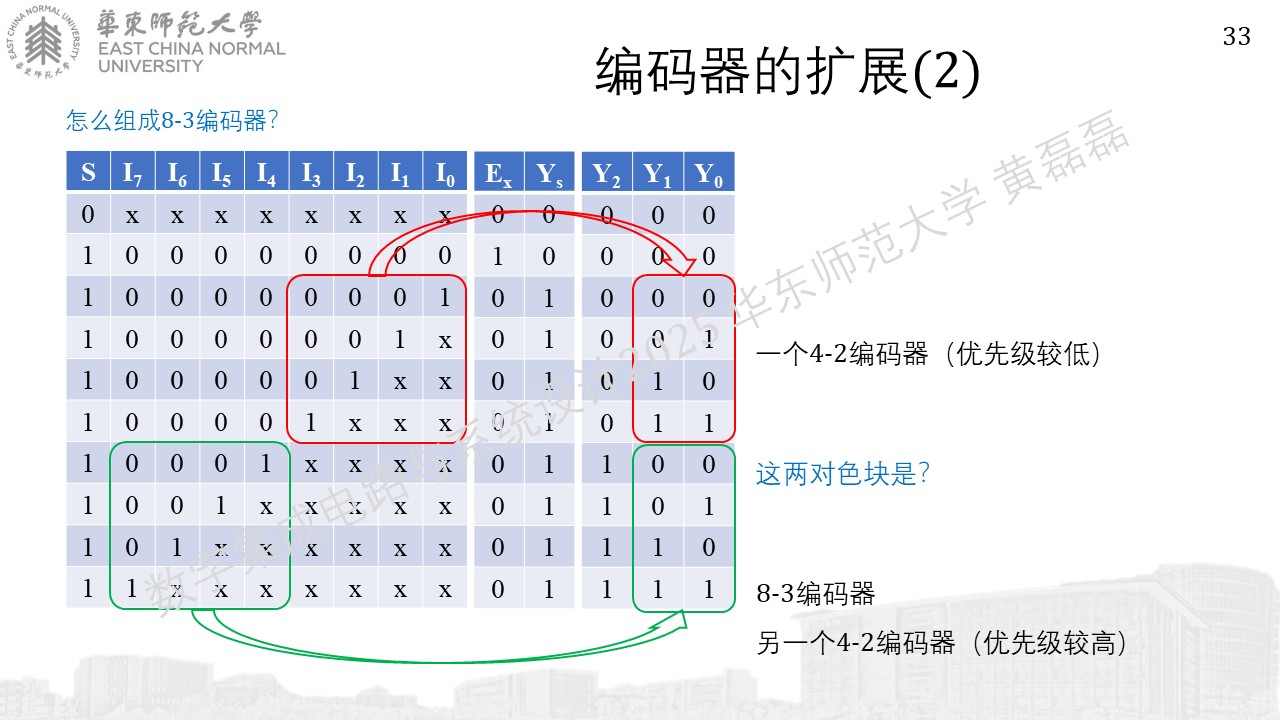

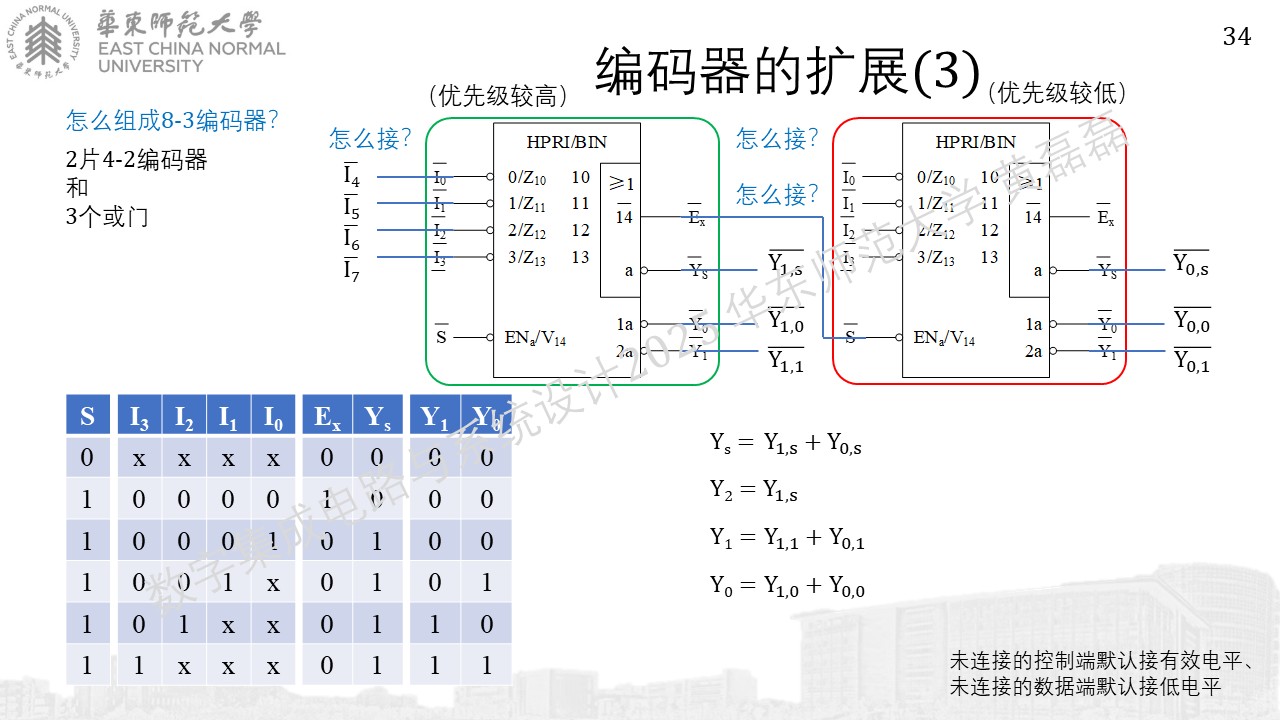

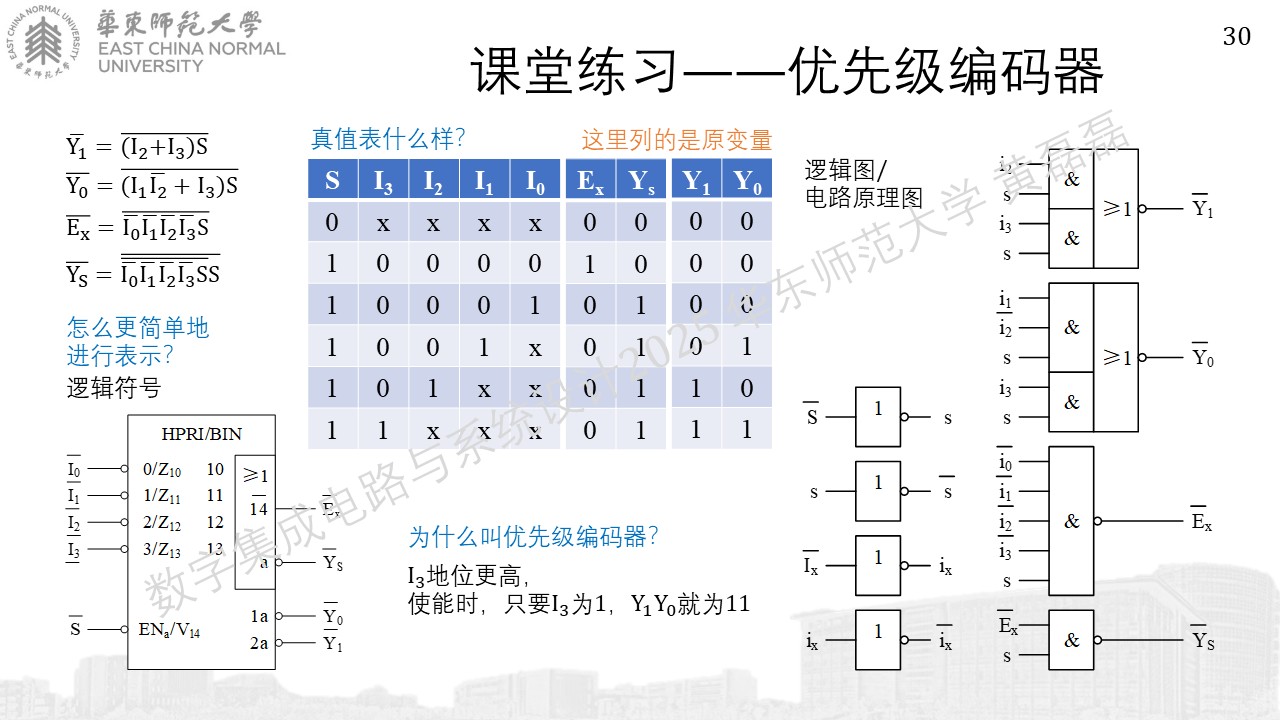

（优先级）编码器

../_images/%E5%B9%BB%E7%81%AF%E7%89%872910.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87309.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873114.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873212.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873311.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873410.JPG

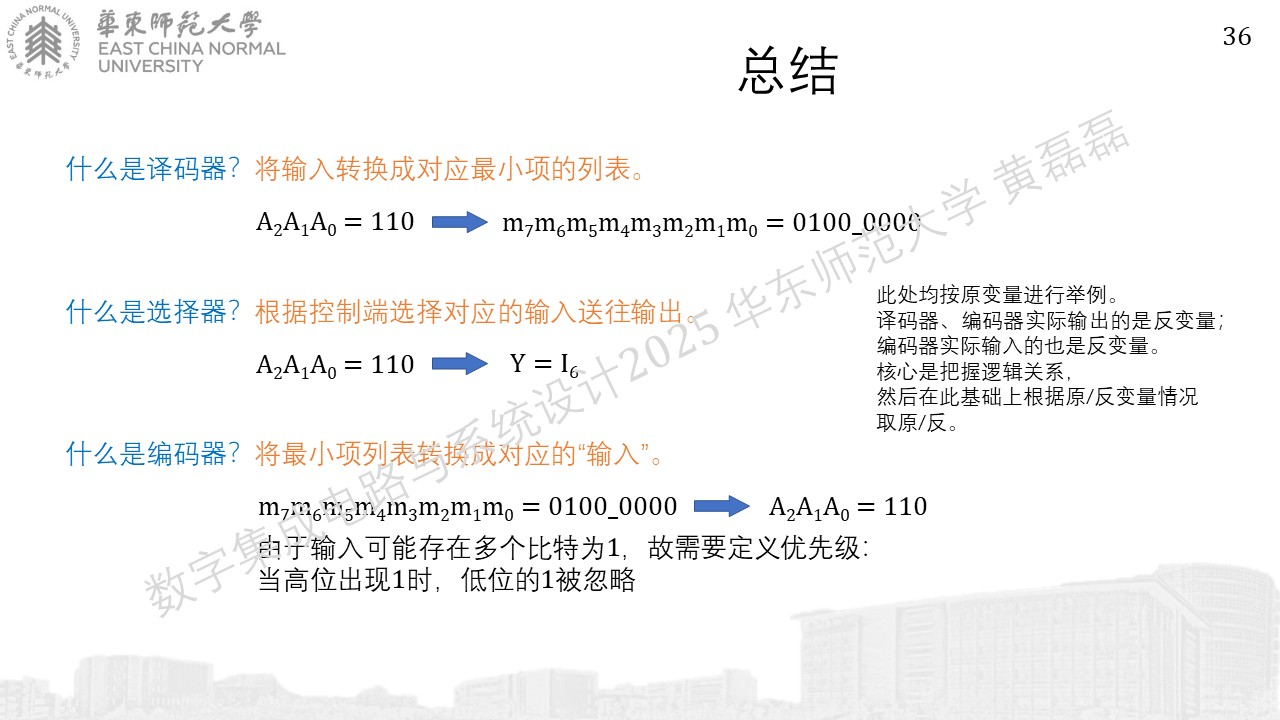

总结

../_images/%E5%B9%BB%E7%81%AF%E7%89%87358.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87367.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87376.JPG
