补充B - 编码纠错

../_images/%E5%B9%BB%E7%81%AF%E7%89%871107.JPG

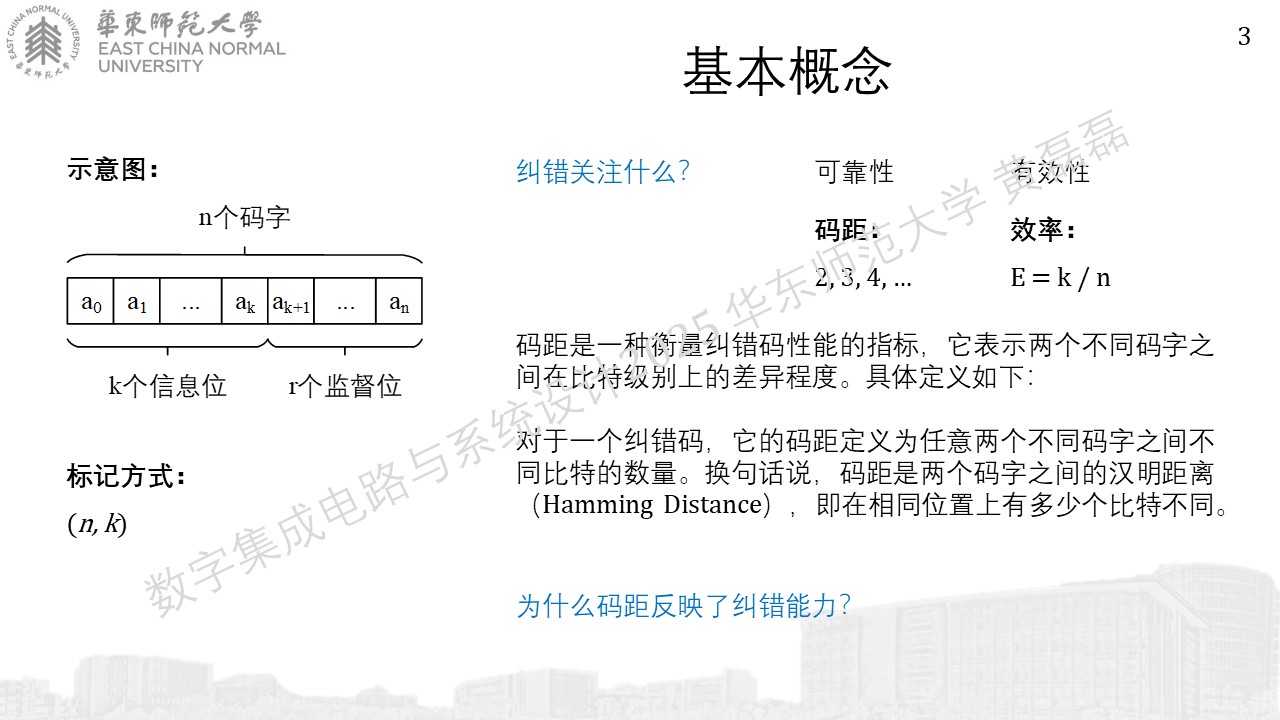

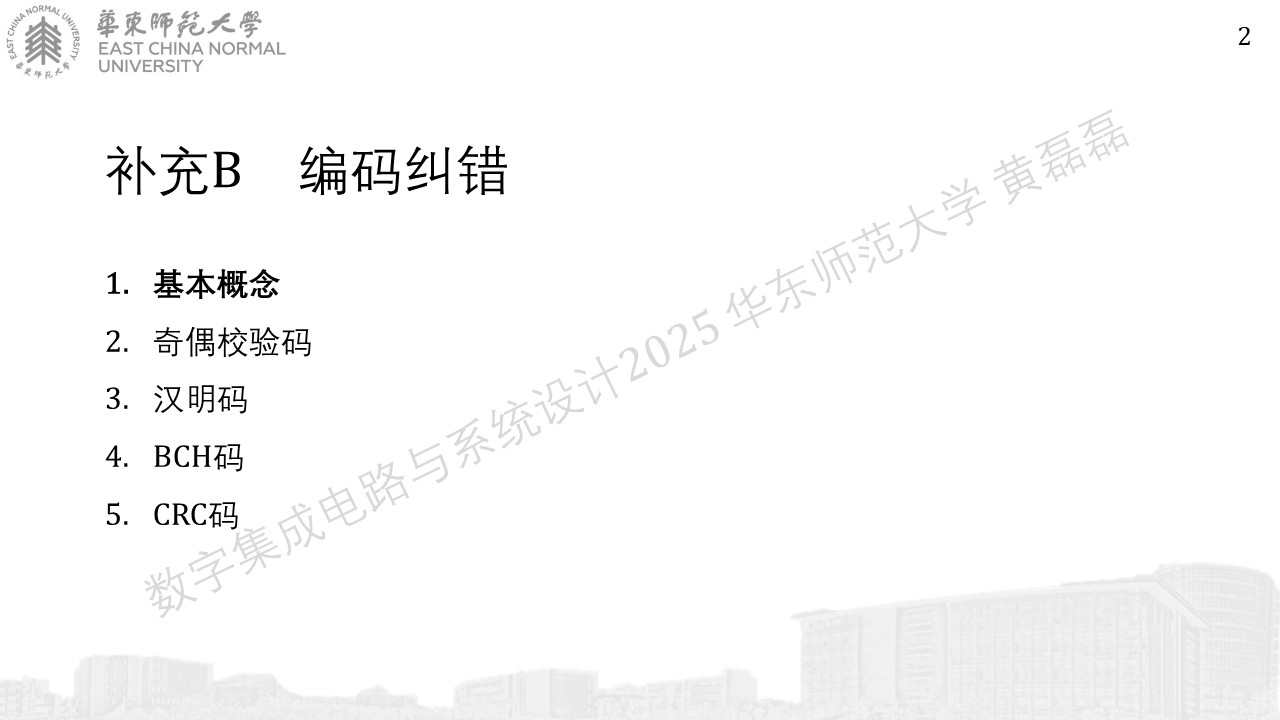

基本概念

../_images/%E5%B9%BB%E7%81%AF%E7%89%87290.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87348.JPG

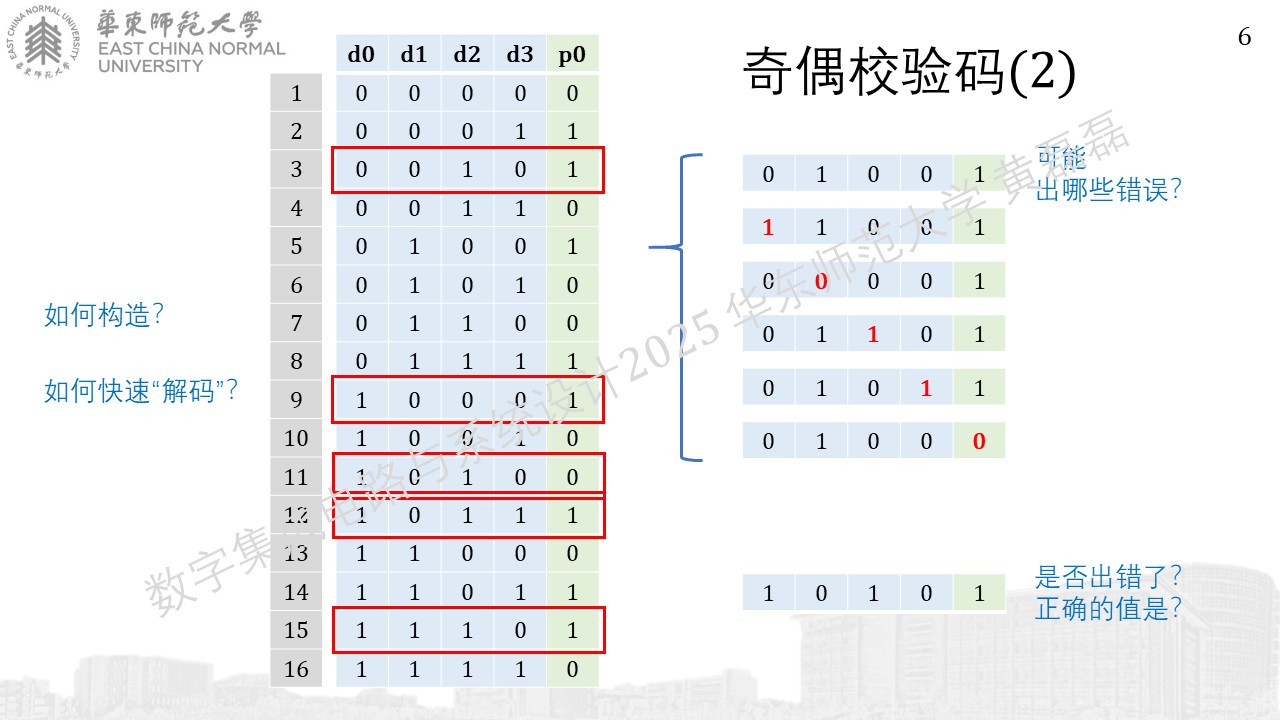

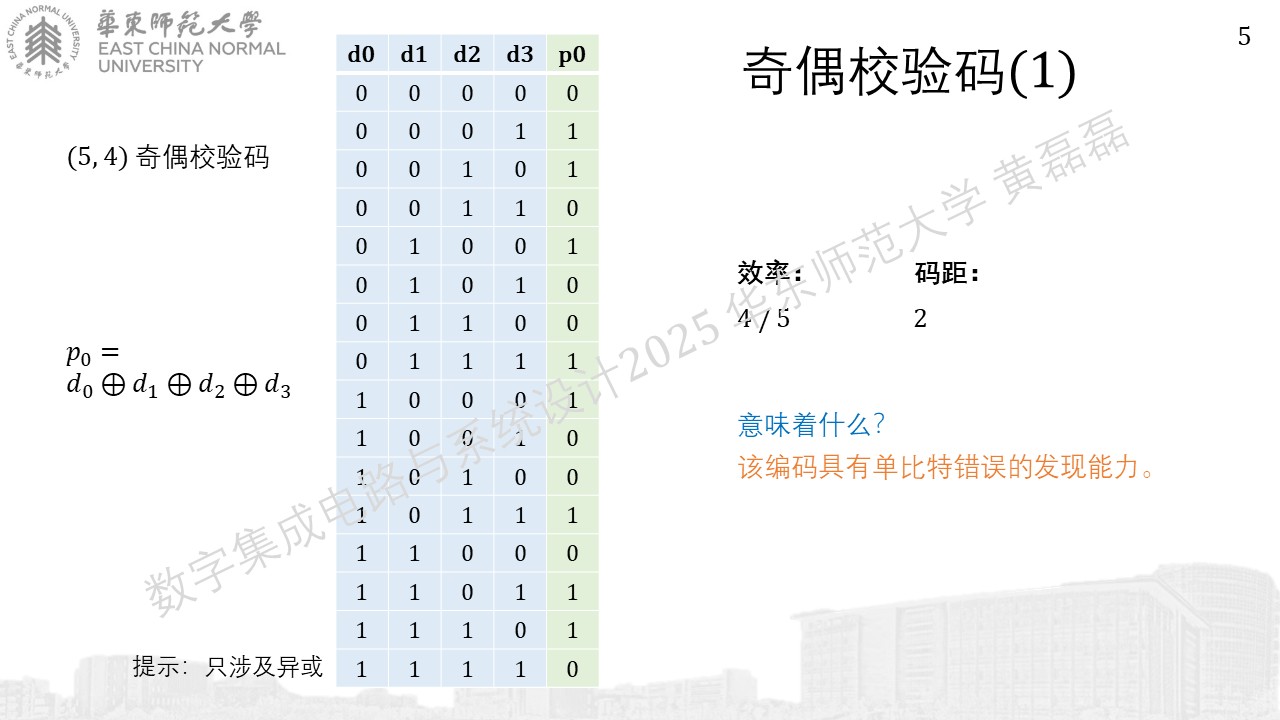

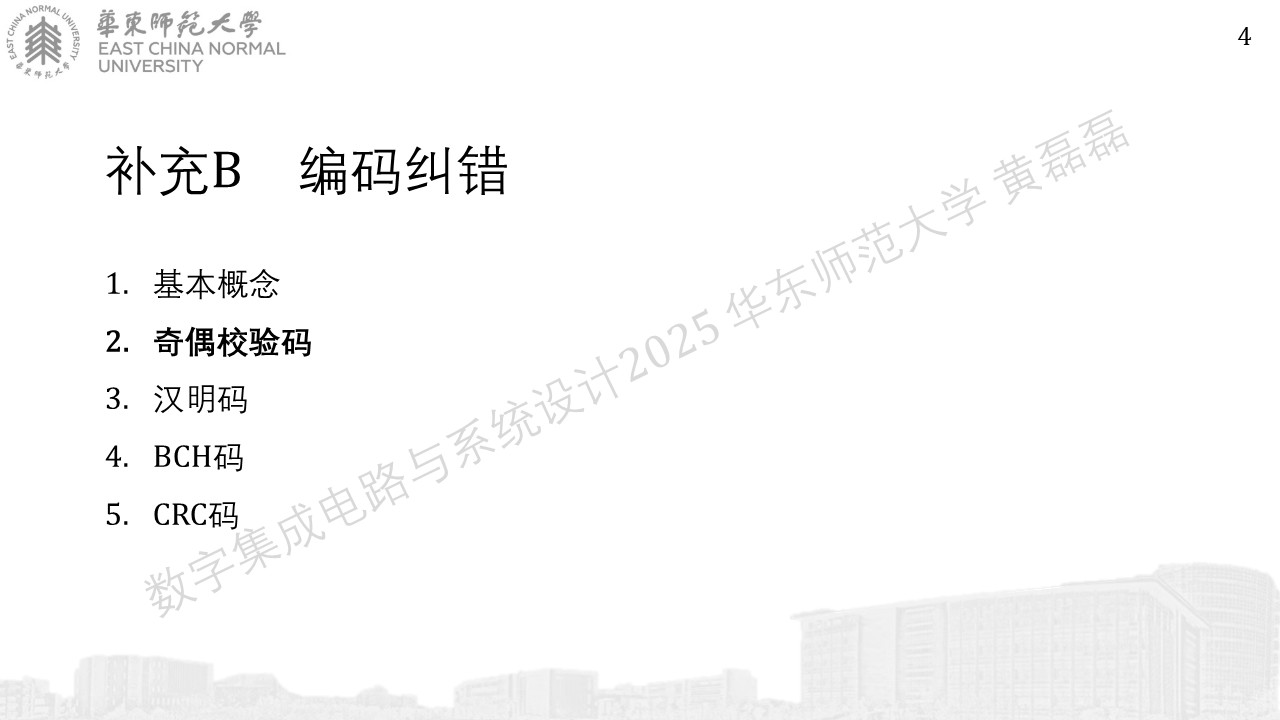

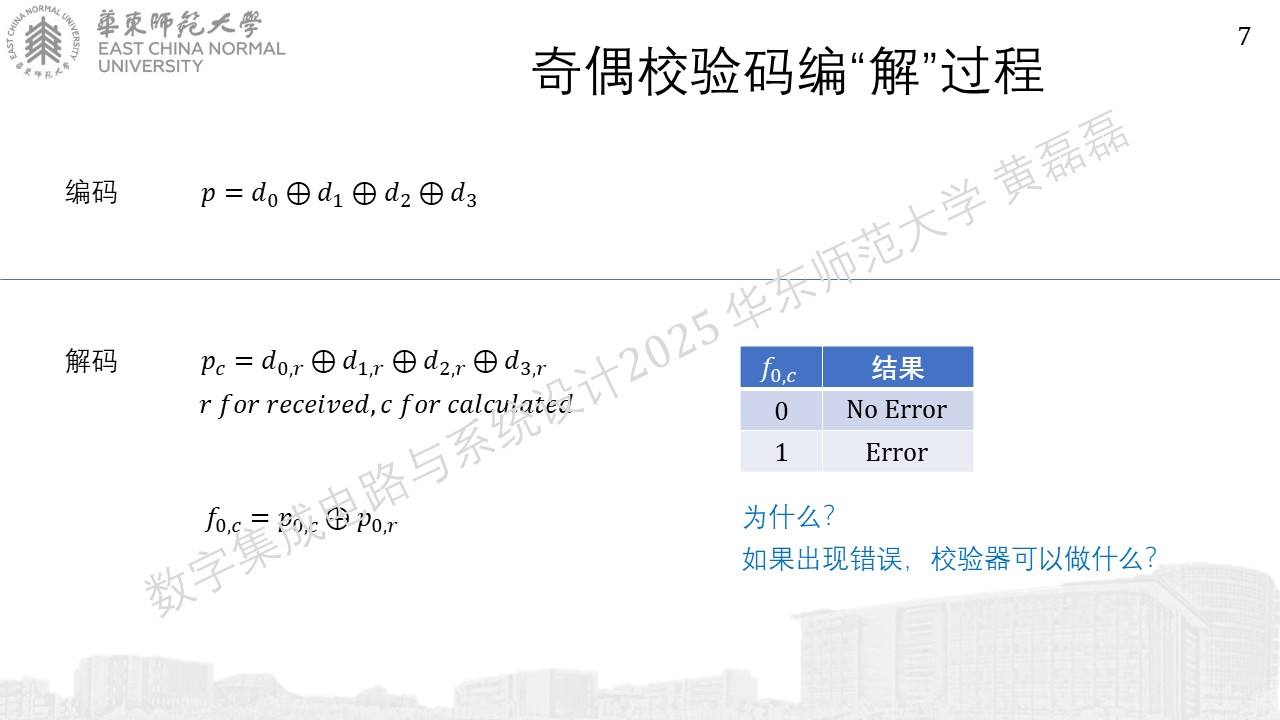

奇偶校验码

../_images/%E5%B9%BB%E7%81%AF%E7%89%87430.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87526.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87623.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87723.JPG

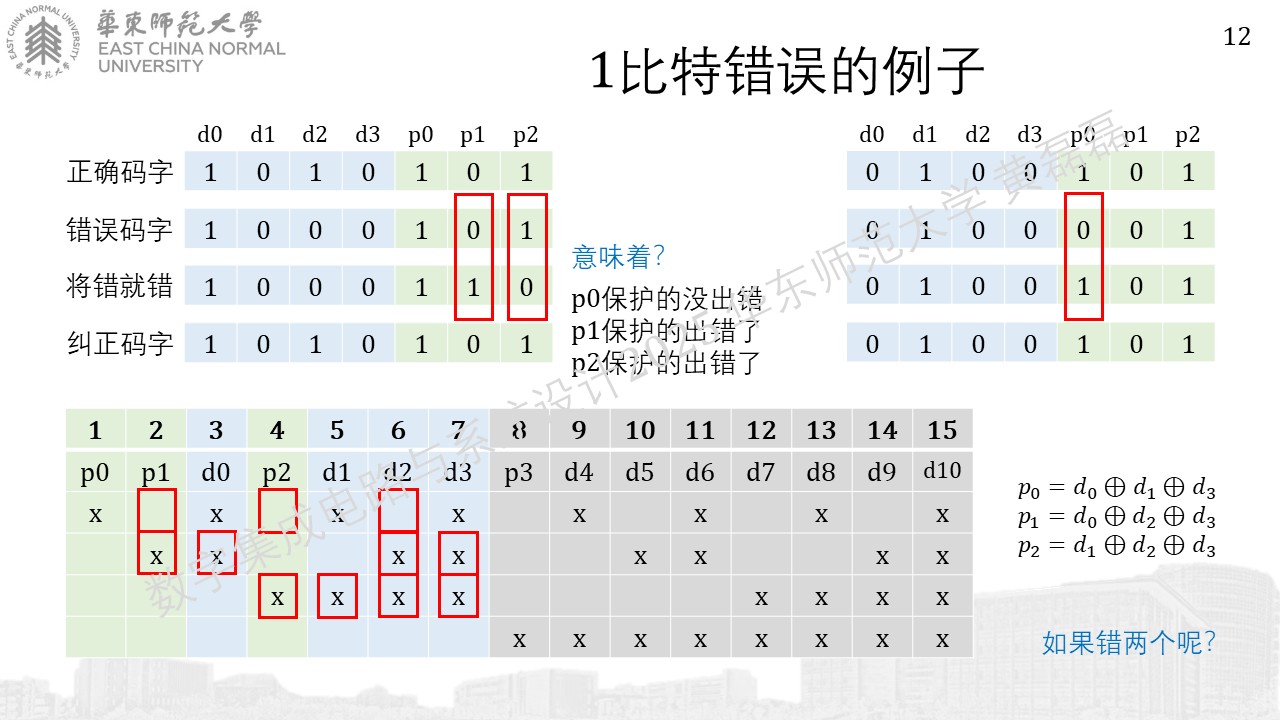

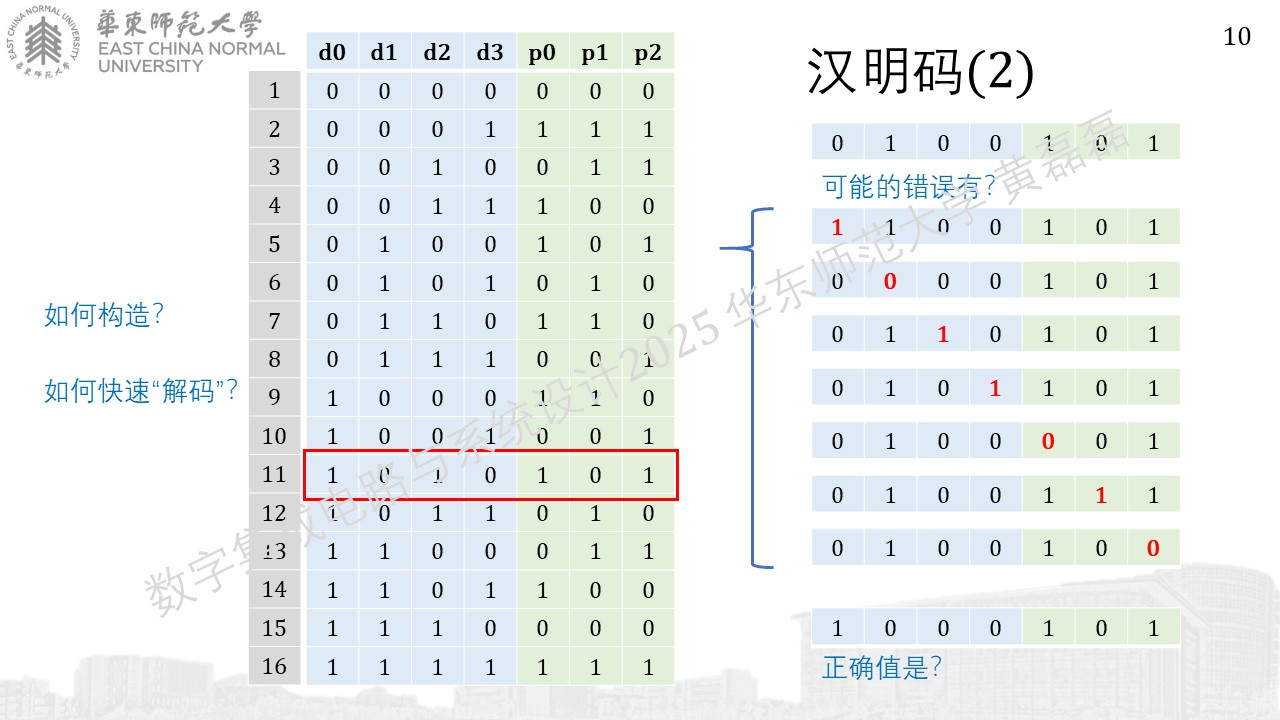

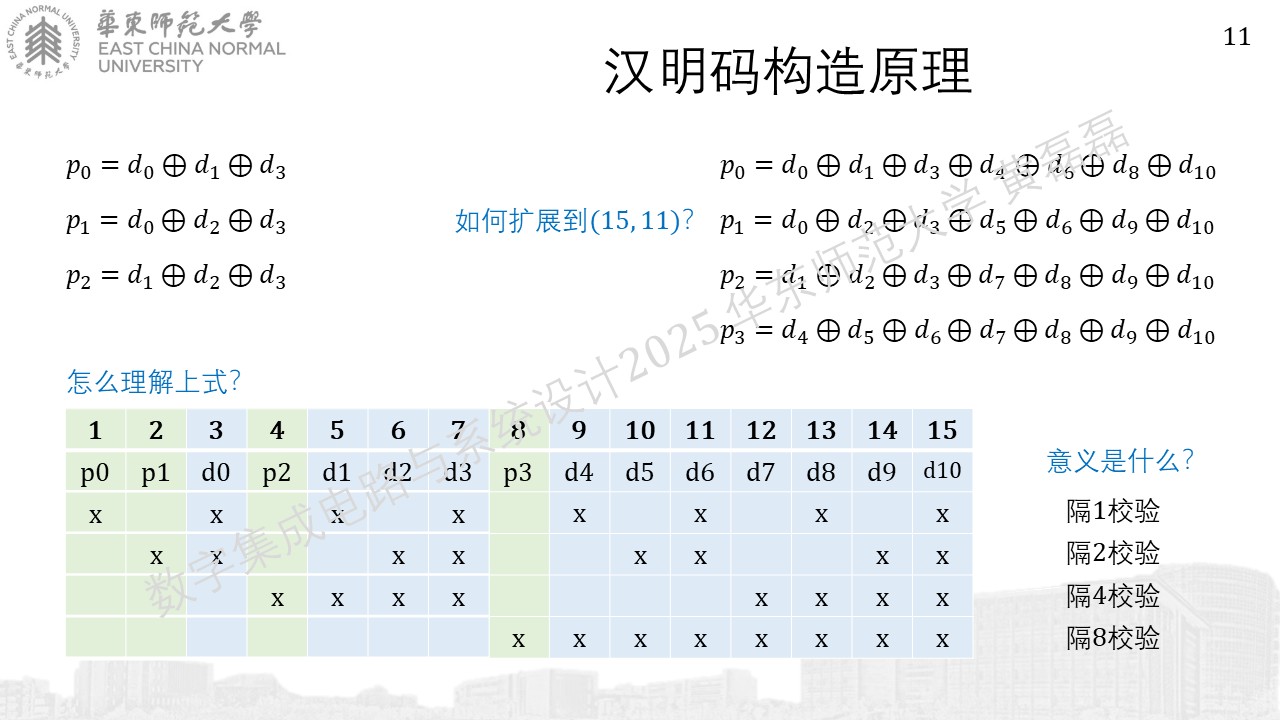

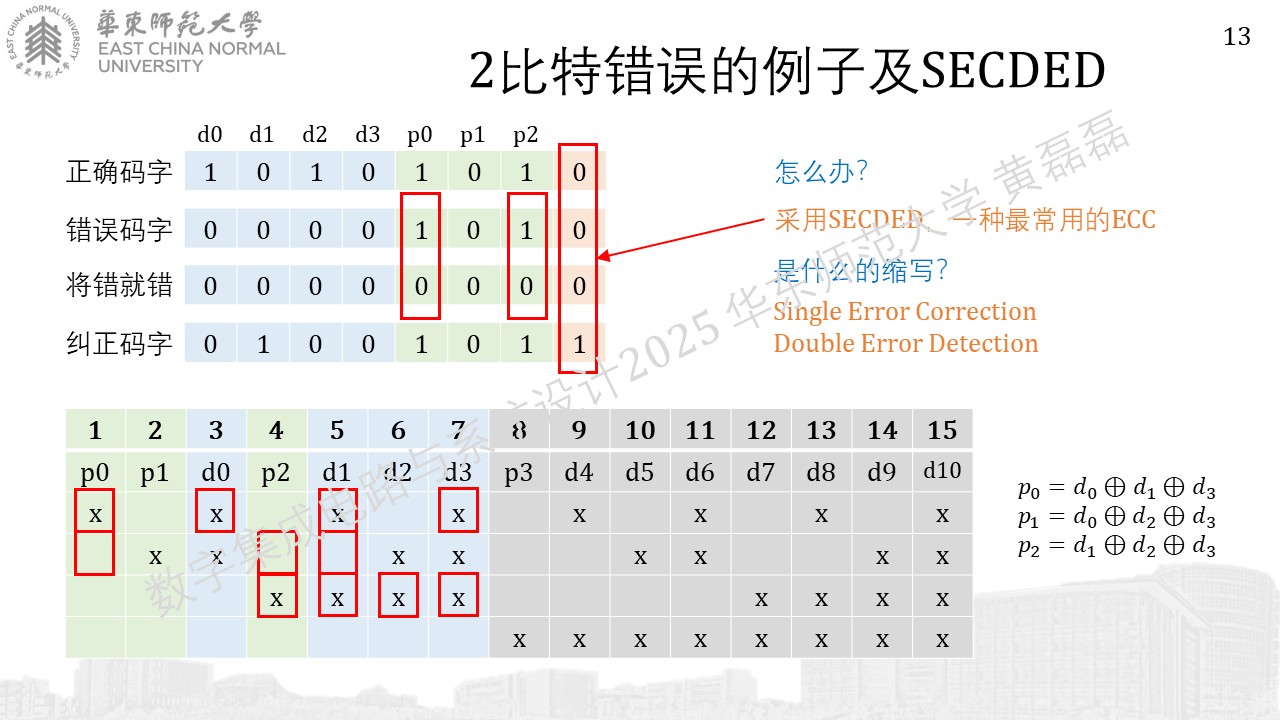

汉明码

../_images/%E5%B9%BB%E7%81%AF%E7%89%87823.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87923.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871023.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871127.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871225.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871323.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871423.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871523.JPG

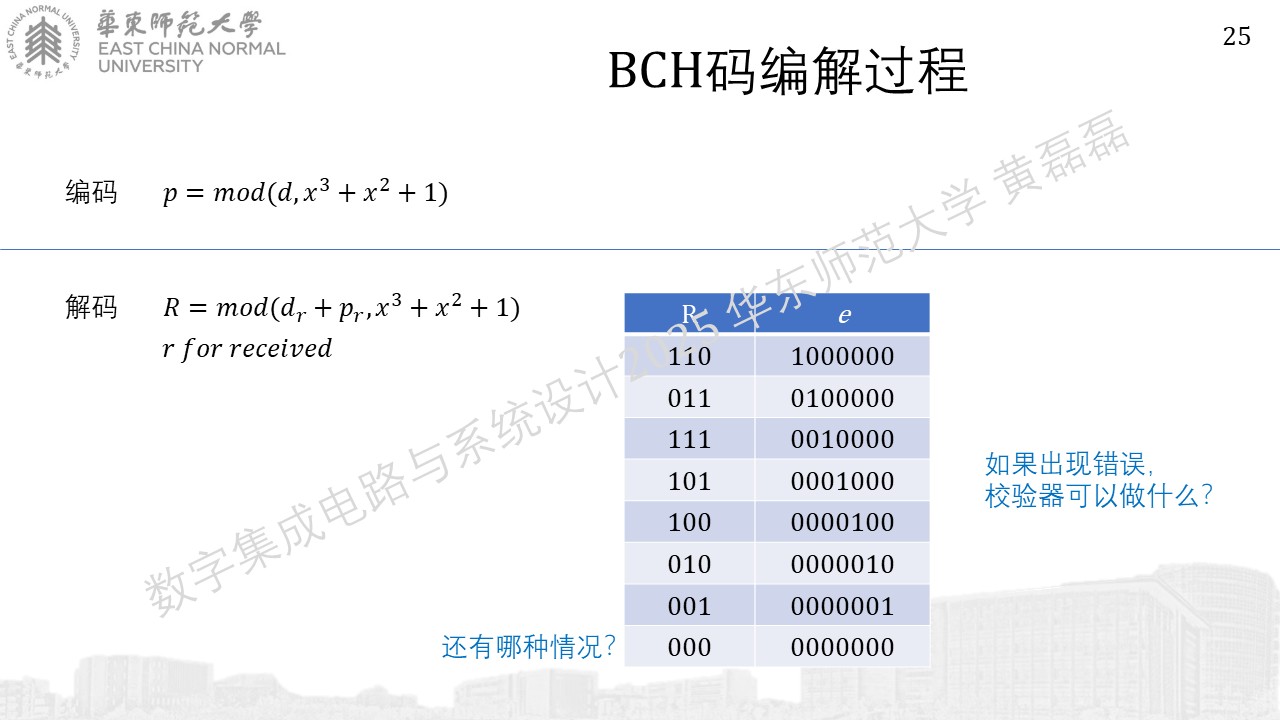

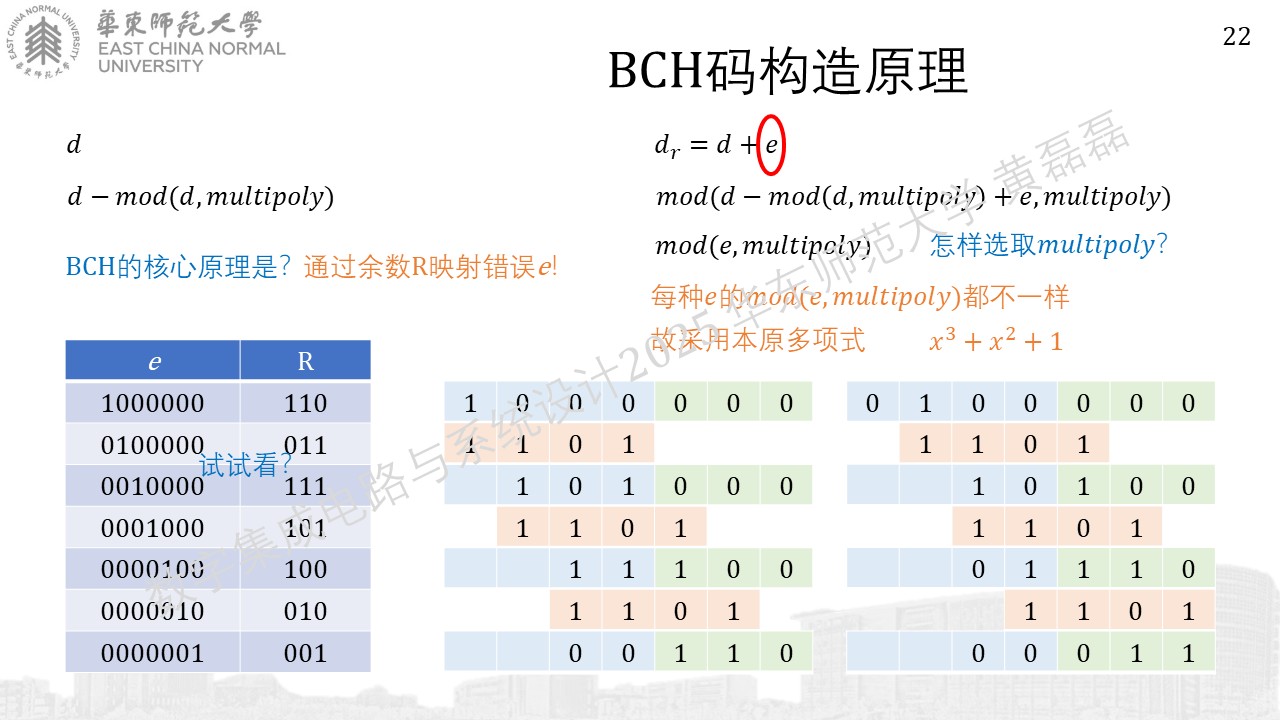

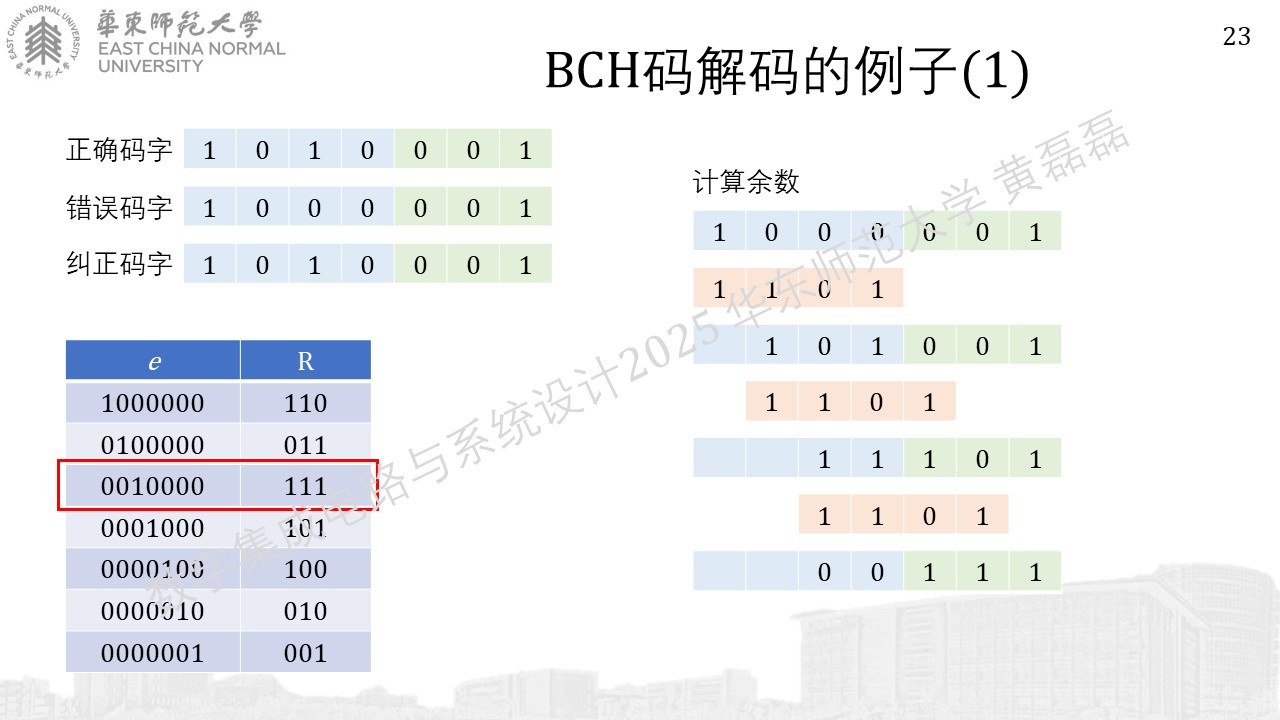

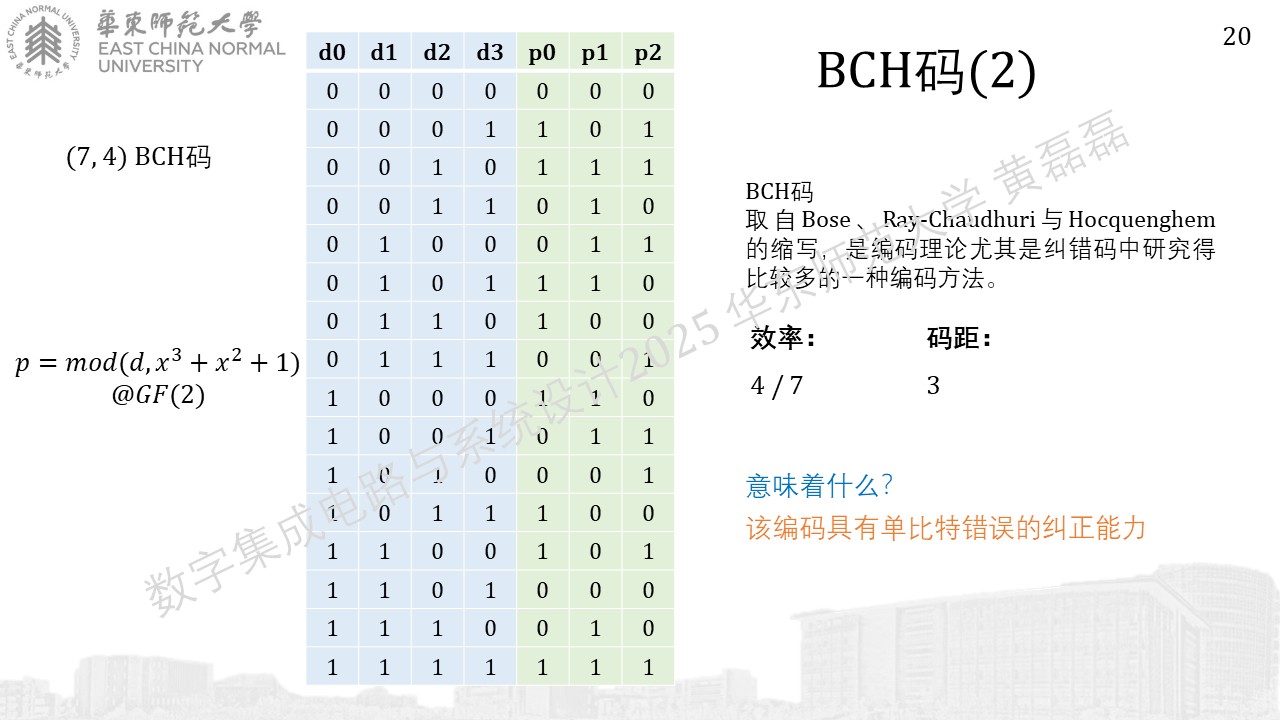

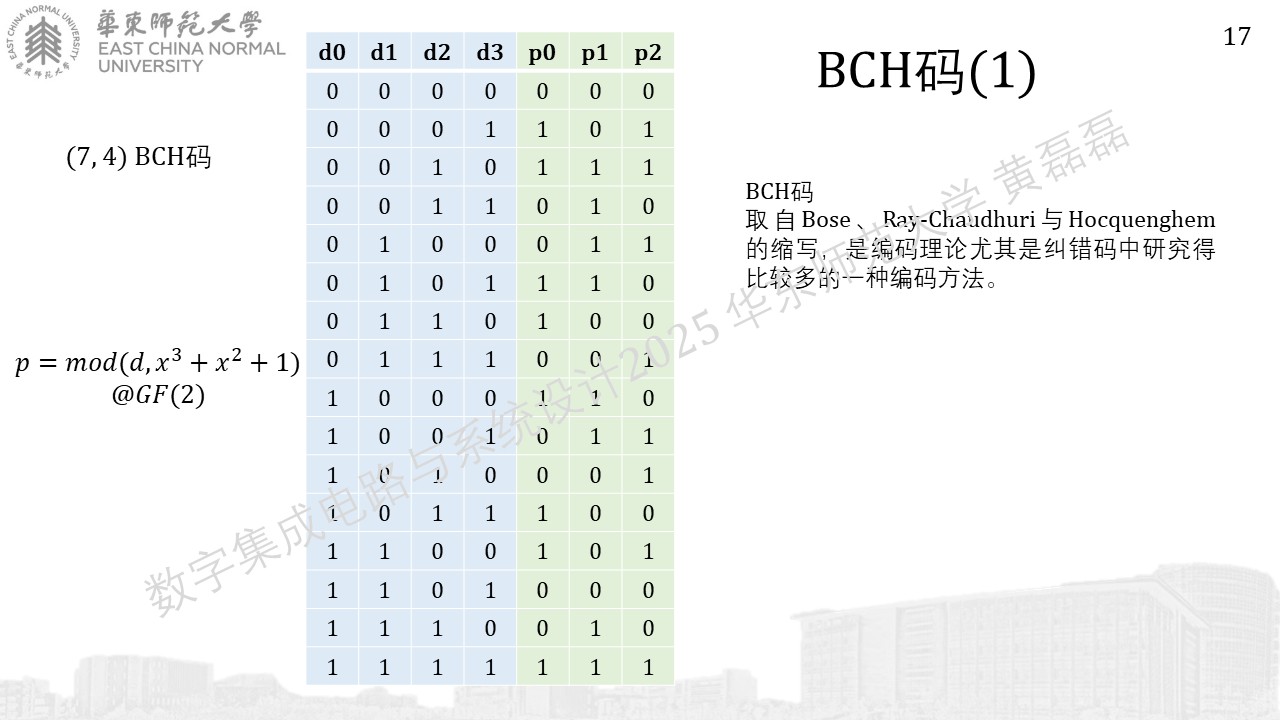

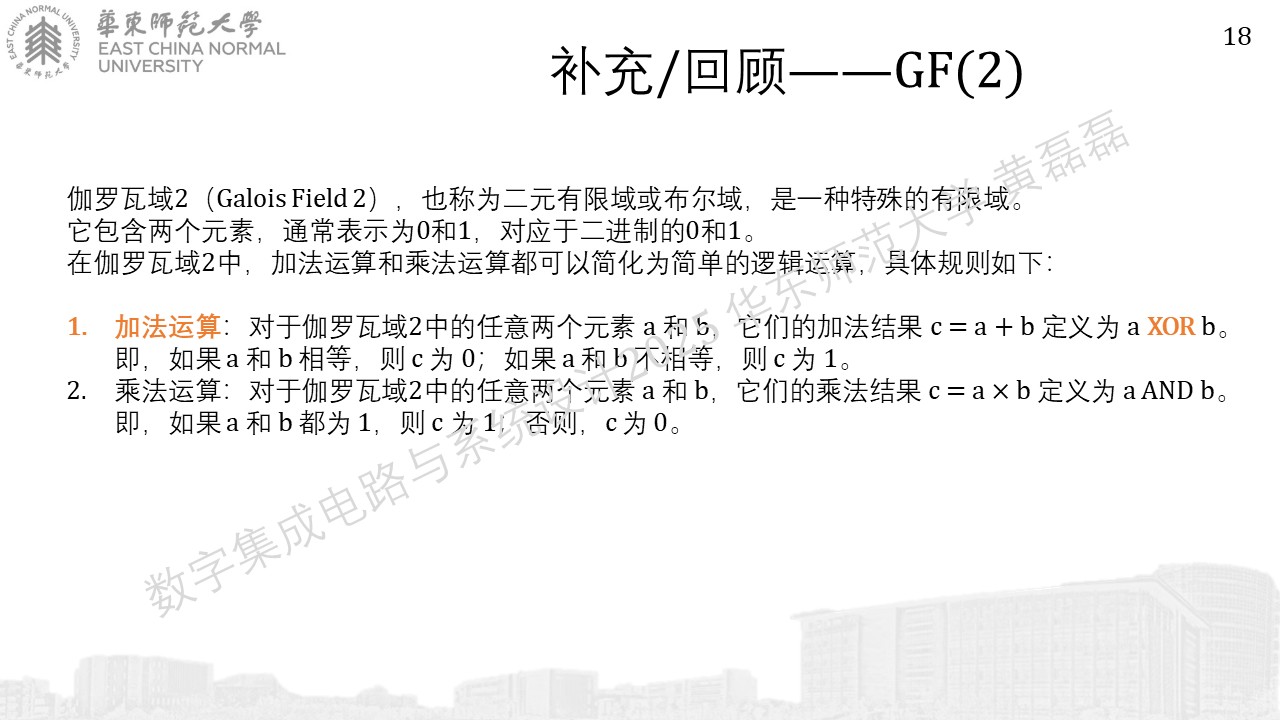

BCH码

../_images/%E5%B9%BB%E7%81%AF%E7%89%871622.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871721.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871819.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871918.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872017.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872119.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872217.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872315.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872414.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872513.JPG

CRC码

../_images/%E5%B9%BB%E7%81%AF%E7%89%872612.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872711.JPG
