第06讲 - 时序逻辑 - (异步)数据

../_images/%E5%B9%BB%E7%81%AF%E7%89%871148.JPG

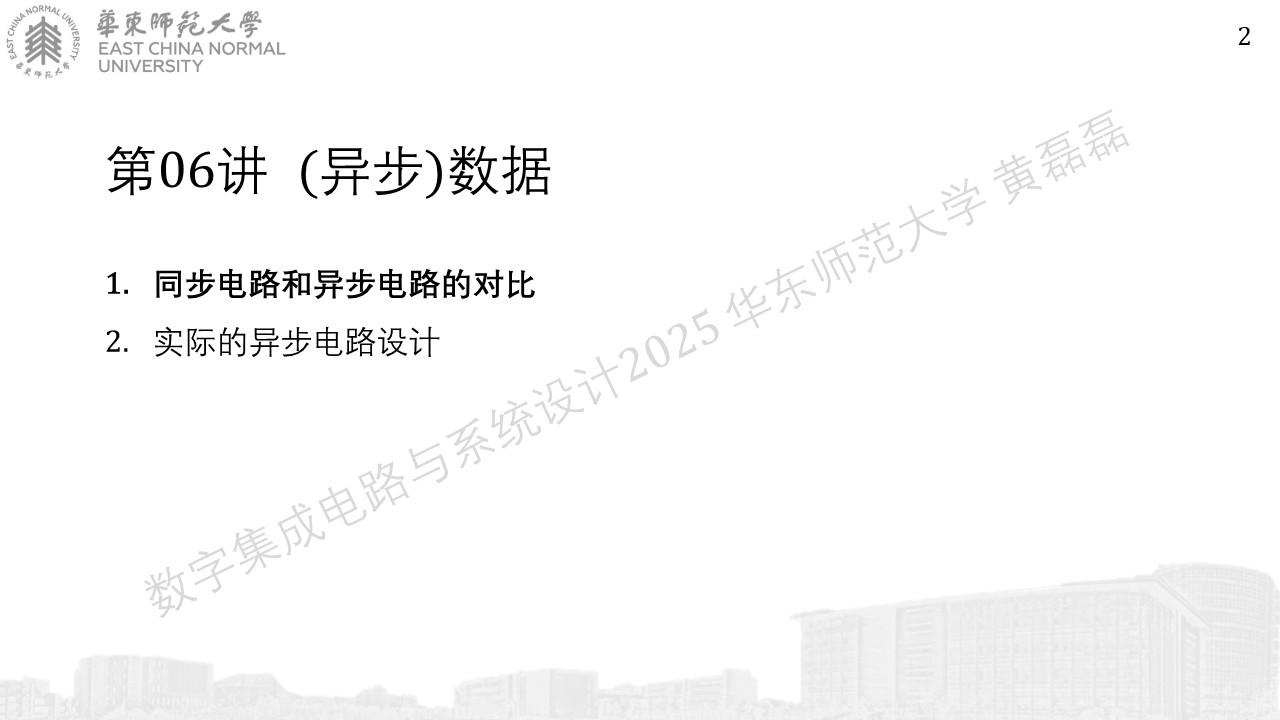

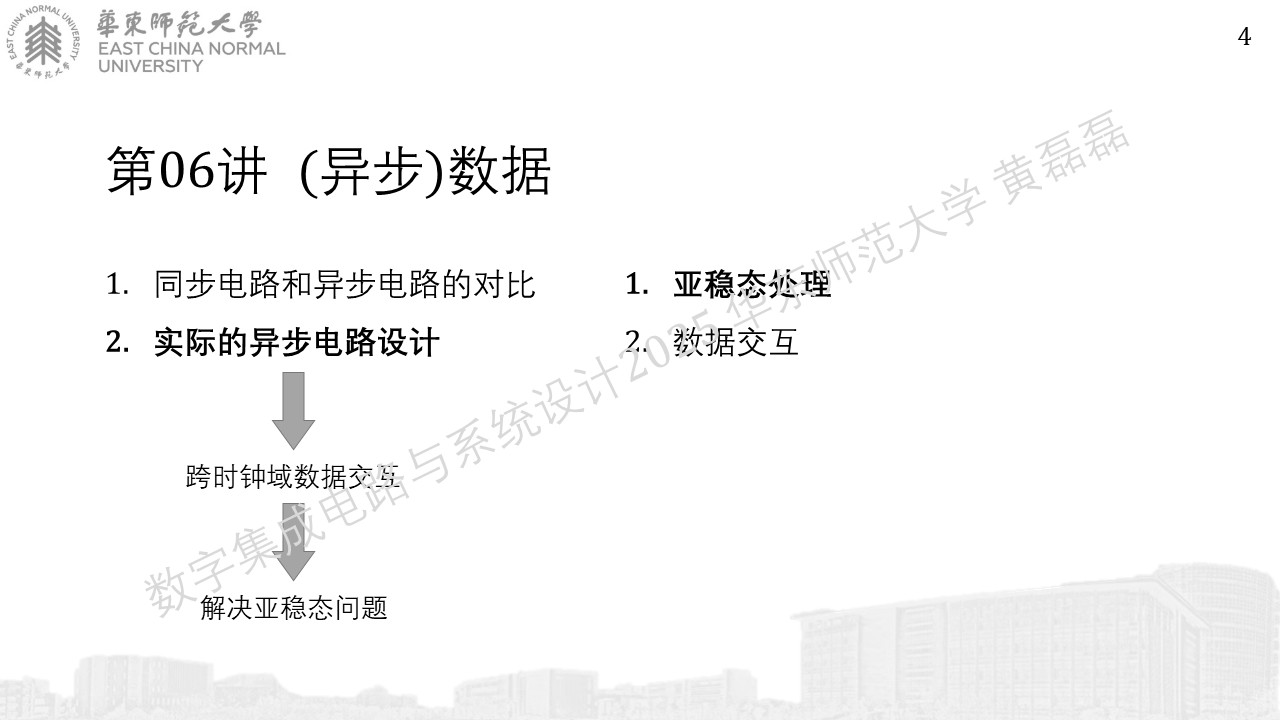

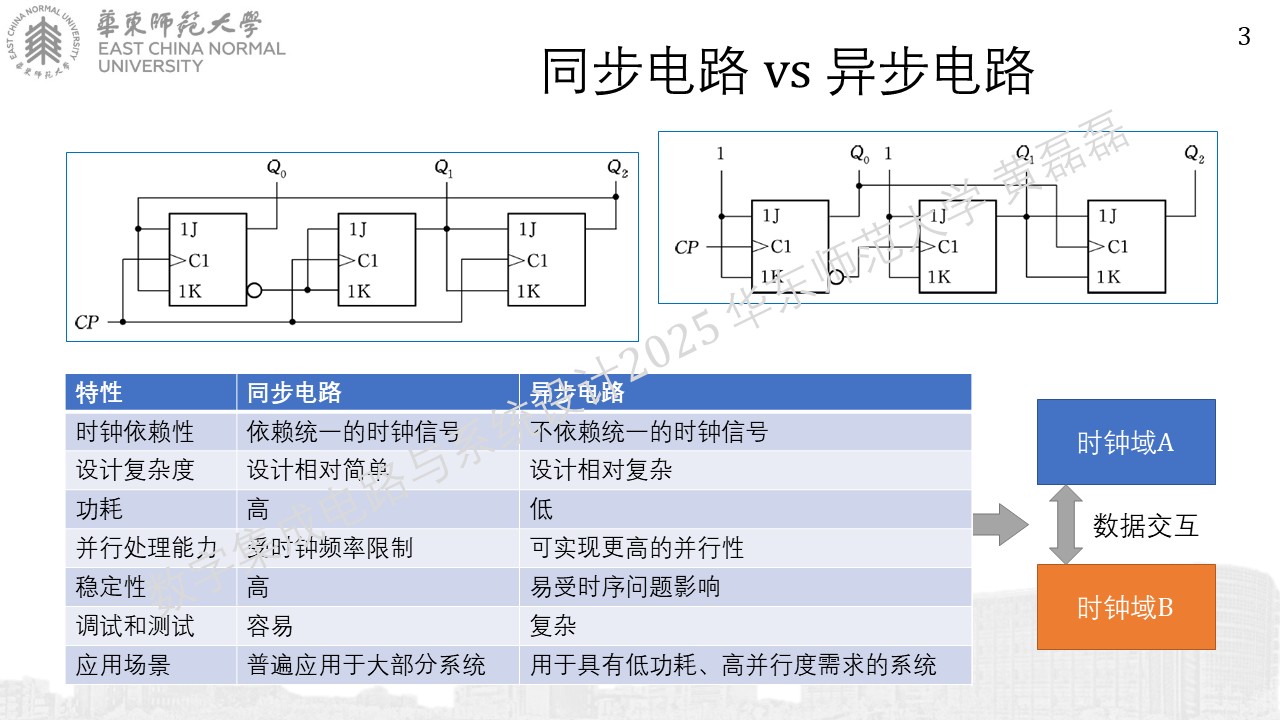

同步电路和异步电路的对比

../_images/%E5%B9%BB%E7%81%AF%E7%89%872130.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873100.JPG

同步电路和异步电路的对比

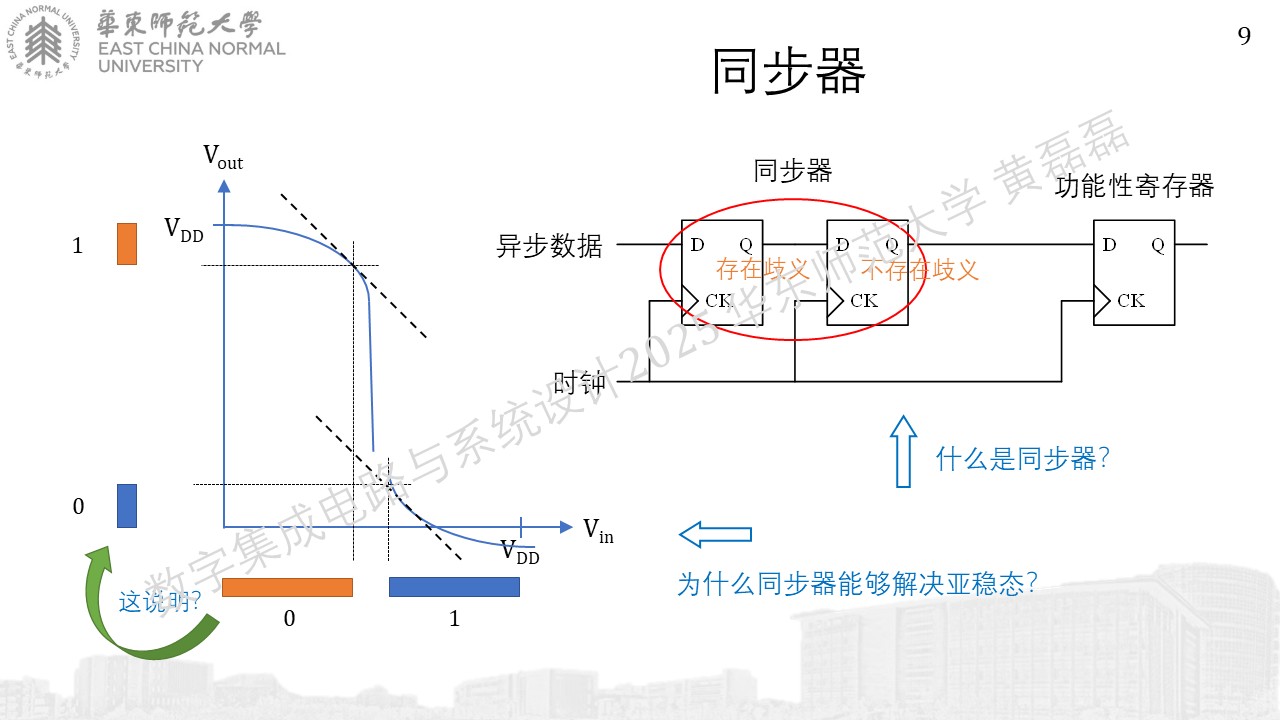

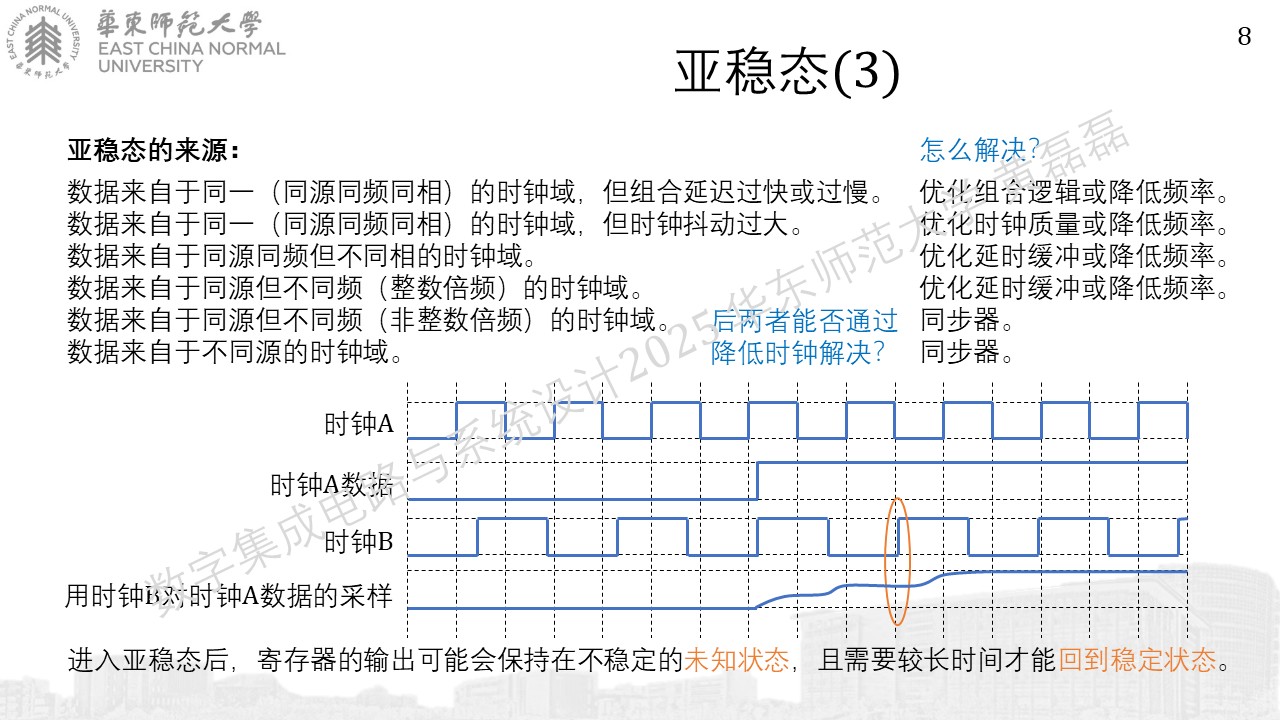

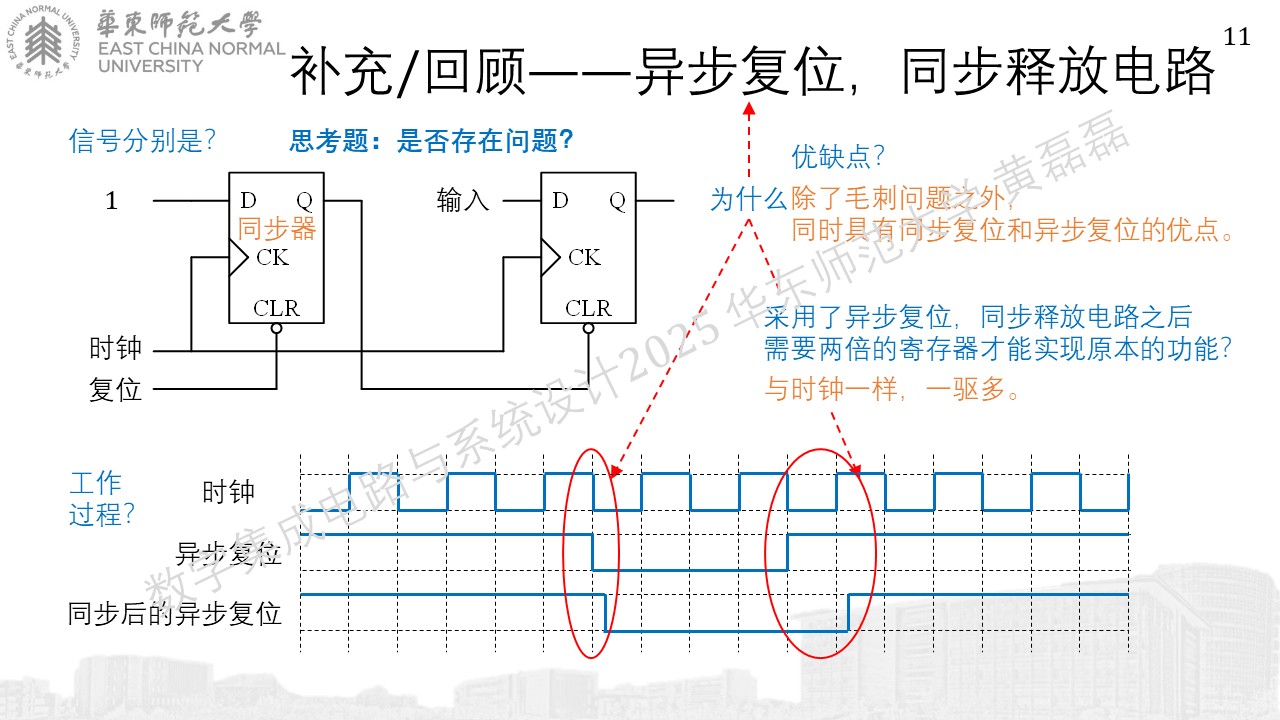

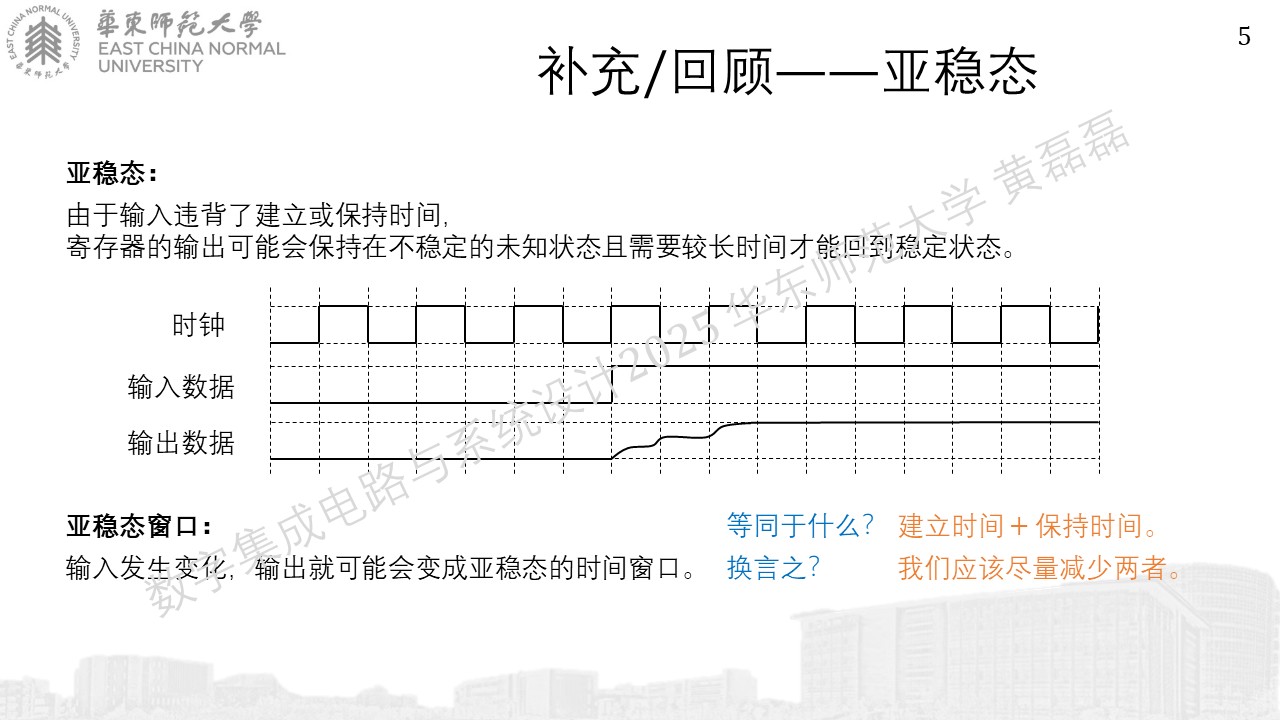

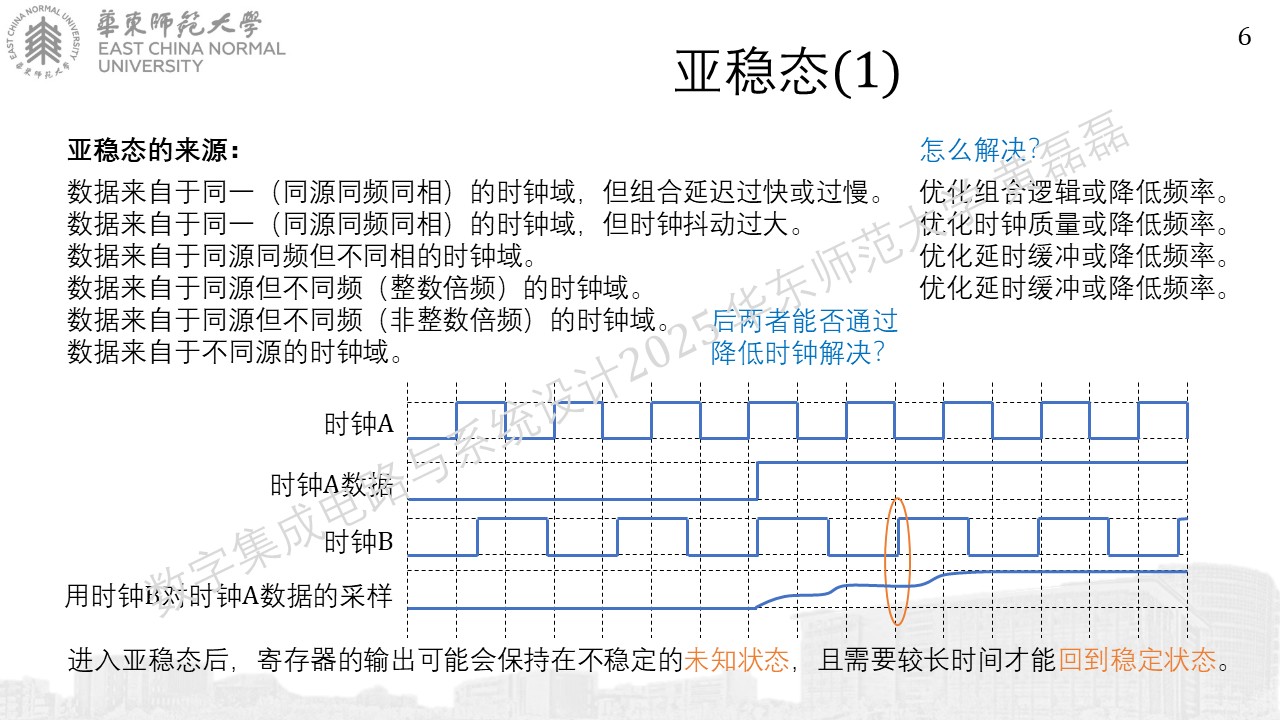

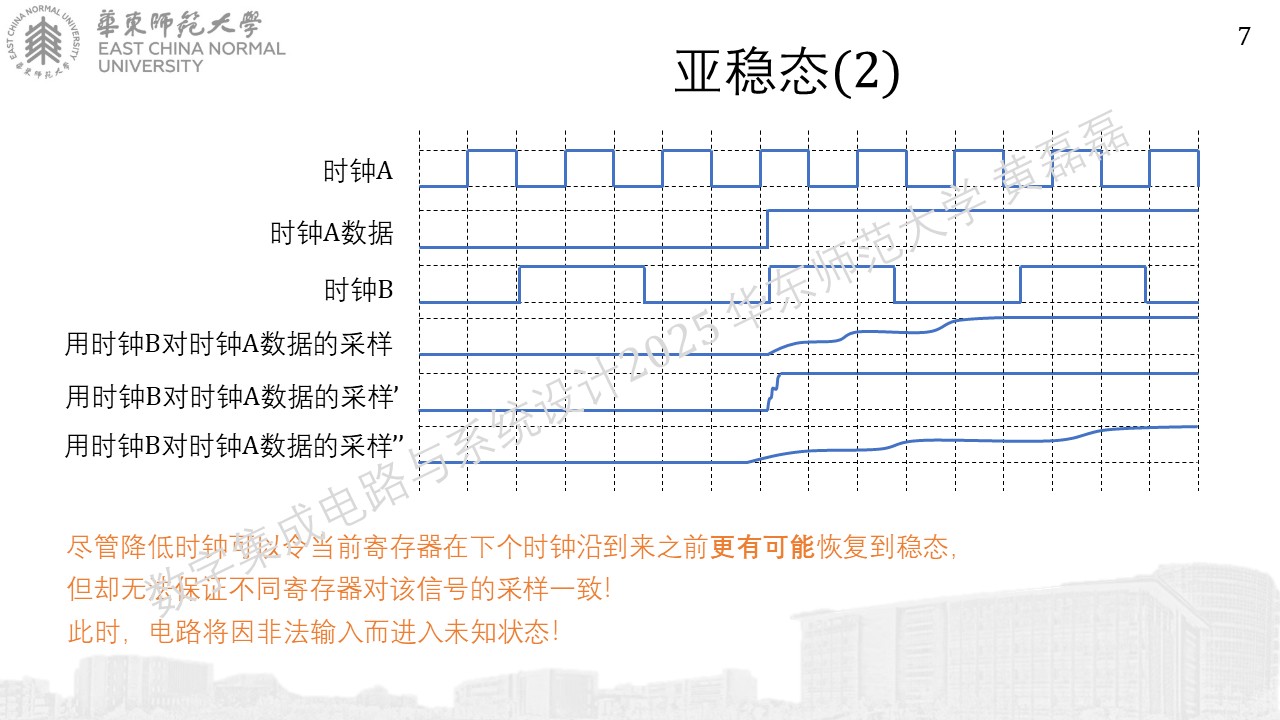

亚稳态

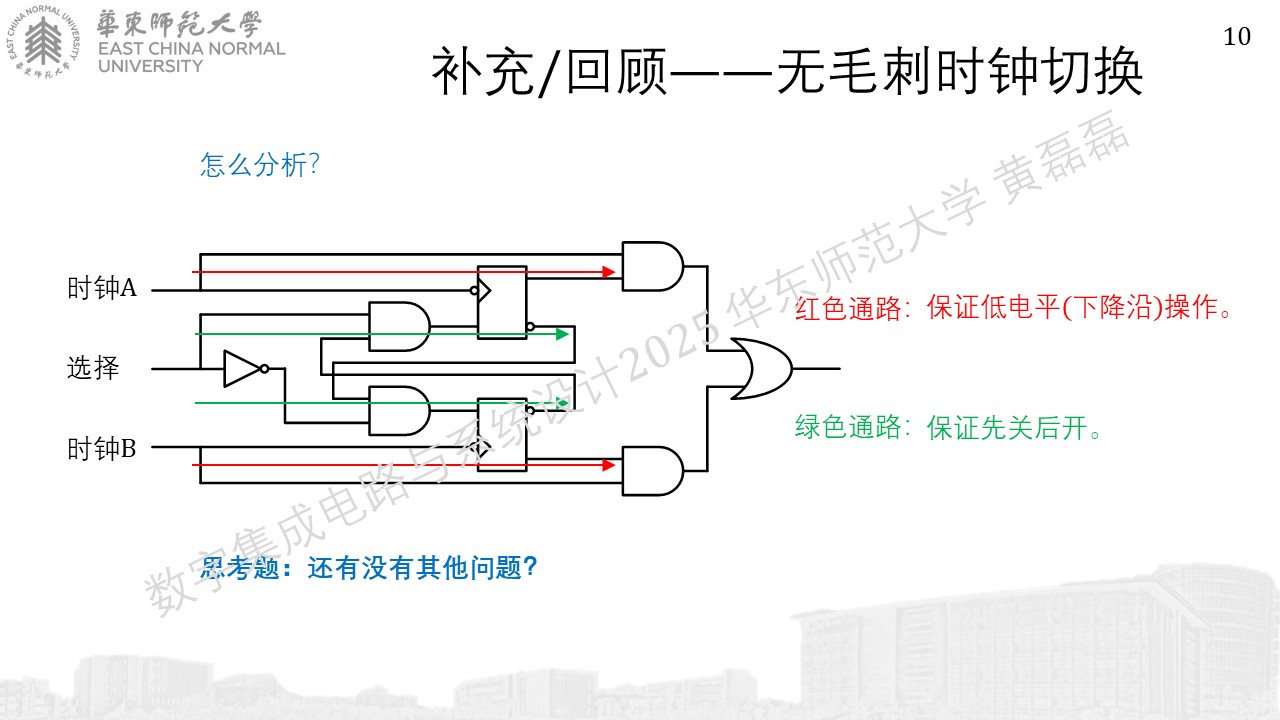

../_images/%E5%B9%BB%E7%81%AF%E7%89%87466.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87543.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87638.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87738.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87837.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87935.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871035.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871149.JPG

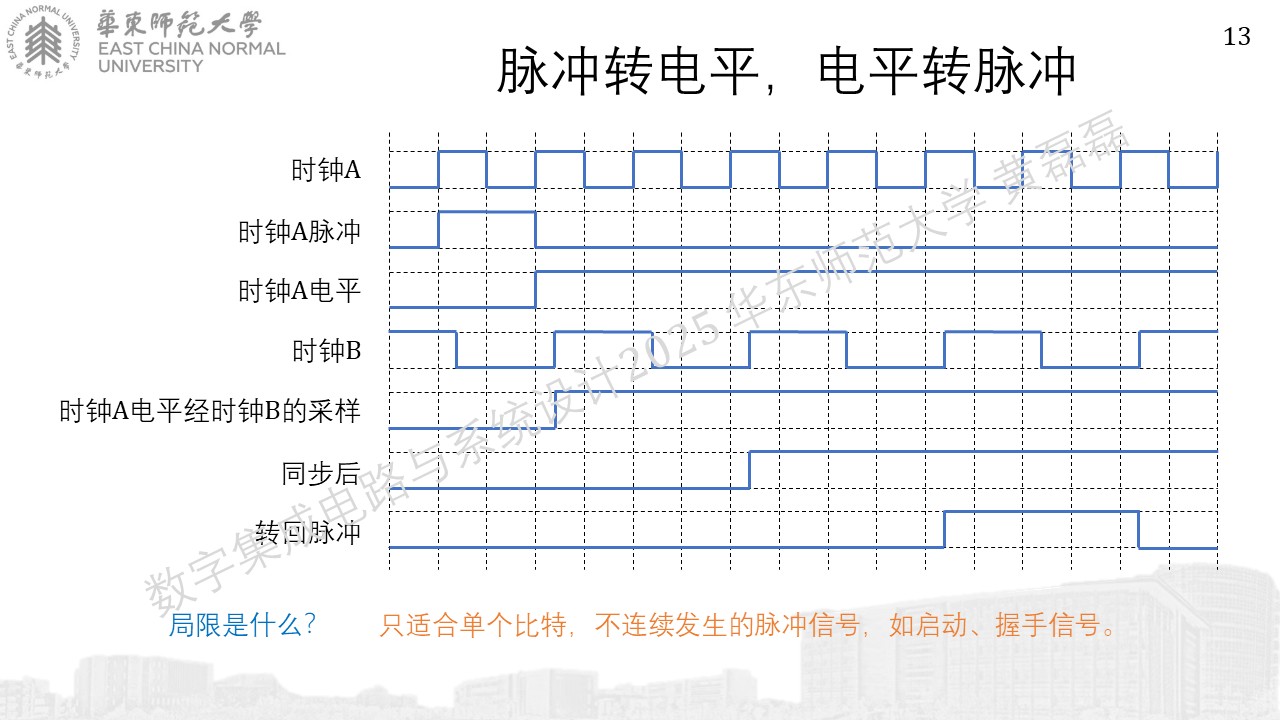

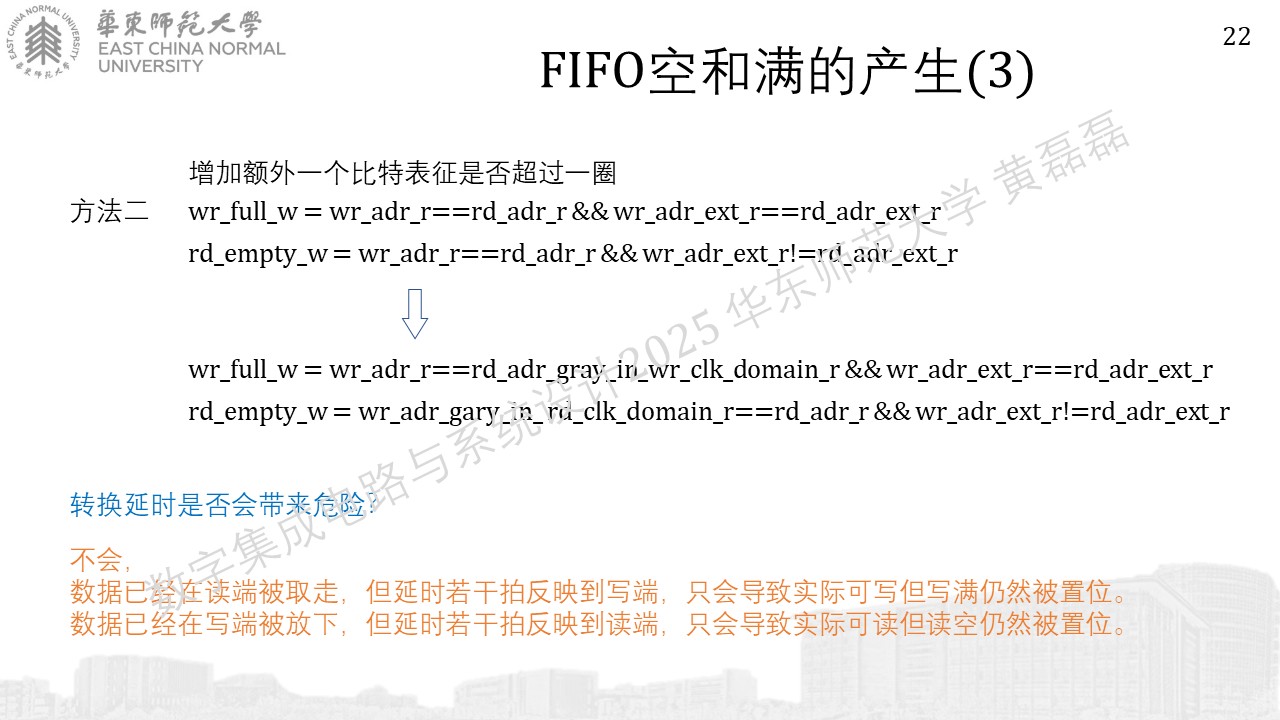

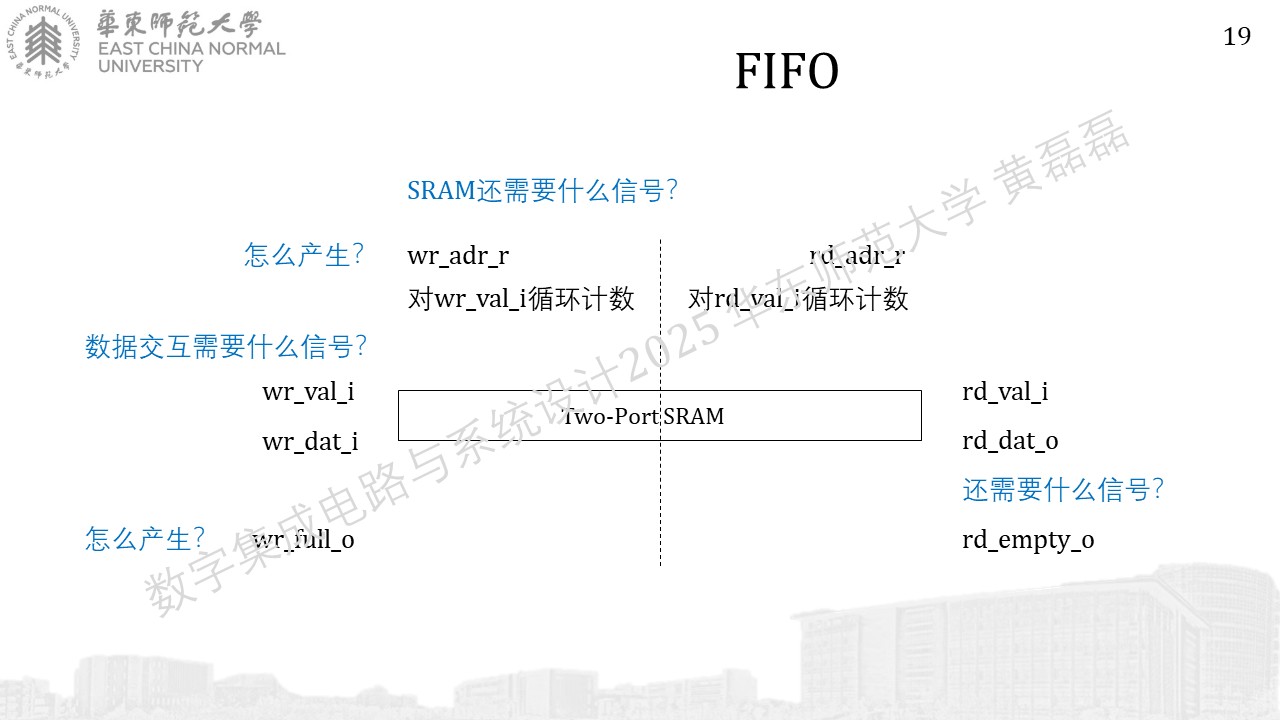

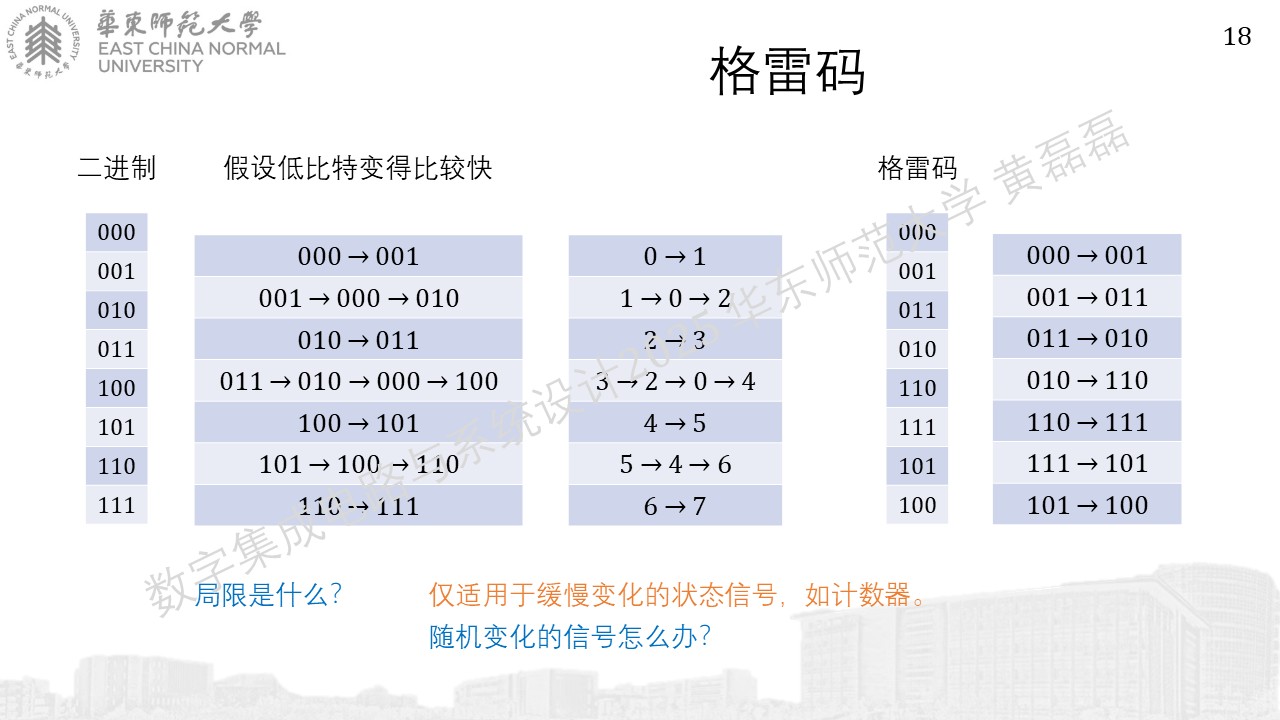

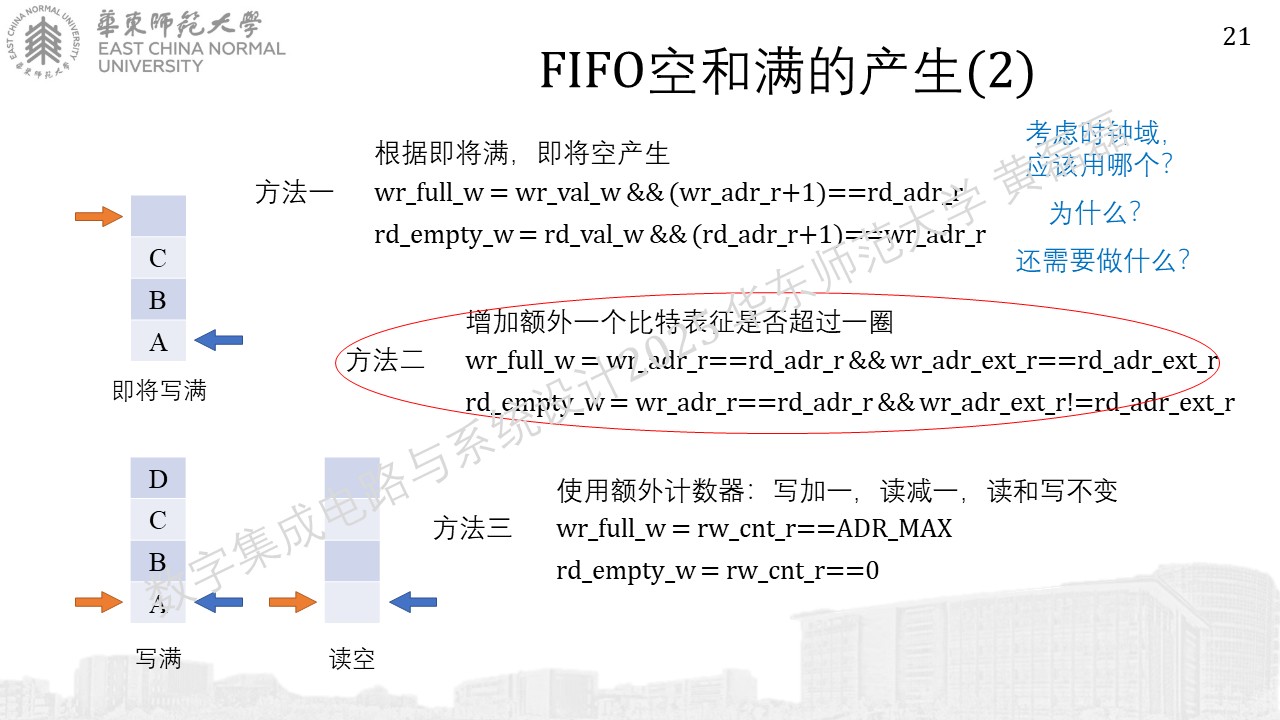

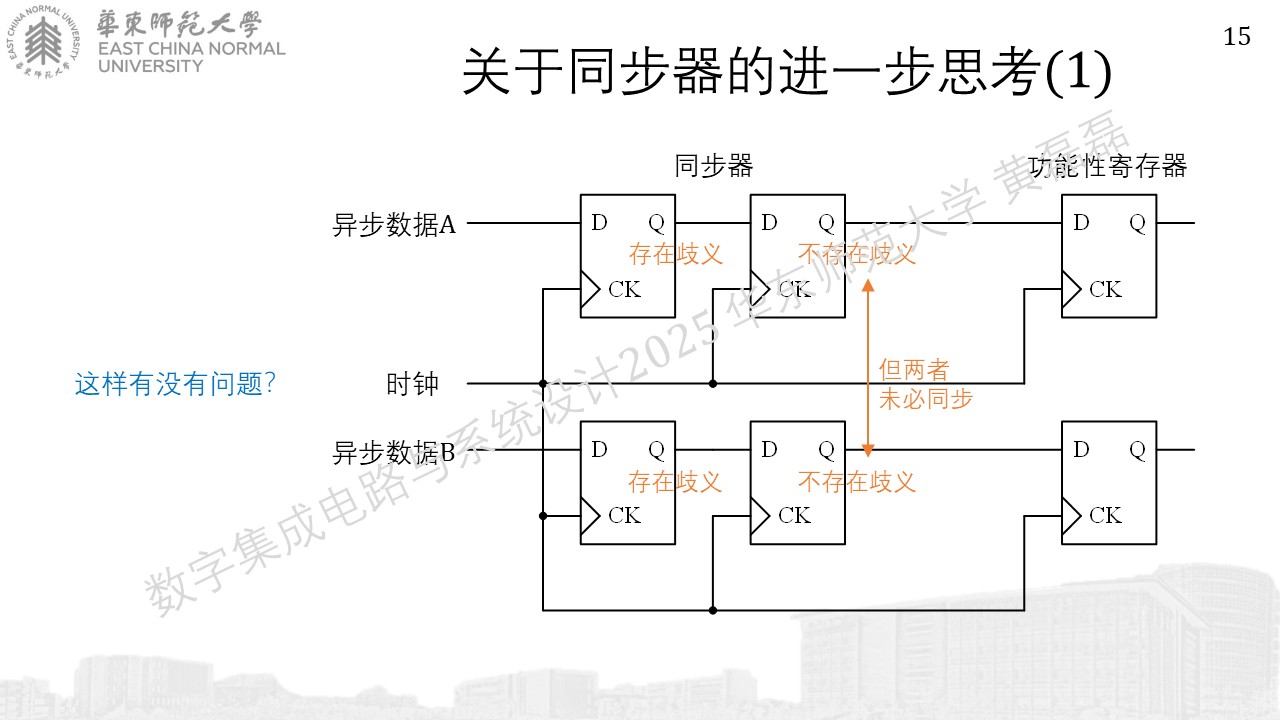

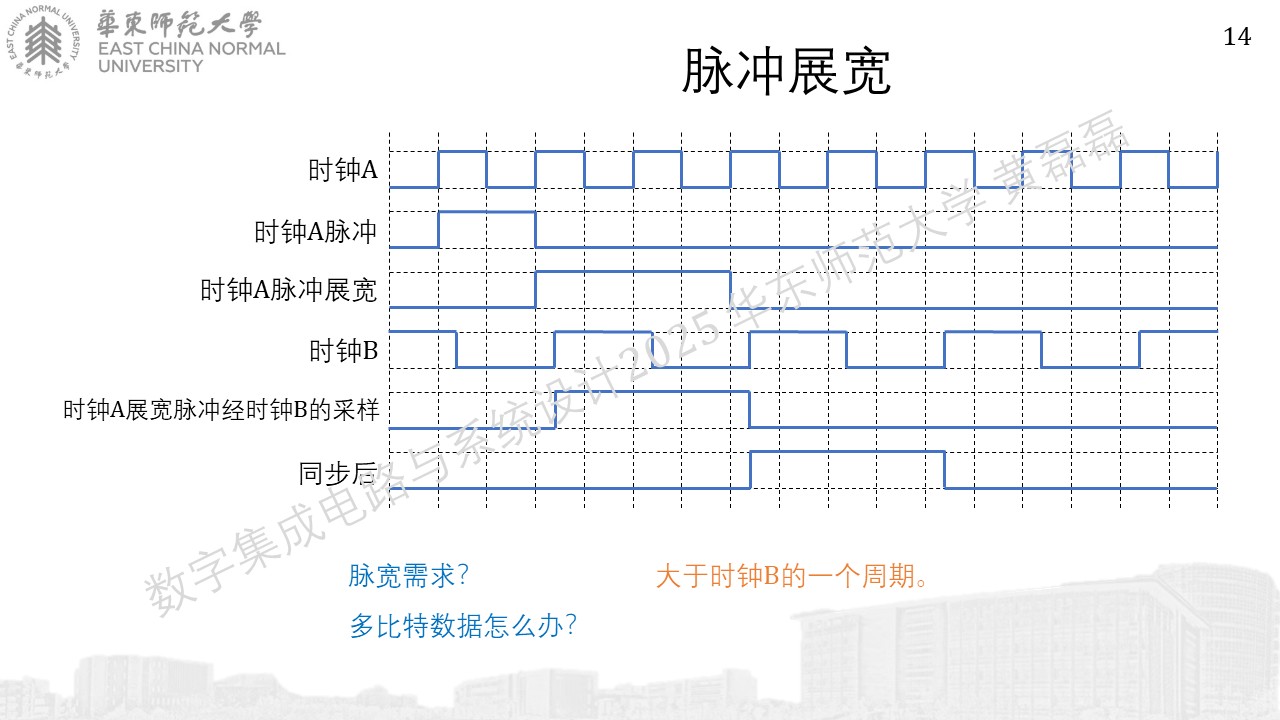

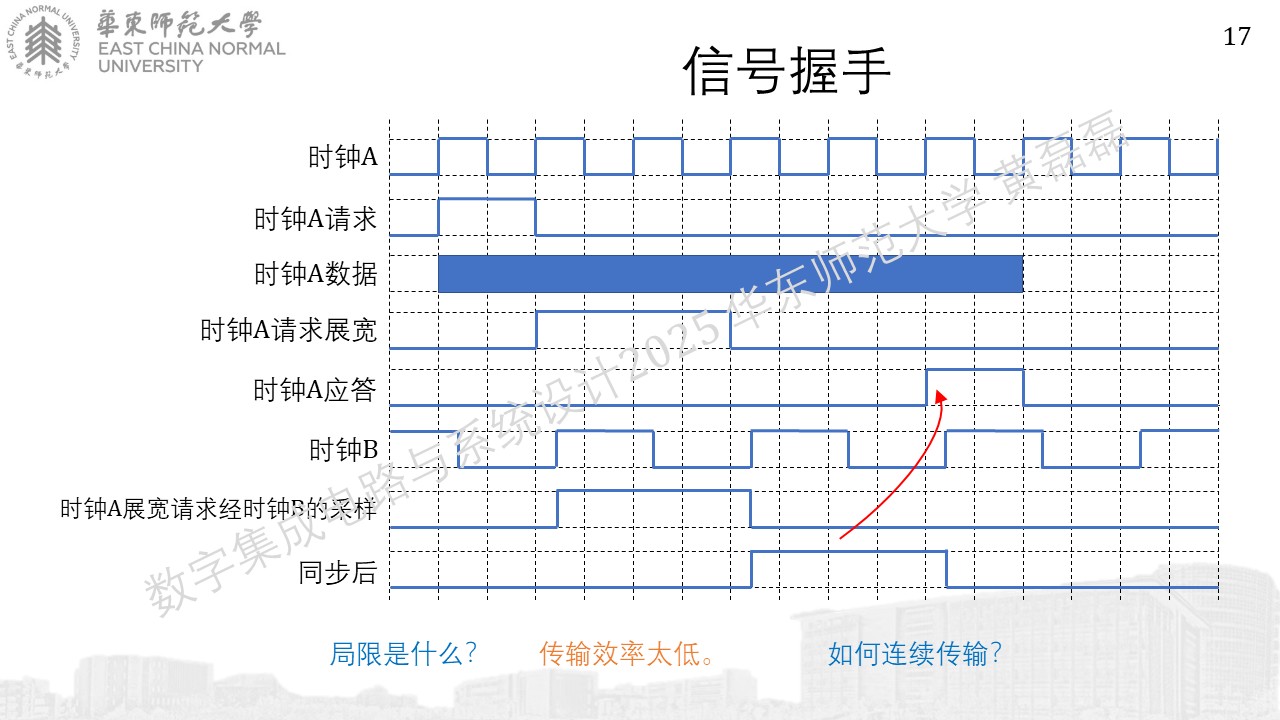

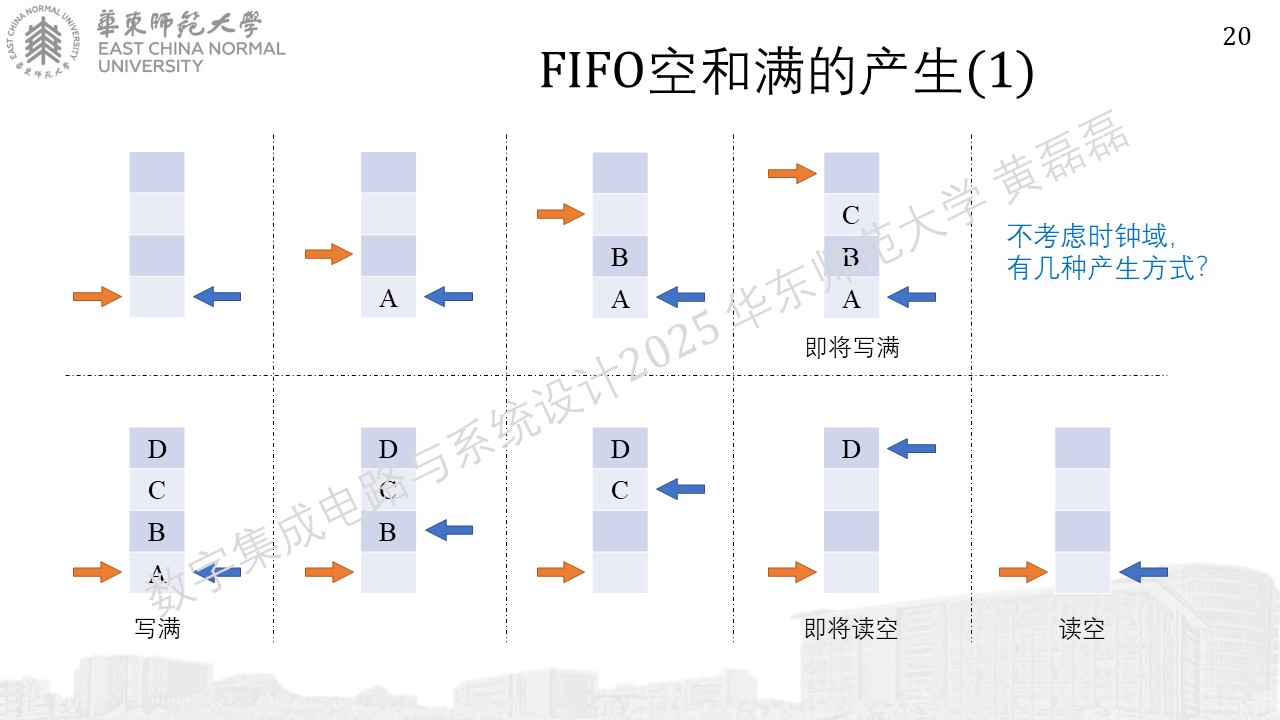

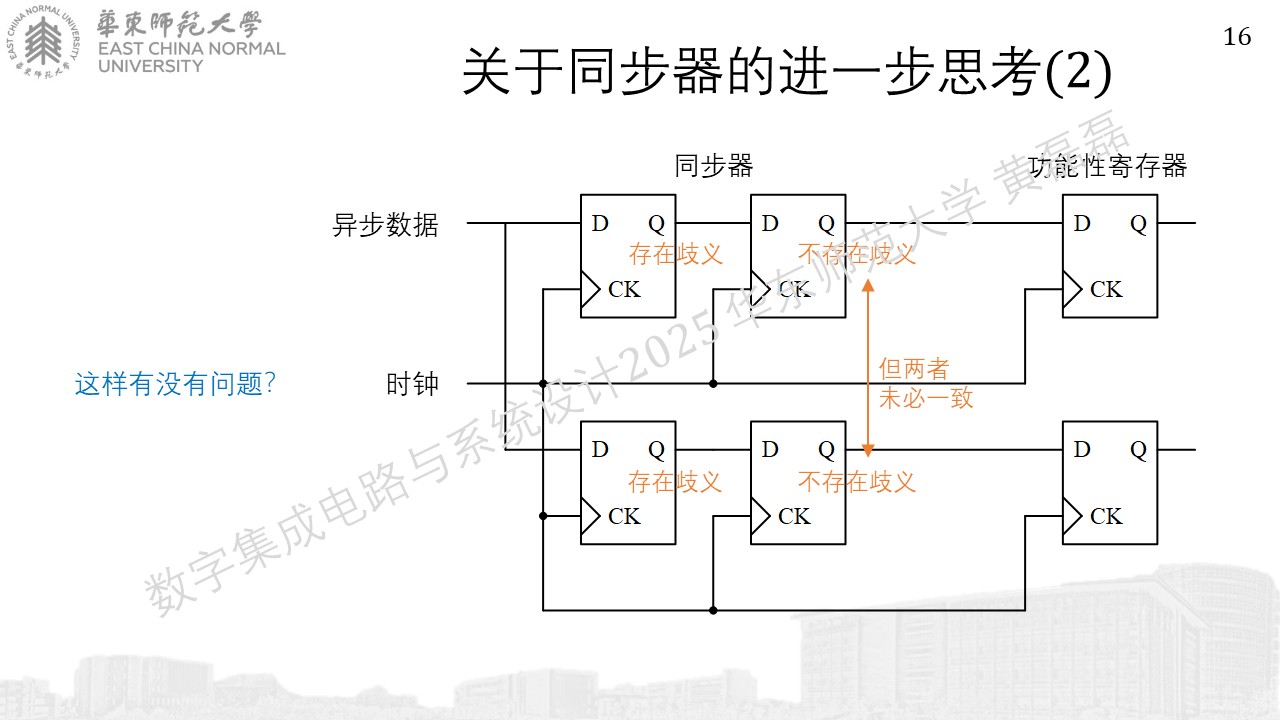

数据交互

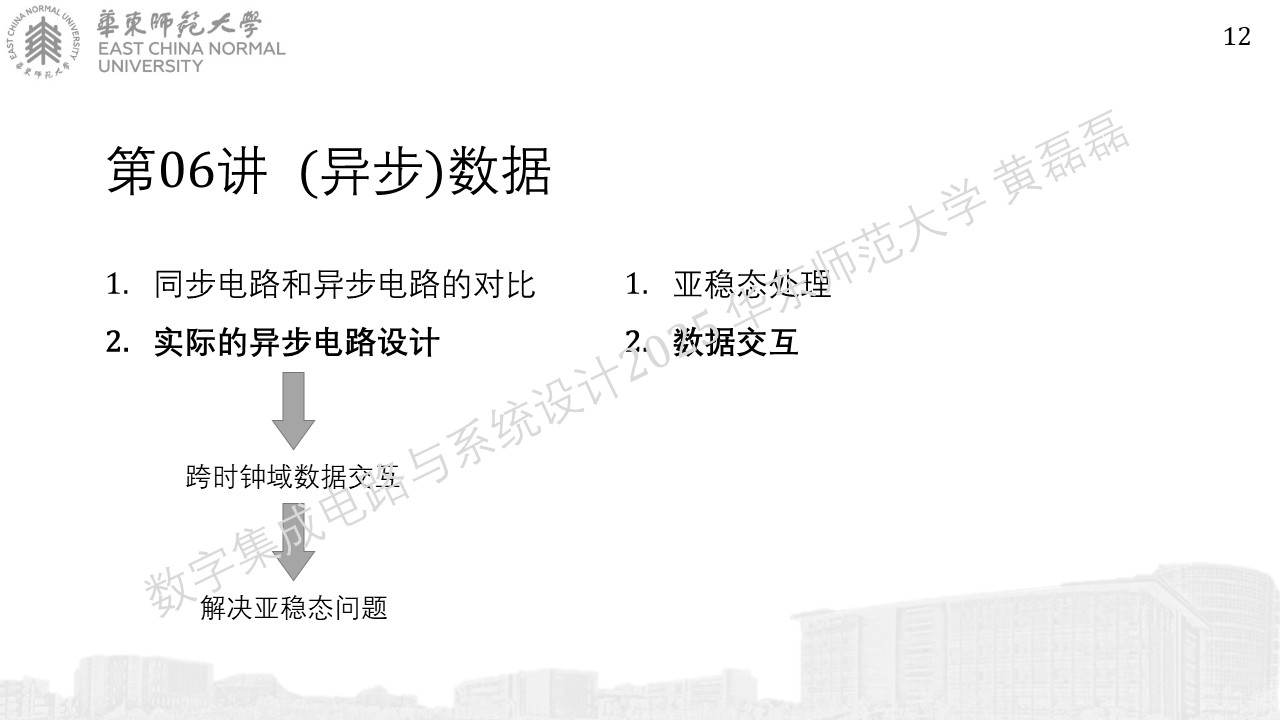

../_images/%E5%B9%BB%E7%81%AF%E7%89%871237.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871334.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871434.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871534.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871633.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871732.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871830.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871929.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872028.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872131.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872227.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872325.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872423.JPG
