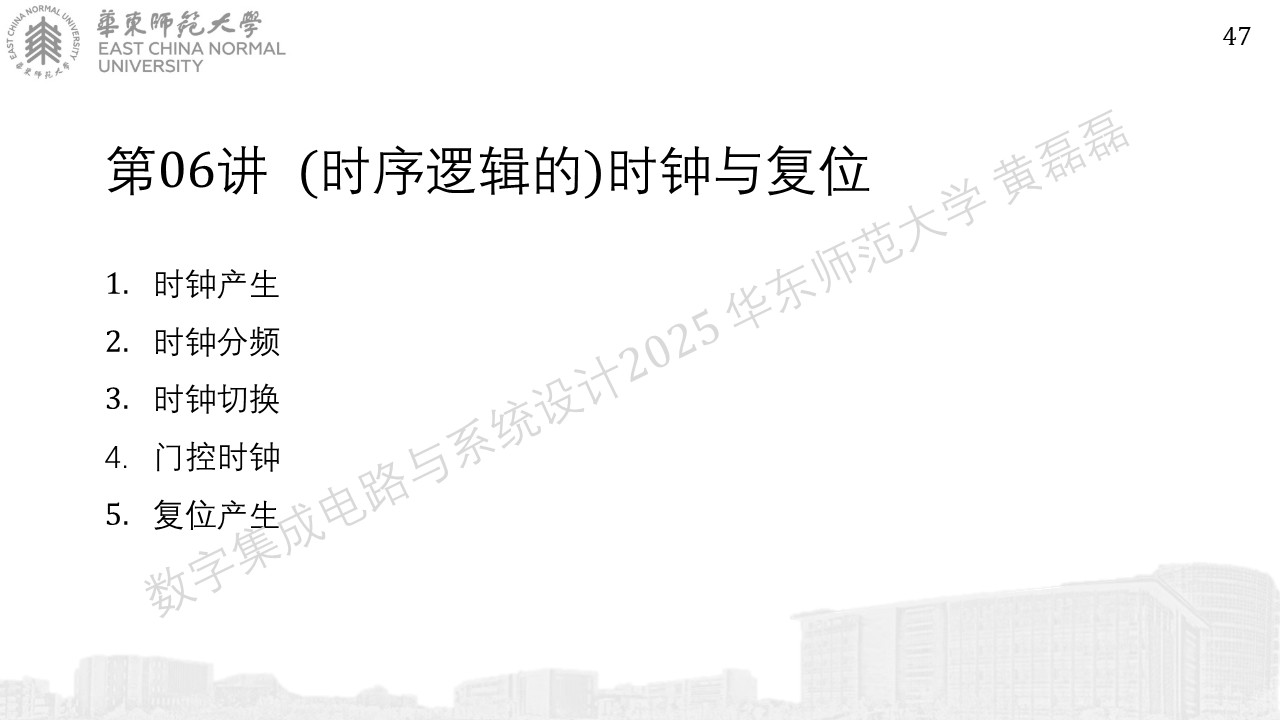

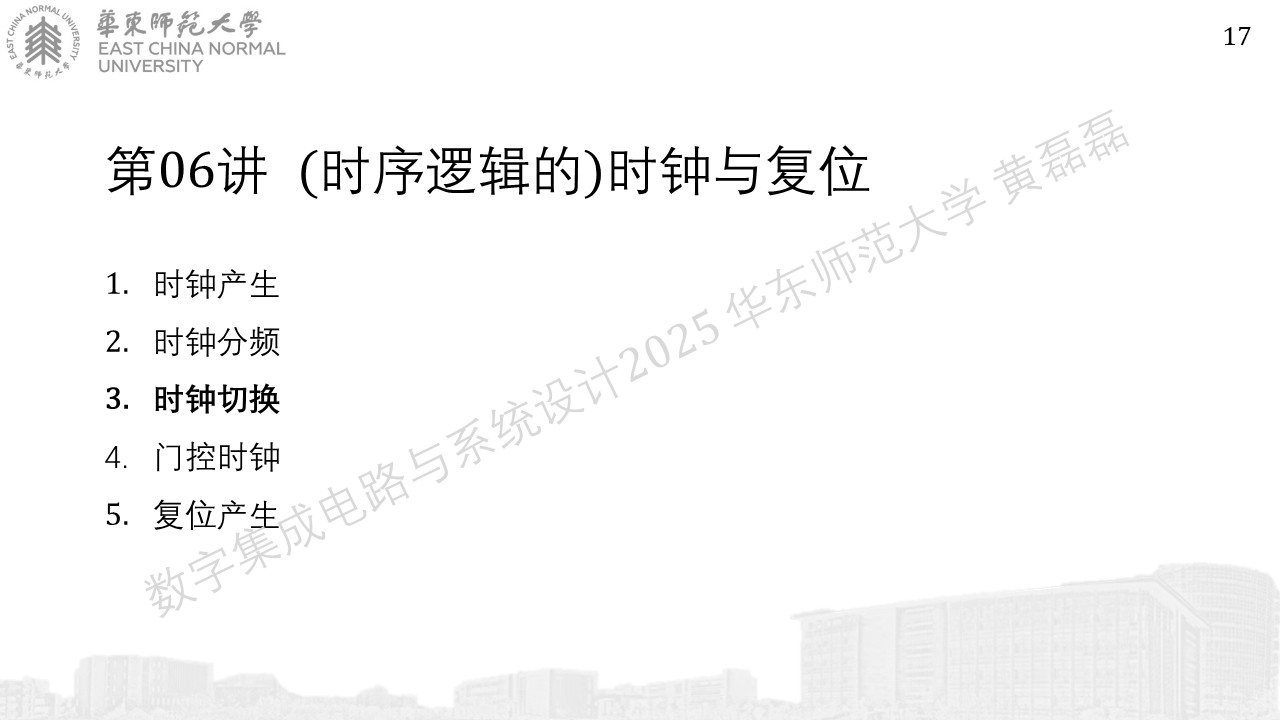

第06讲 - 时序逻辑 - 时钟与复位

../_images/%E5%B9%BB%E7%81%AF%E7%89%871144.JPG

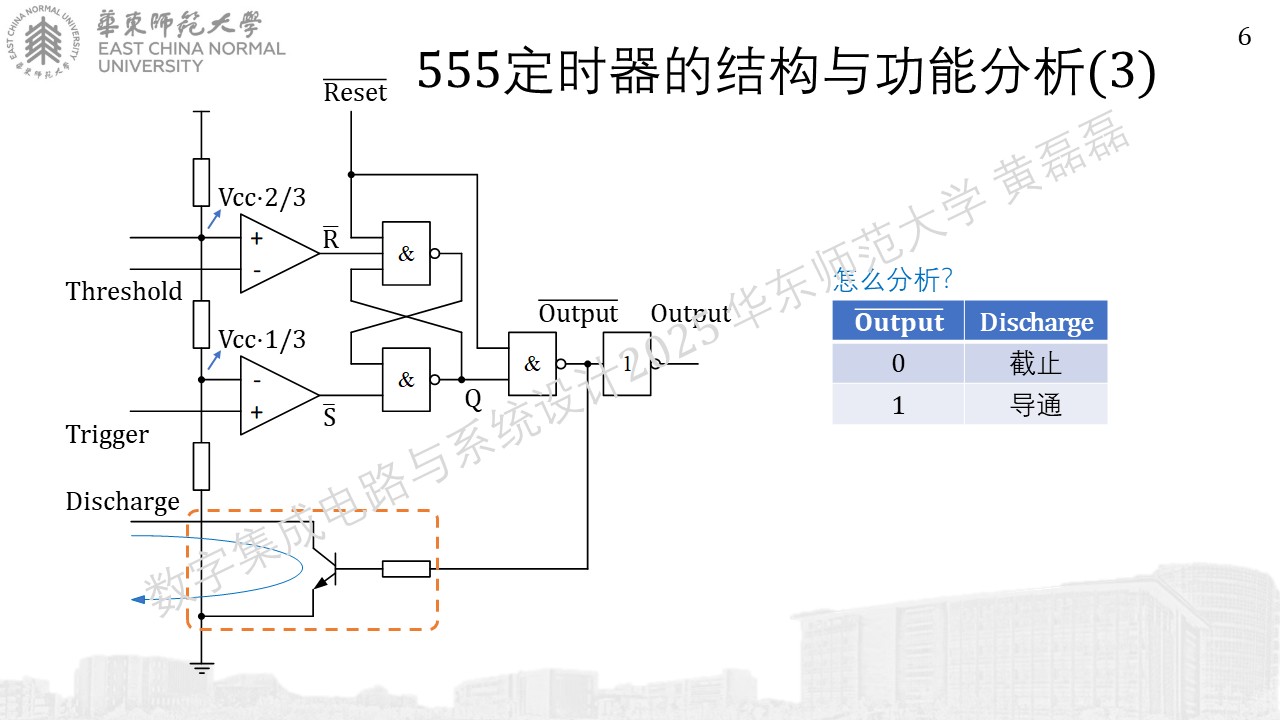

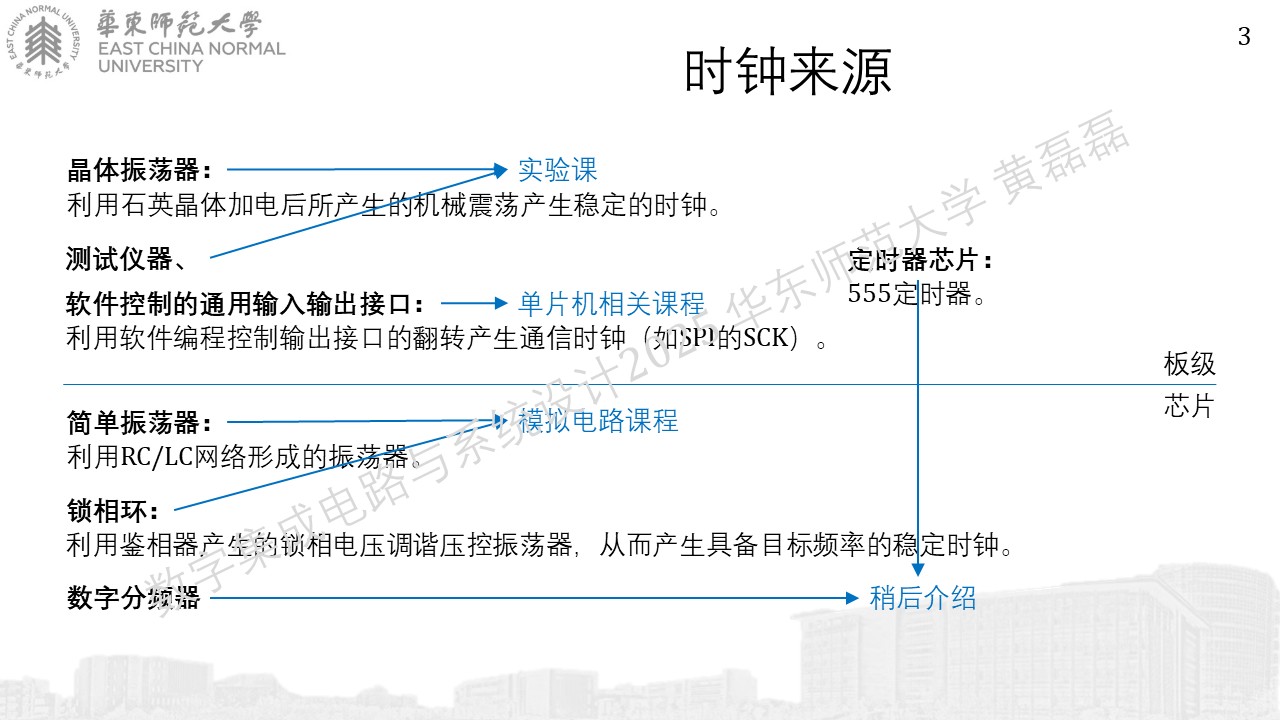

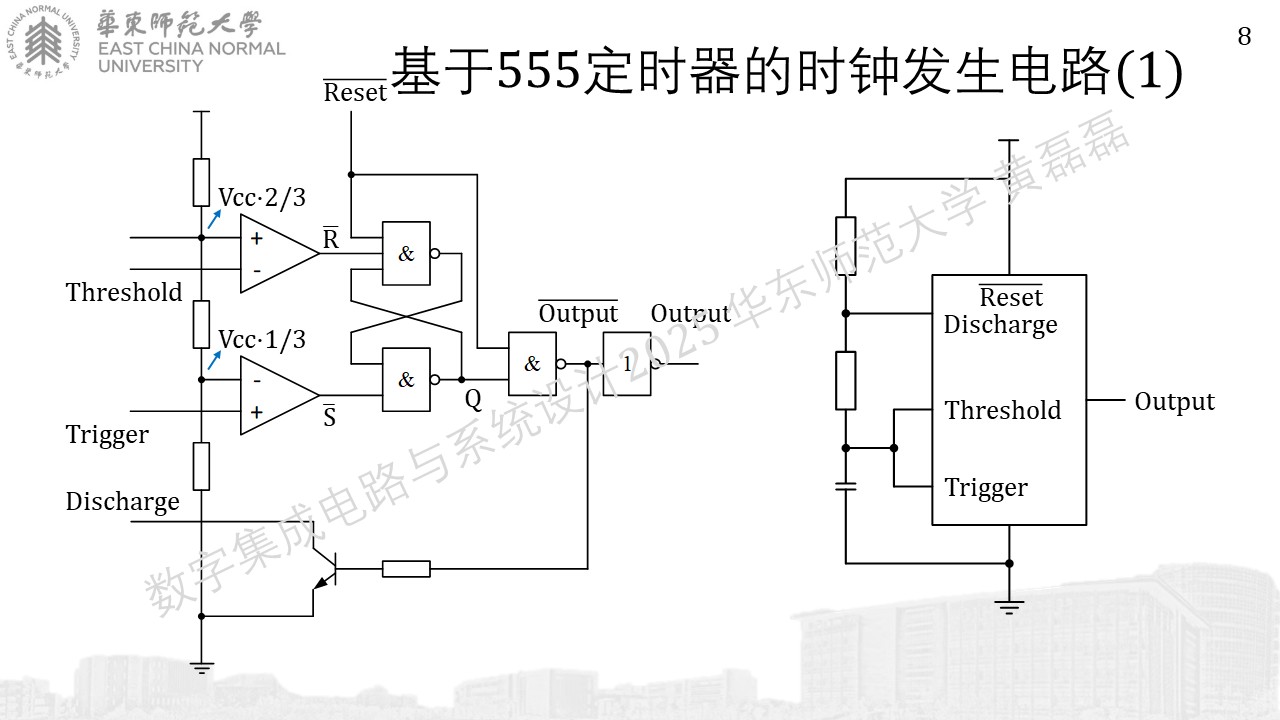

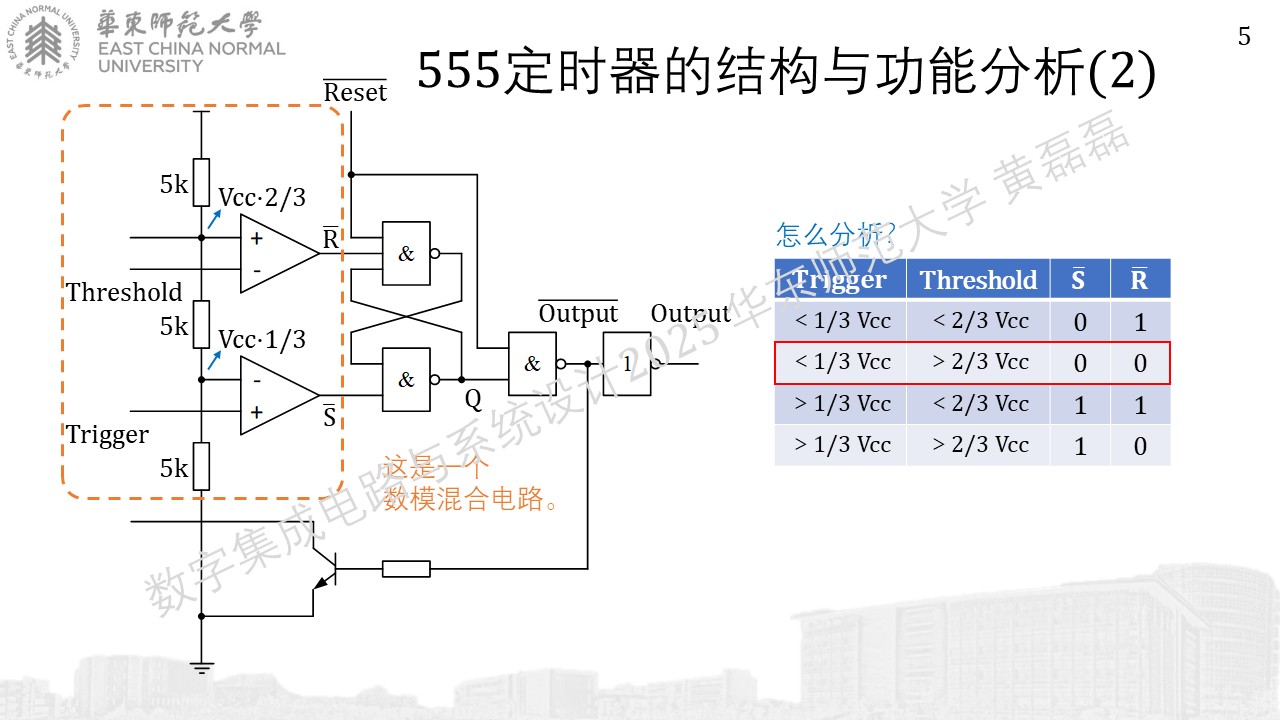

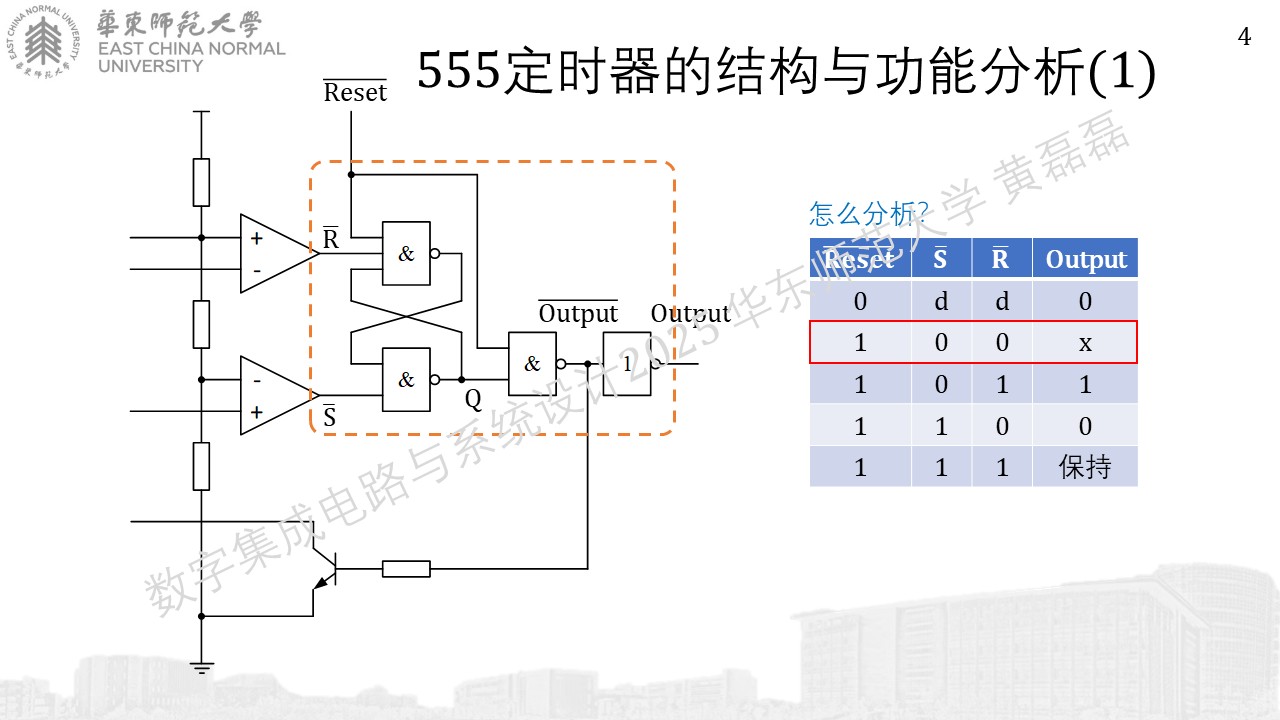

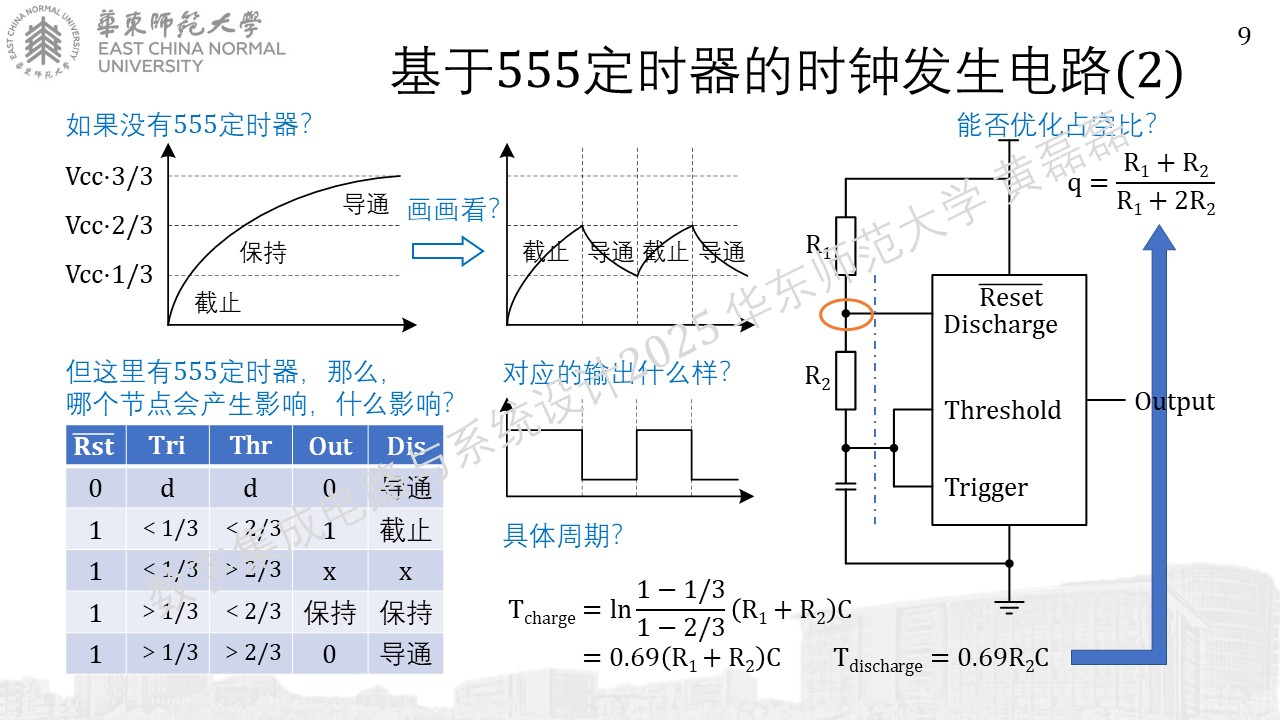

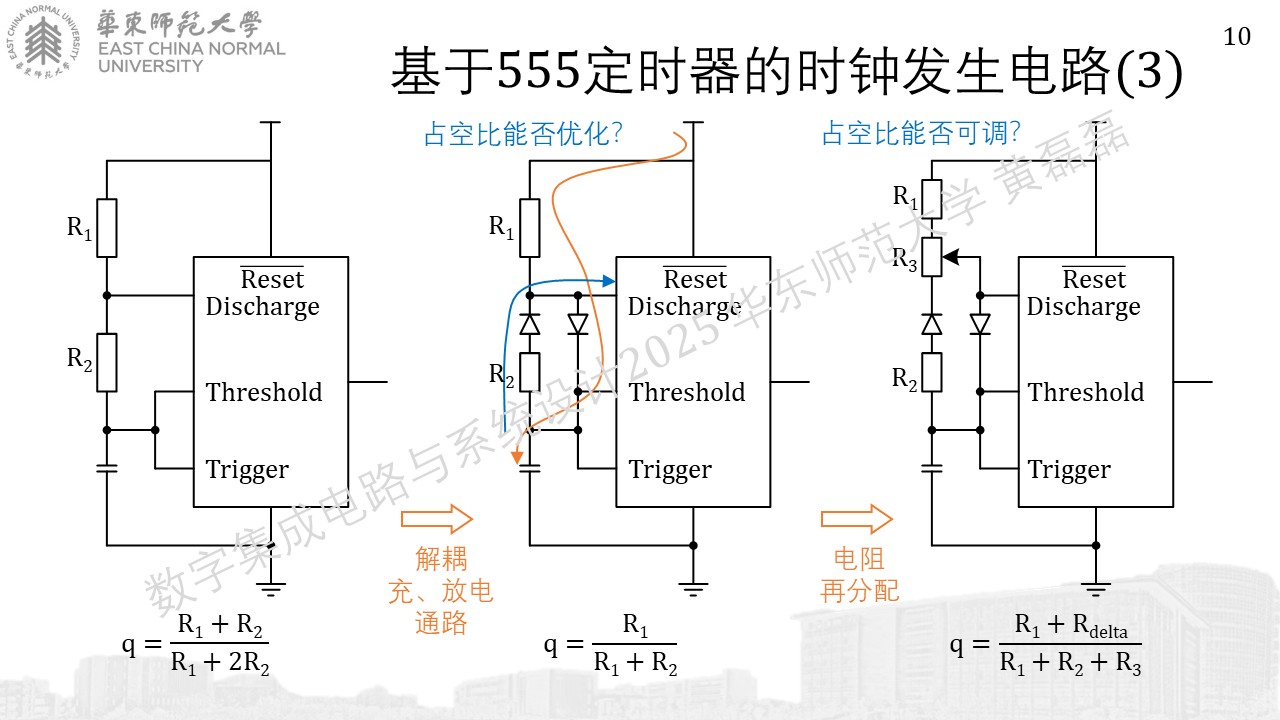

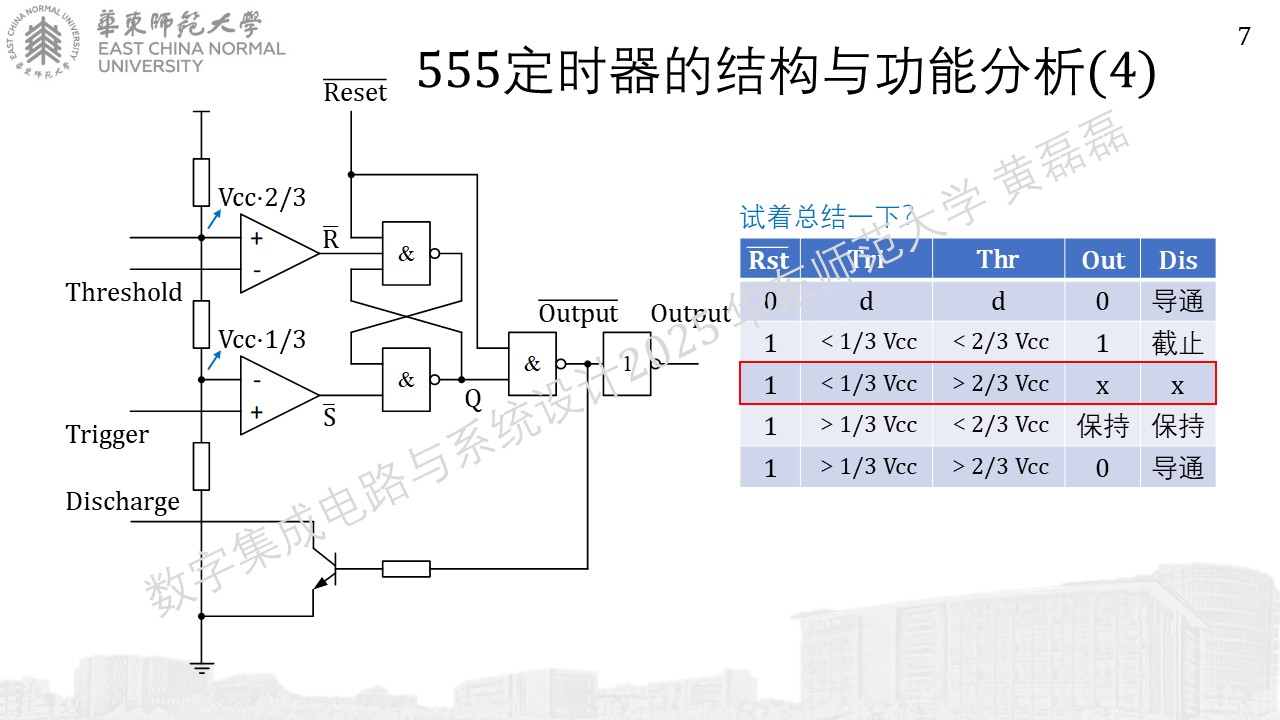

时钟产生

../_images/%E5%B9%BB%E7%81%AF%E7%89%872108.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87397.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87458.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87539.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87636.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87736.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87835.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87933.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871033.JPG

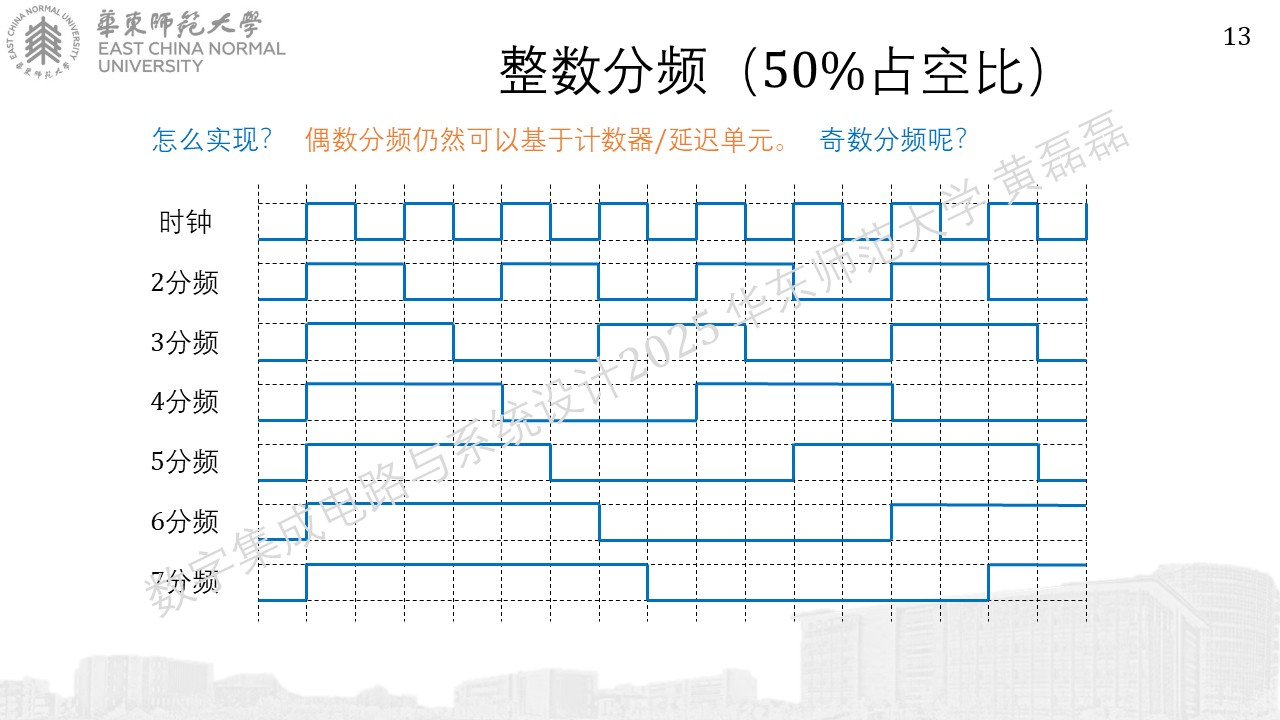

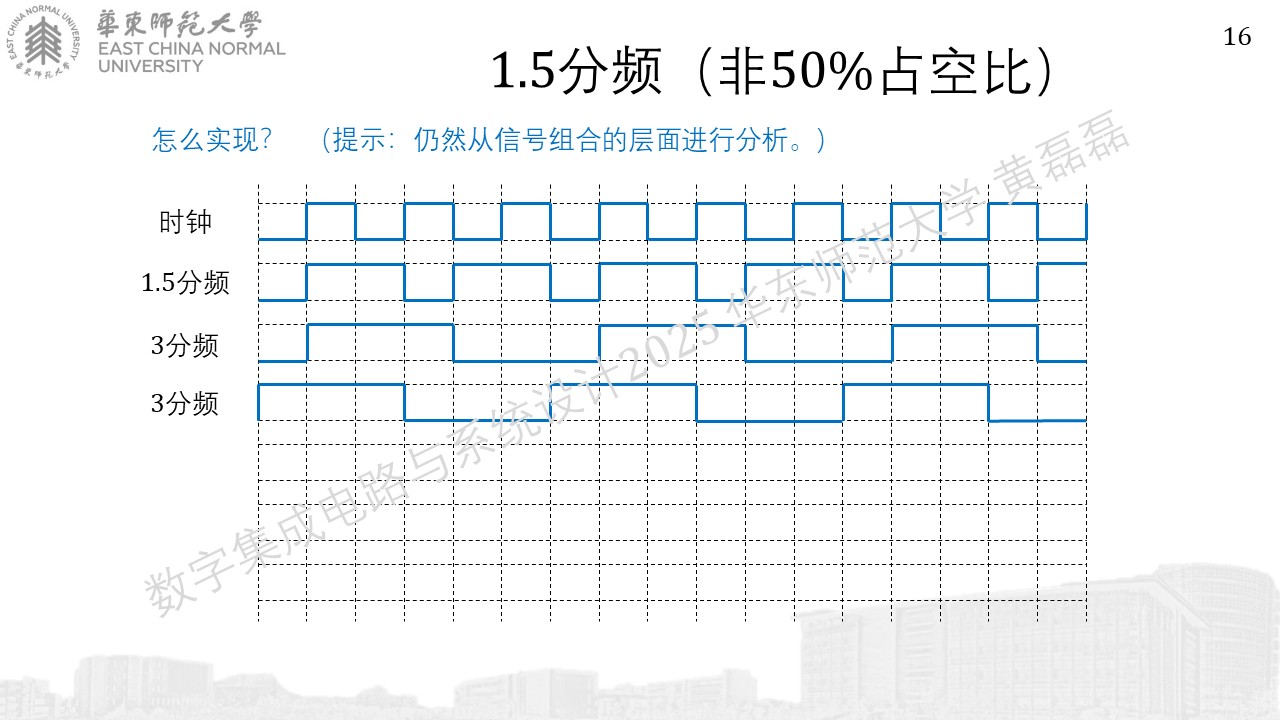

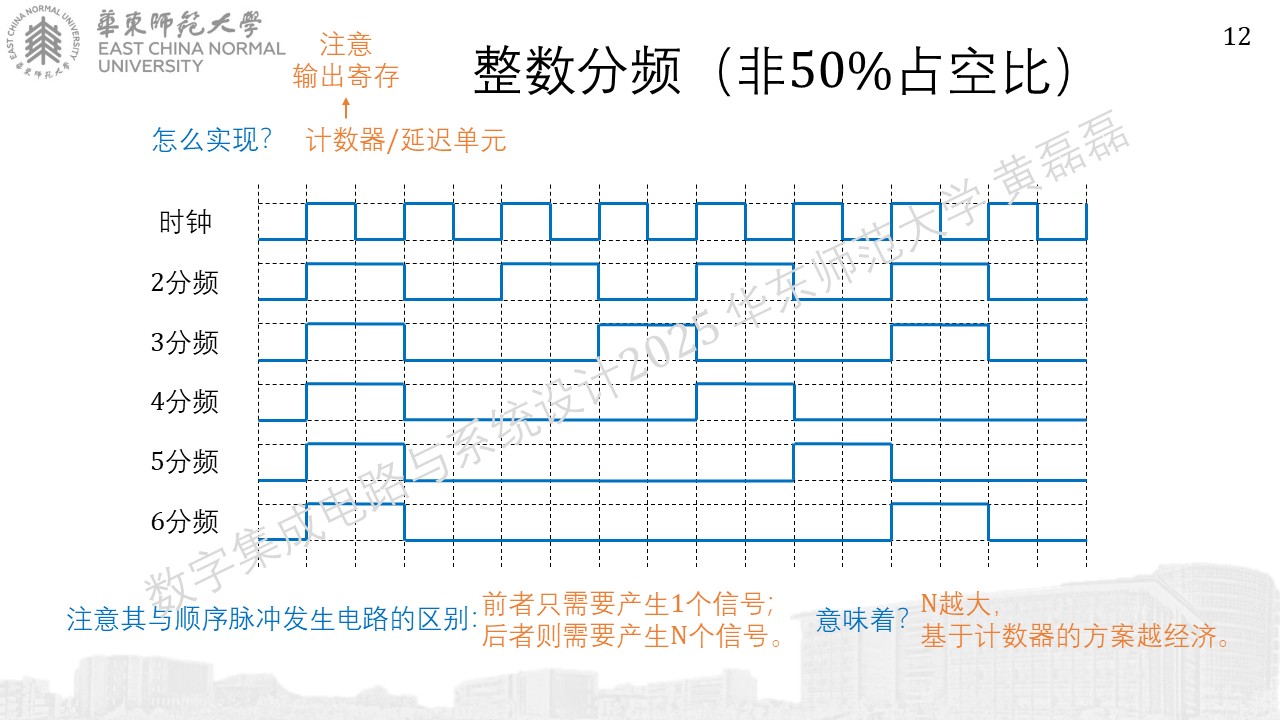

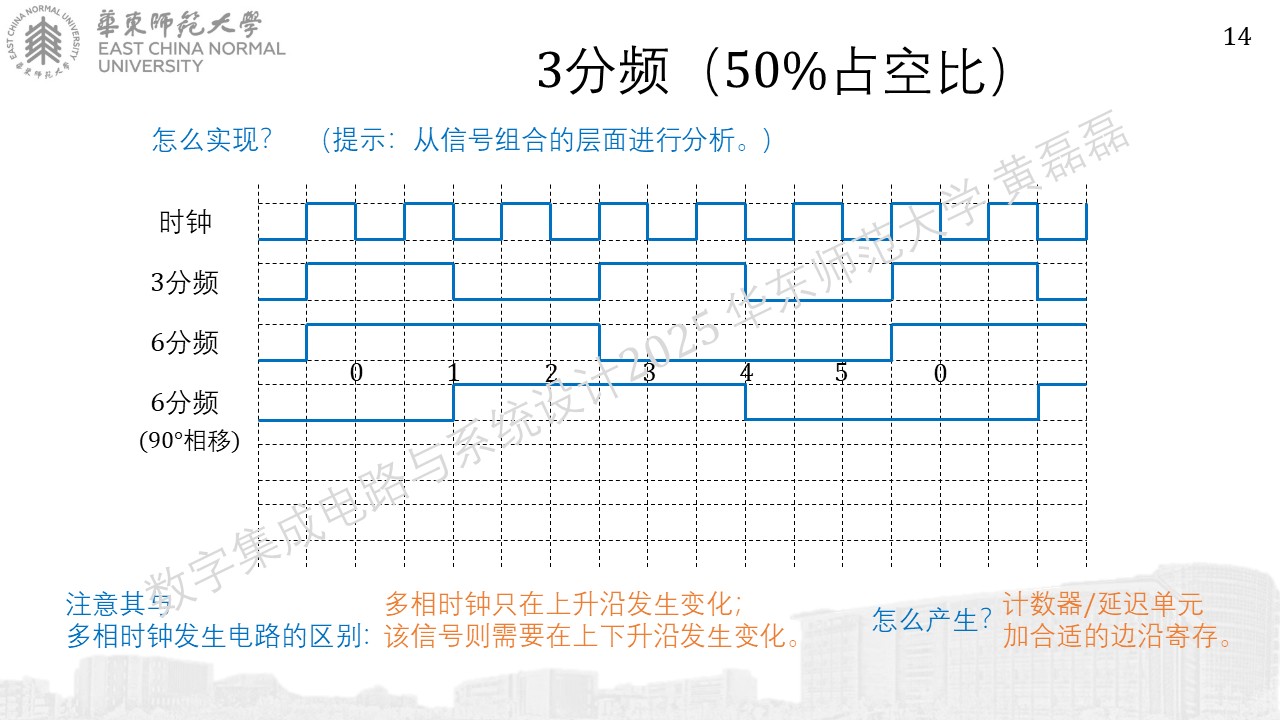

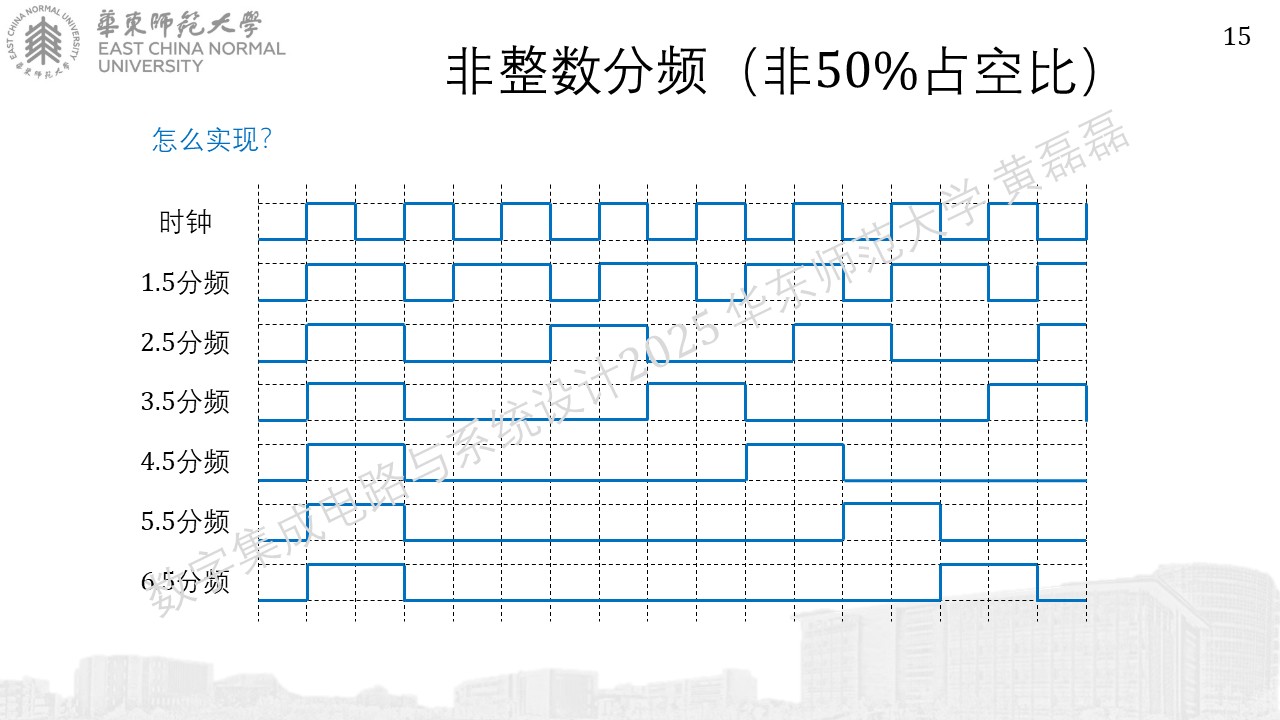

时钟分频

../_images/%E5%B9%BB%E7%81%AF%E7%89%871145.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871235.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871332.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871432.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871532.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871631.JPG

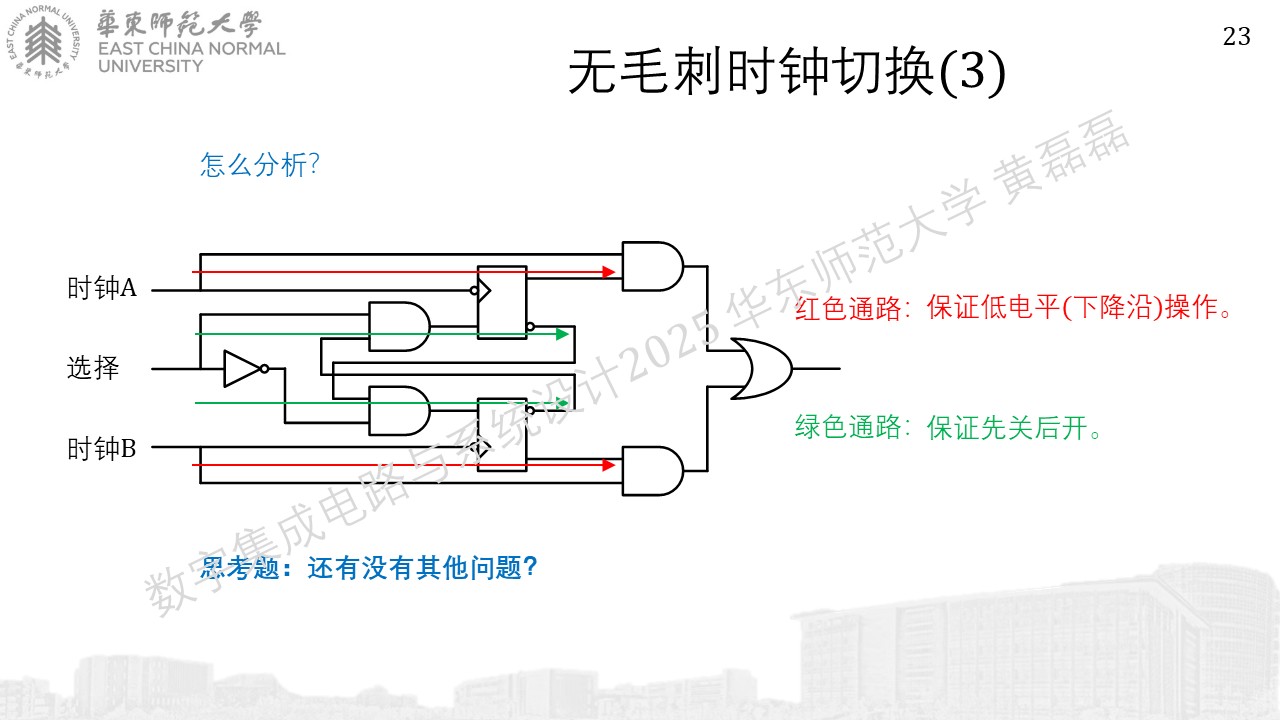

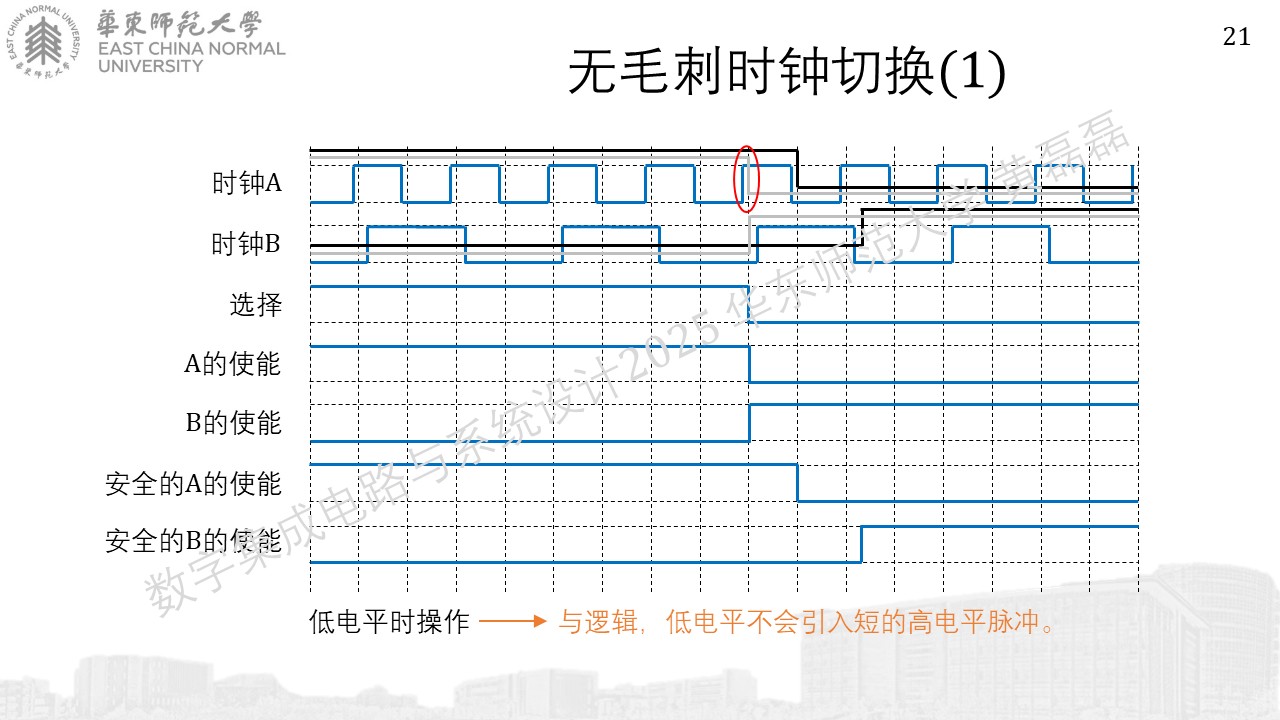

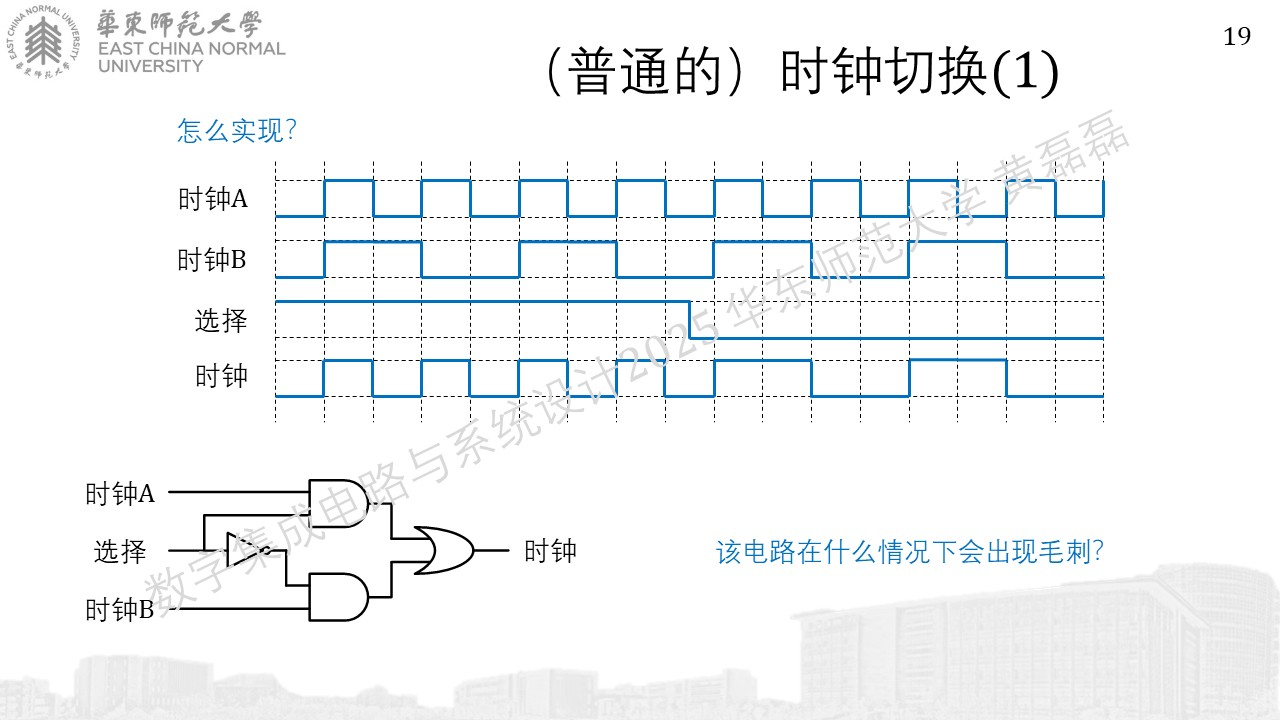

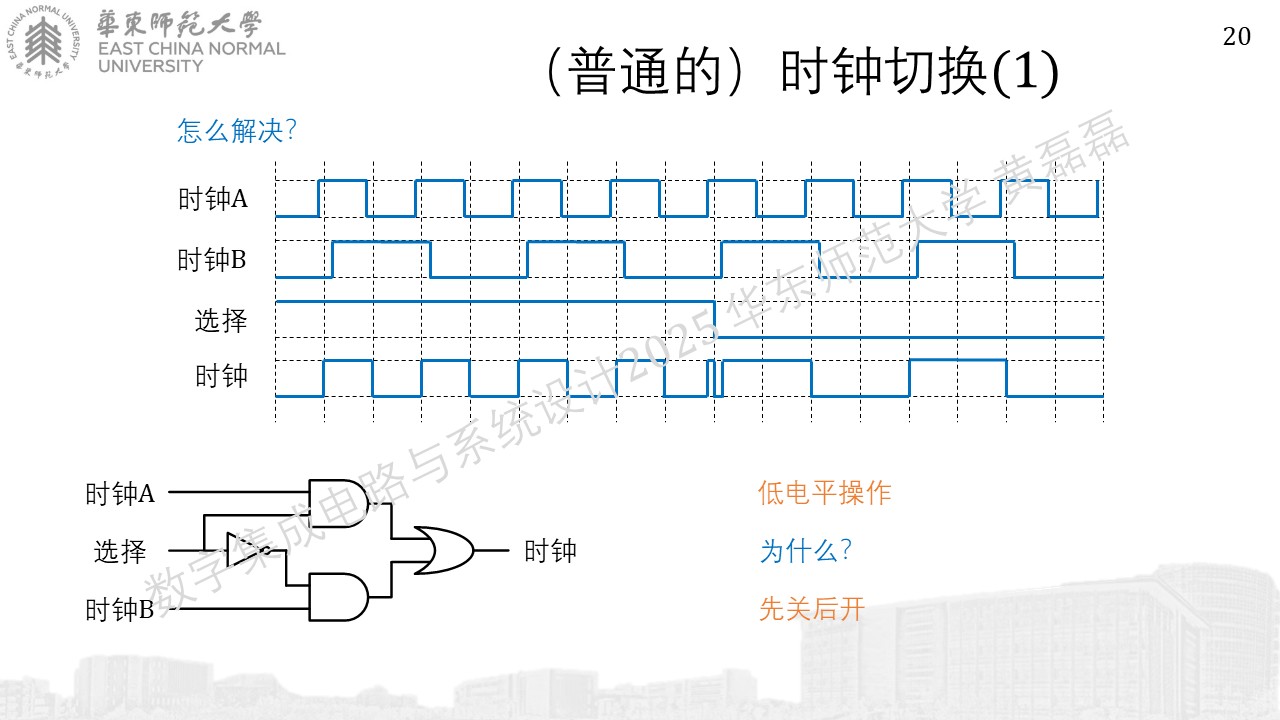

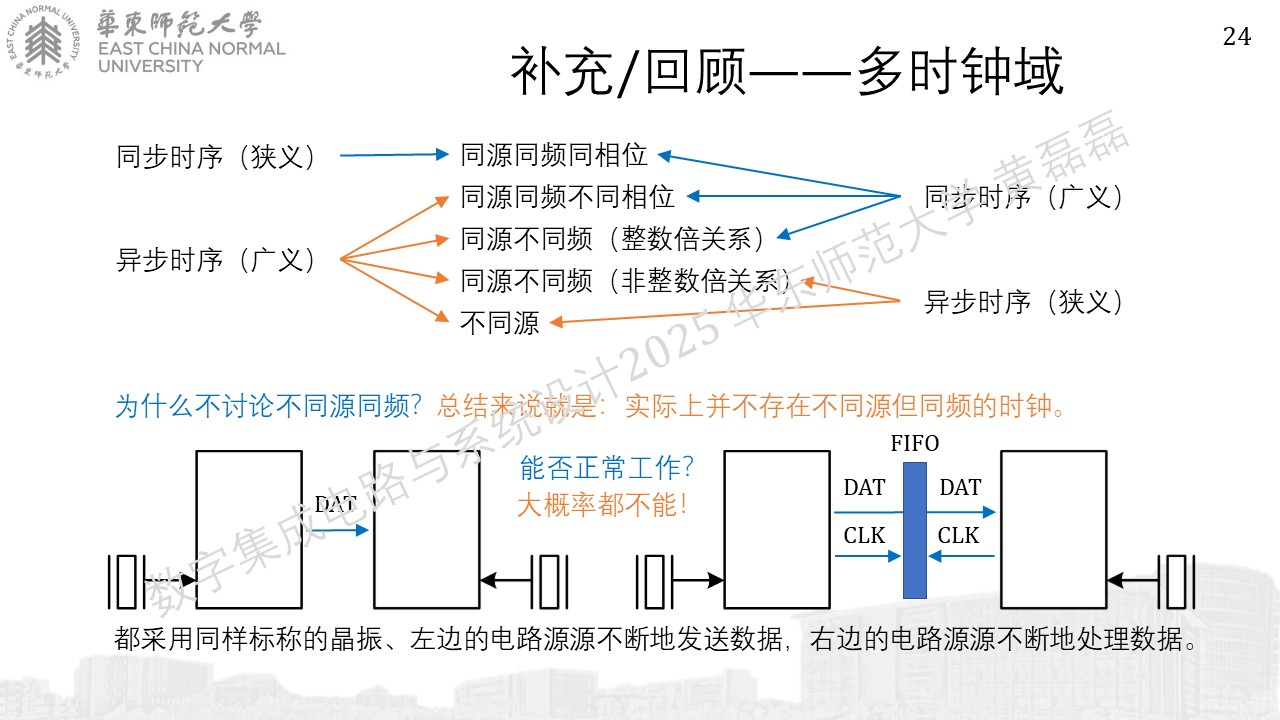

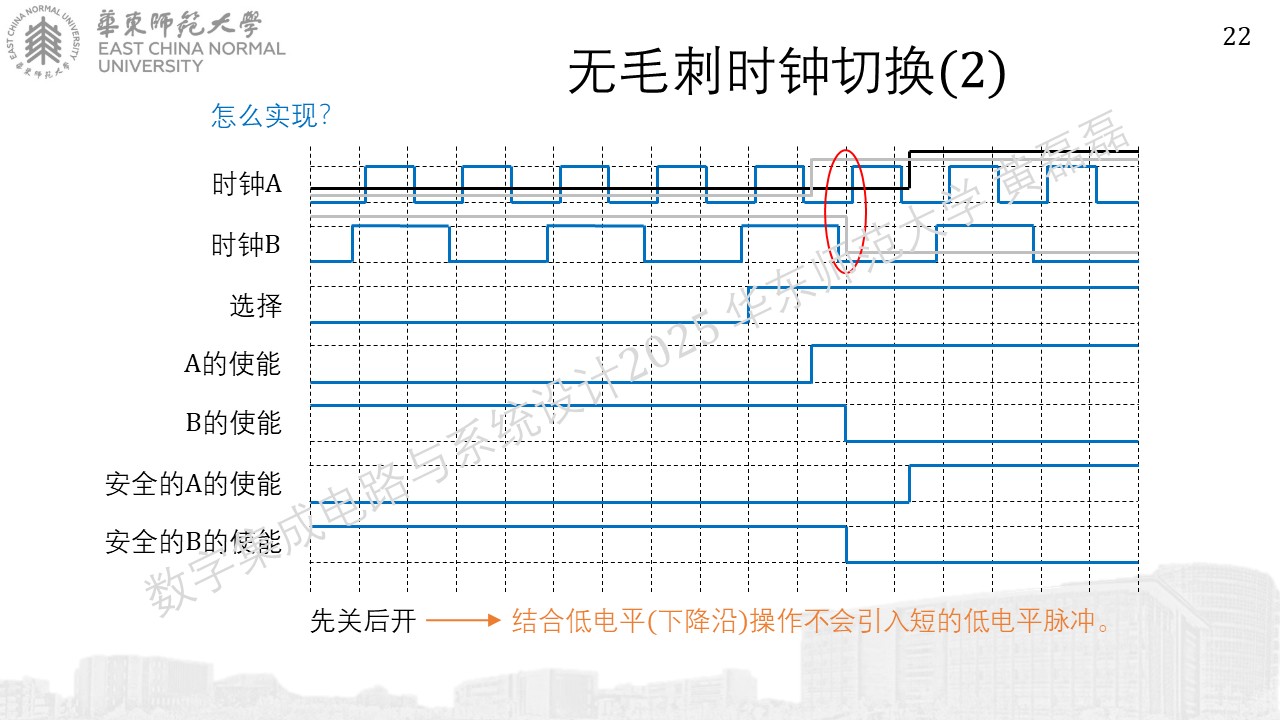

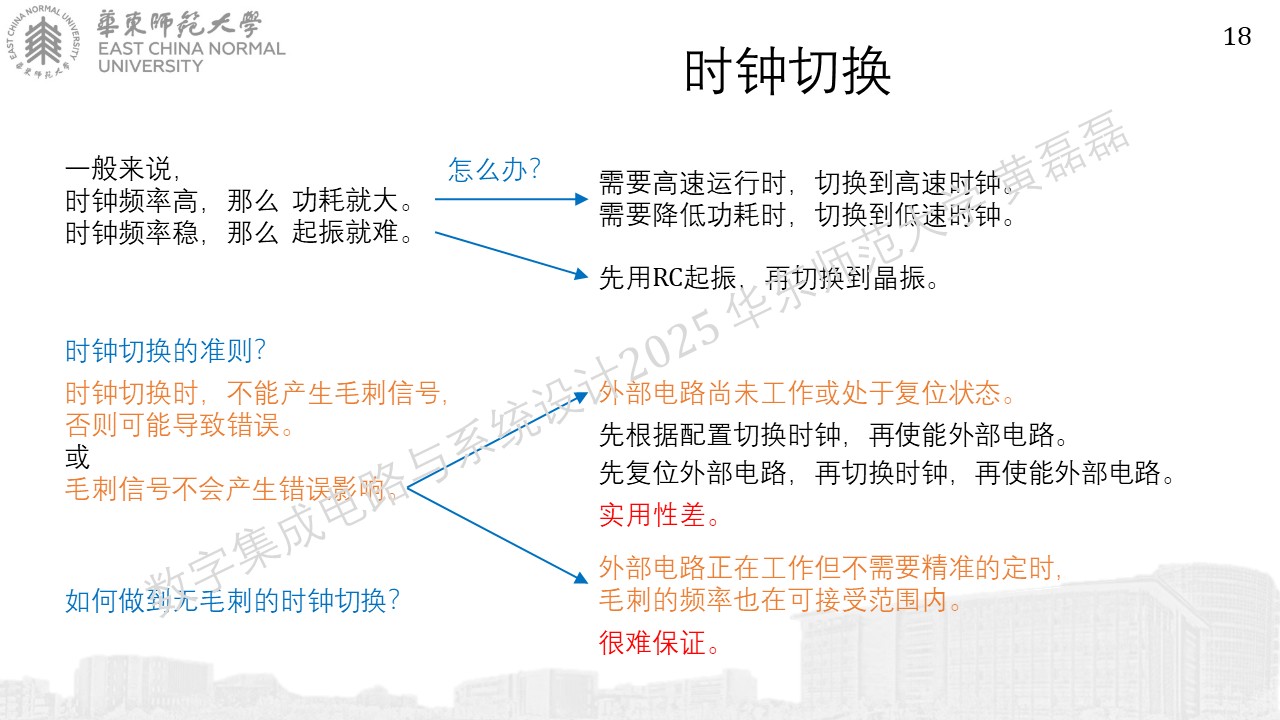

时钟切换

../_images/%E5%B9%BB%E7%81%AF%E7%89%871730.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871828.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871927.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872026.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872128.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872225.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872323.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872421.JPG

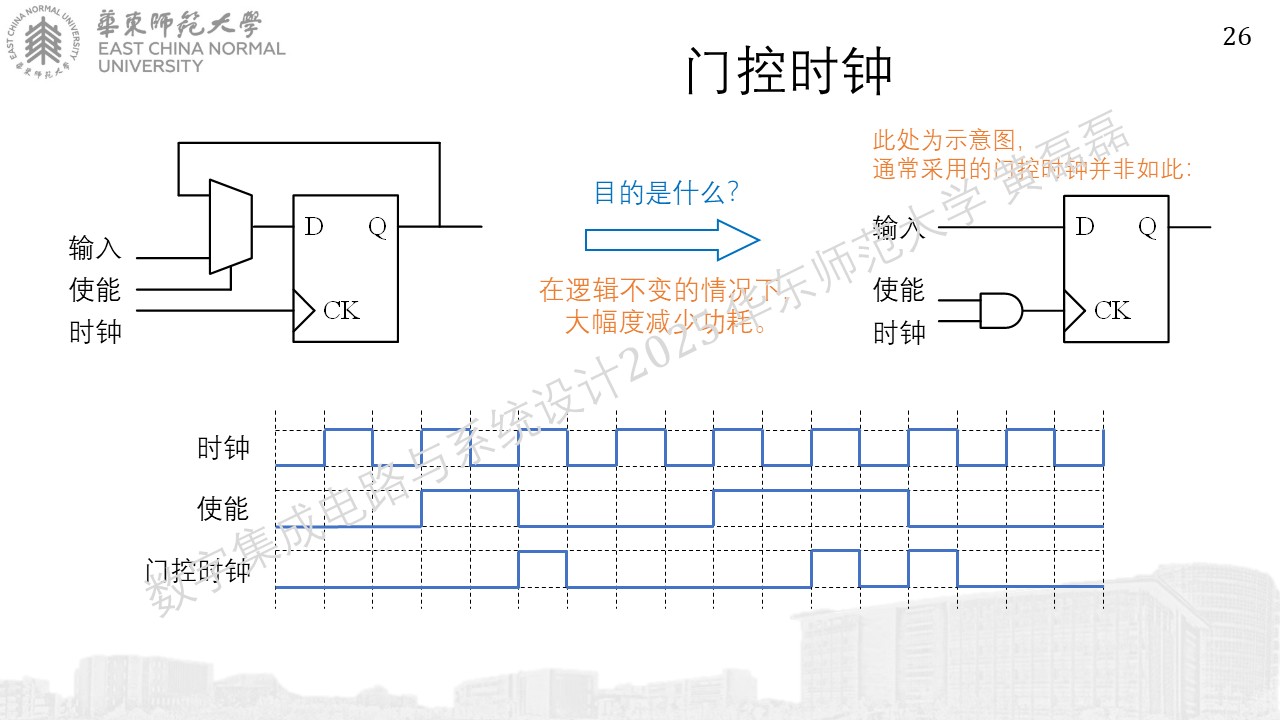

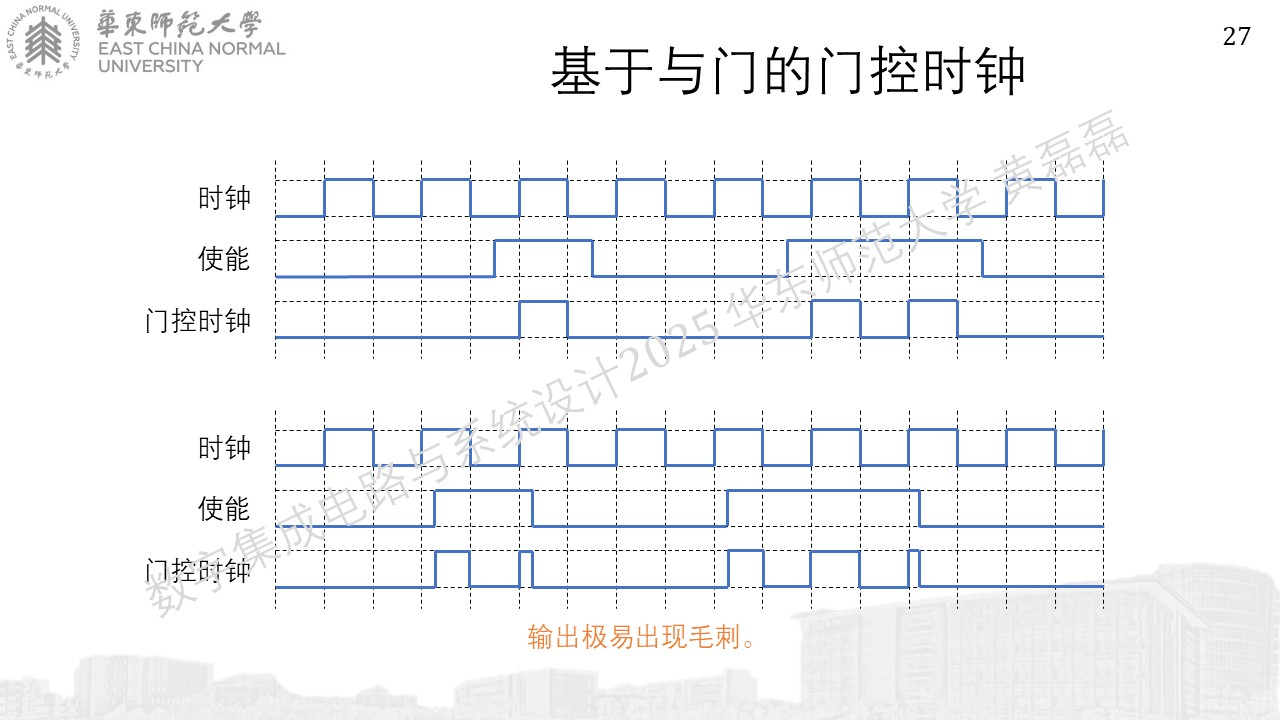

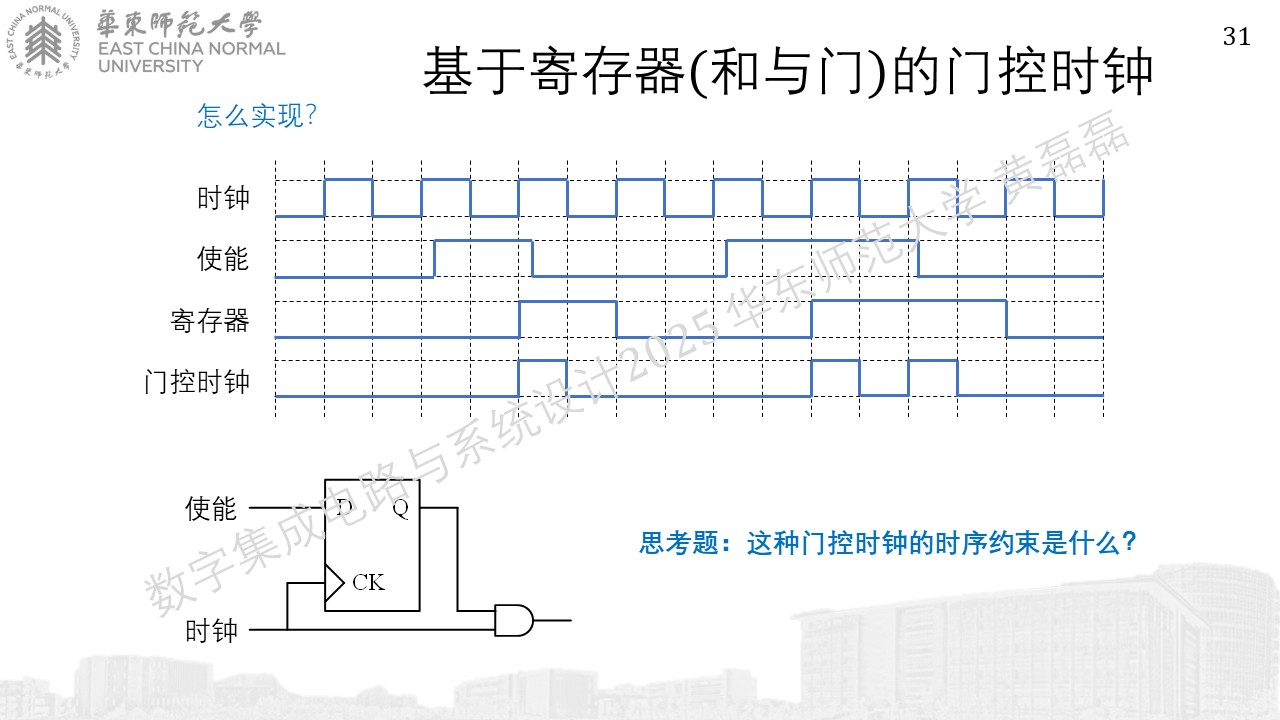

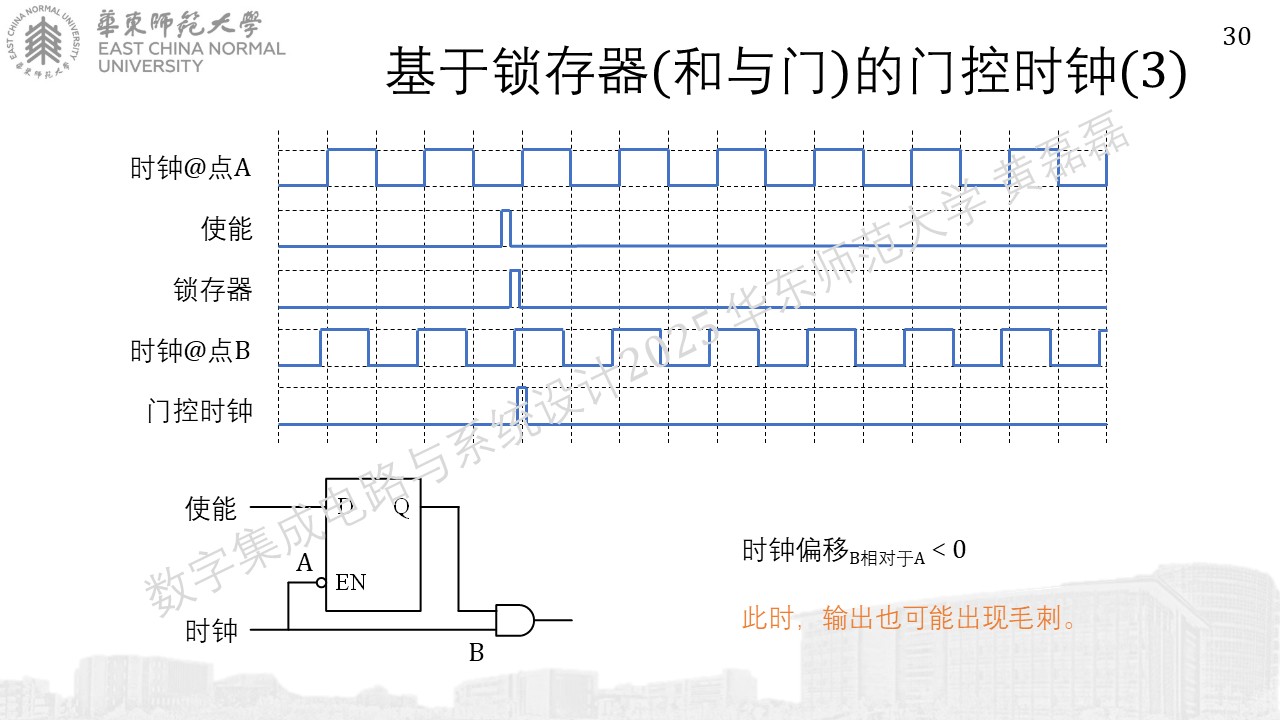

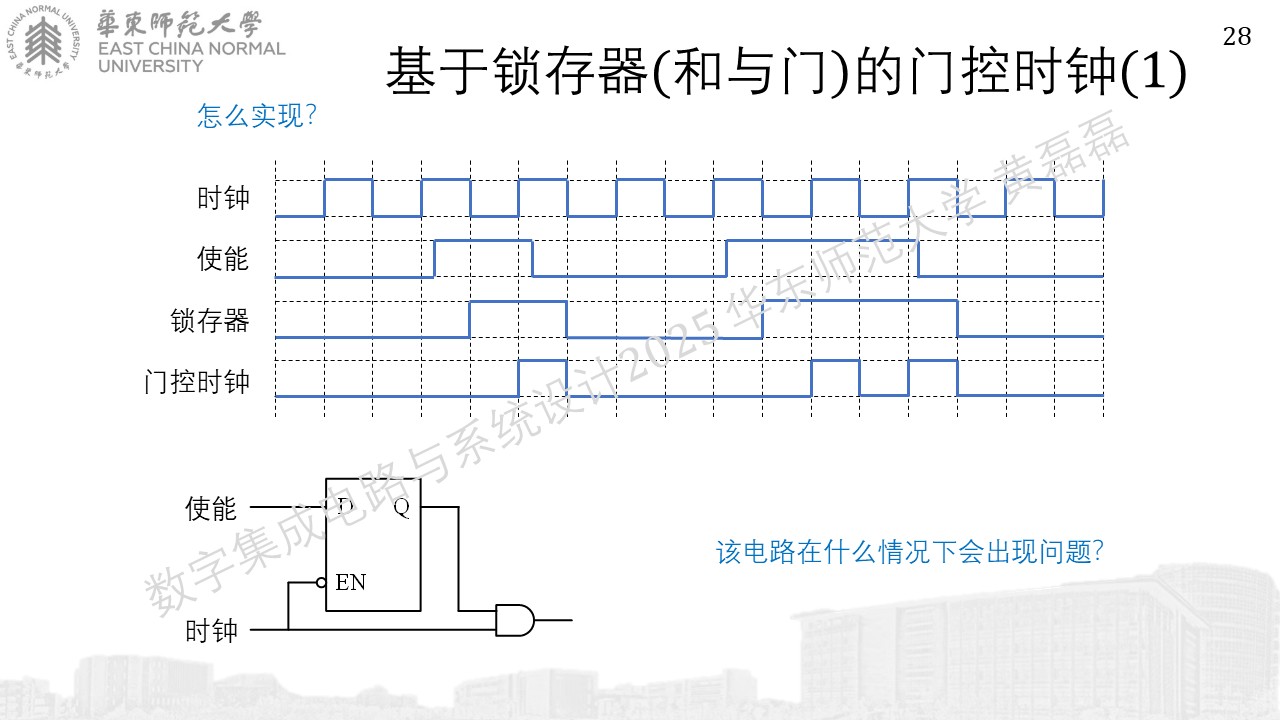

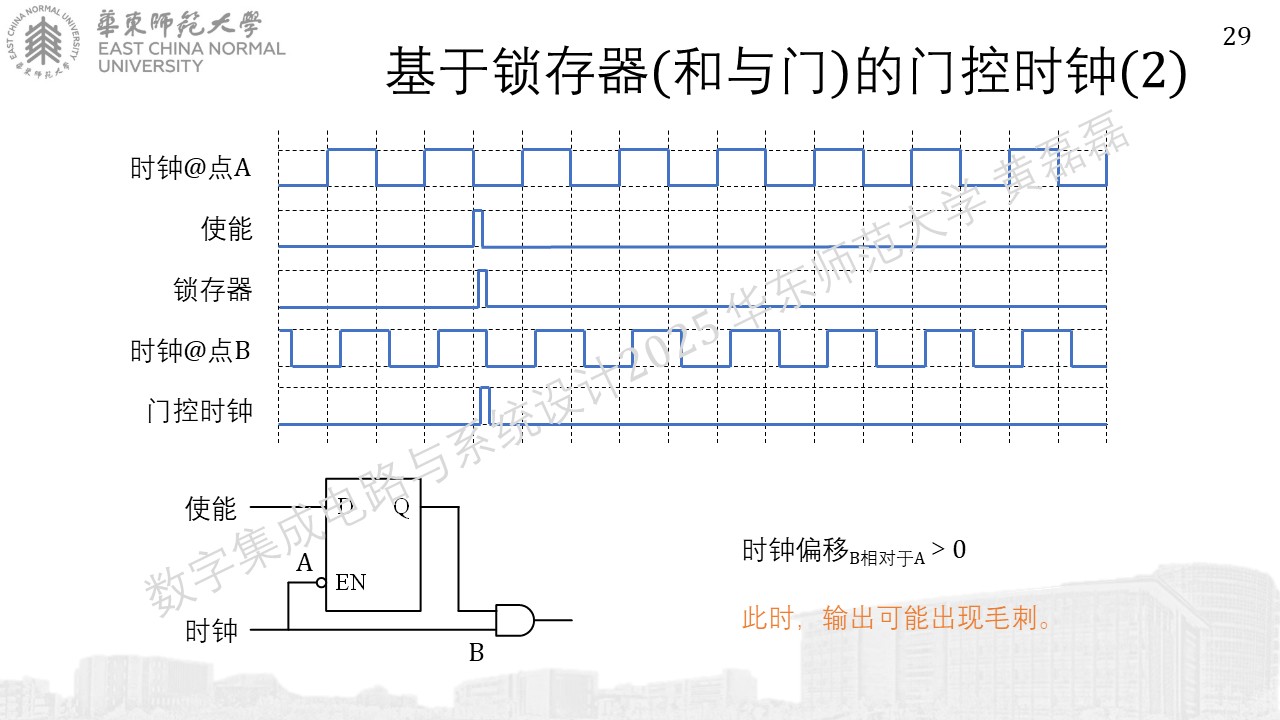

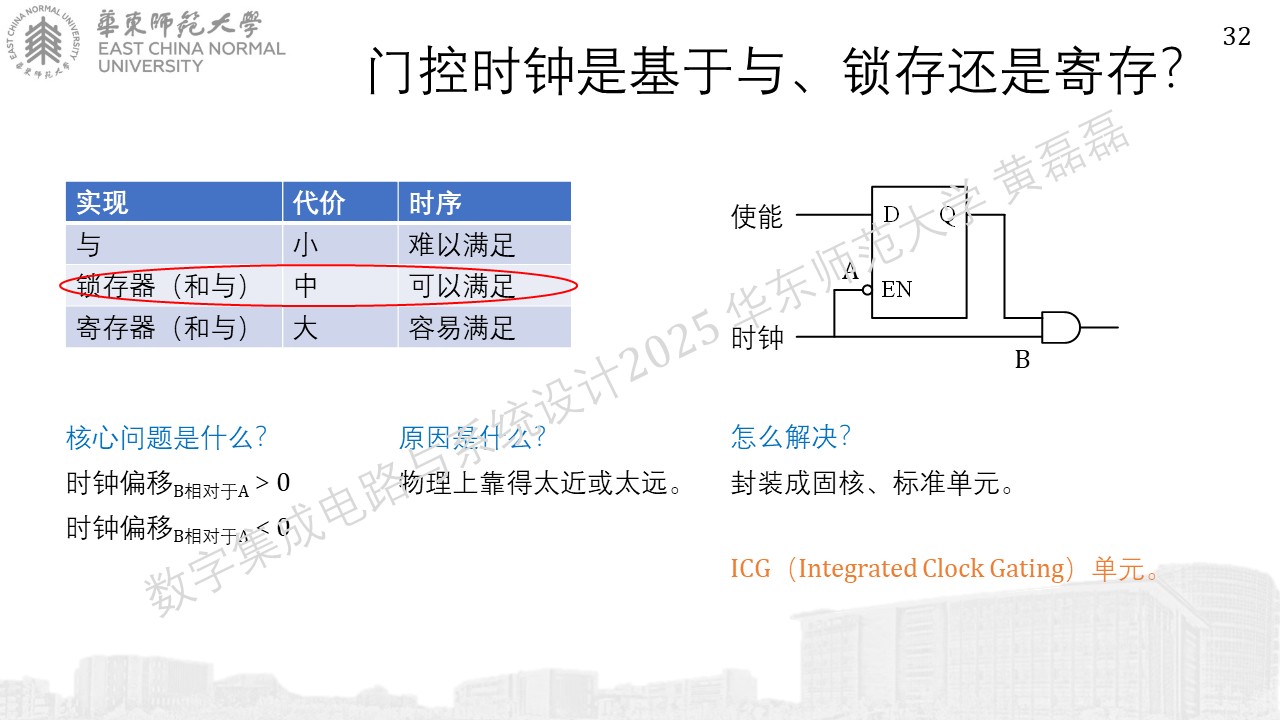

时钟门控

../_images/%E5%B9%BB%E7%81%AF%E7%89%872520.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872619.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872718.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872817.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872916.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873015.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873120.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873218.JPG

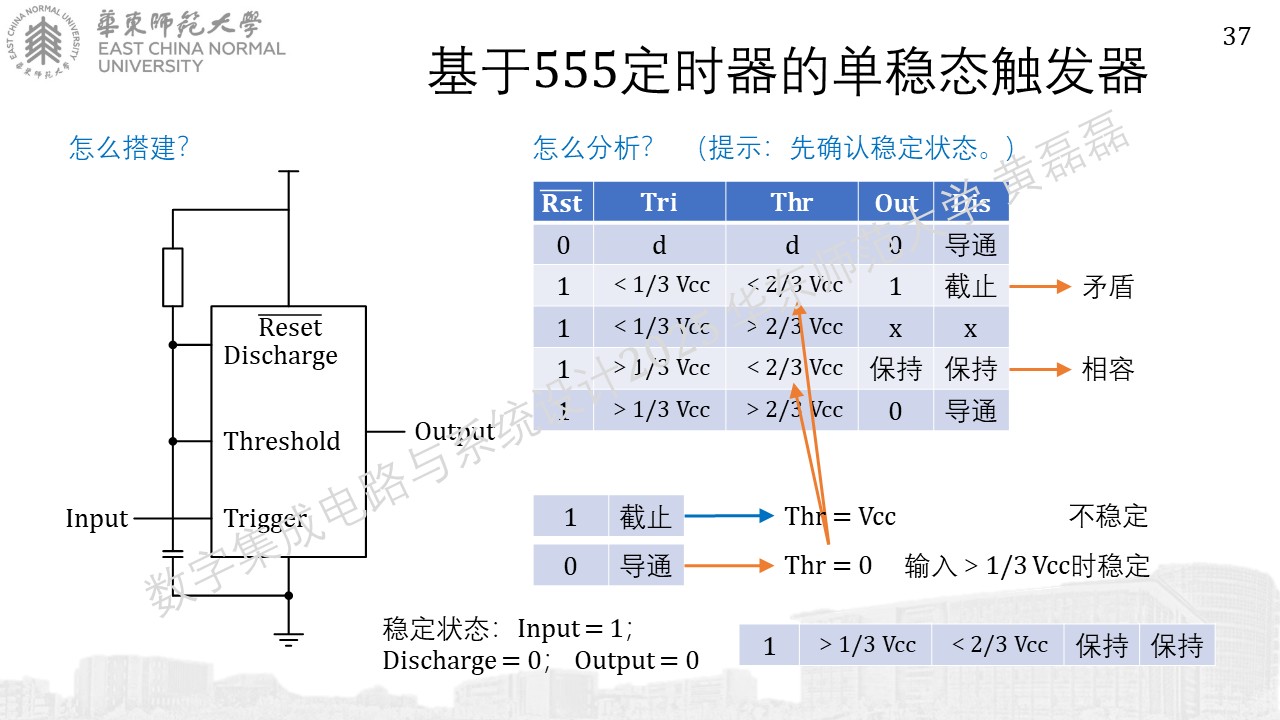

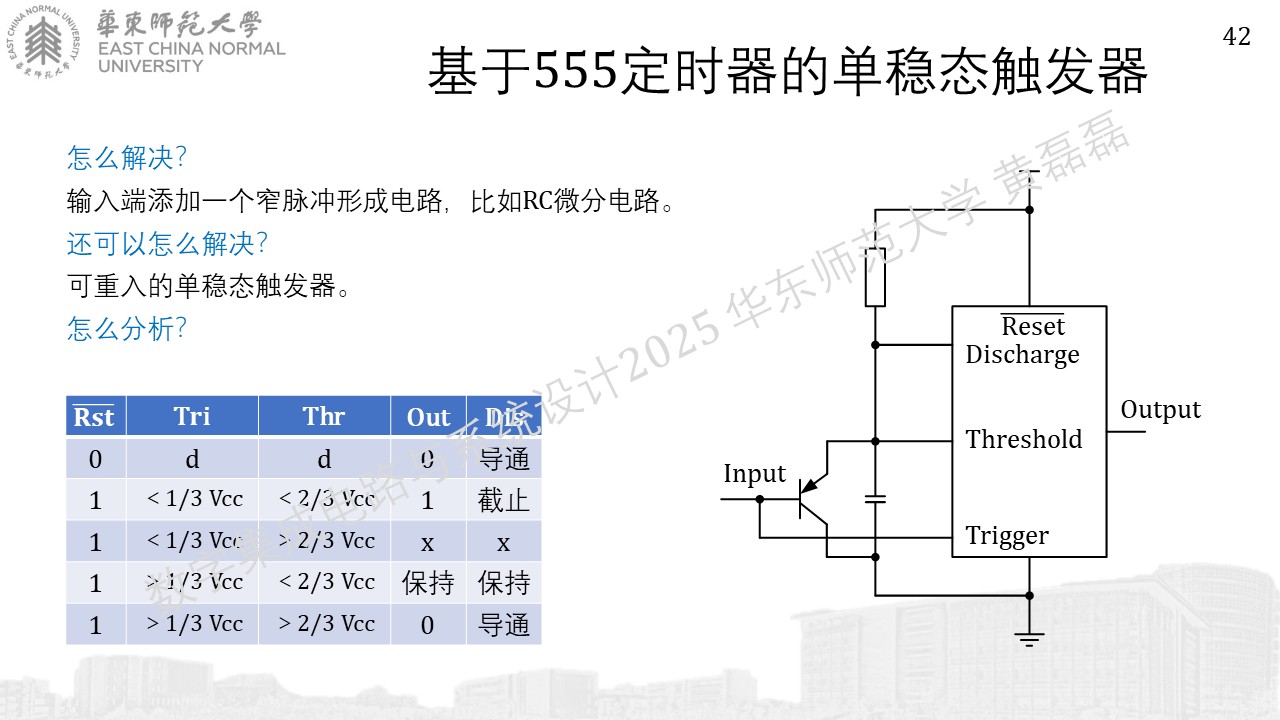

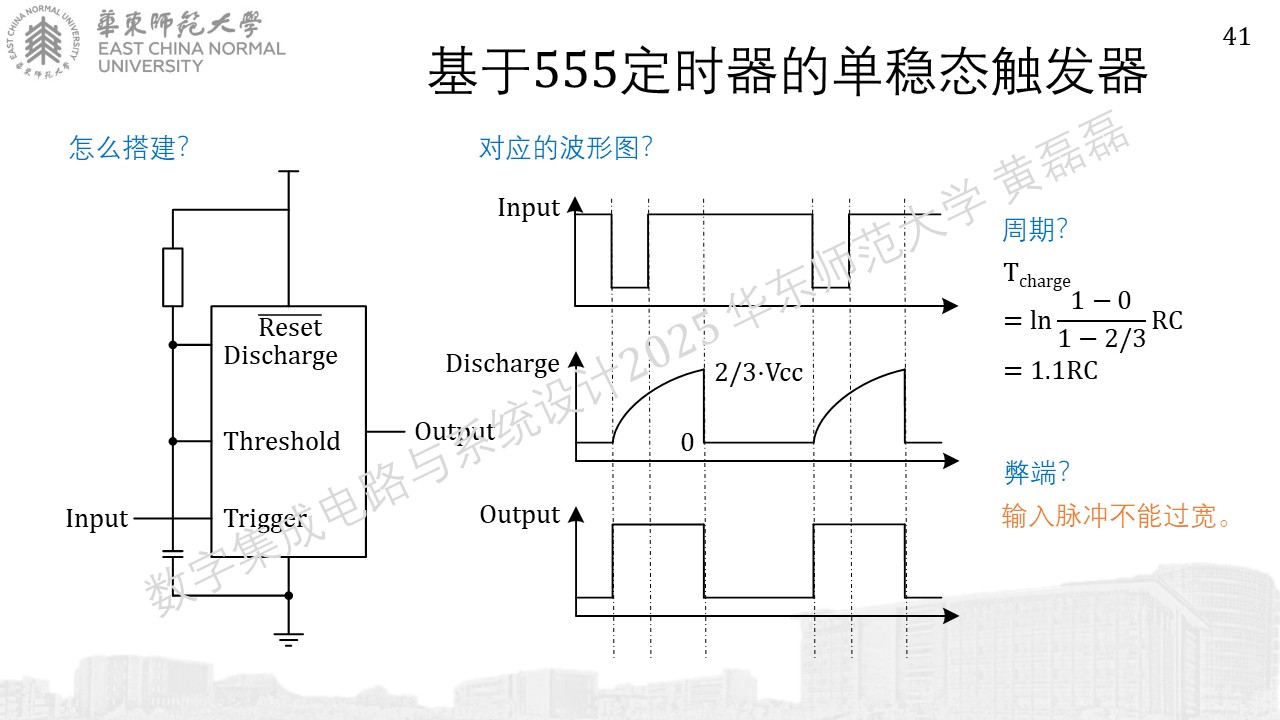

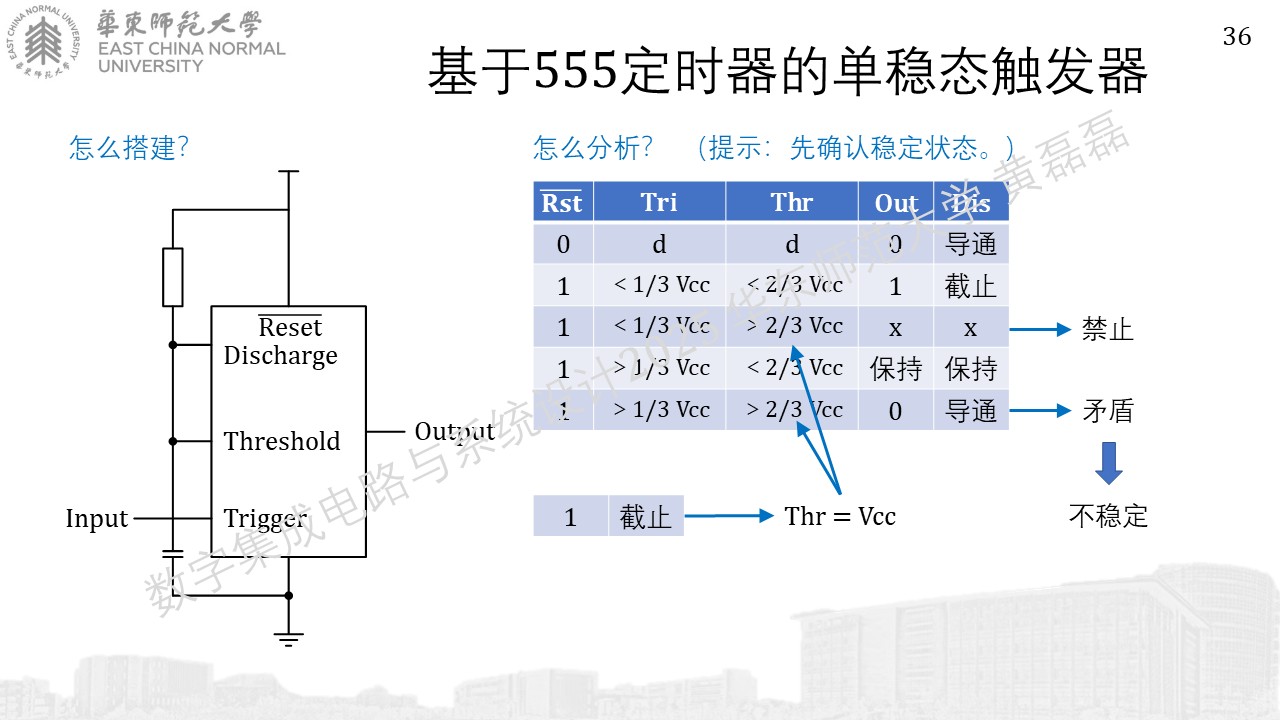

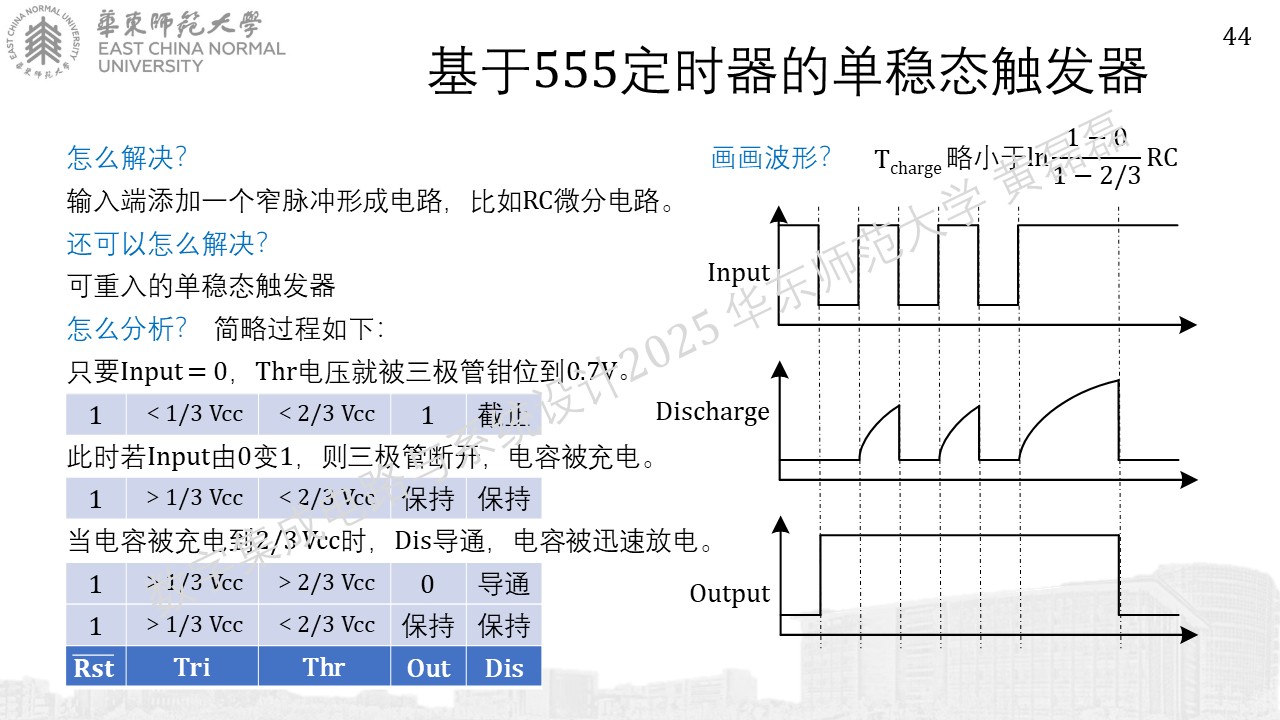

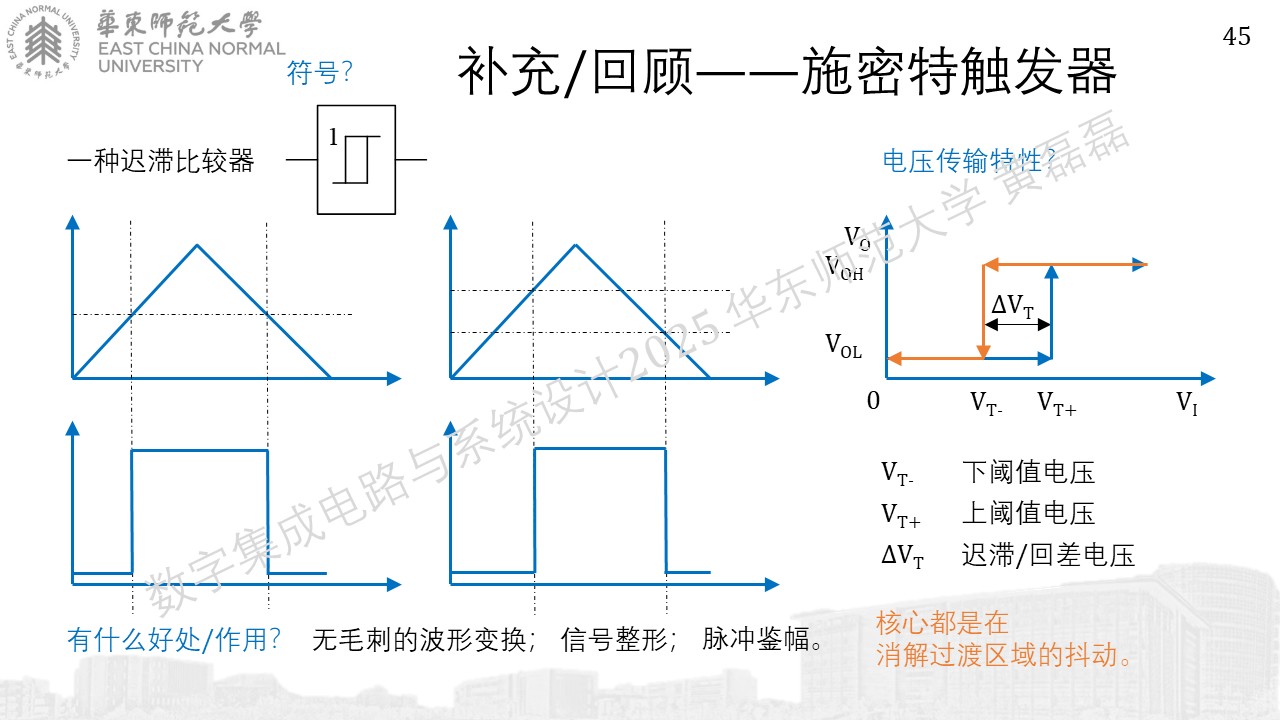

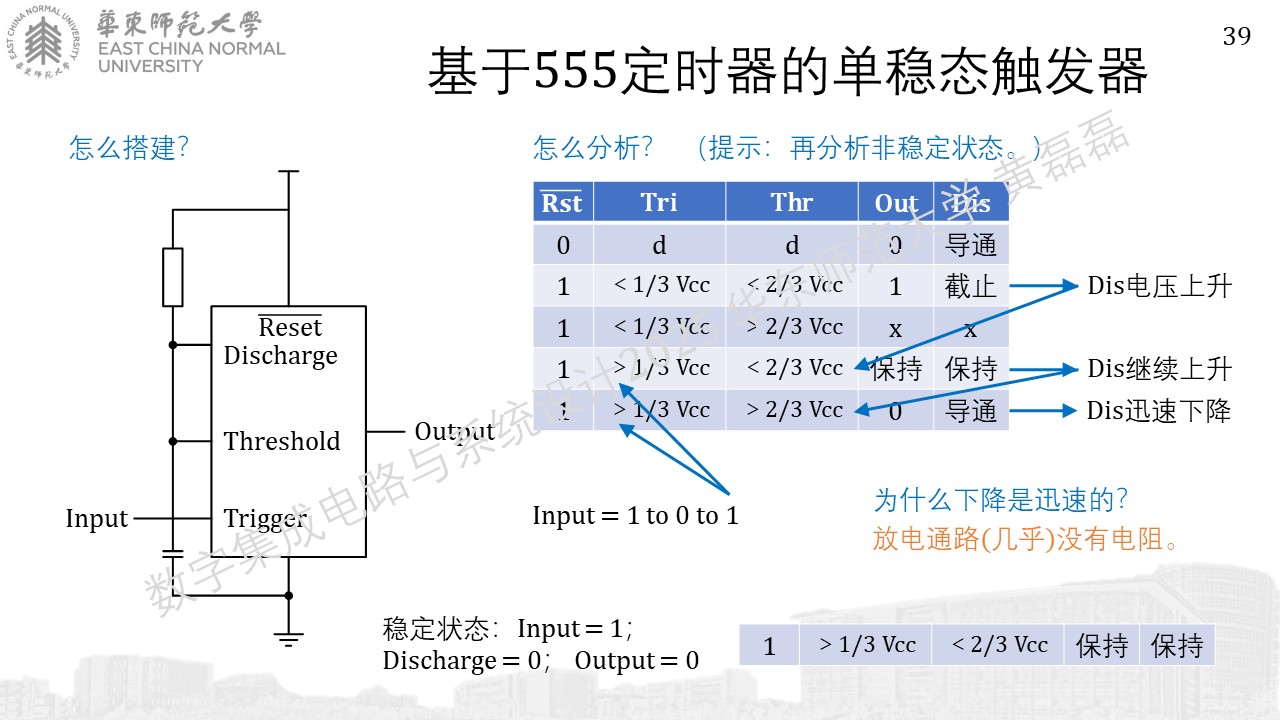

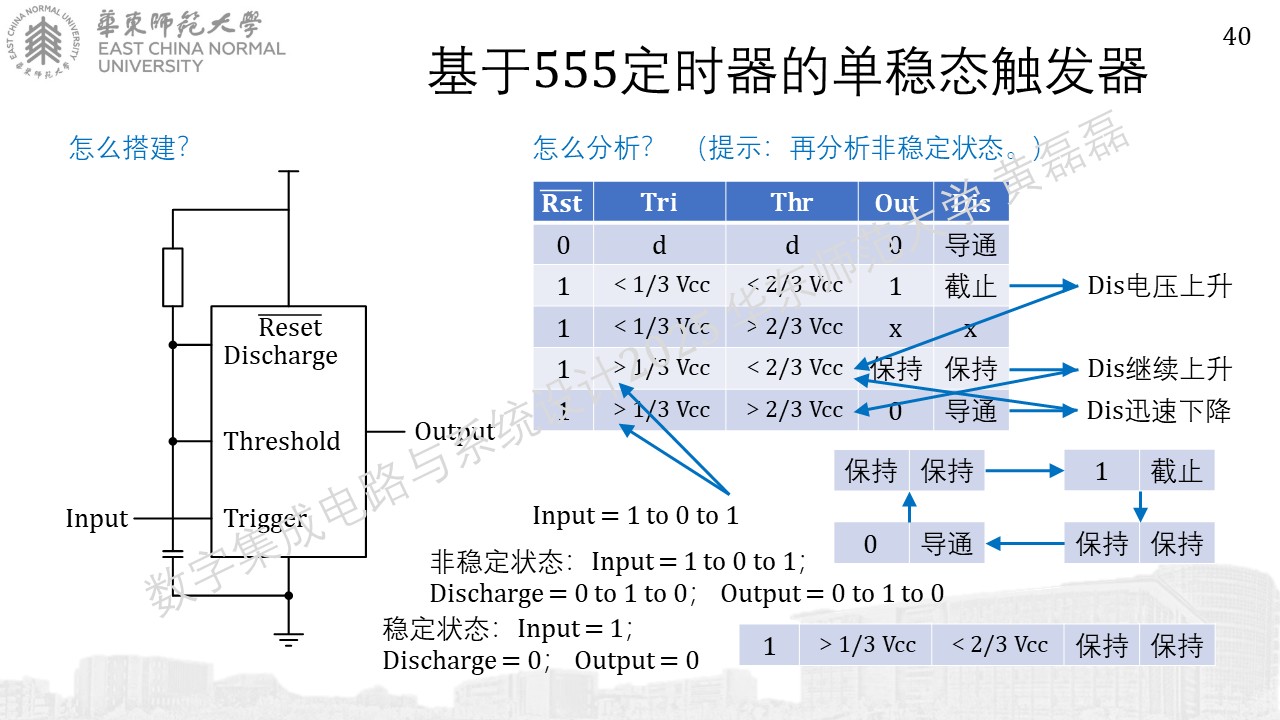

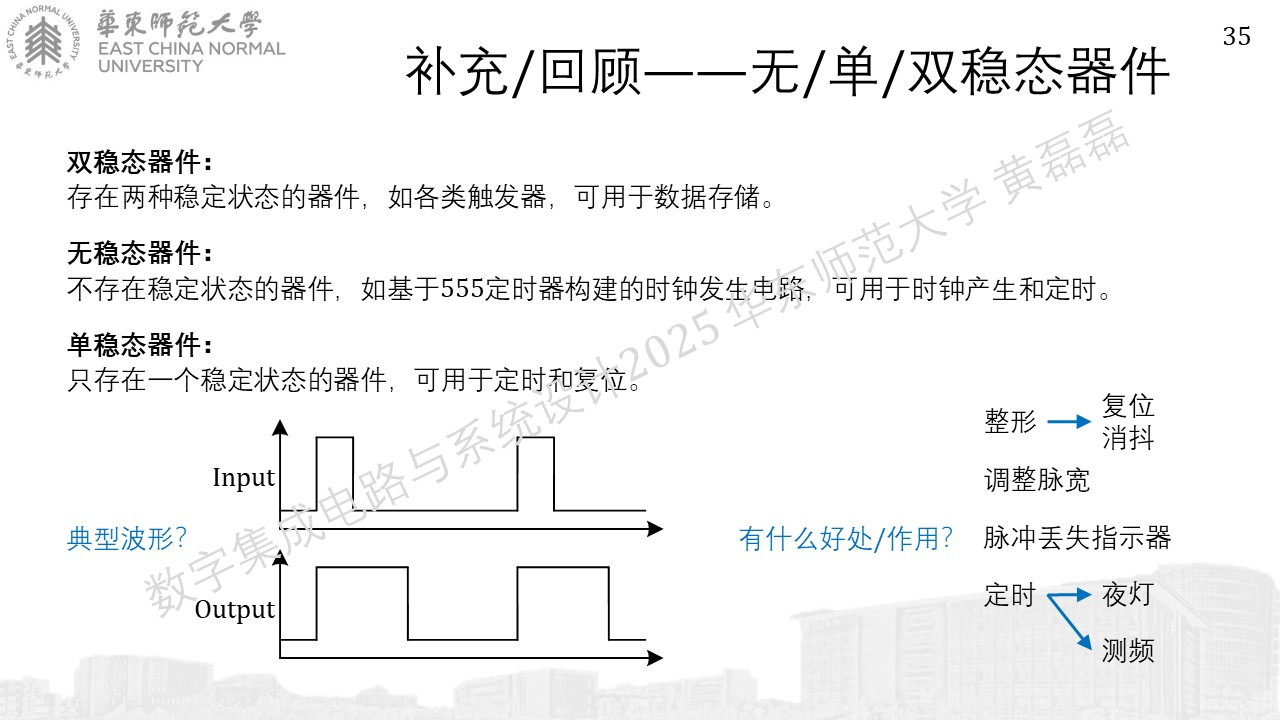

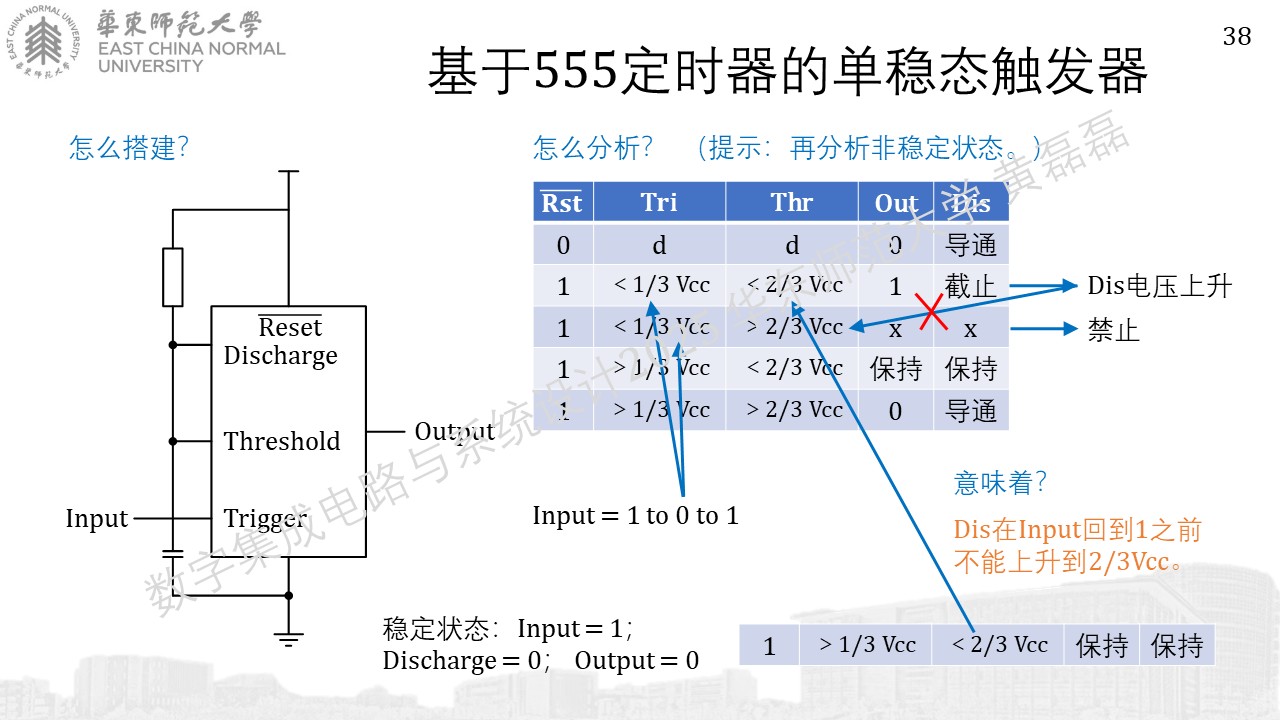

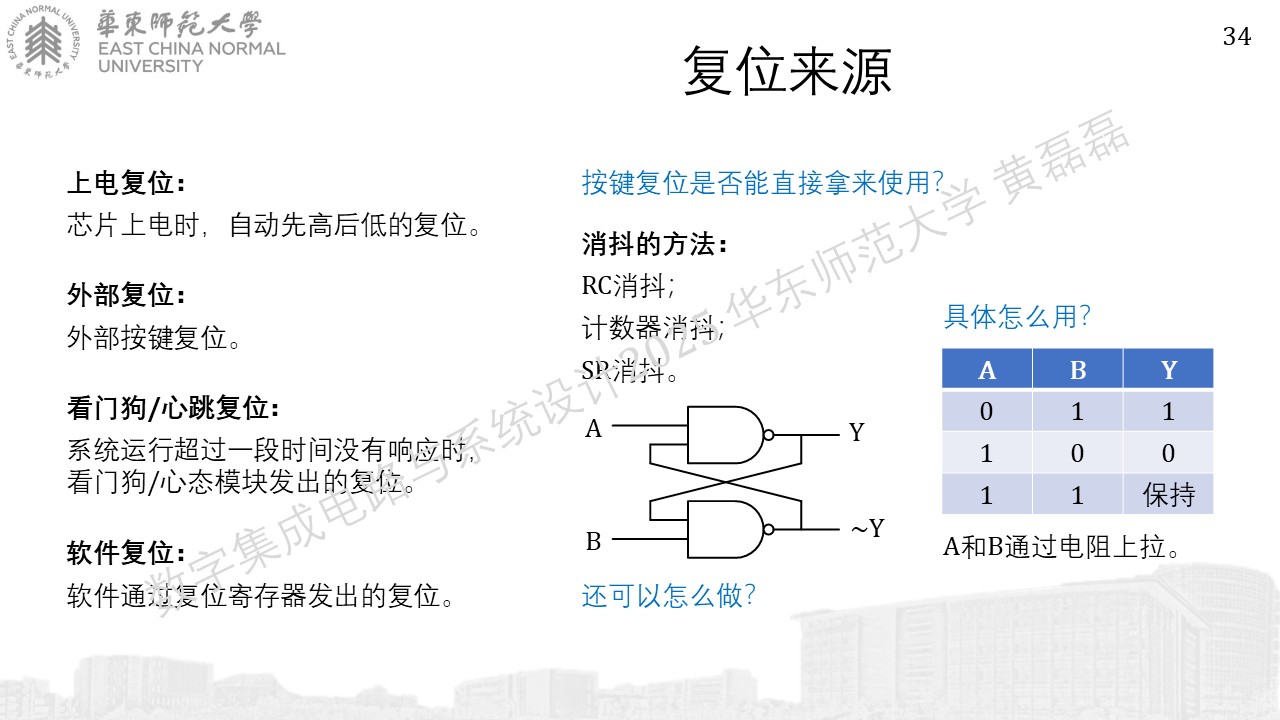

复位产生

../_images/%E5%B9%BB%E7%81%AF%E7%89%873317.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873414.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873512.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873611.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873711.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873810.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87398.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87407.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874114.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874213.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874311.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874411.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87459.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87477.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87487.JPG
