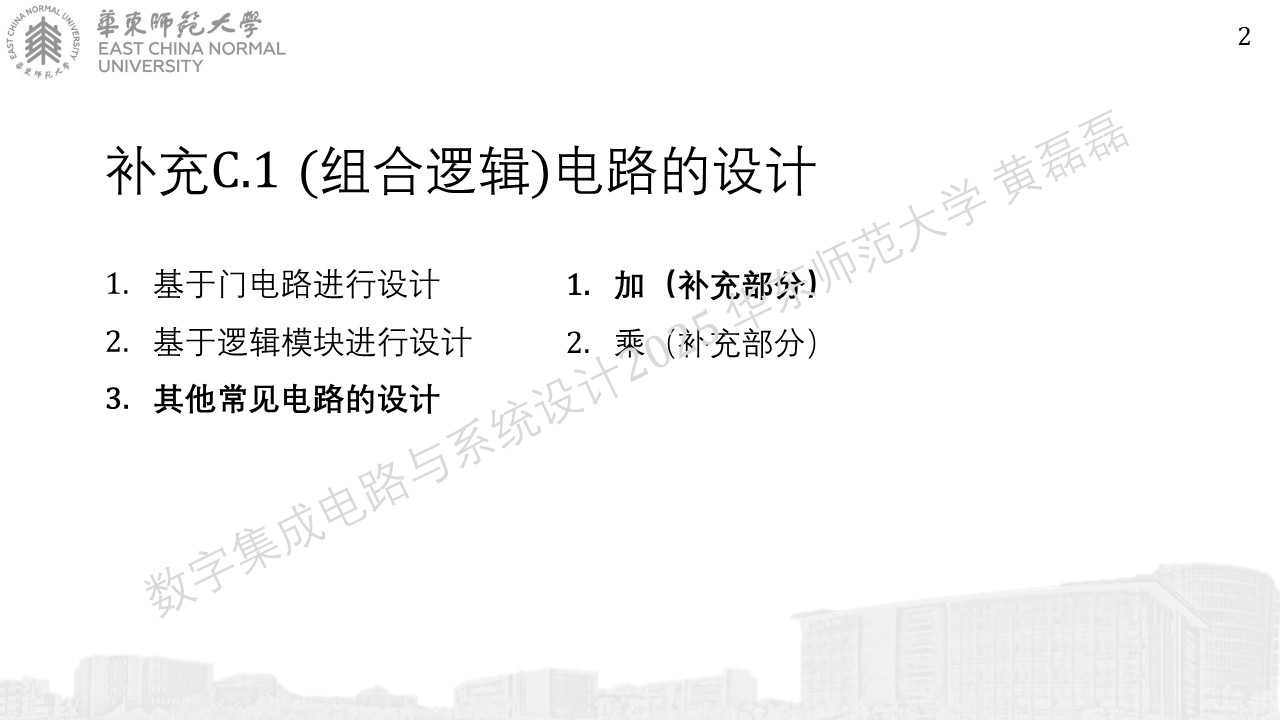

补充C - 其他加法器和乘法器

../_images/%E5%B9%BB%E7%81%AF%E7%89%871134.JPG

加（补充部分）

../_images/%E5%B9%BB%E7%81%AF%E7%89%872103.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87379.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87447.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87533.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87629.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87729.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87829.JPG

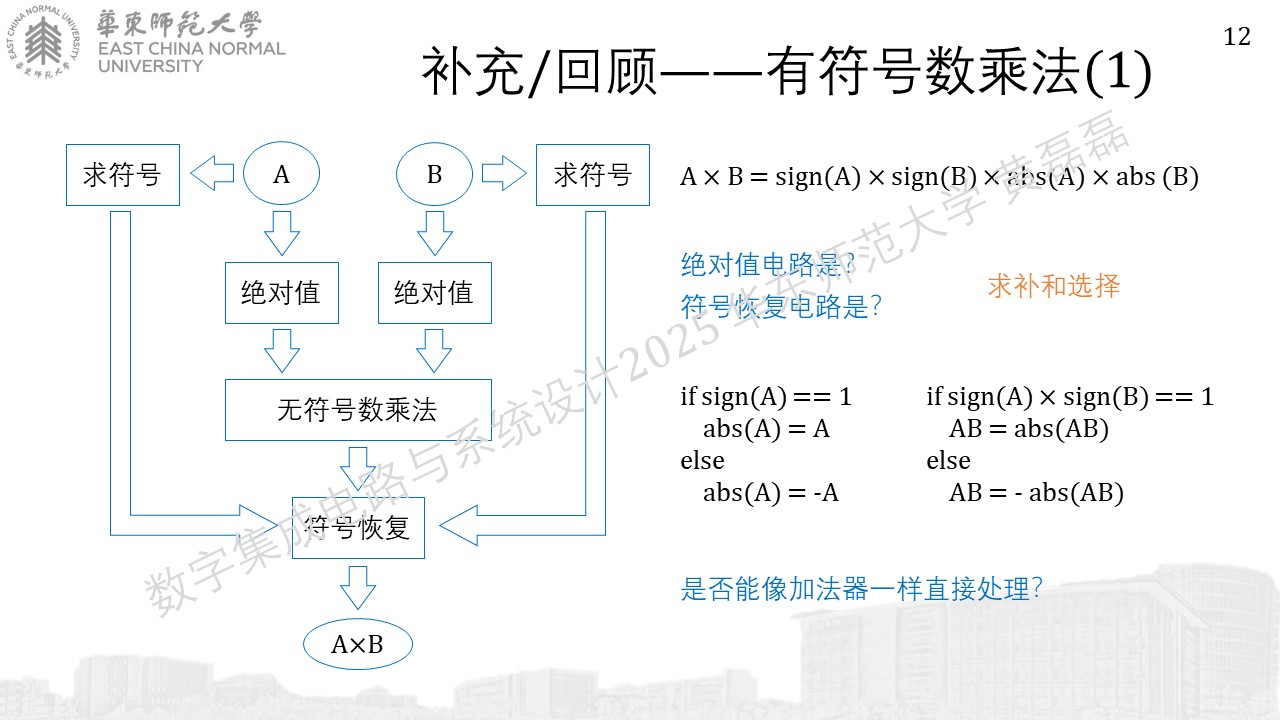

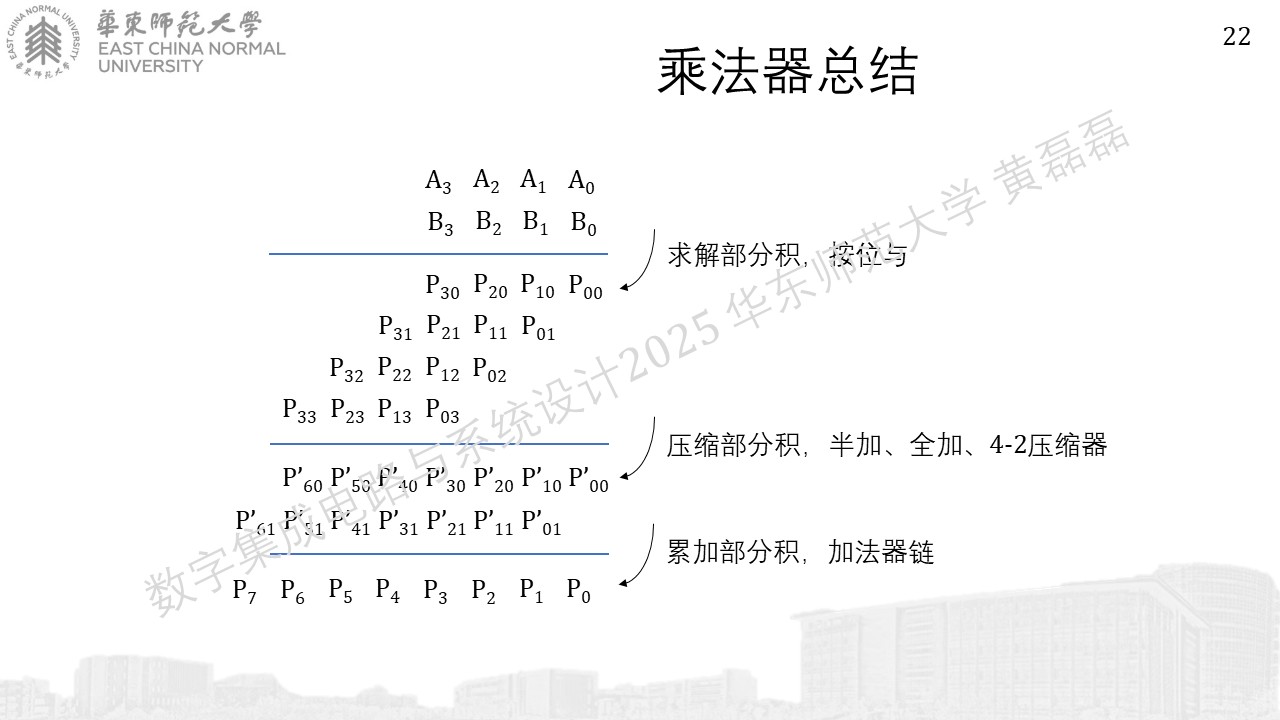

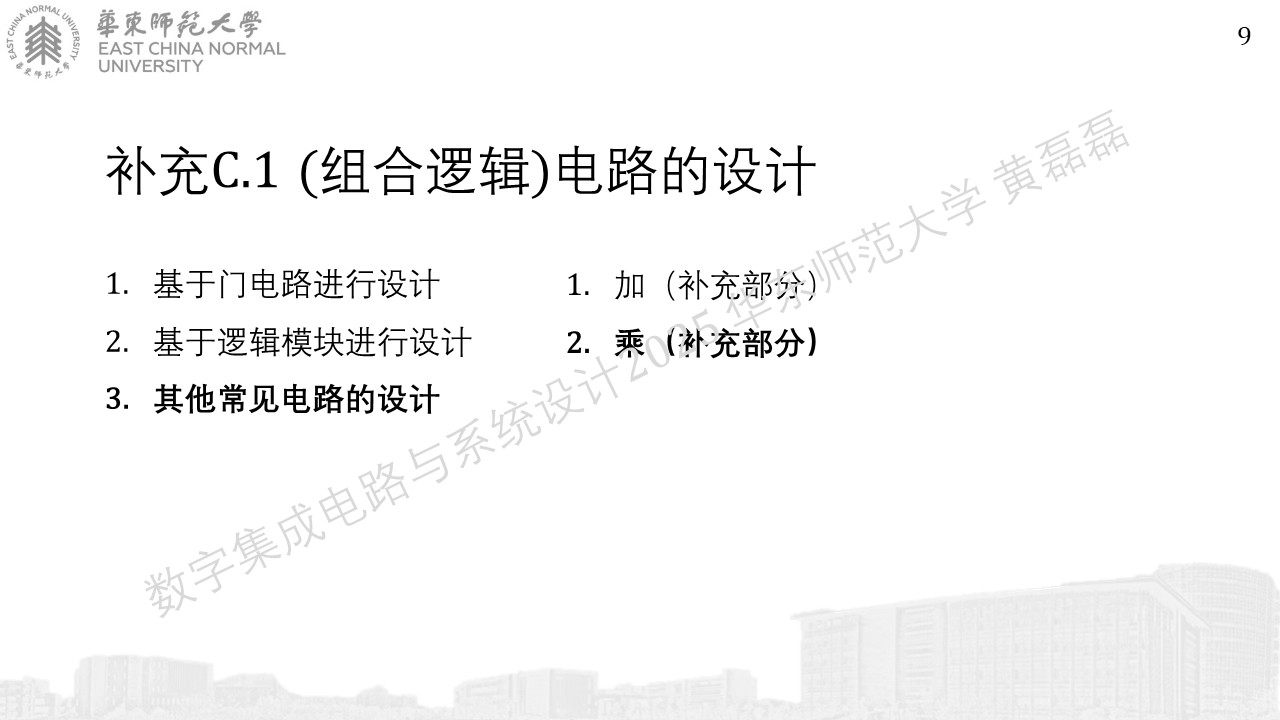

乘（补充部分）

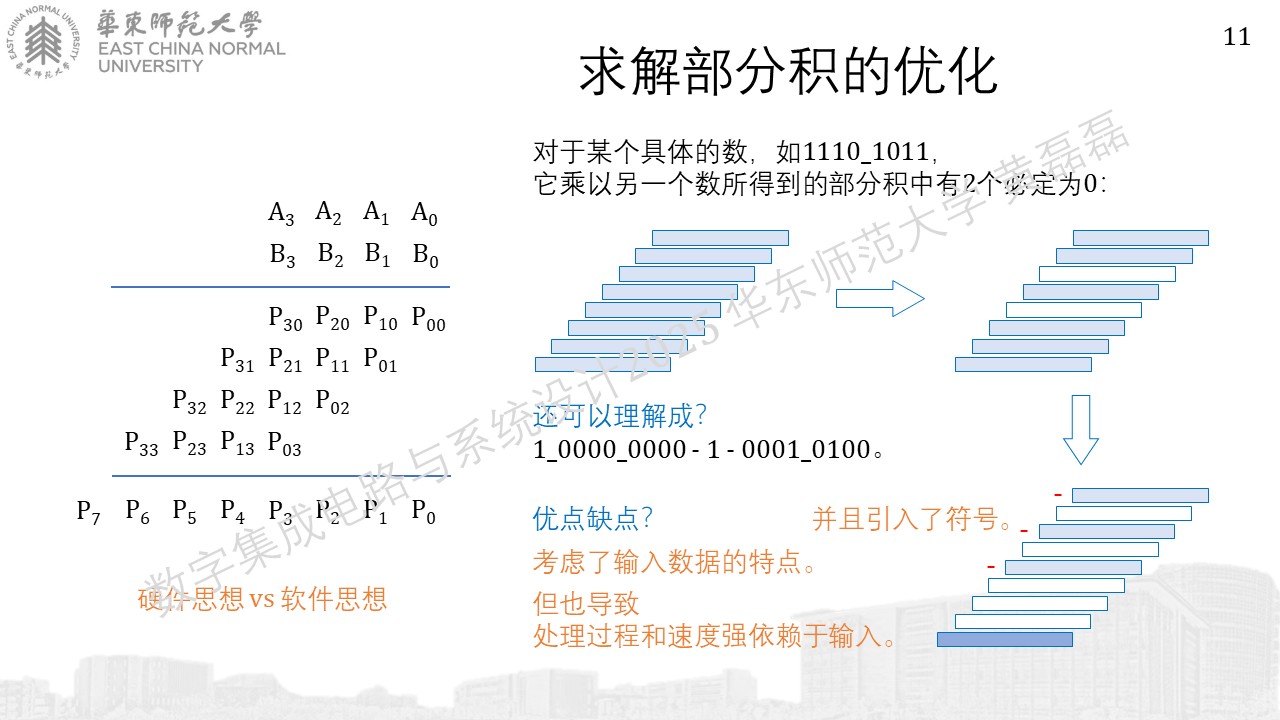

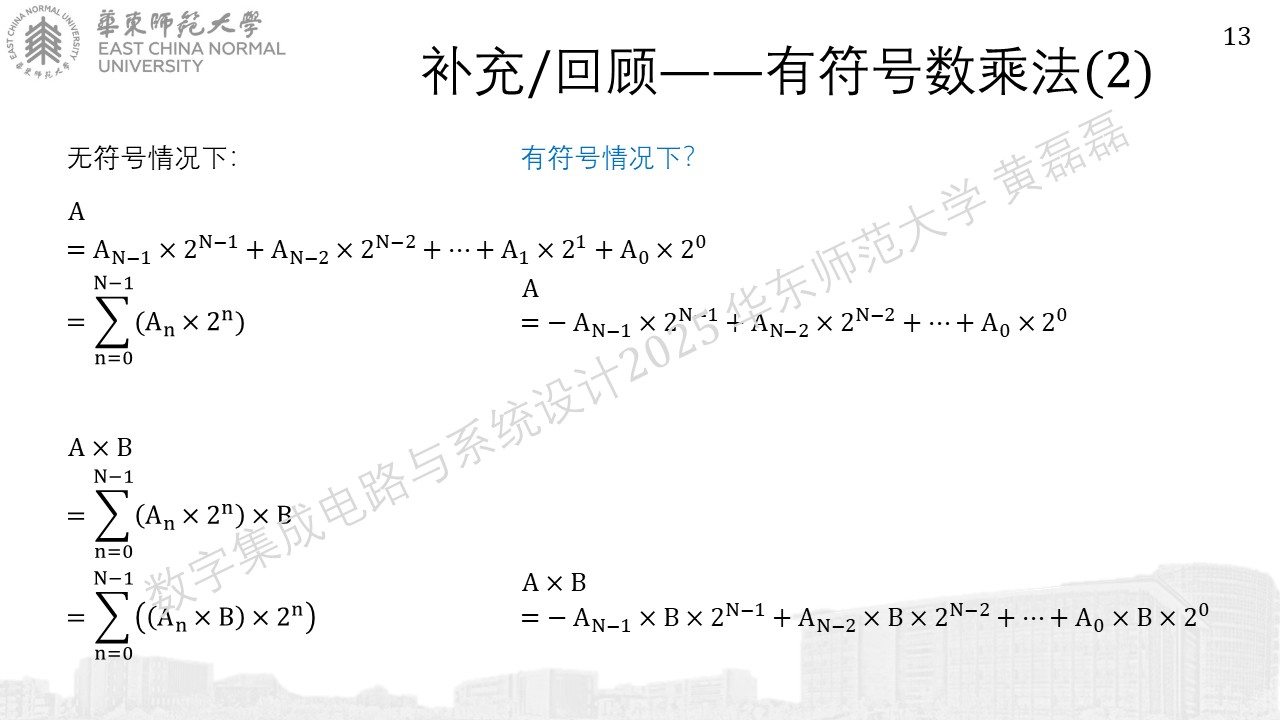

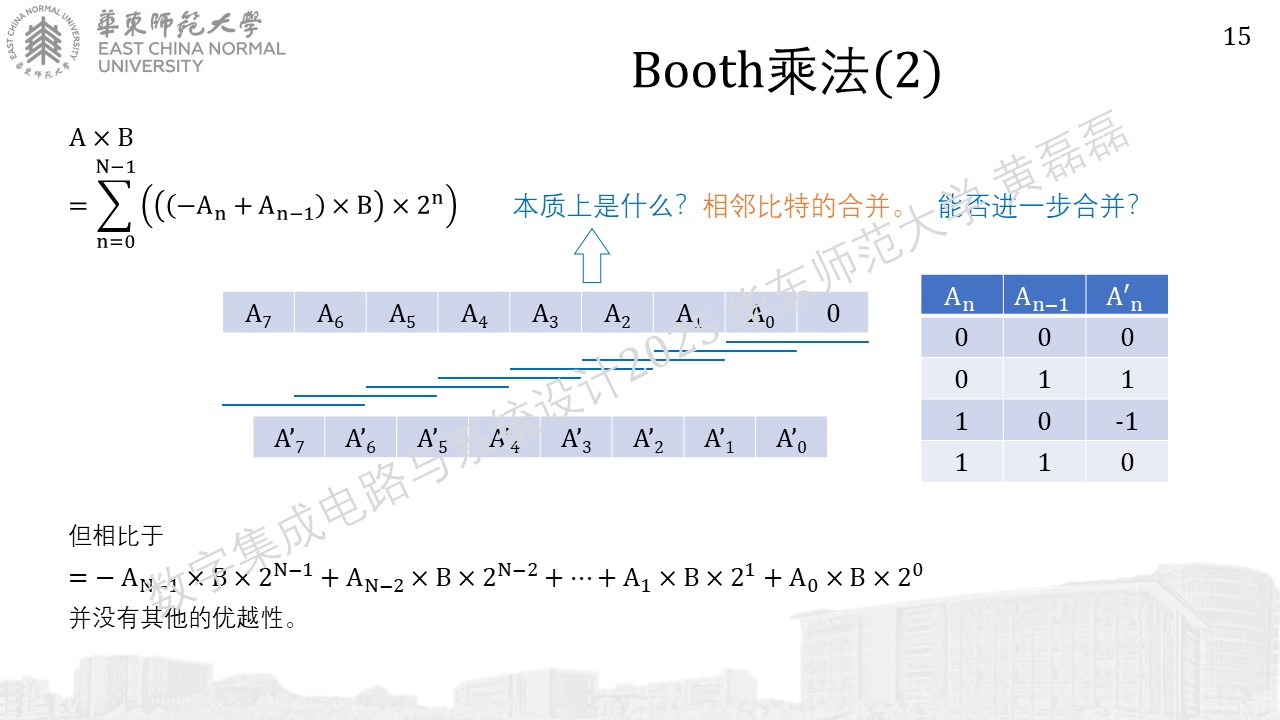

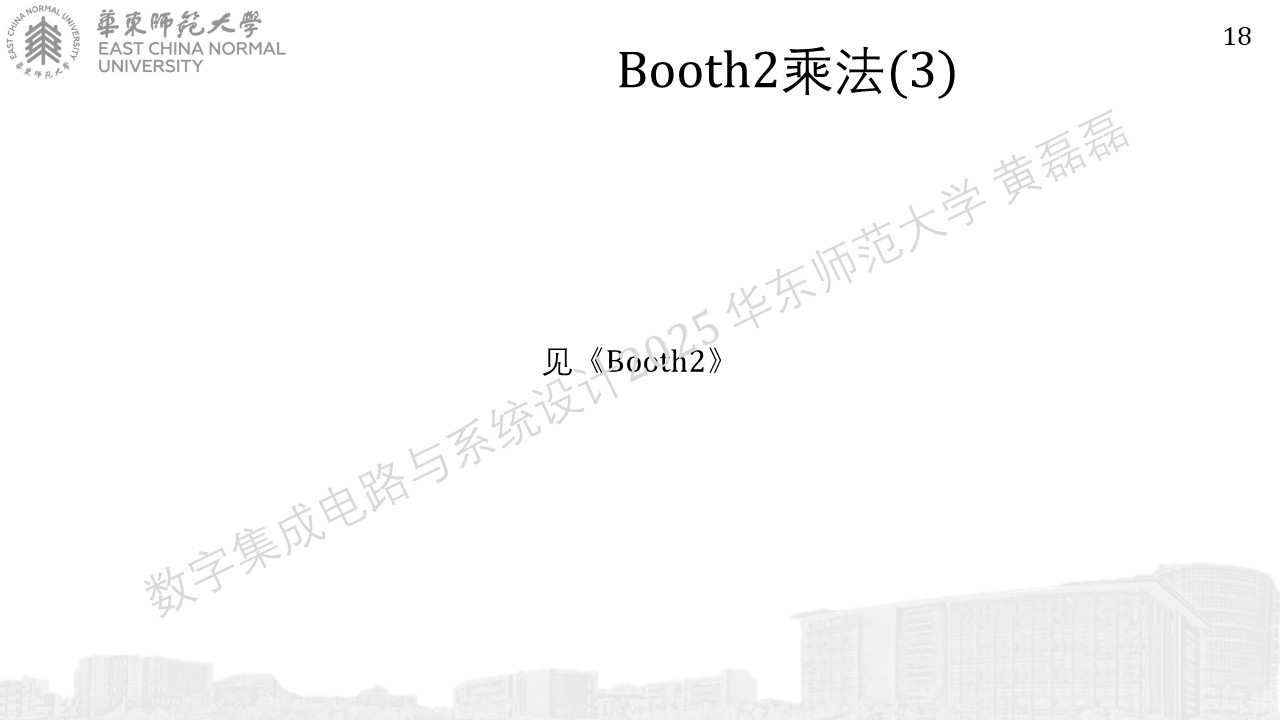

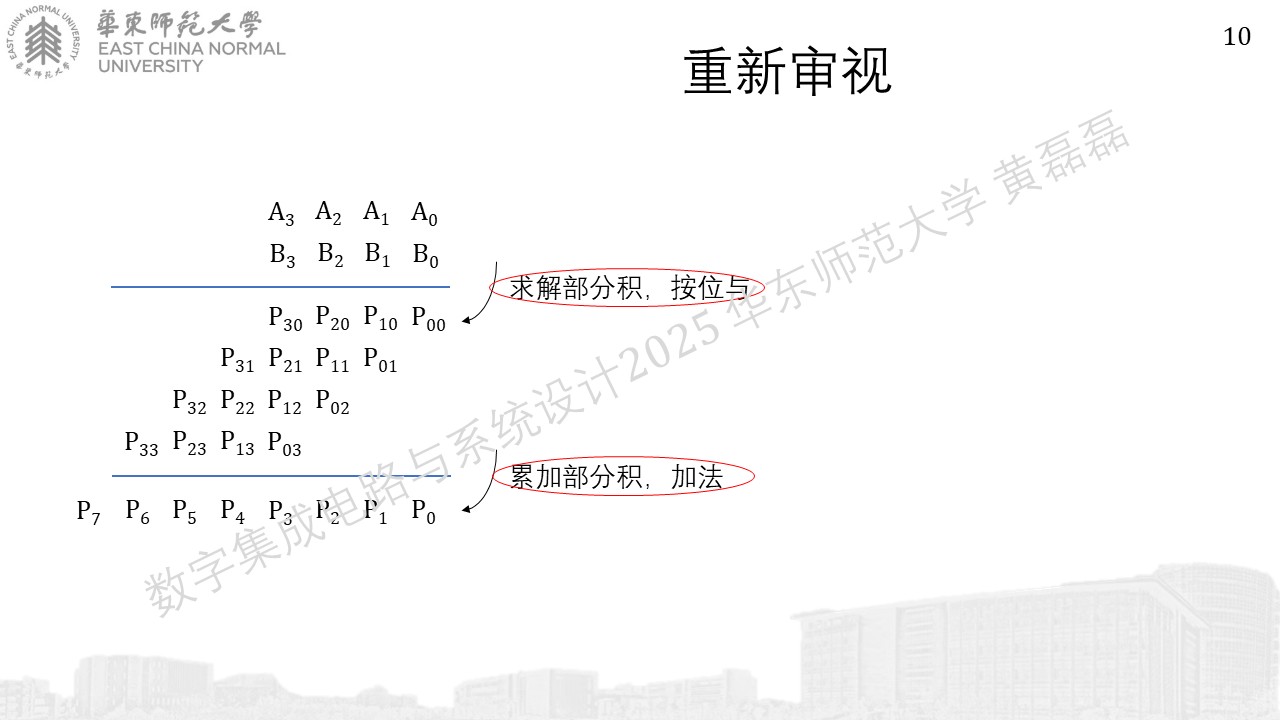

../_images/%E5%B9%BB%E7%81%AF%E7%89%87928.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871028.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871135.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871230.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871328.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871428.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871528.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871627.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871726.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871824.JPG

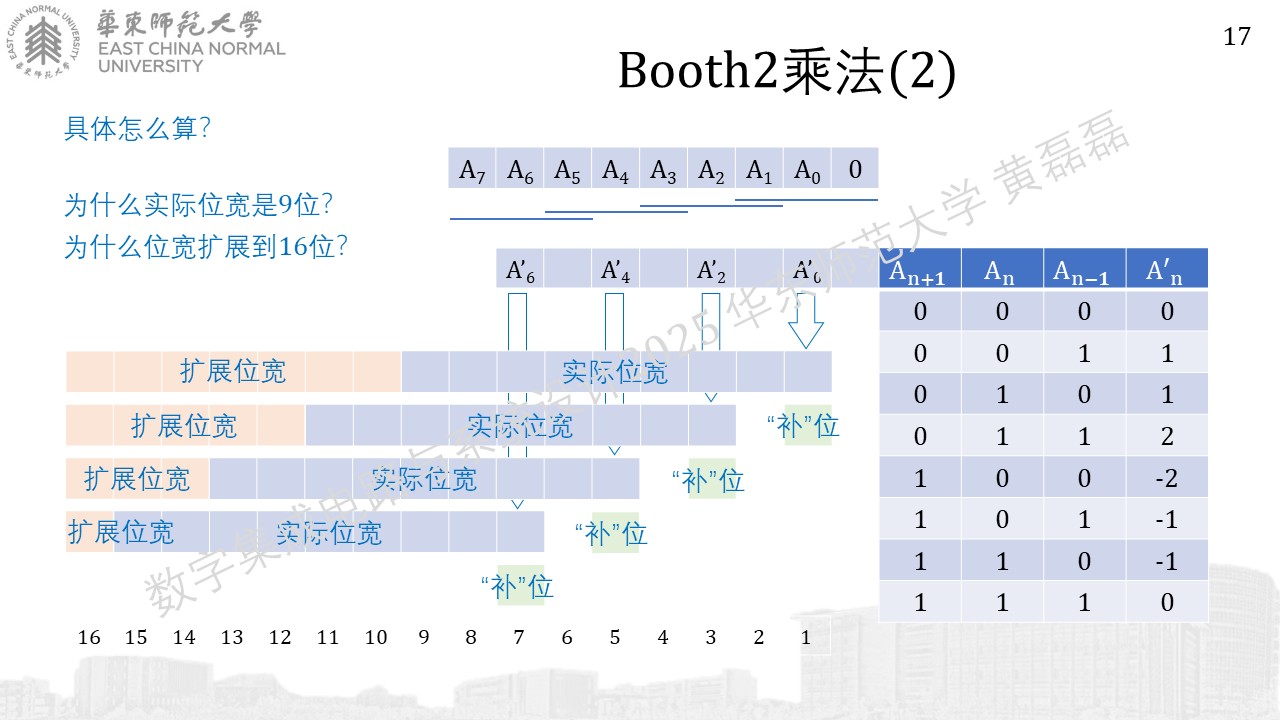

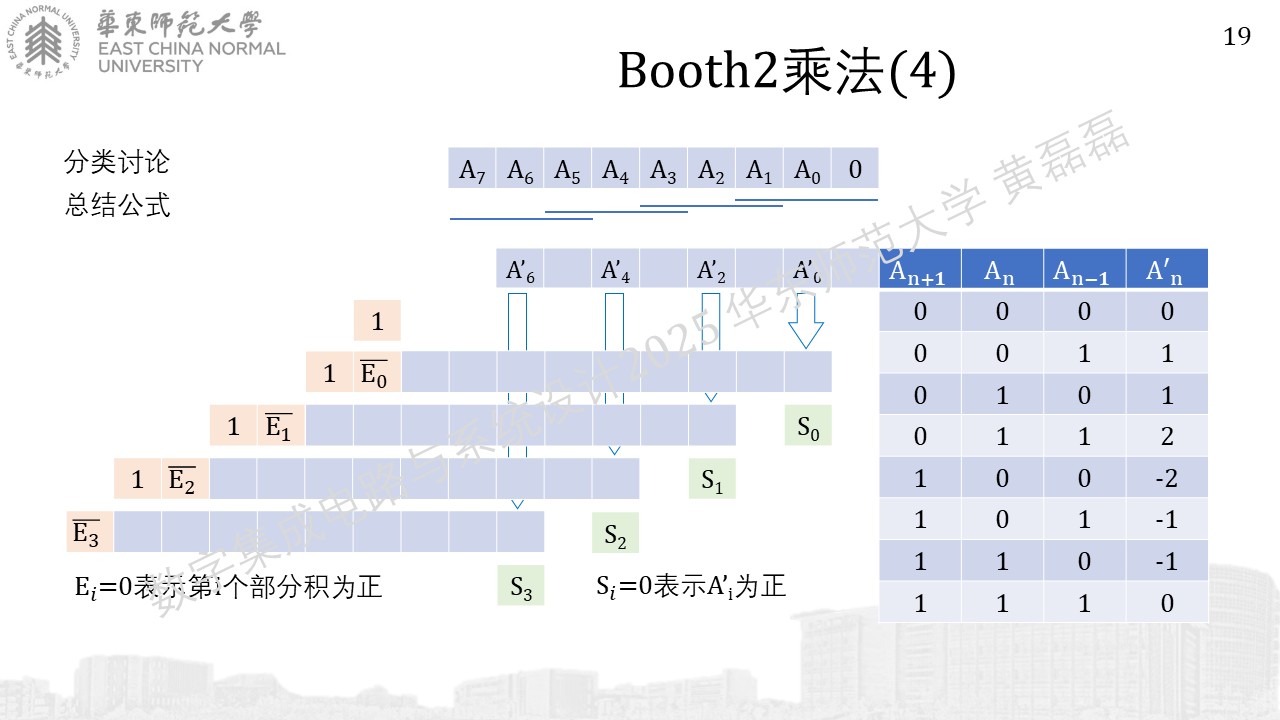

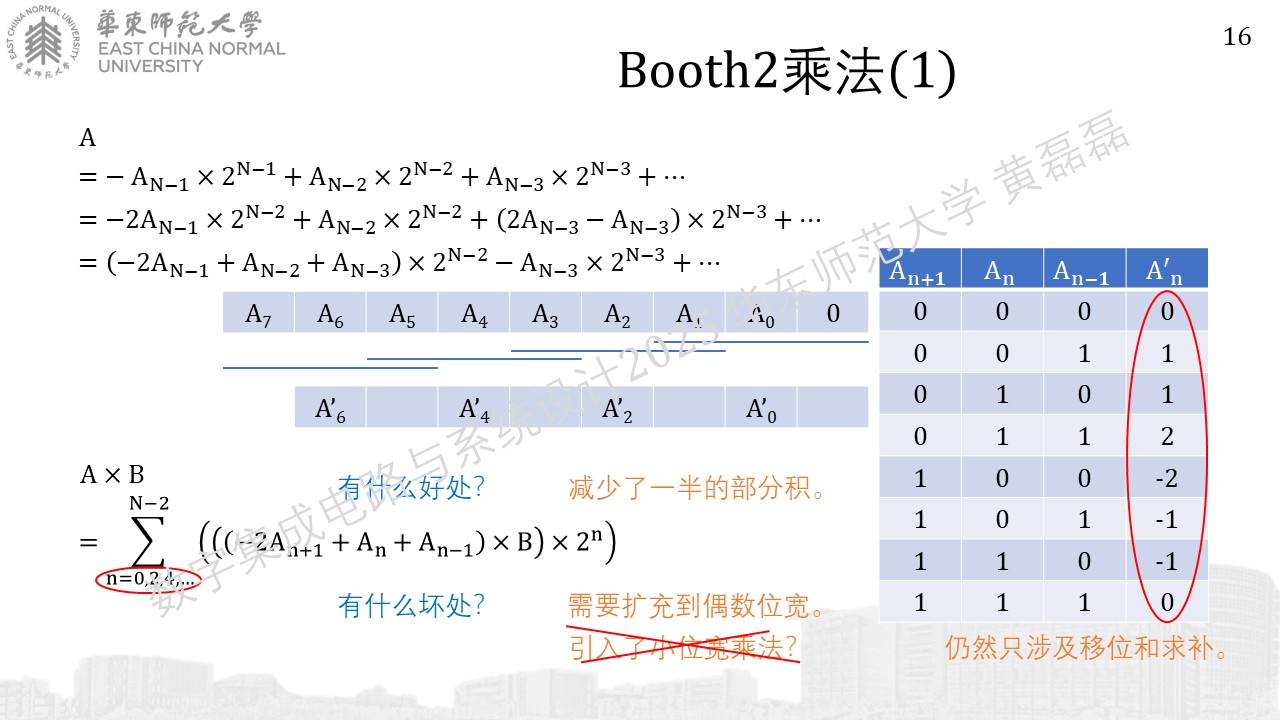

booth2

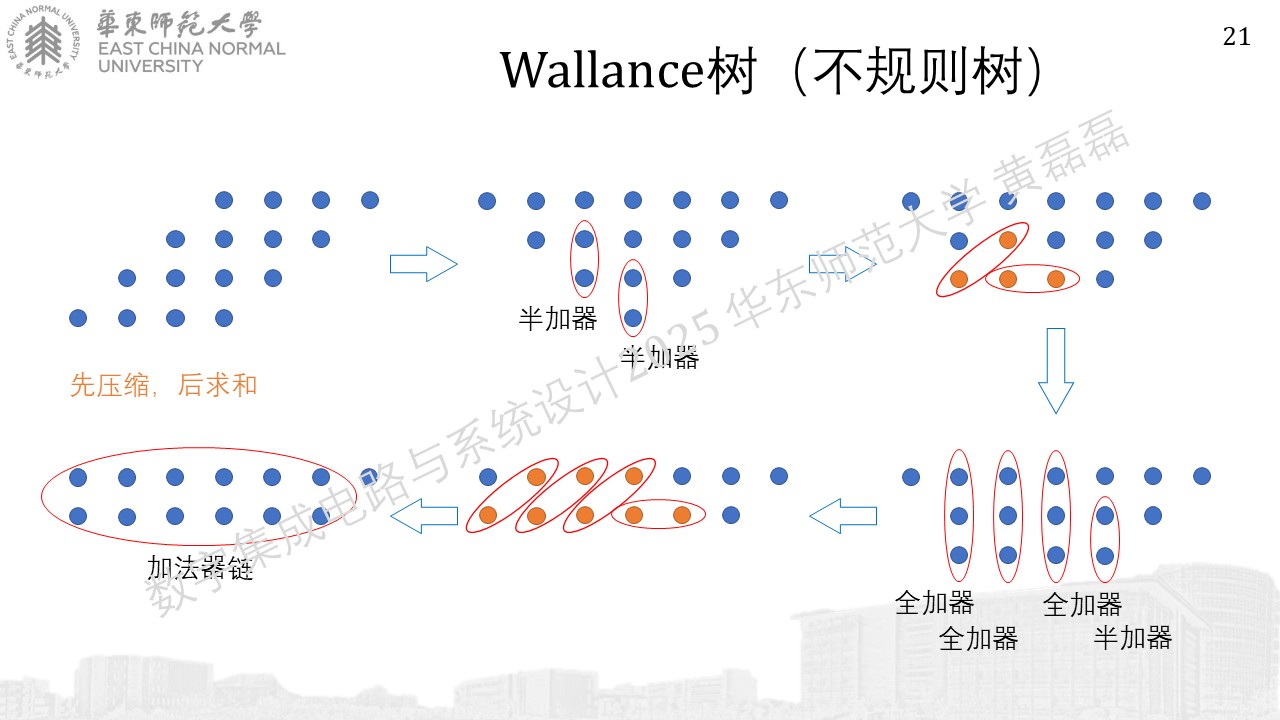

../_images/%E5%B9%BB%E7%81%AF%E7%89%871923.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872022.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872124.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872221.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872319.JPG
