第04讲 - 组合逻辑 - 设计实践

../_images/%E5%B9%BB%E7%81%AF%E7%89%871130.JPG

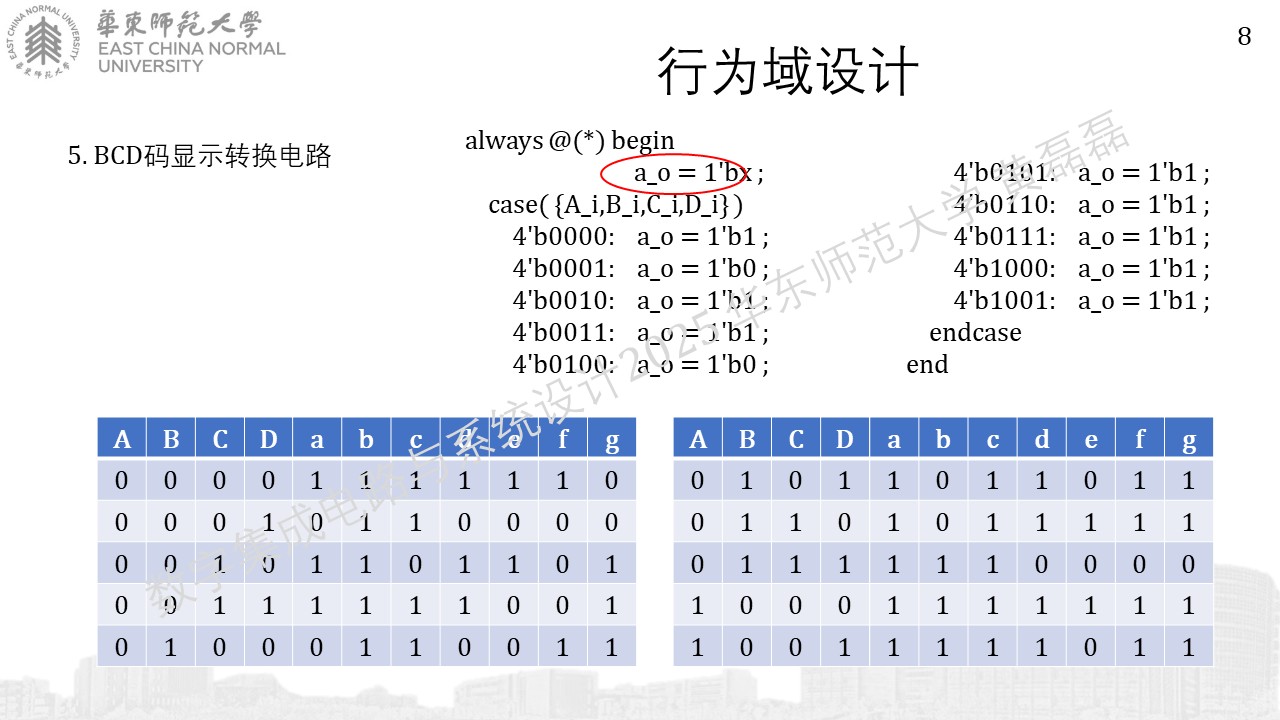

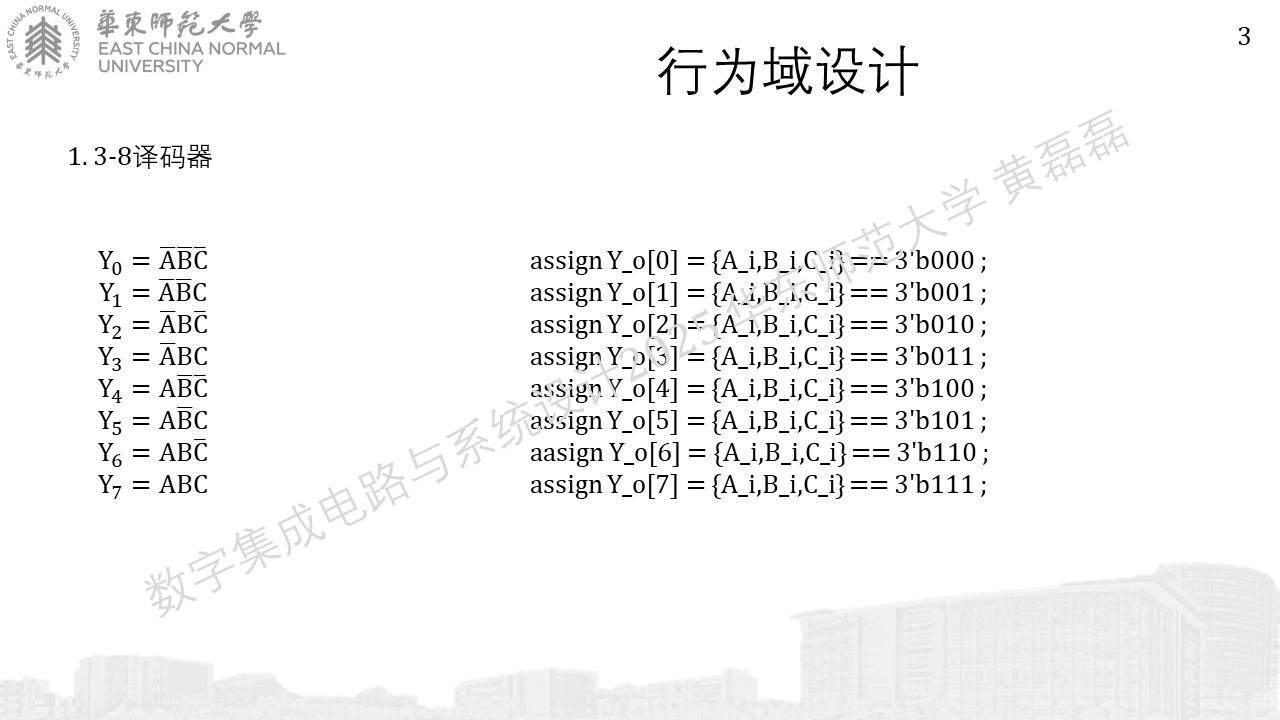

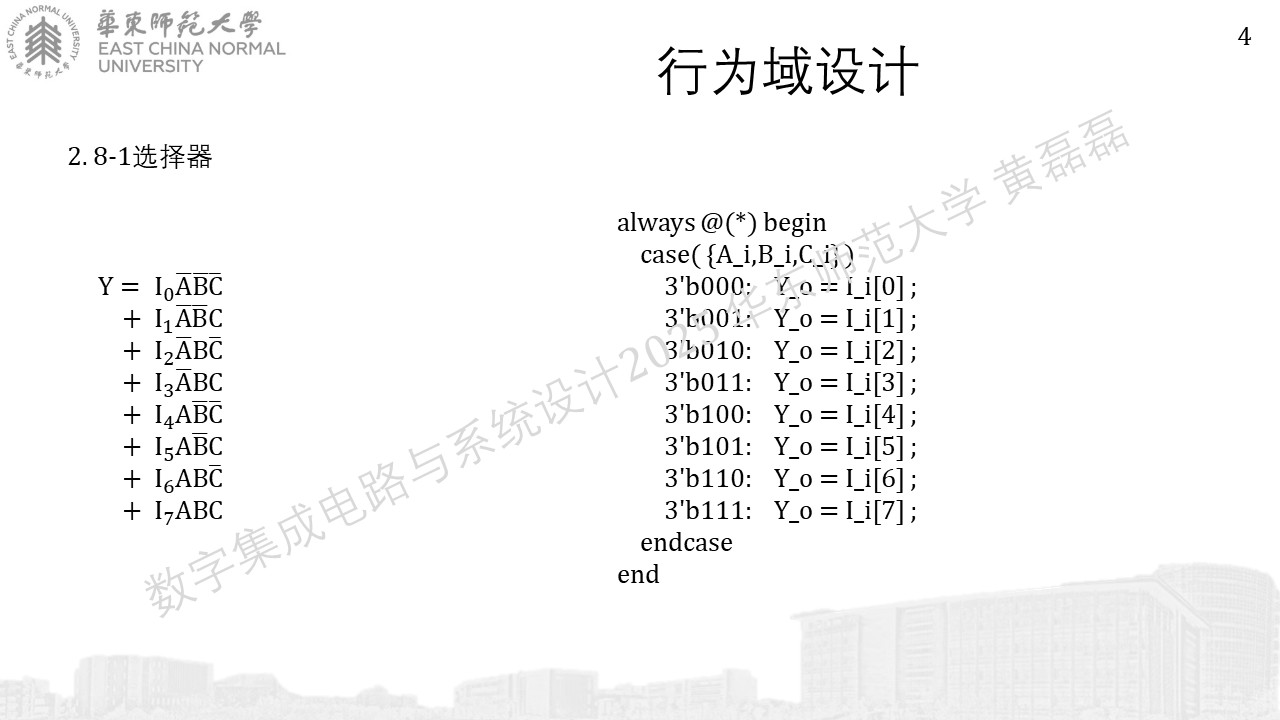

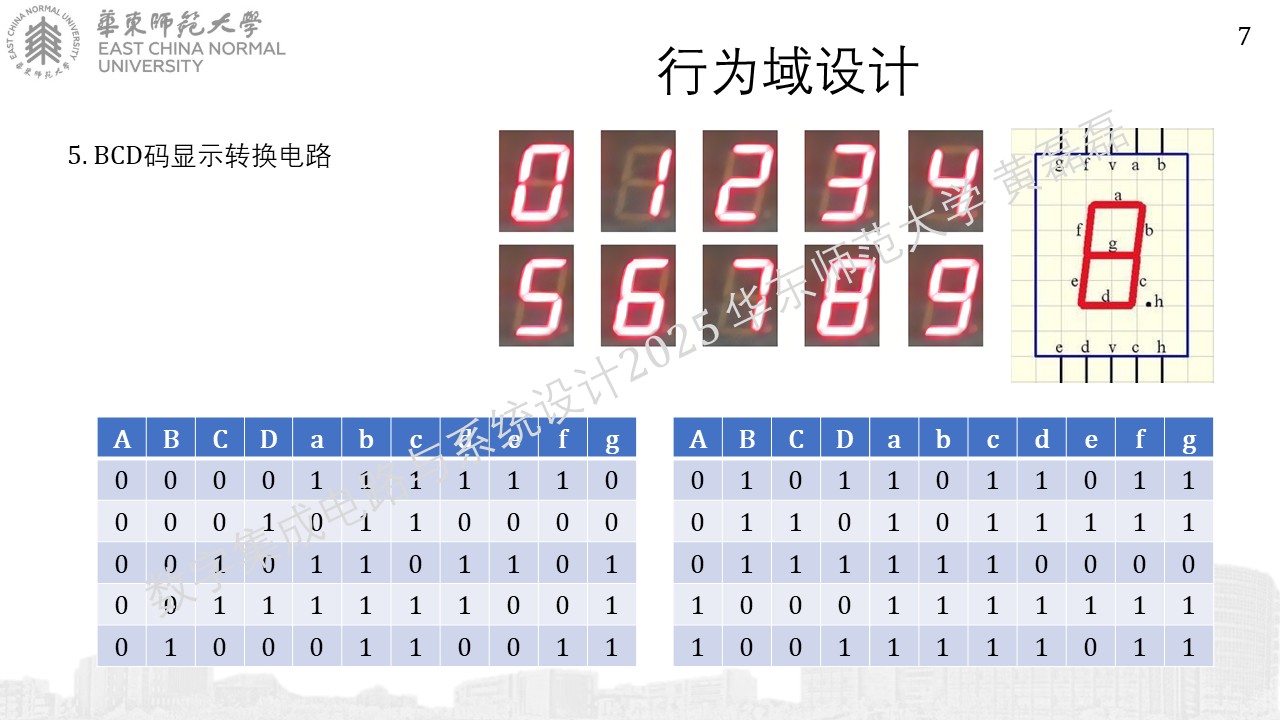

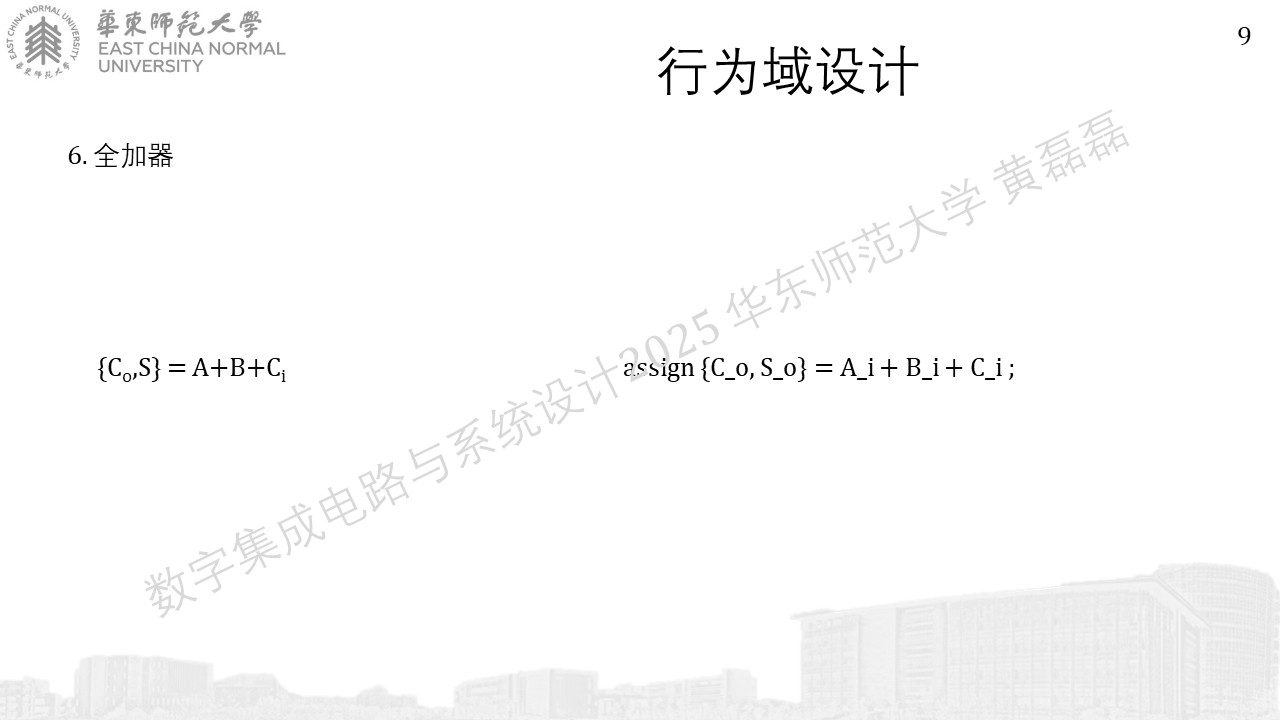

行为域设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%872101.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87360.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87438.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87529.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87626.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87726.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87826.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87926.JPG

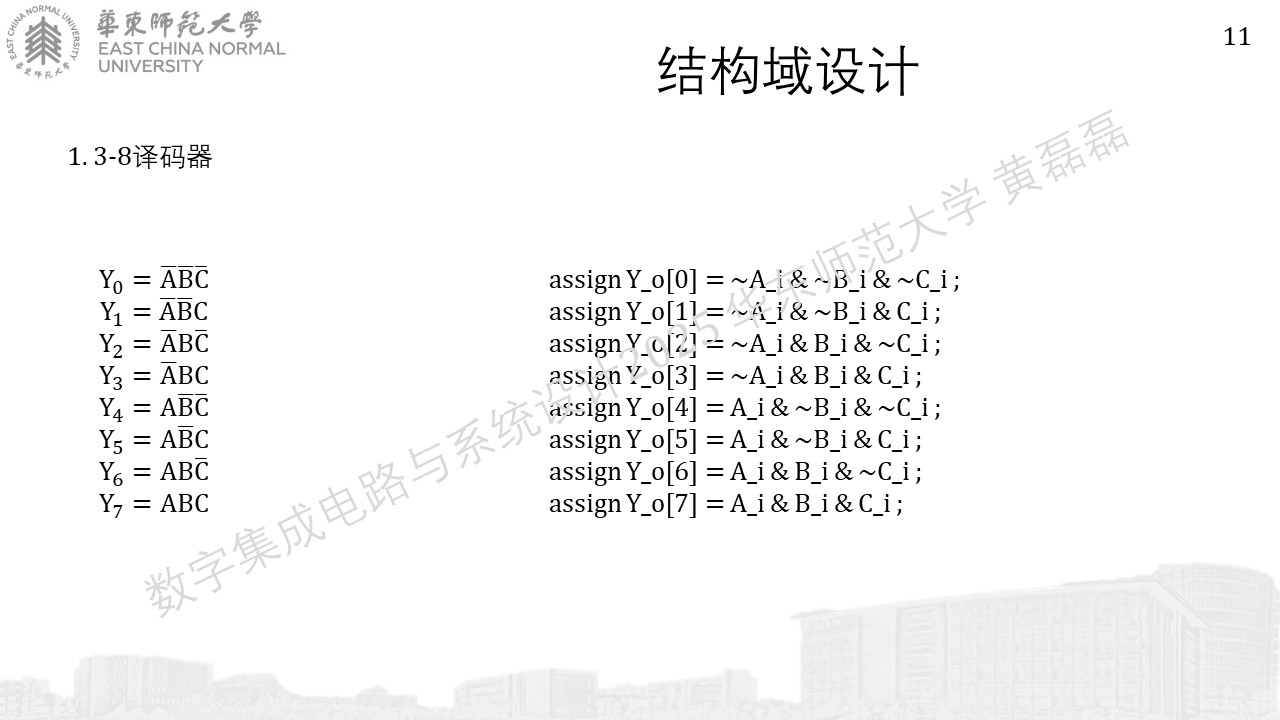

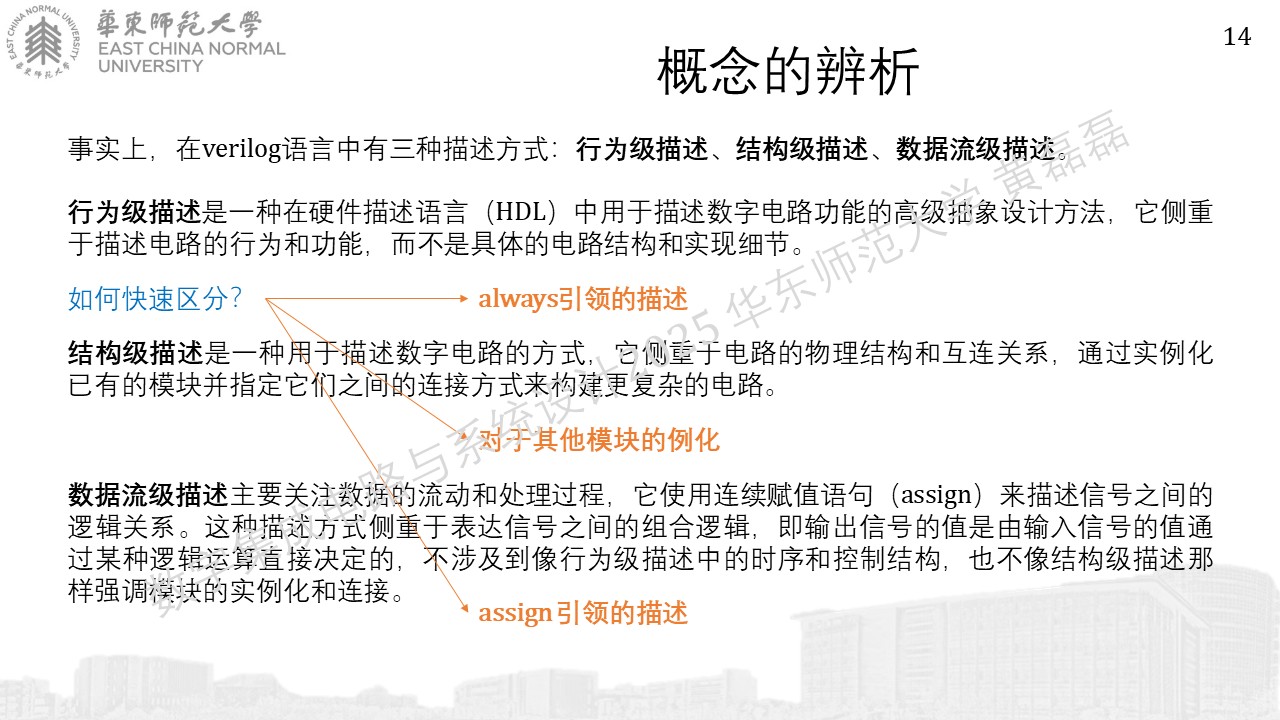

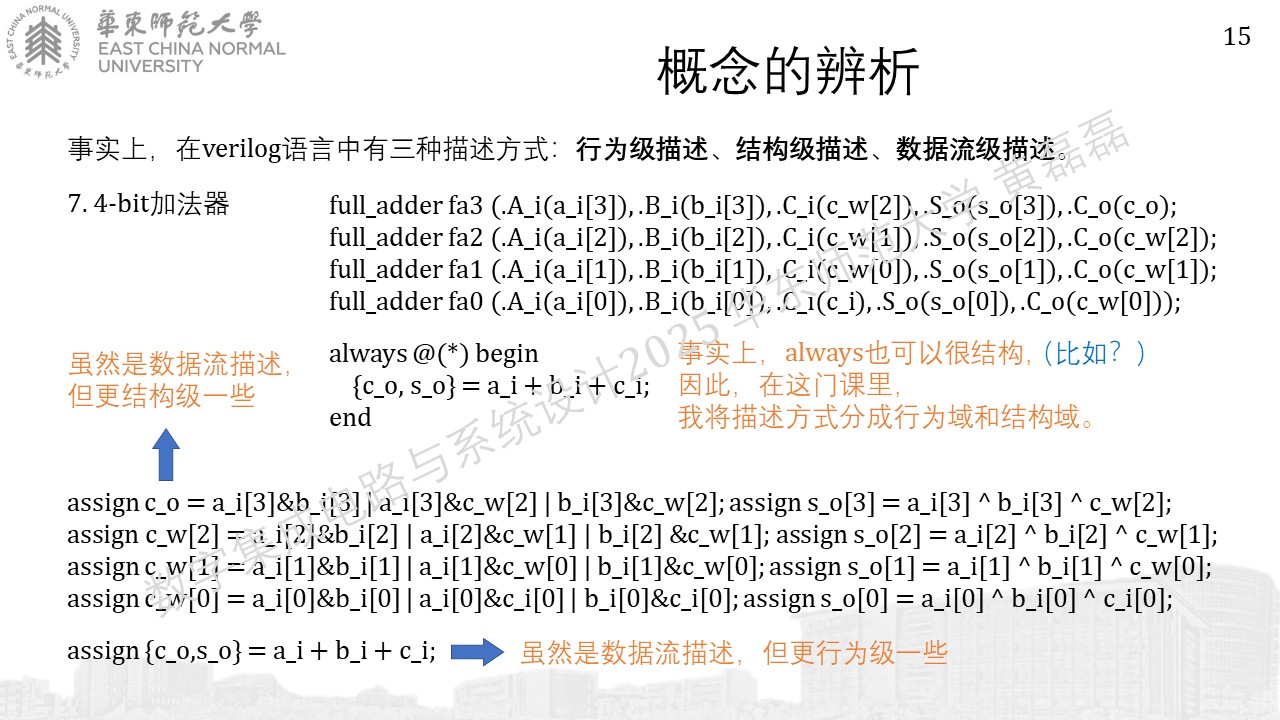

结构域设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%871026.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871131.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871228.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871326.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871426.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871526.JPG

稍微复杂一些的组合逻辑的设计

../_images/%E5%B9%BB%E7%81%AF%E7%89%871625.JPG

ALU

../_images/%E5%B9%BB%E7%81%AF%E7%89%871724.JPG

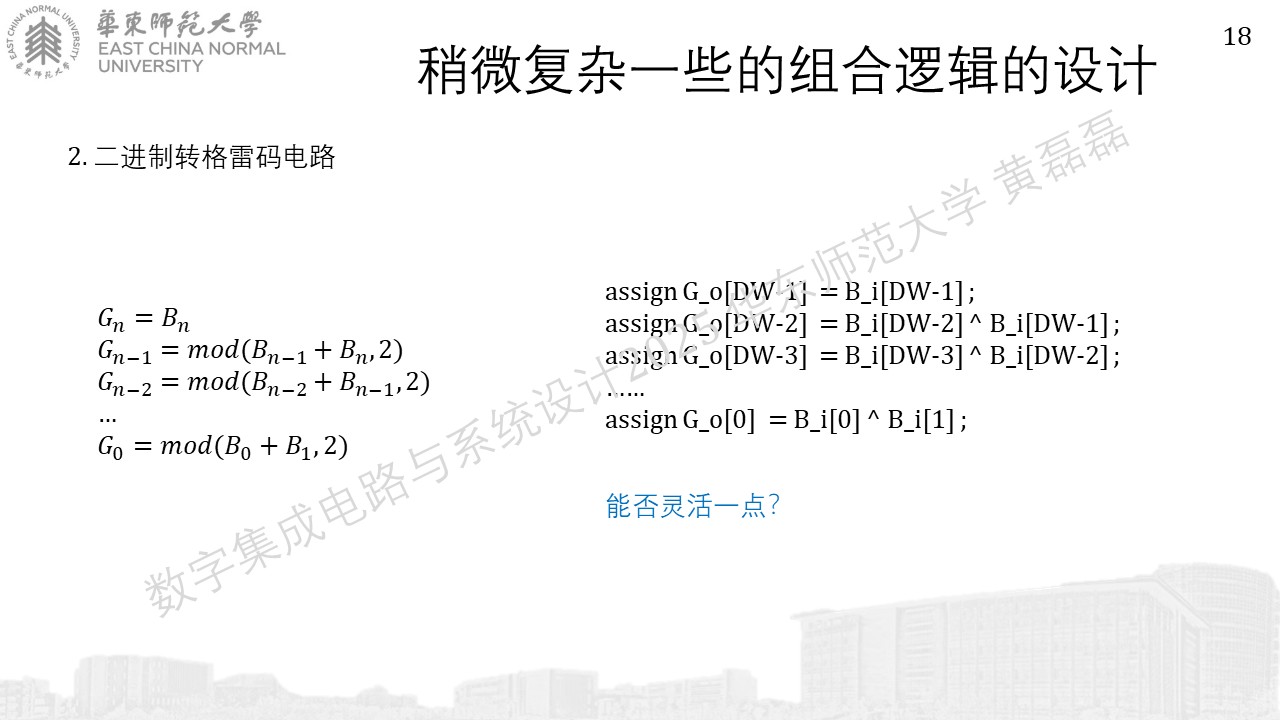

二进制转格雷码

../_images/%E5%B9%BB%E7%81%AF%E7%89%871822.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871921.JPG

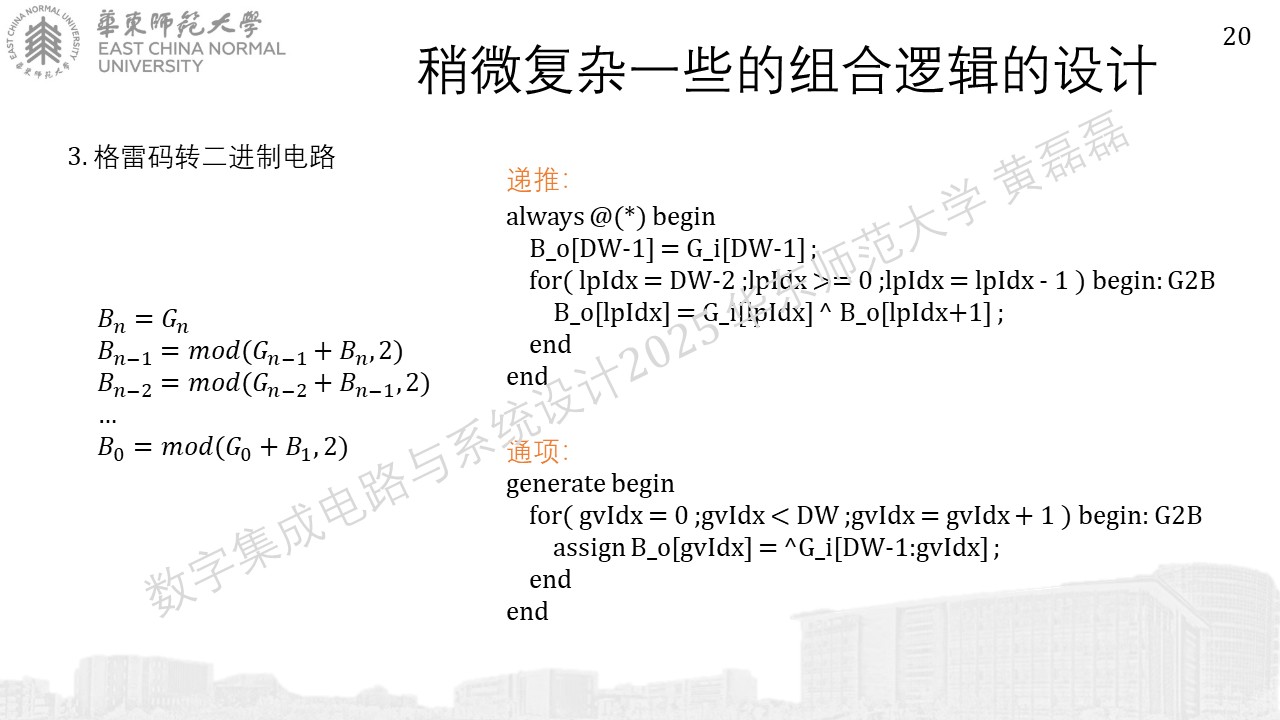

格雷码转二进制

../_images/%E5%B9%BB%E7%81%AF%E7%89%872020.JPG

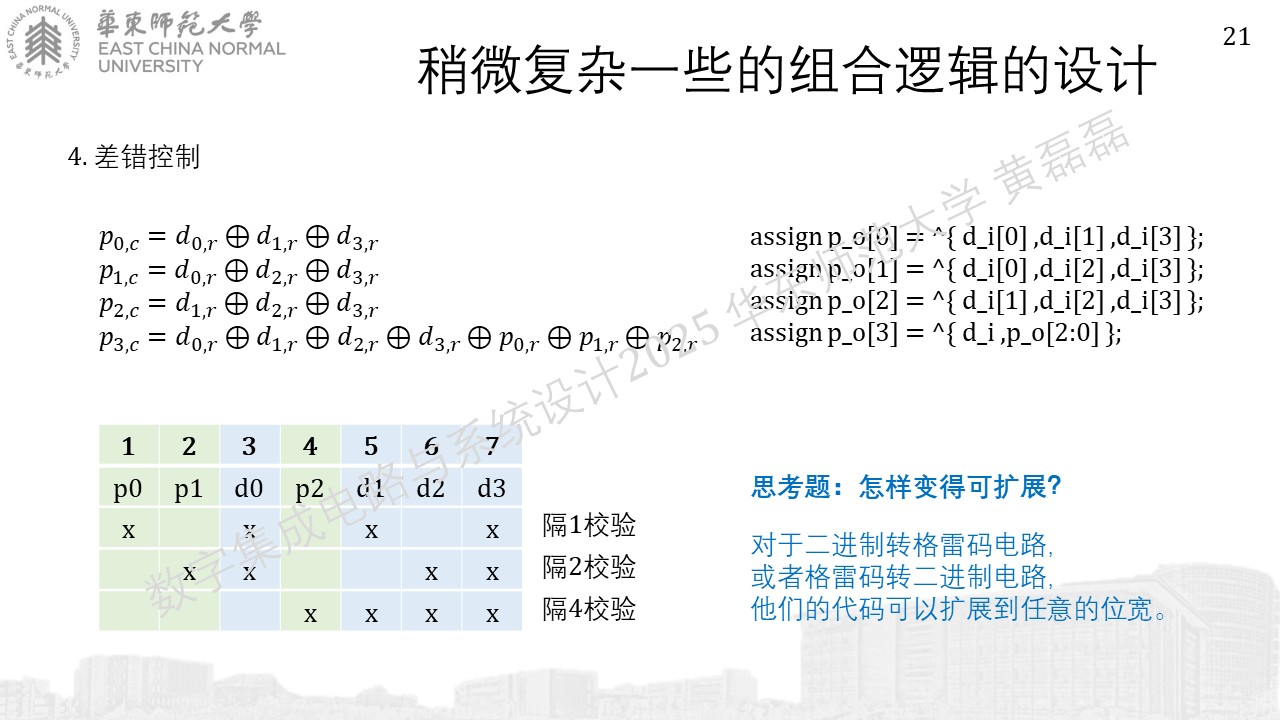

差错控制

../_images/%E5%B9%BB%E7%81%AF%E7%89%872122.JPG

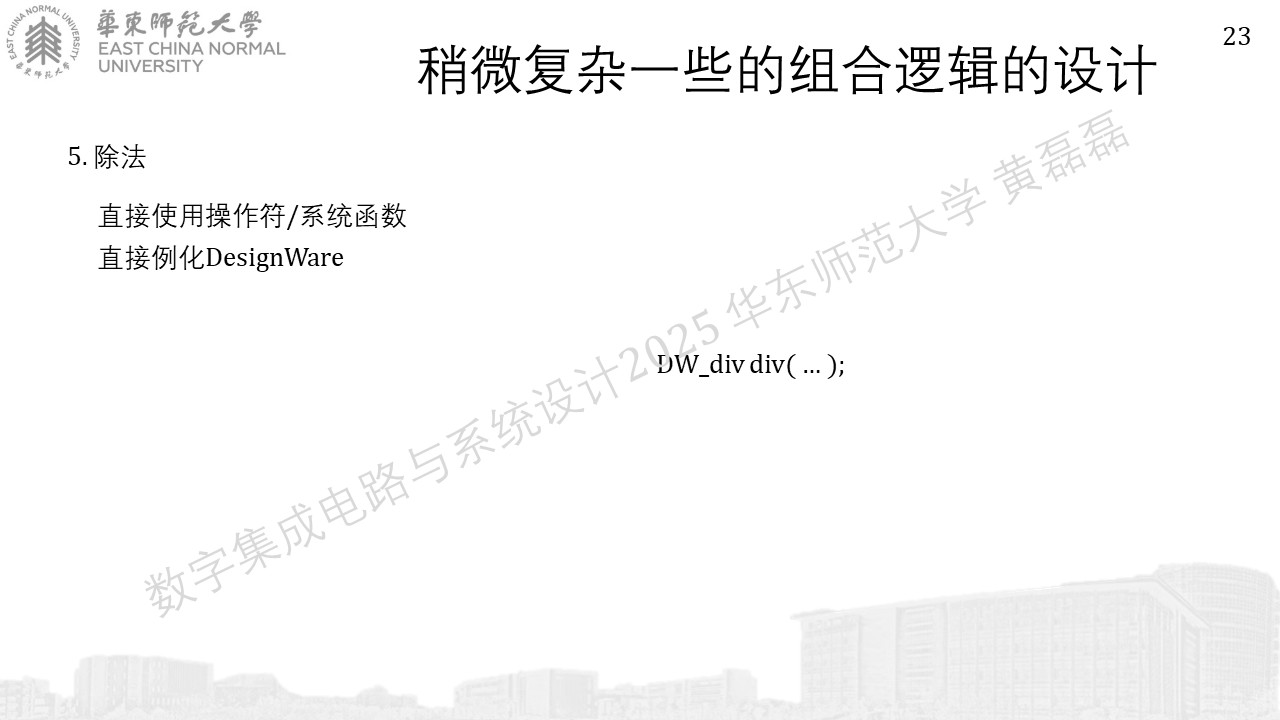

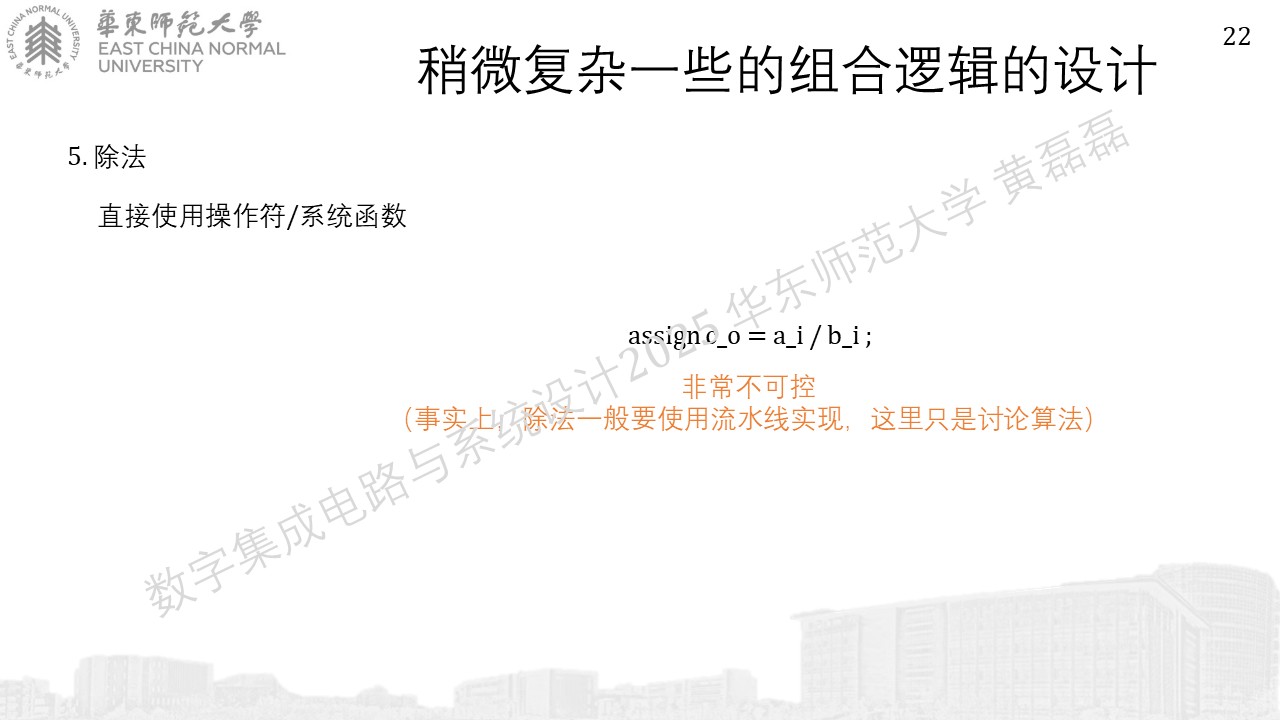

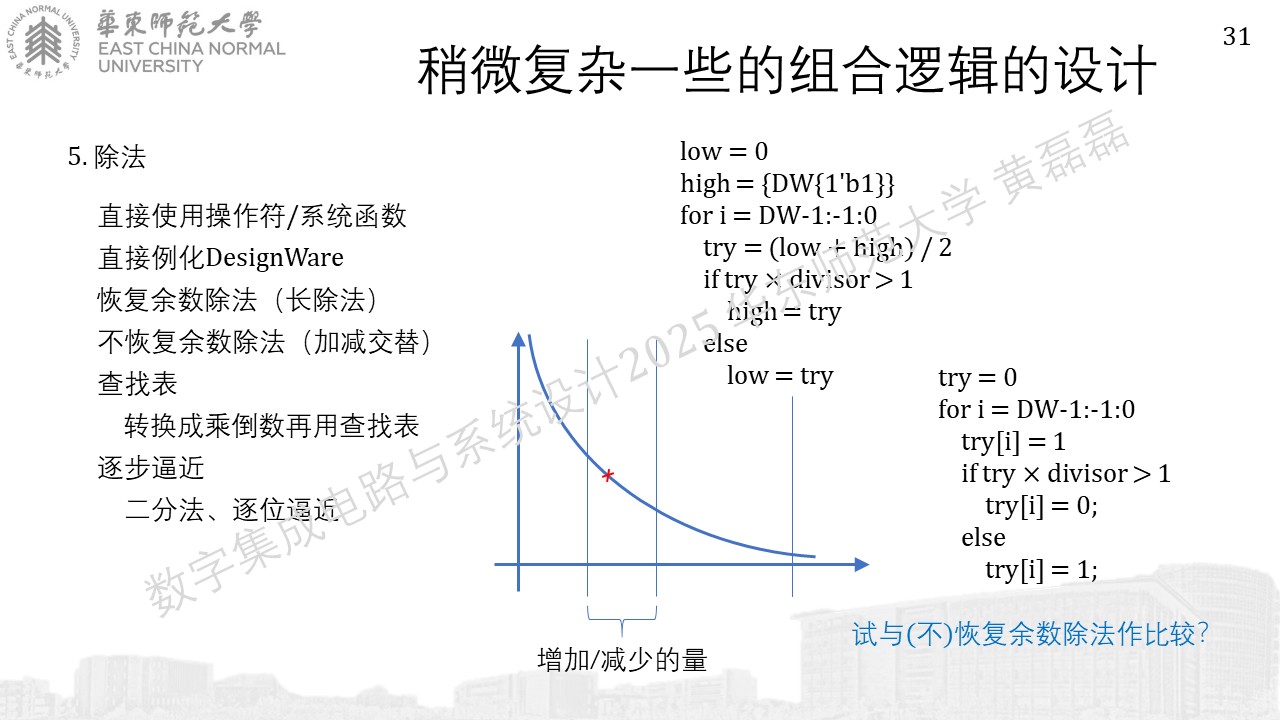

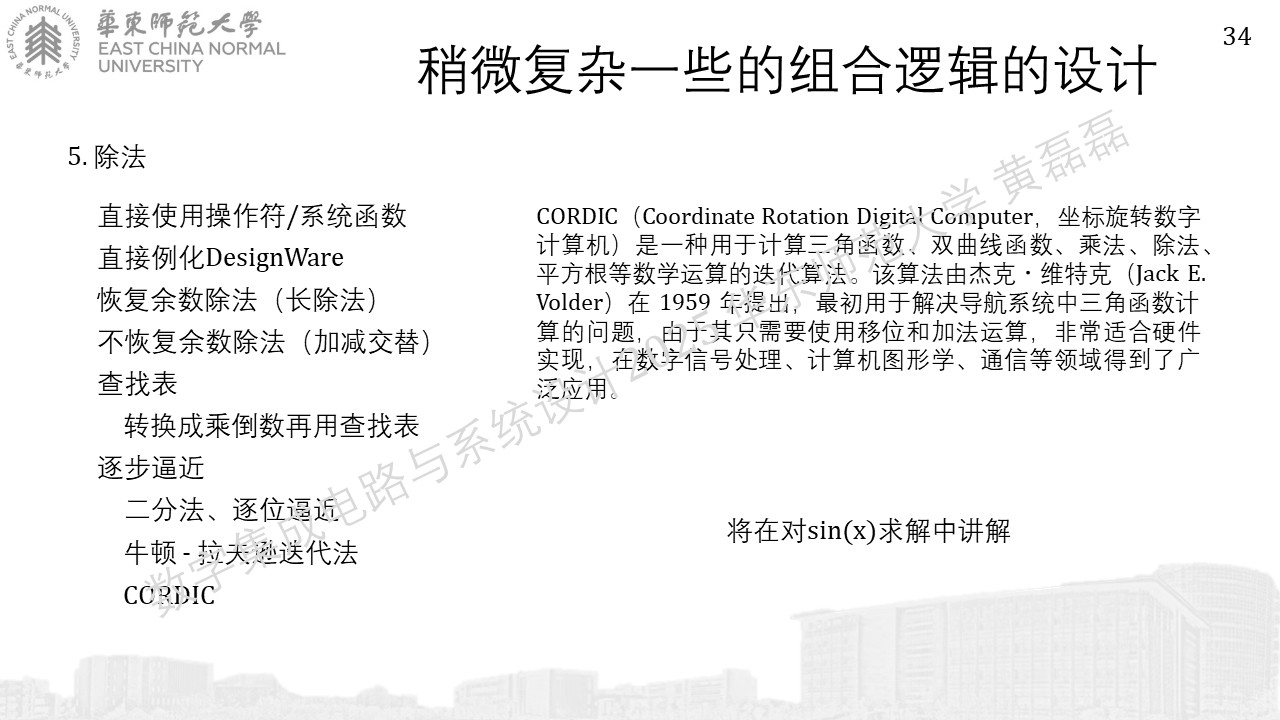

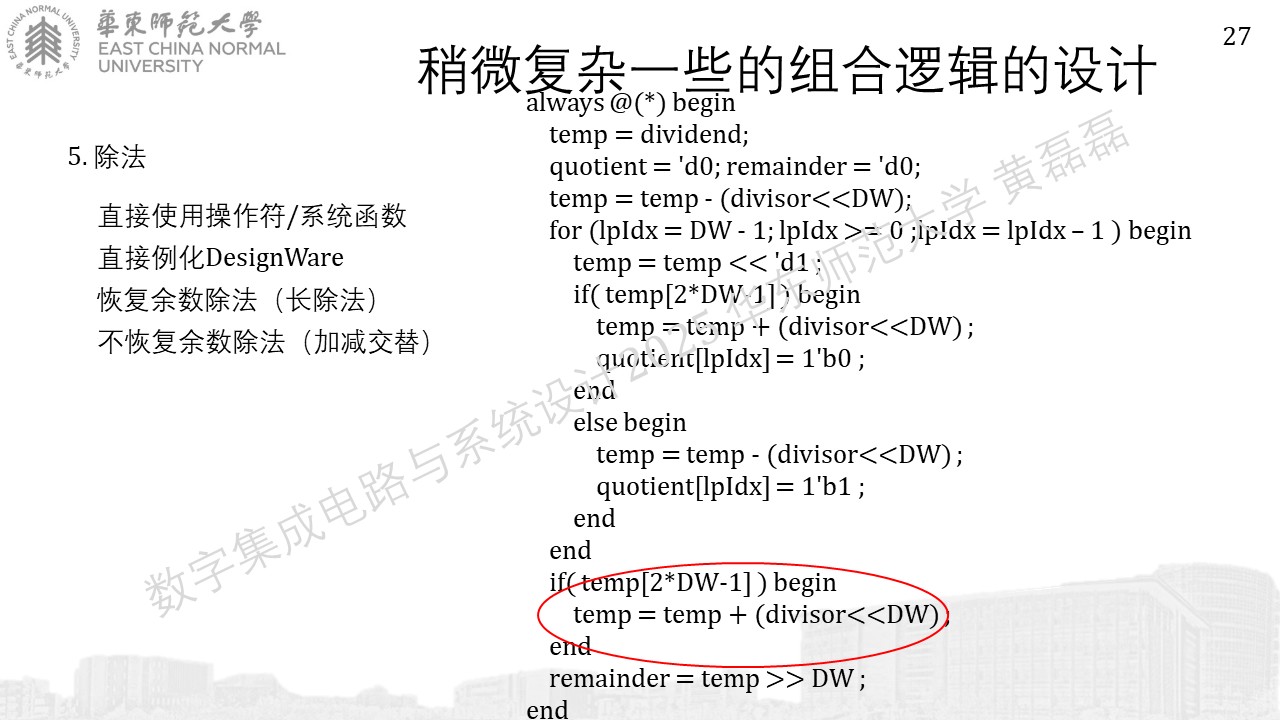

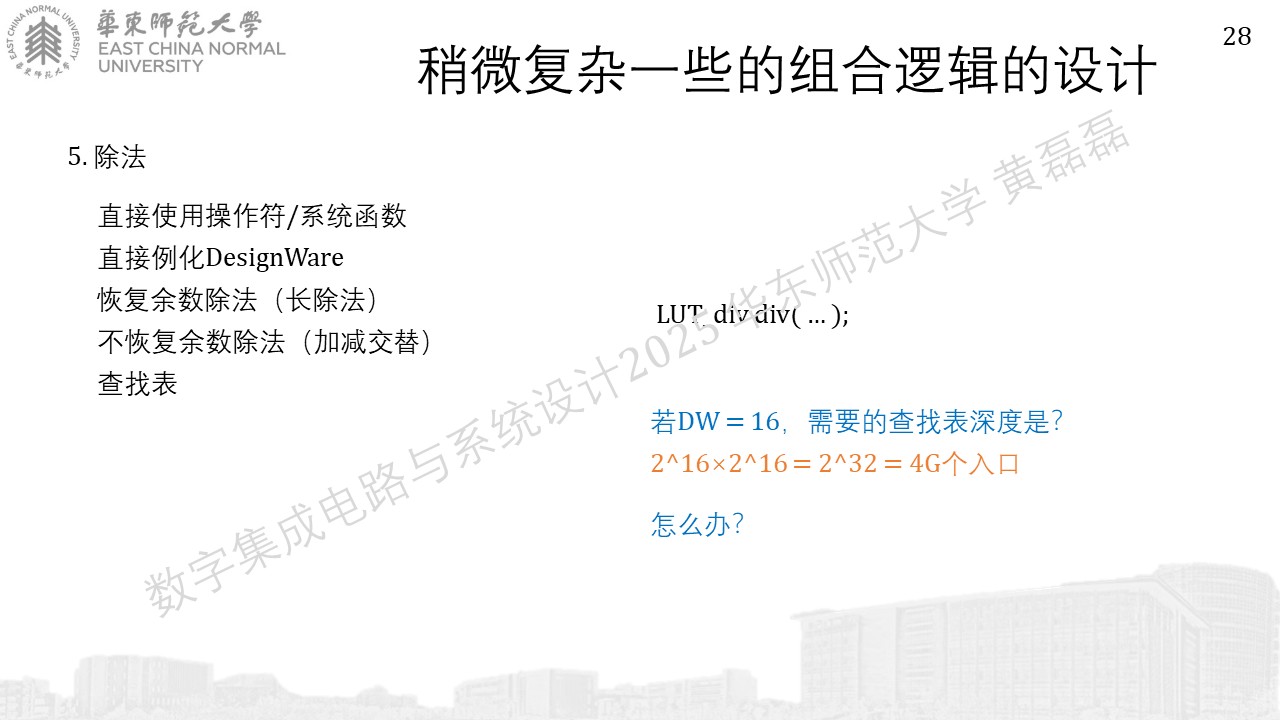

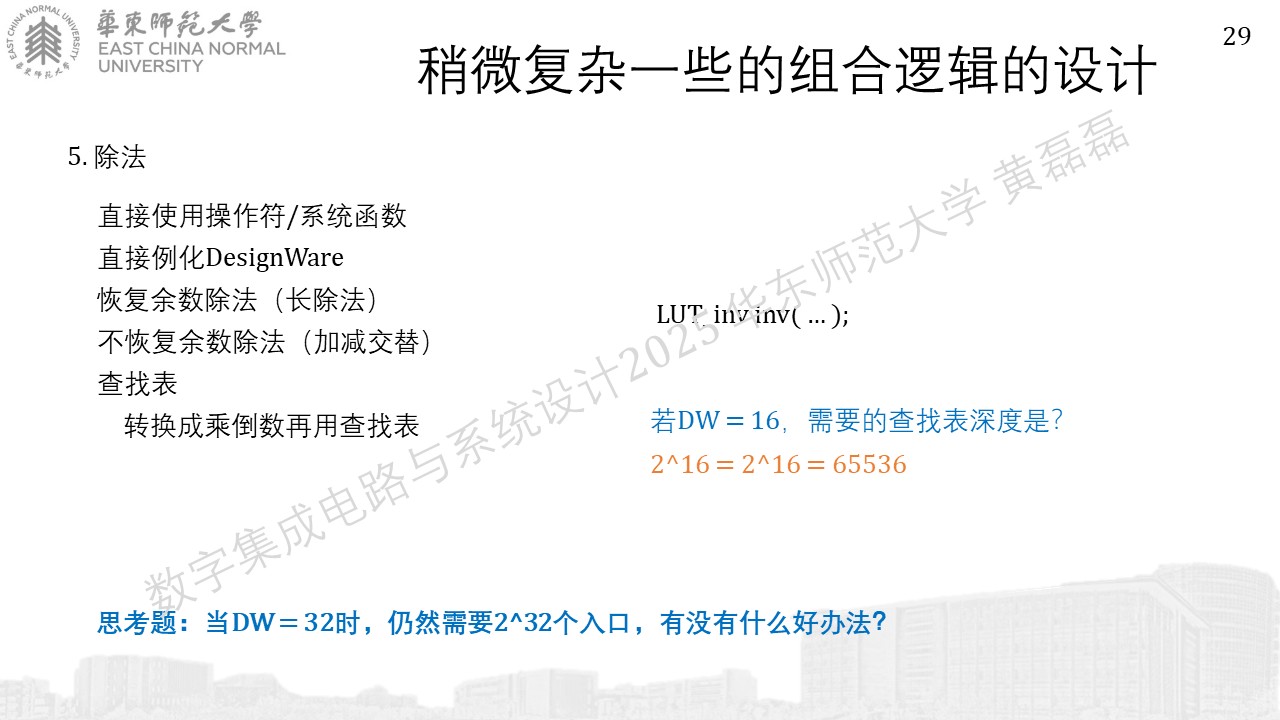

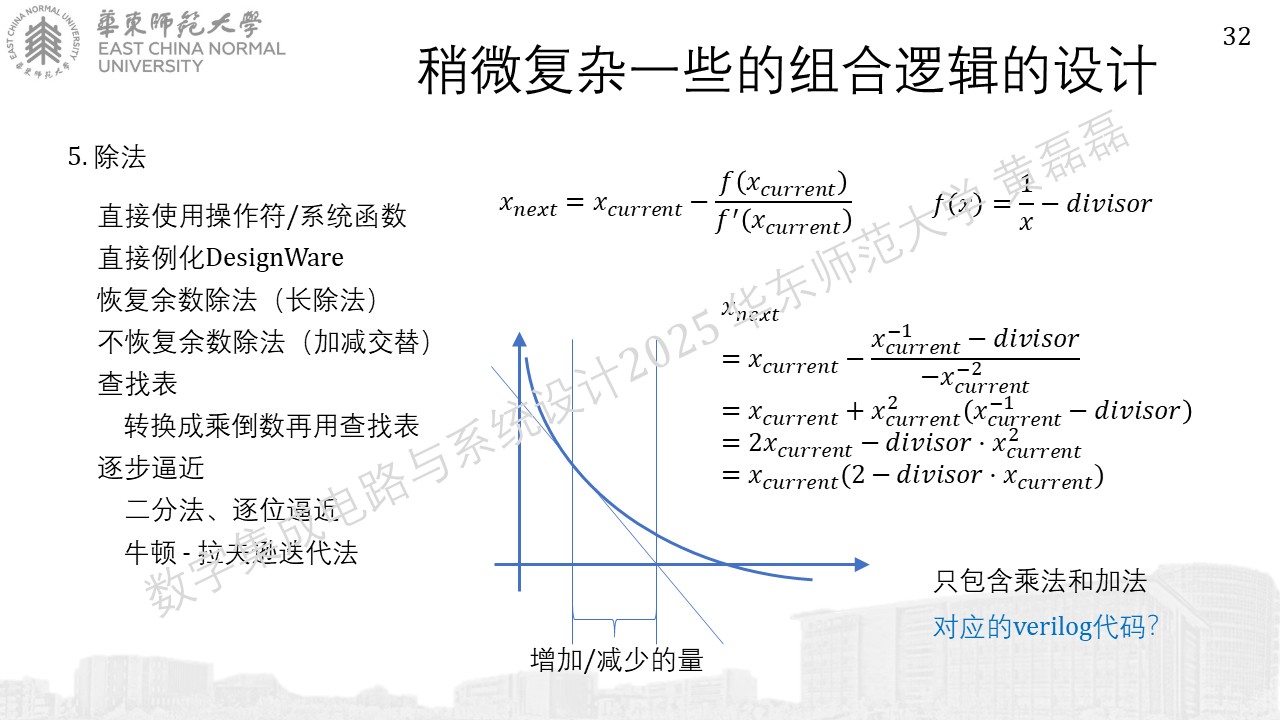

除法

../_images/%E5%B9%BB%E7%81%AF%E7%89%872220.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872318.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872417.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872516.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872615.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872714.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872813.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872912.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873011.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873116.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873214.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873313.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873412.JPG

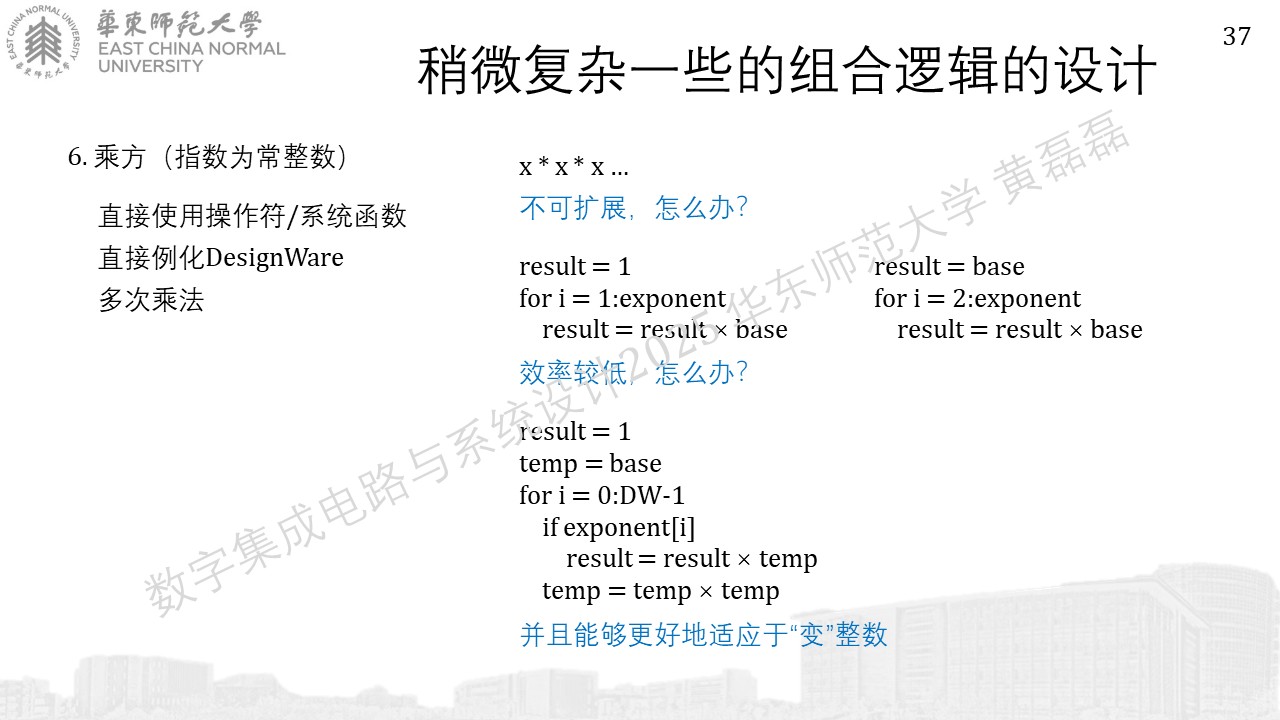

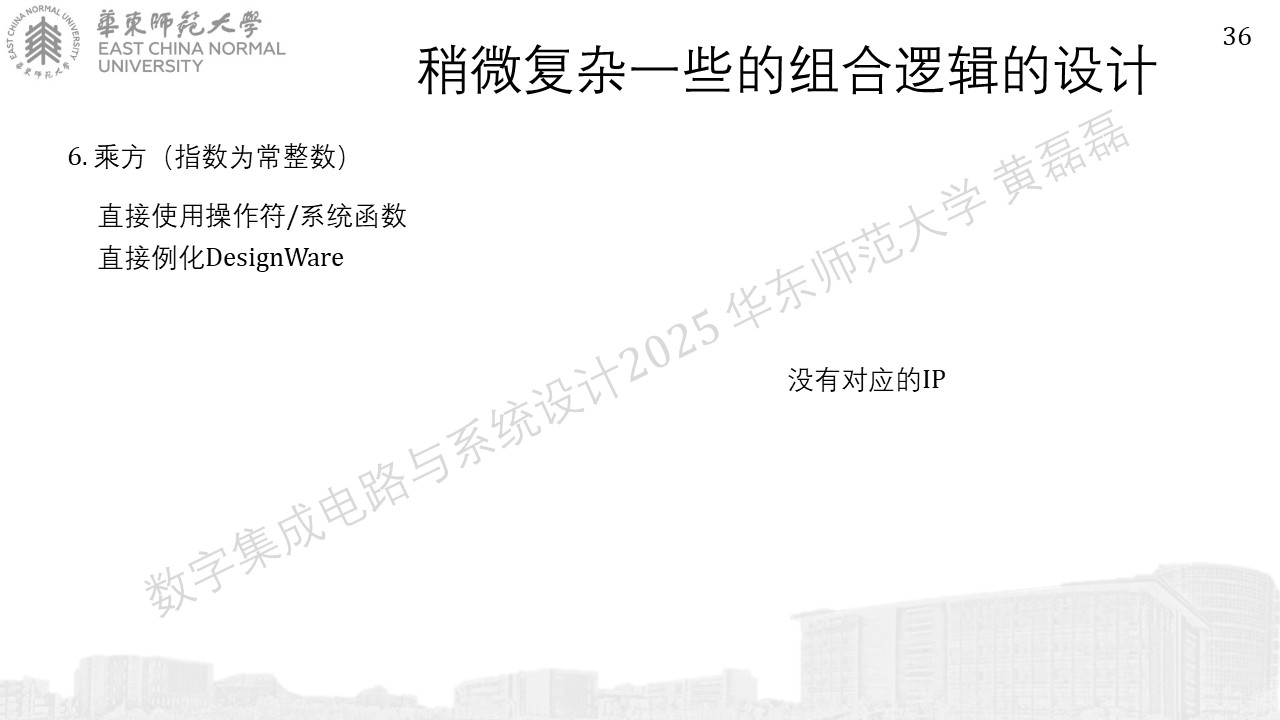

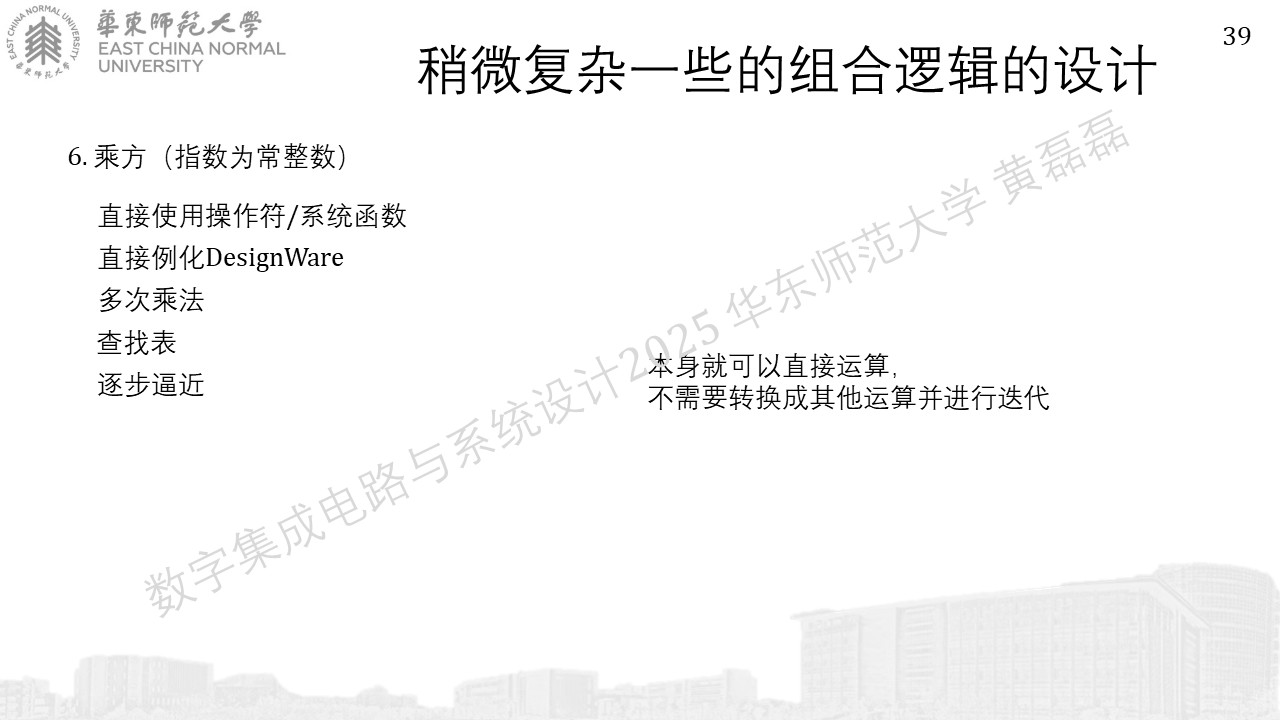

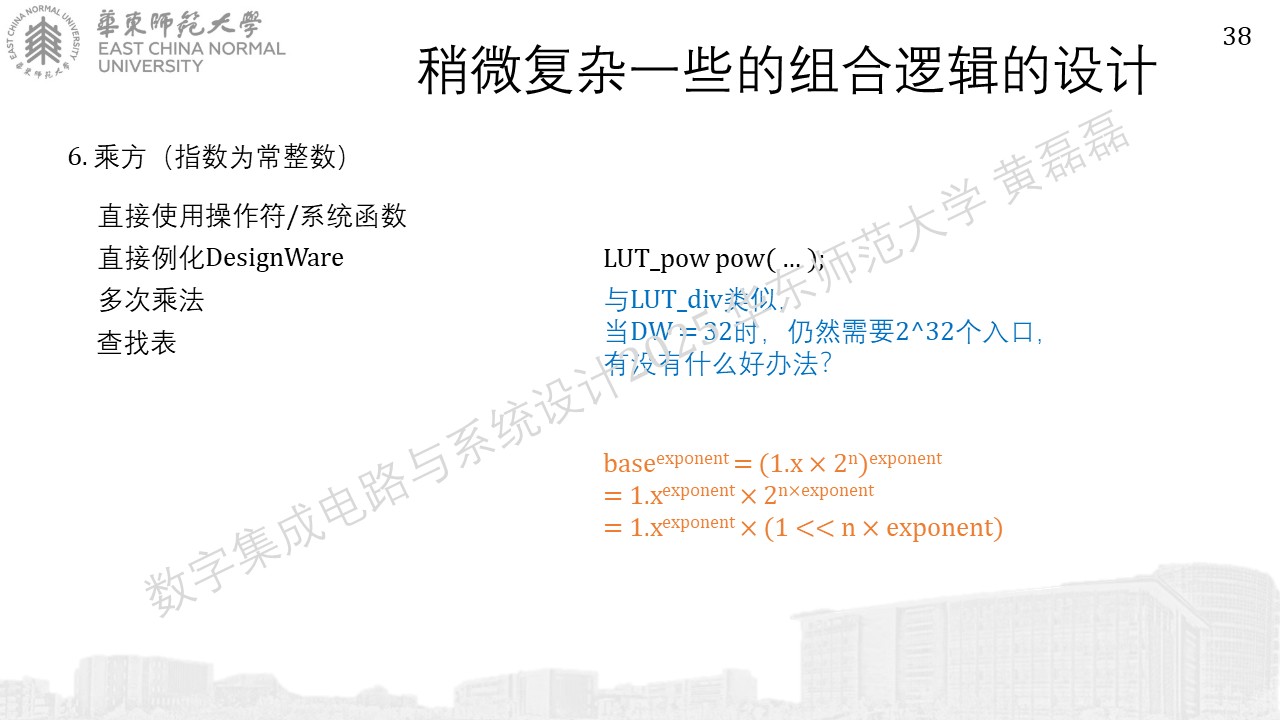

乘方

../_images/%E5%B9%BB%E7%81%AF%E7%89%873510.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87369.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87378.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87386.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87395.JPG

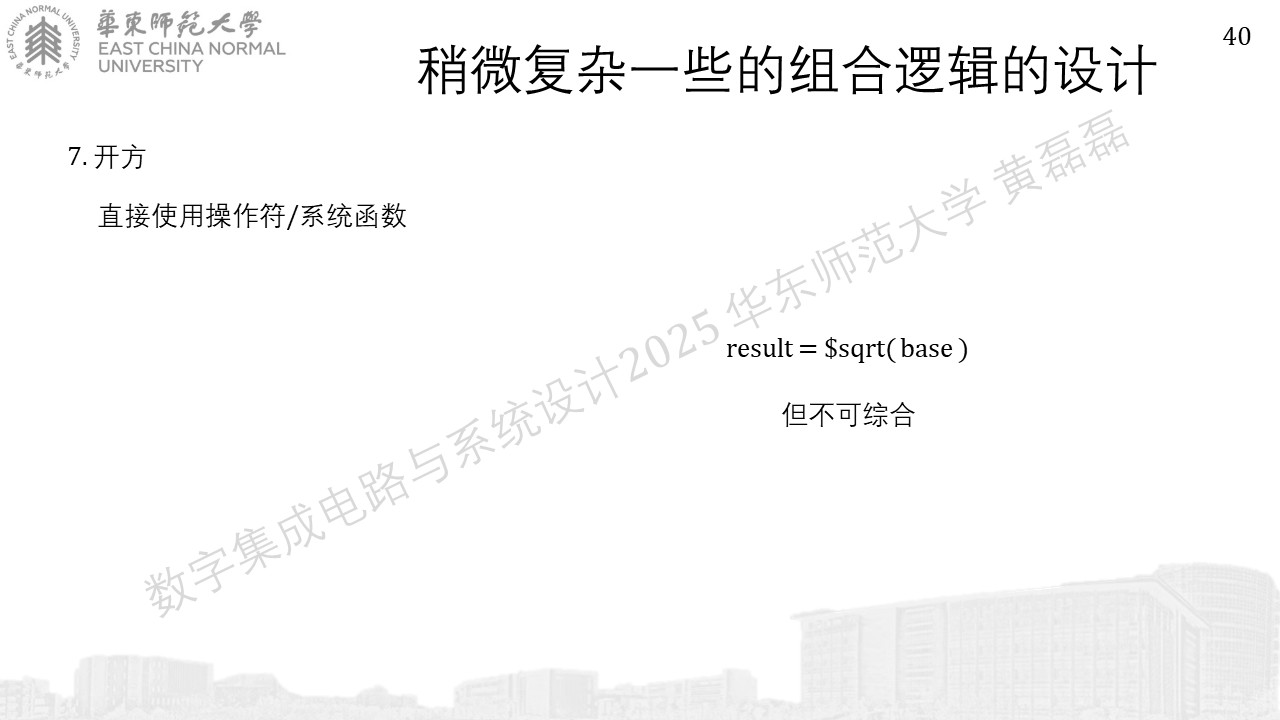

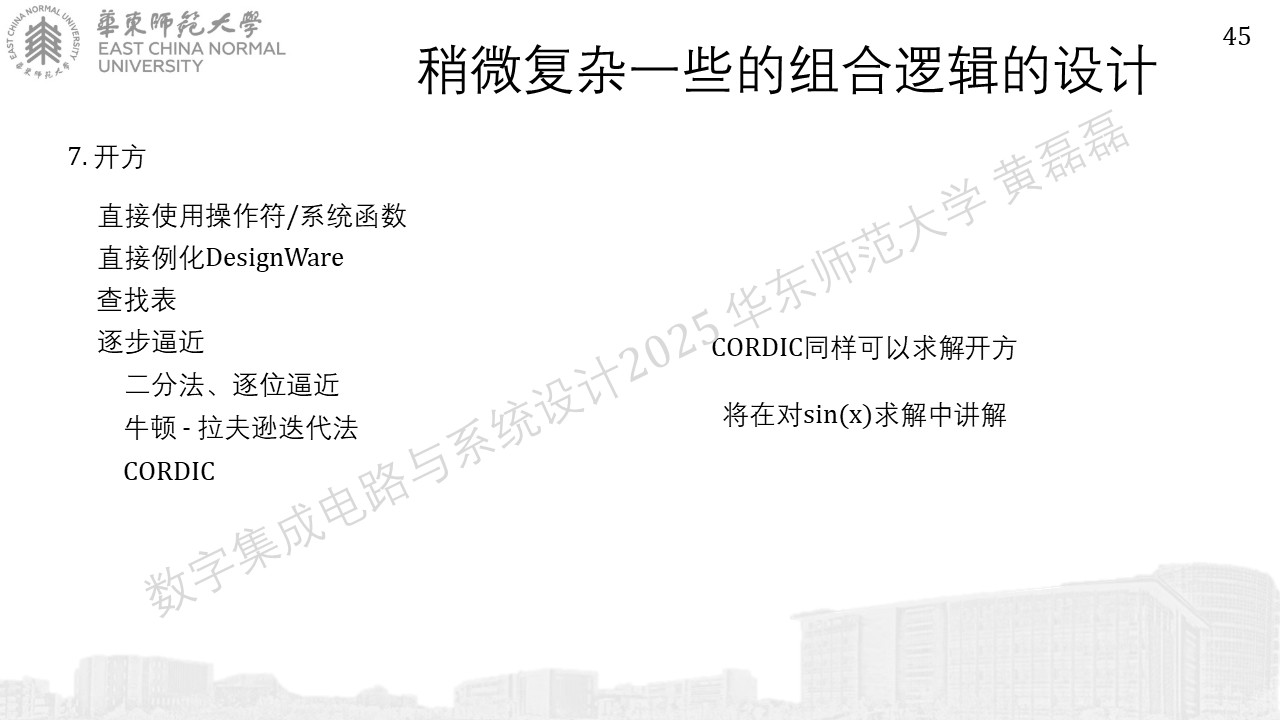

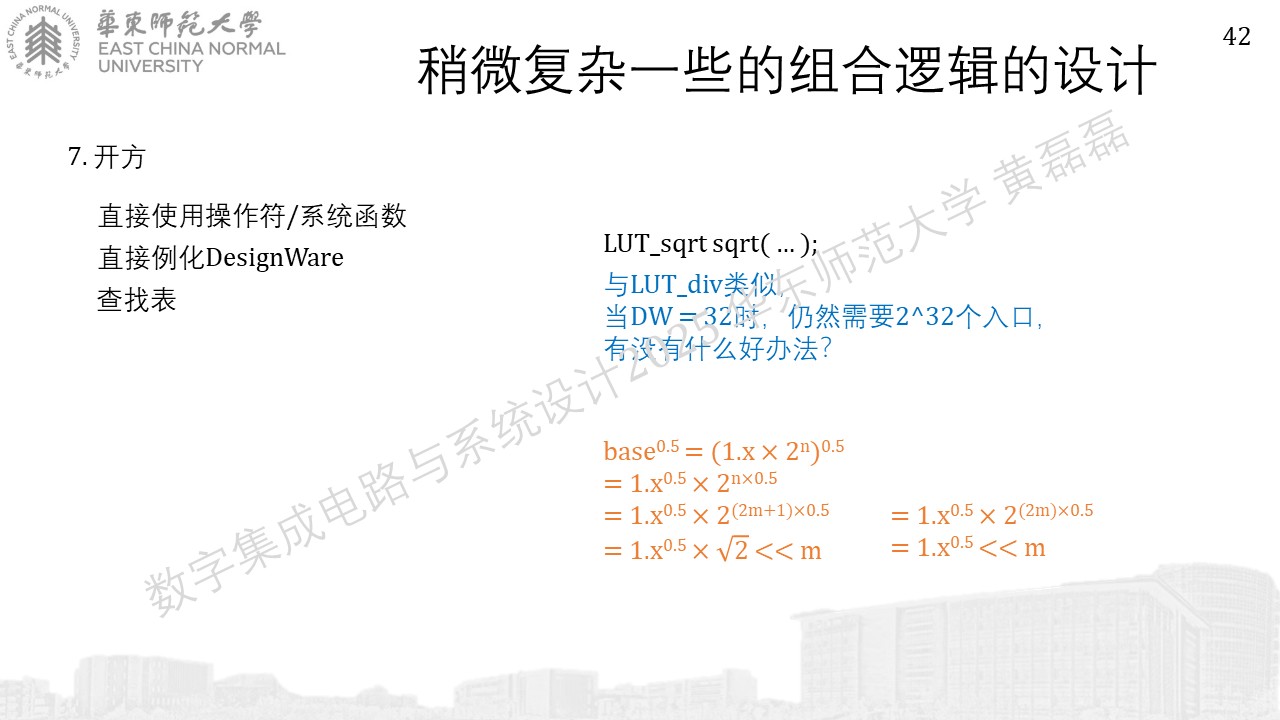

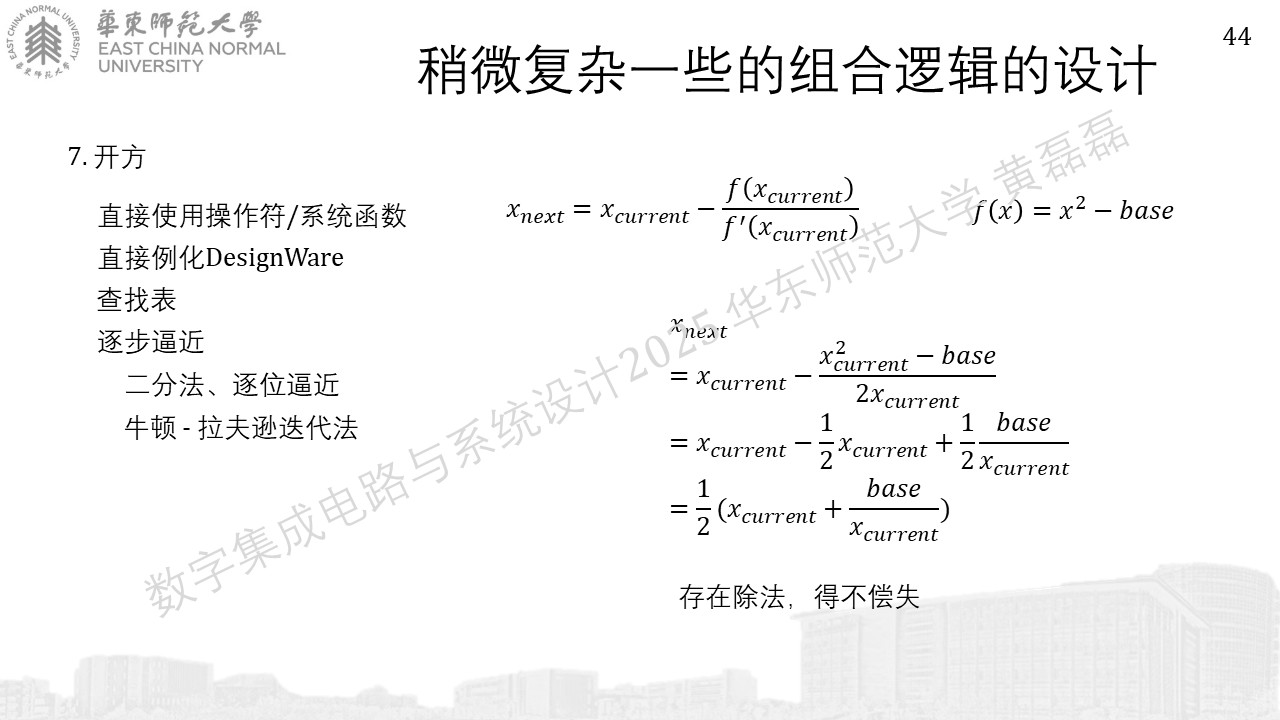

开方

../_images/%E5%B9%BB%E7%81%AF%E7%89%87405.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874112.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%874211.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87439.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87446.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87455.JPG

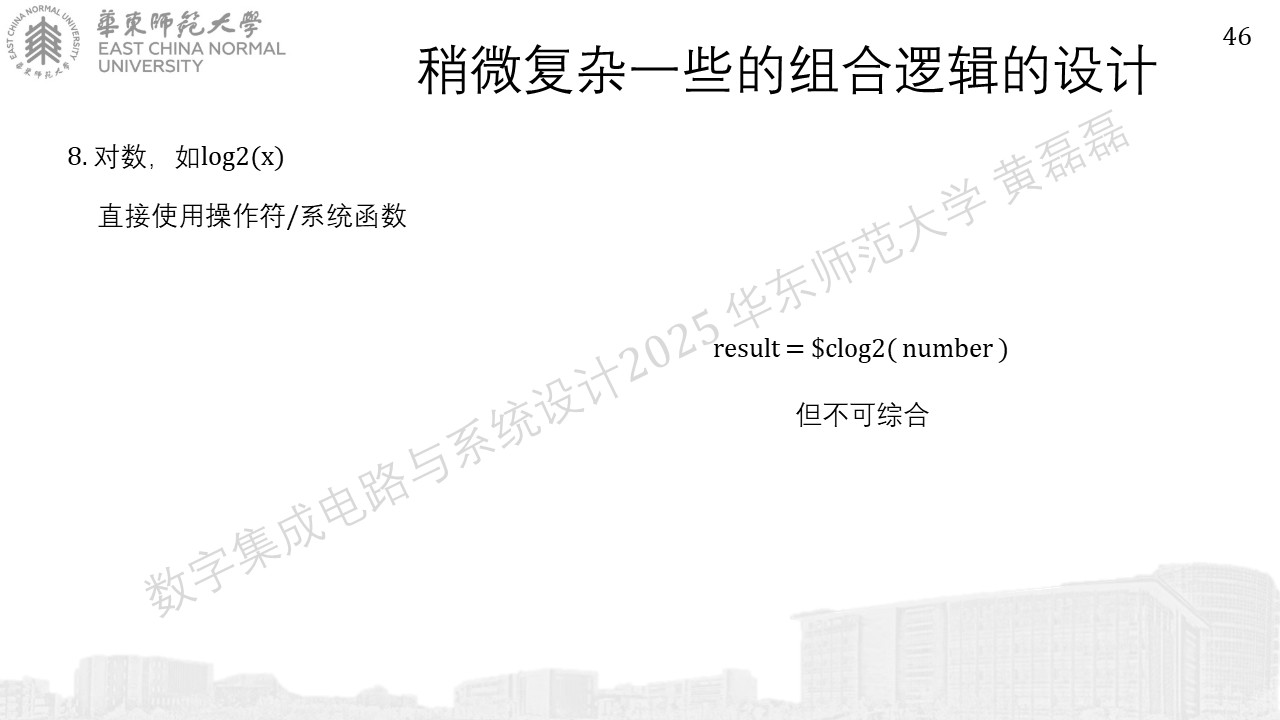

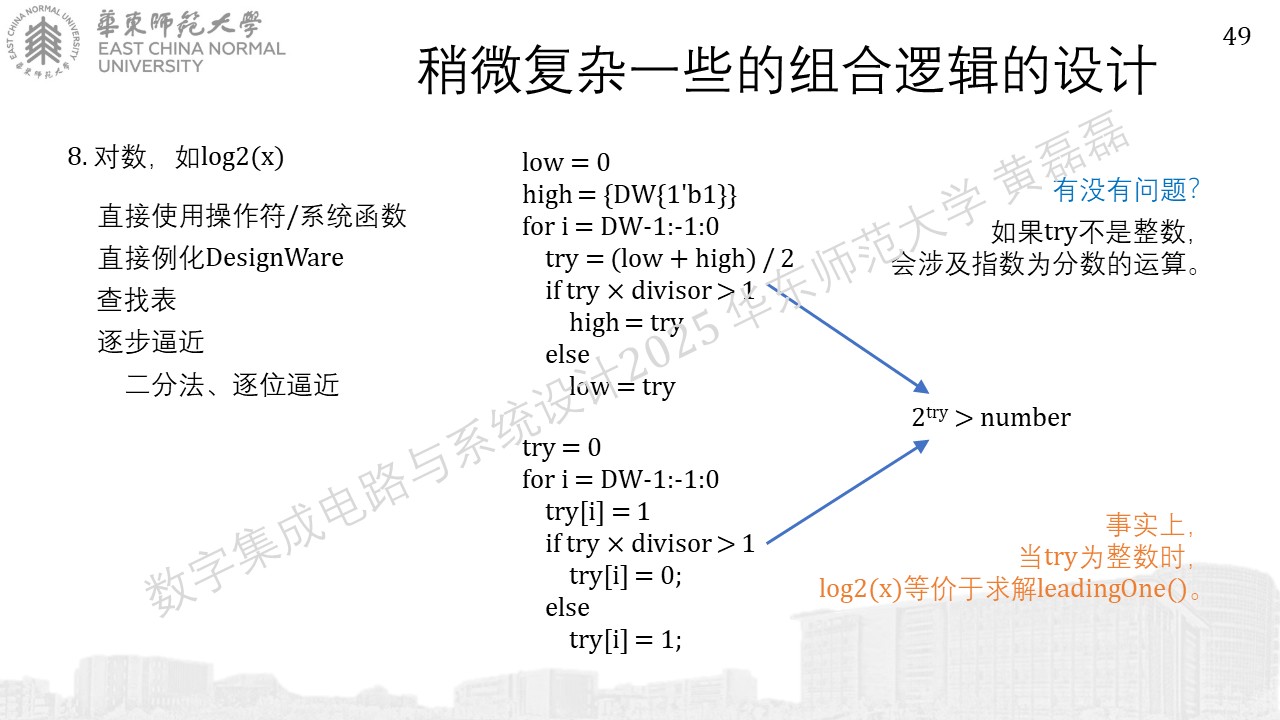

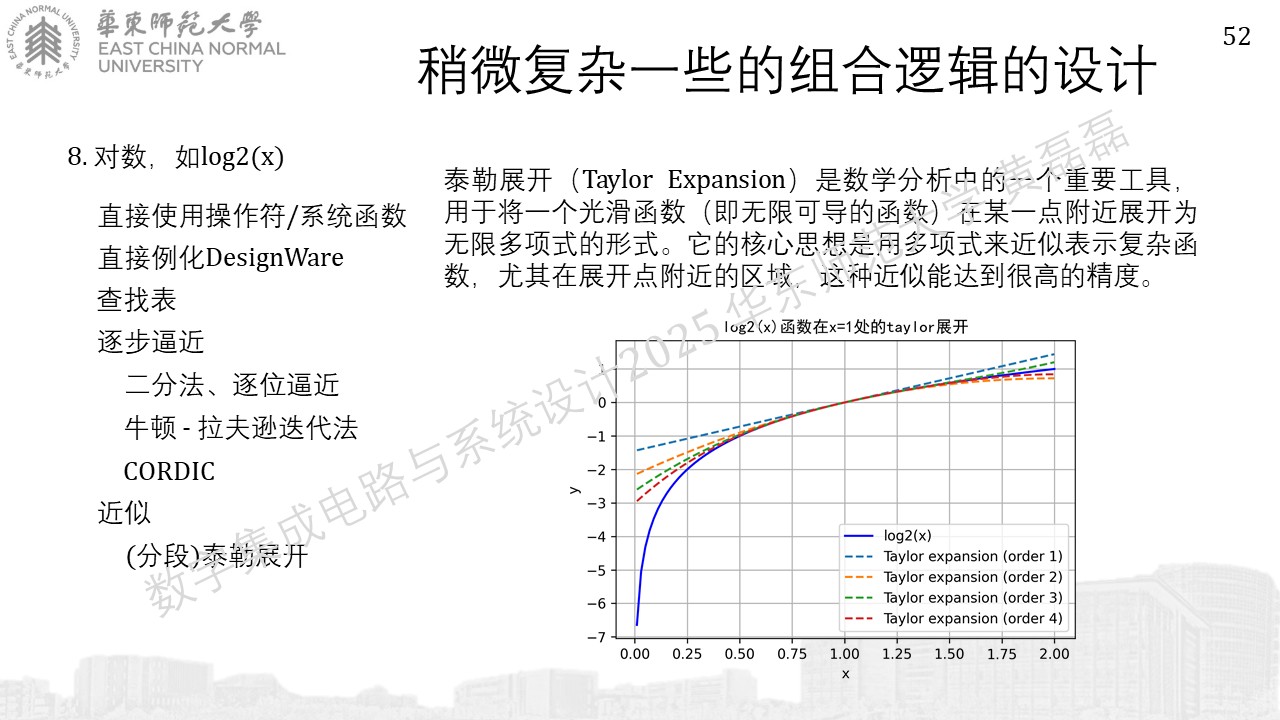

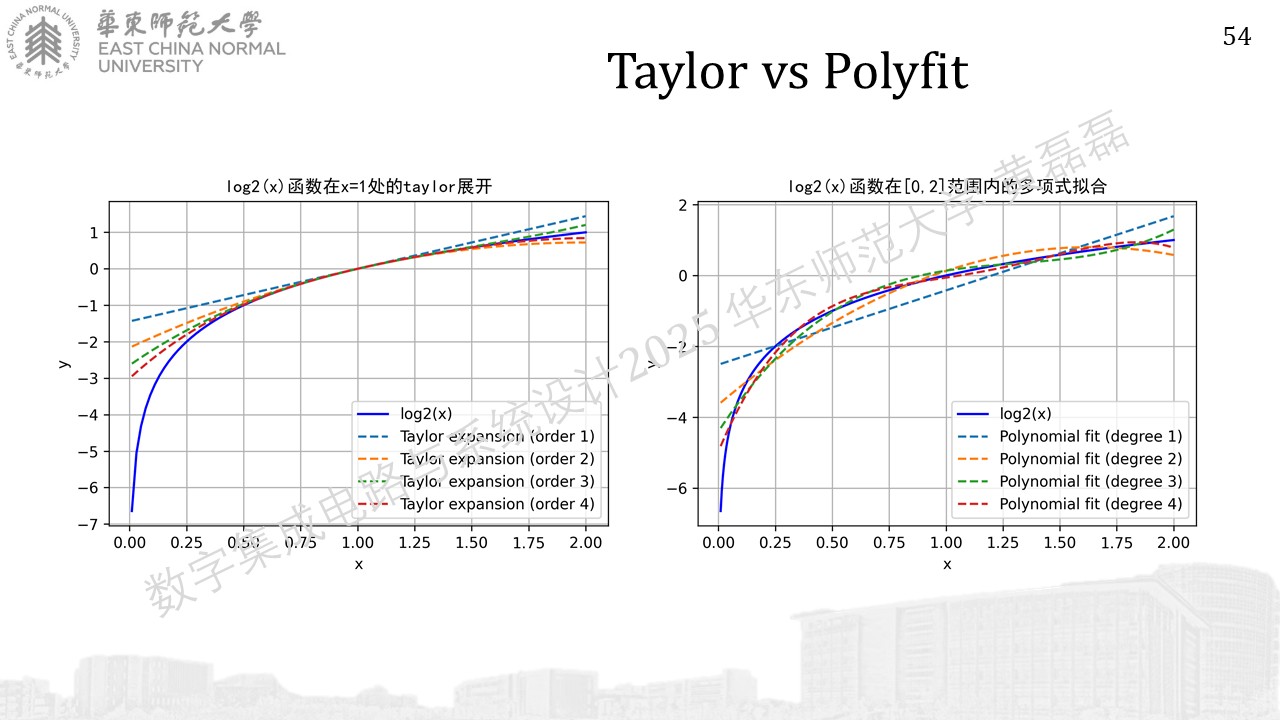

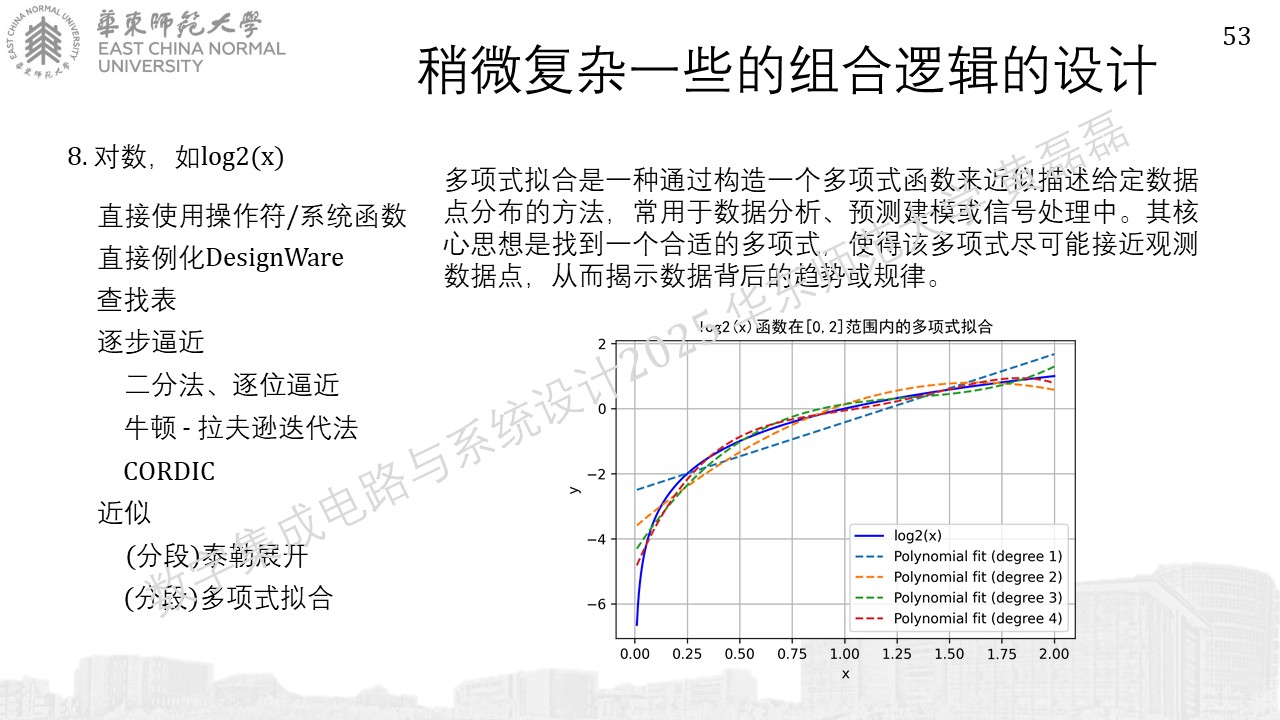

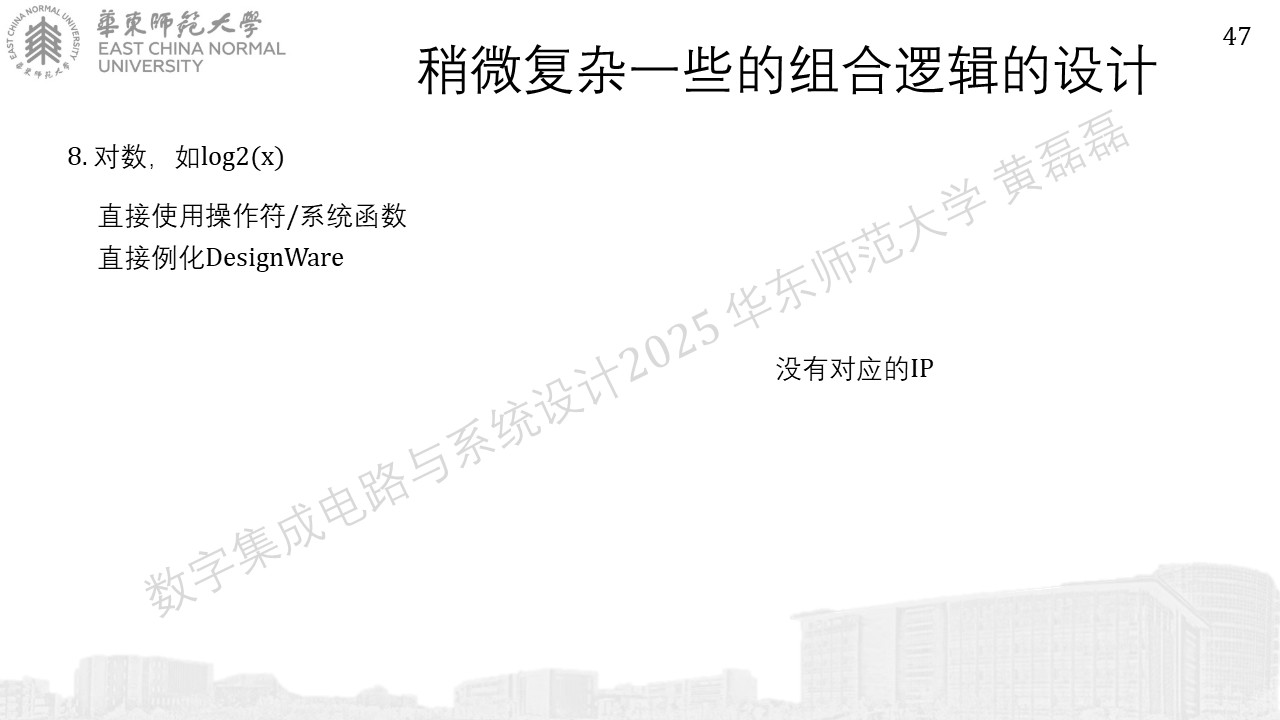

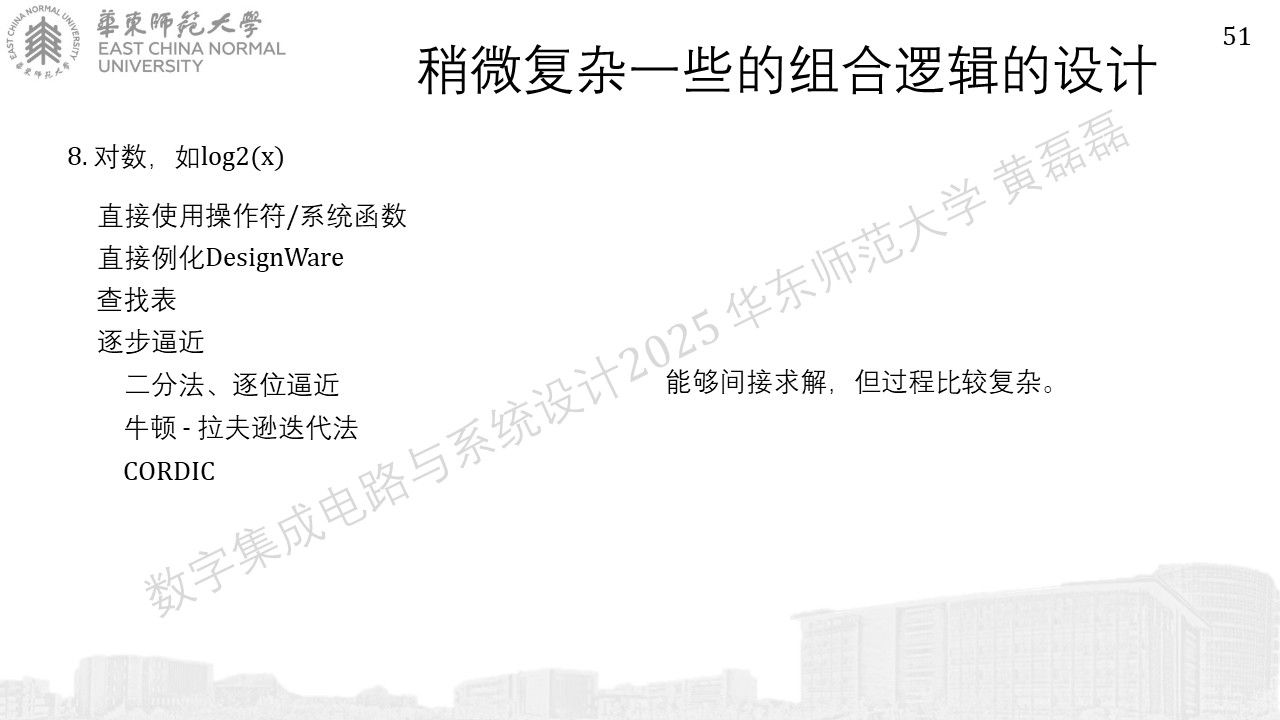

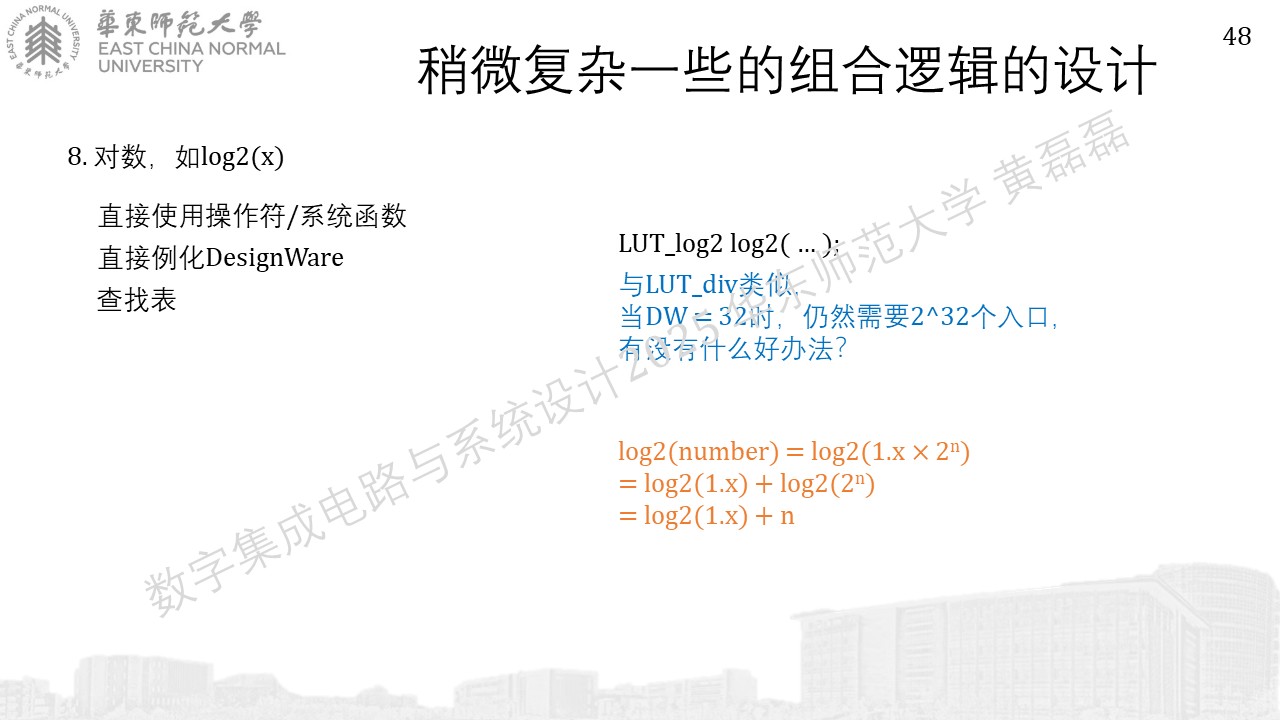

对数

../_images/%E5%B9%BB%E7%81%AF%E7%89%87465.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87475.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87485.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87494.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87502.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%875110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%875210.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87532.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87541.JPG

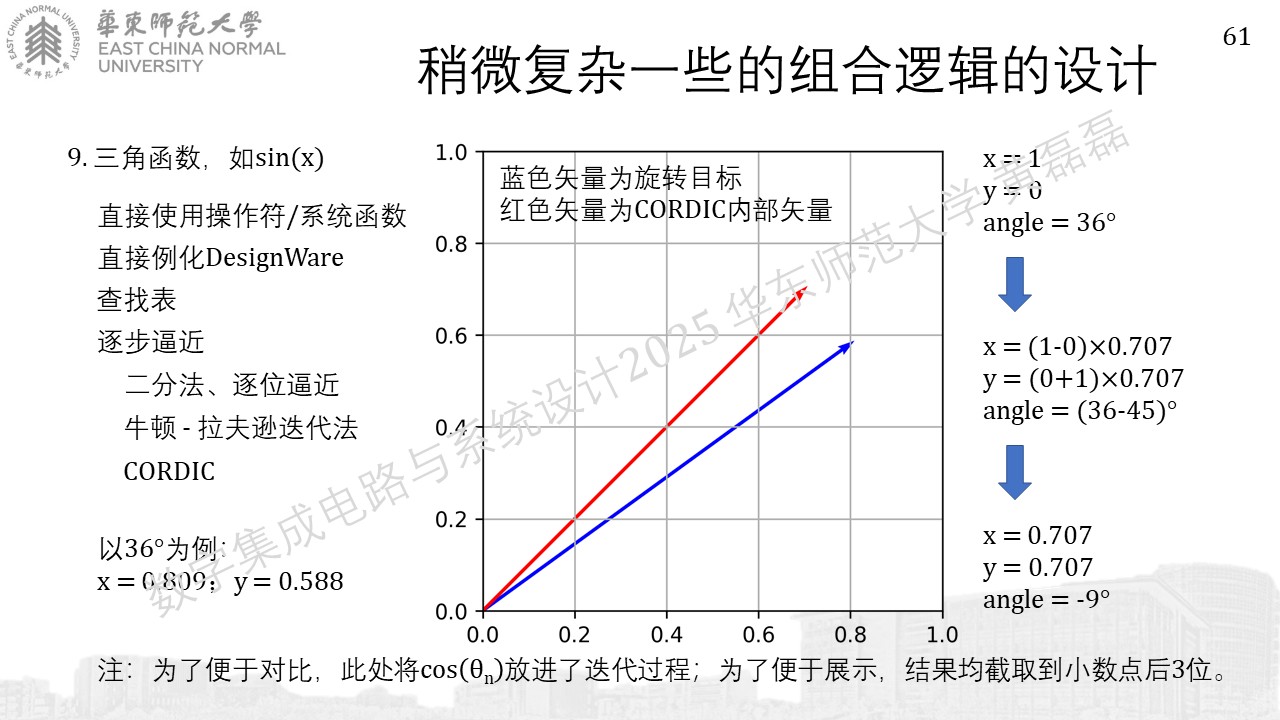

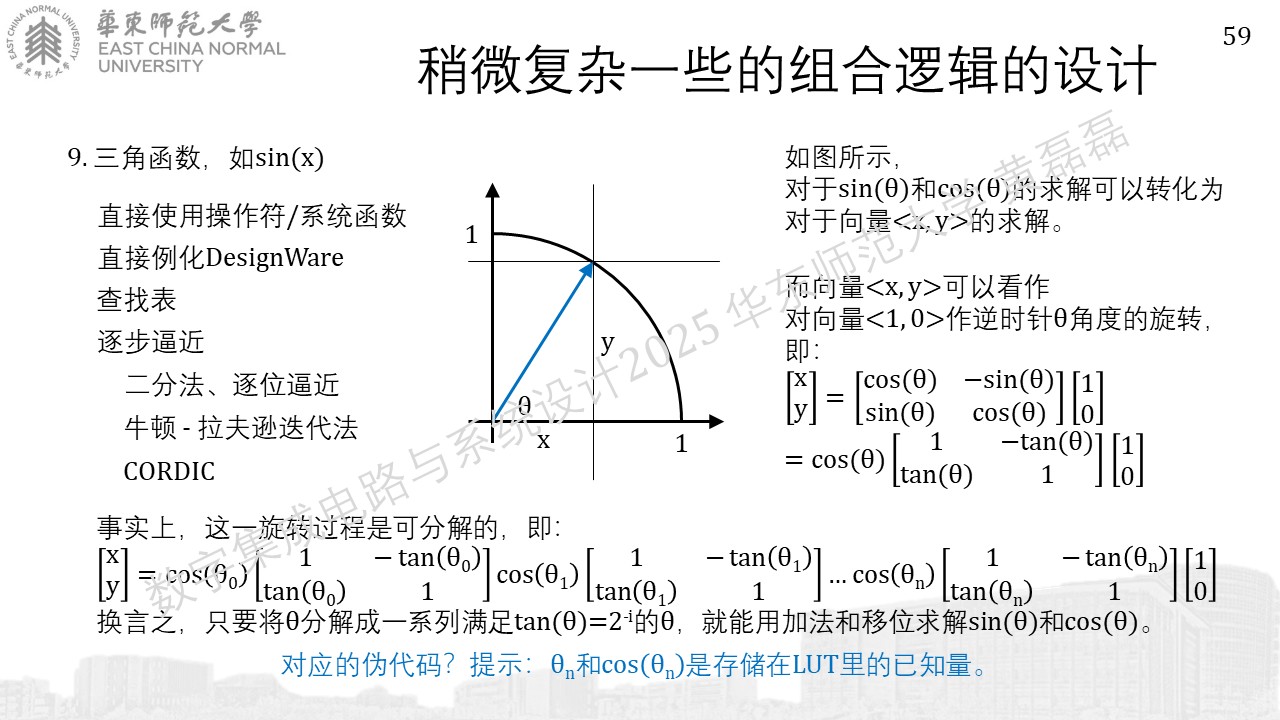

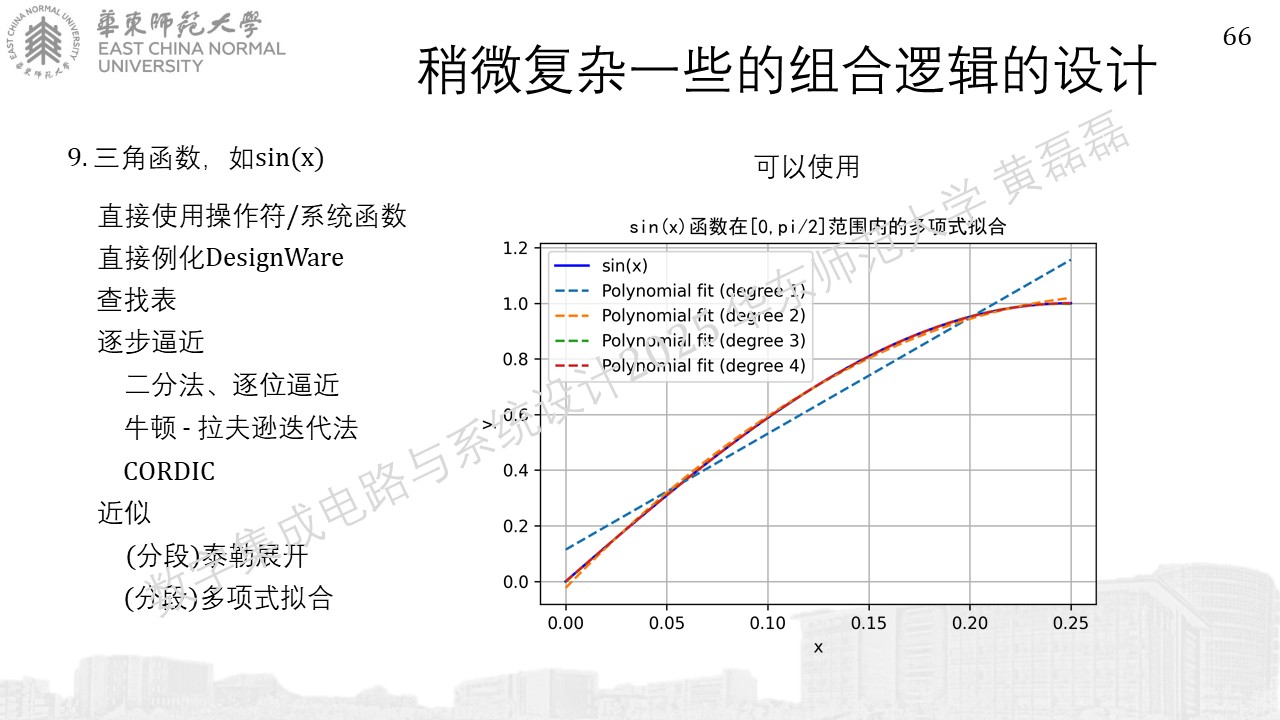

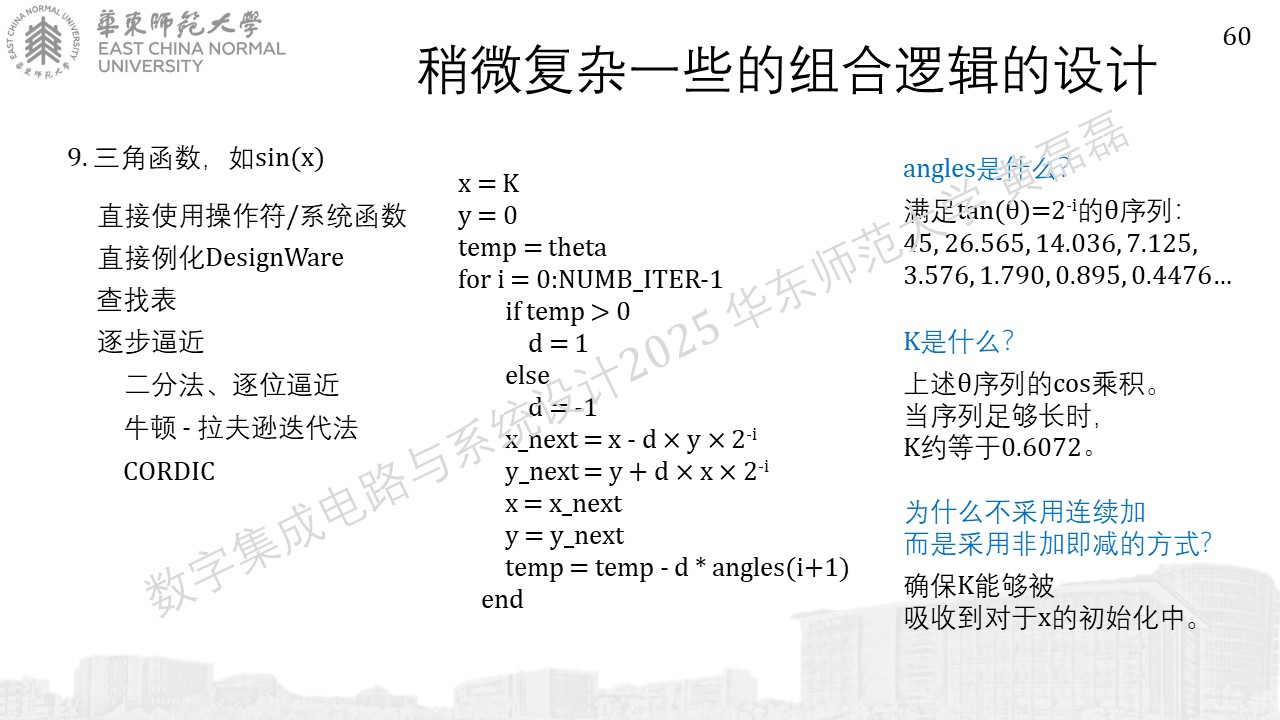

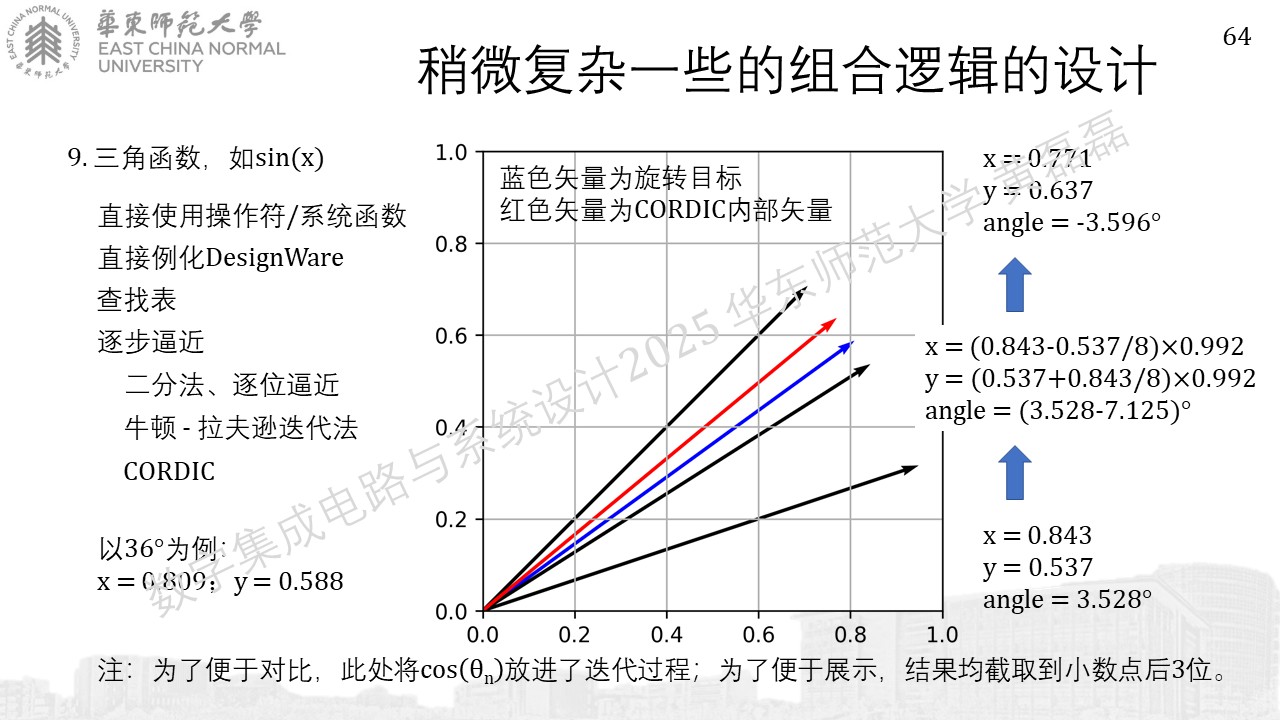

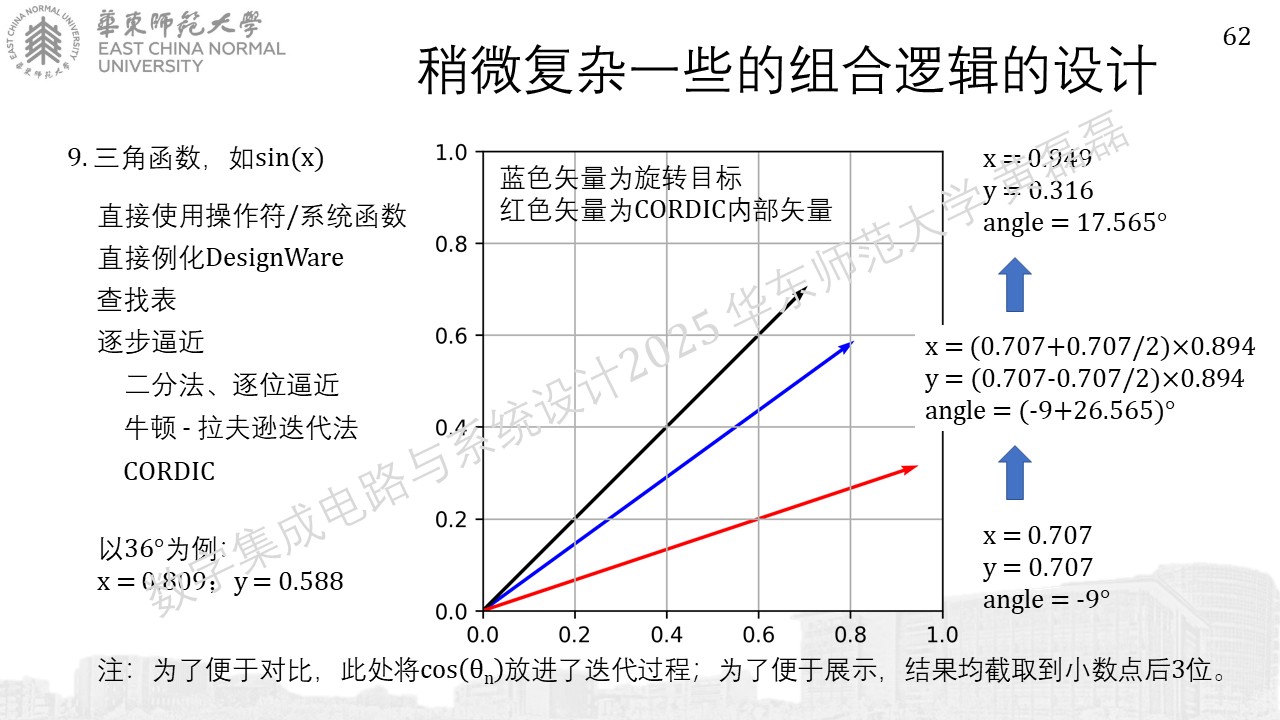

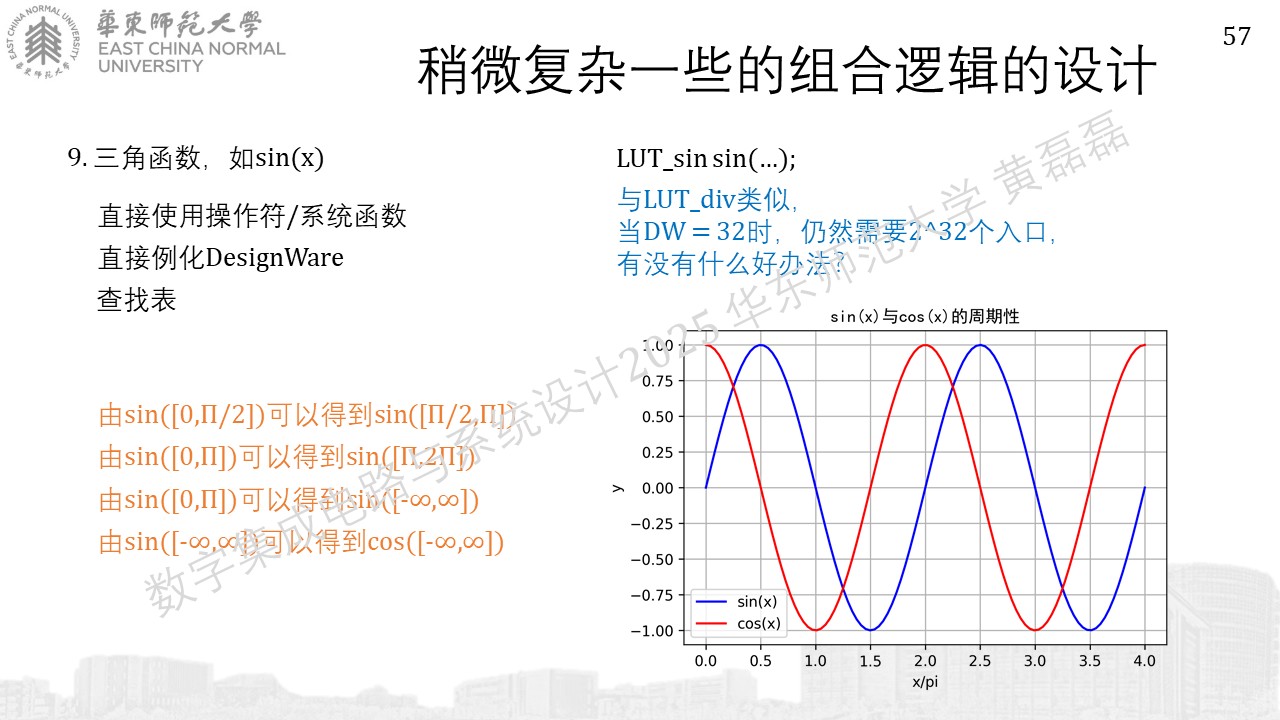

三角函数

../_images/%E5%B9%BB%E7%81%AF%E7%89%87551.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87561.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87571.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87581.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87591.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8760.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%876110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87627.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87631.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87641.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87651.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87661.JPG

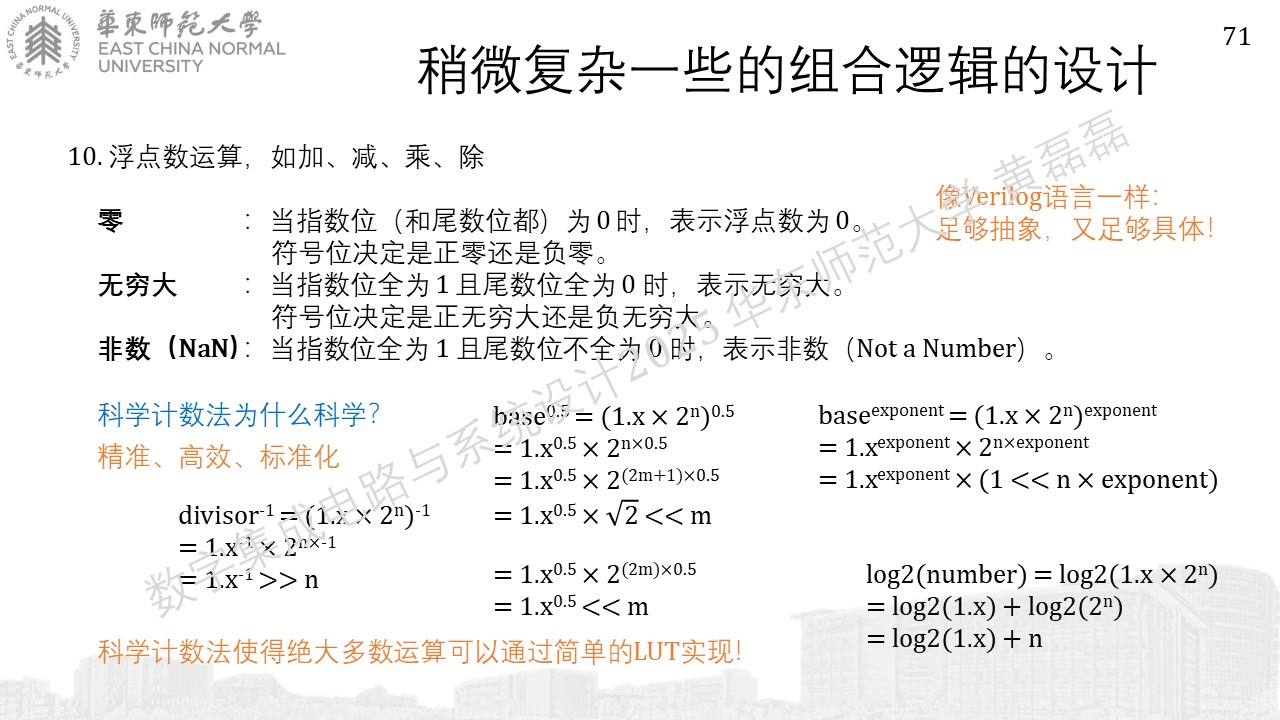

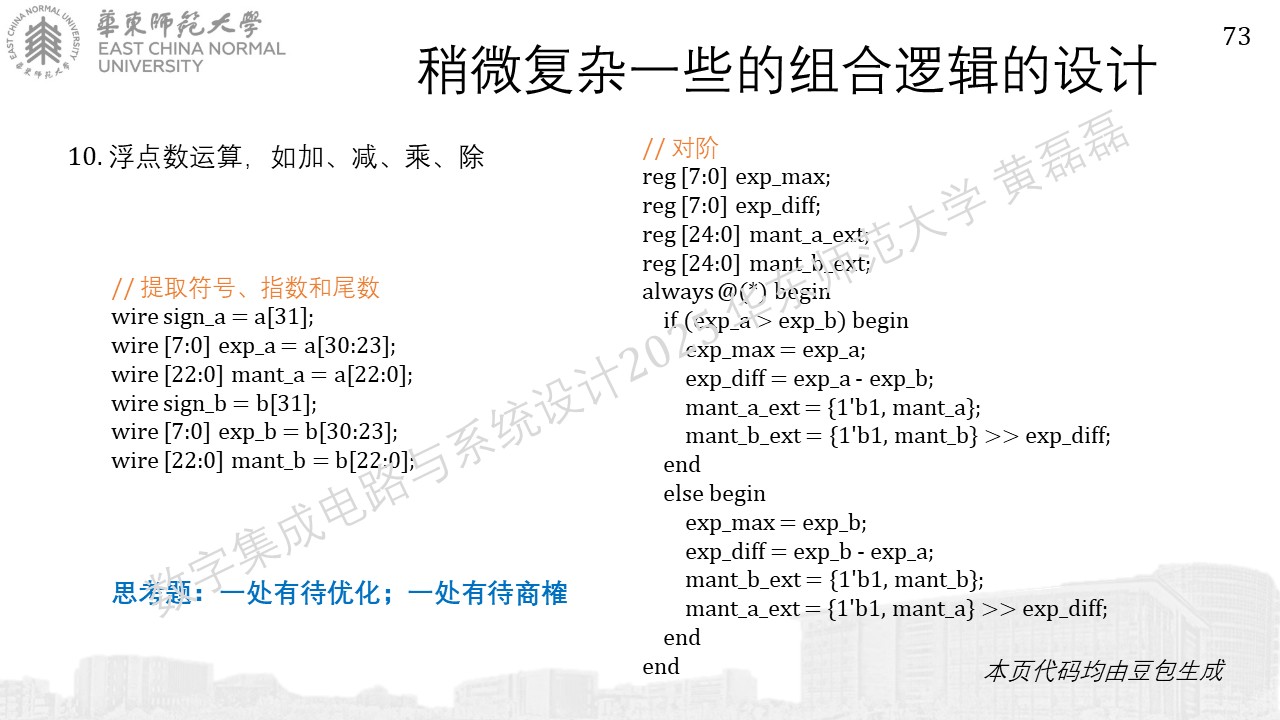

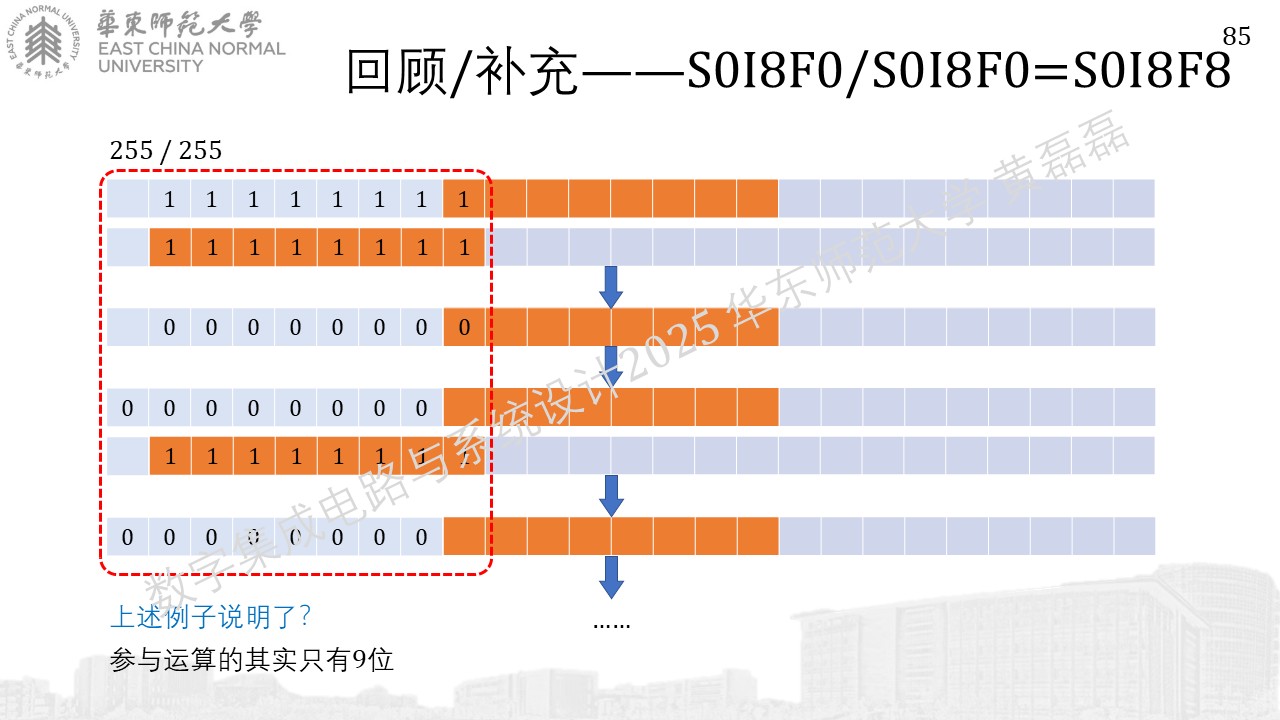

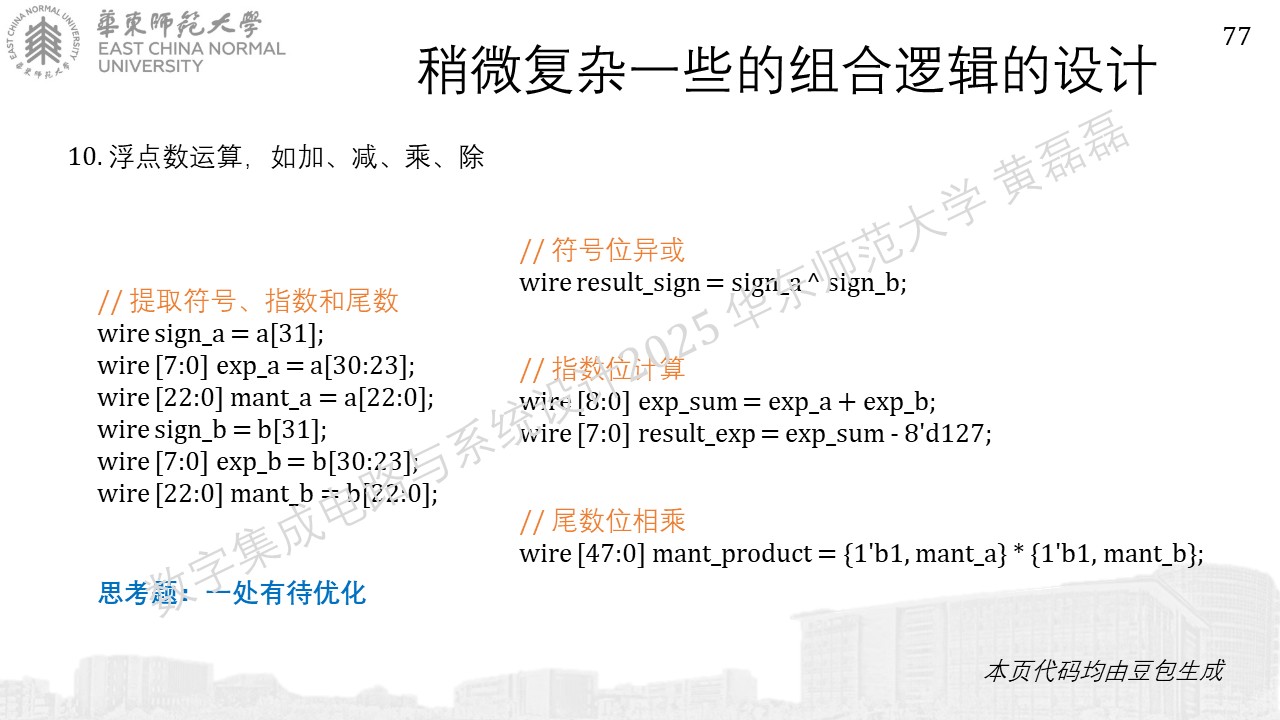

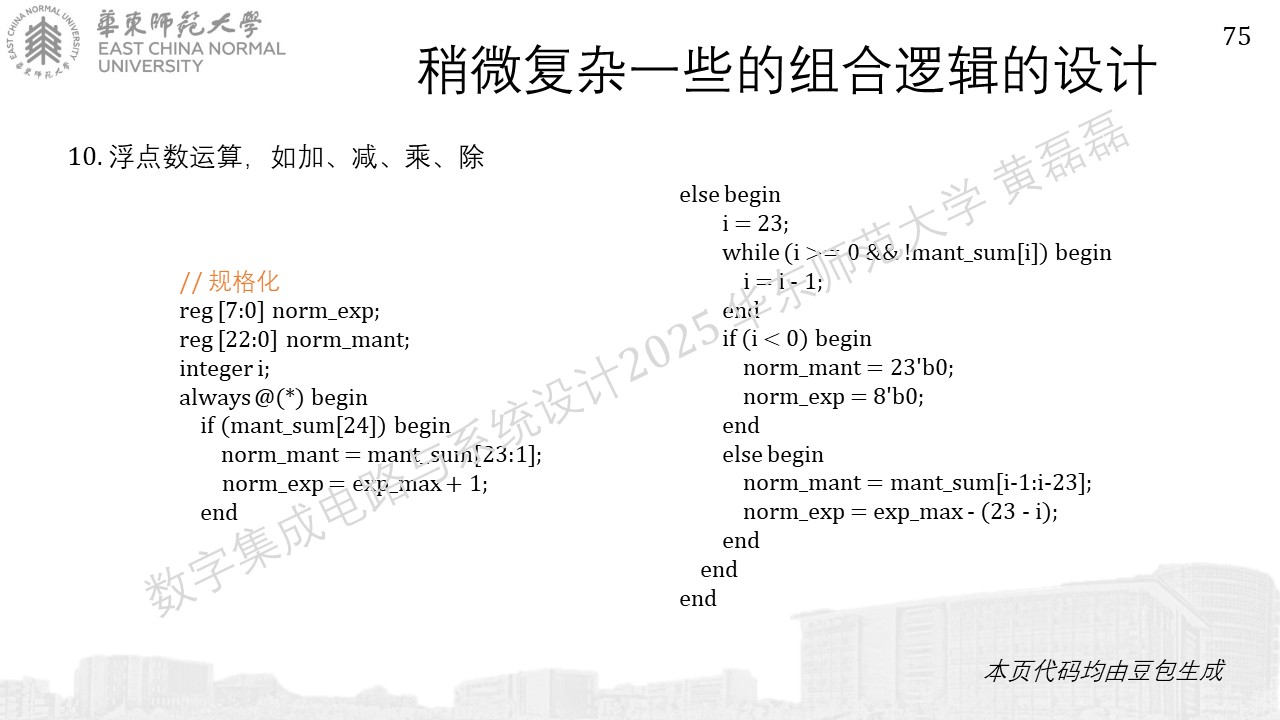

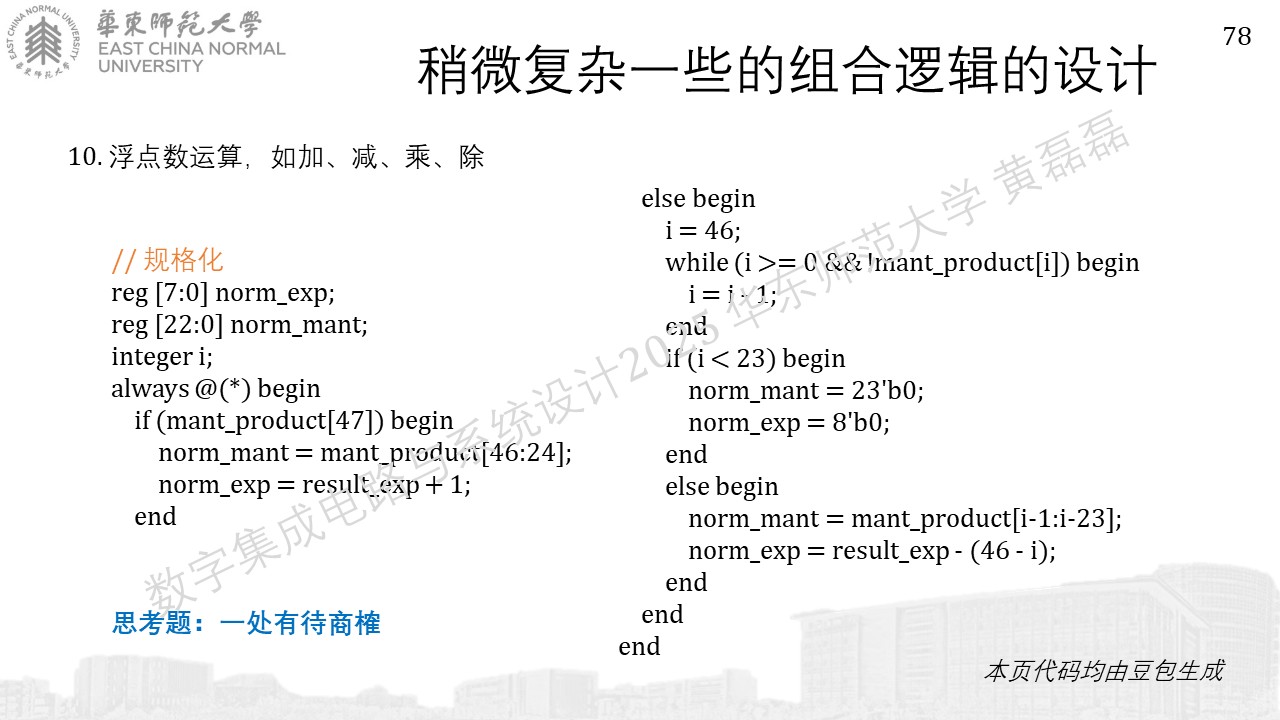

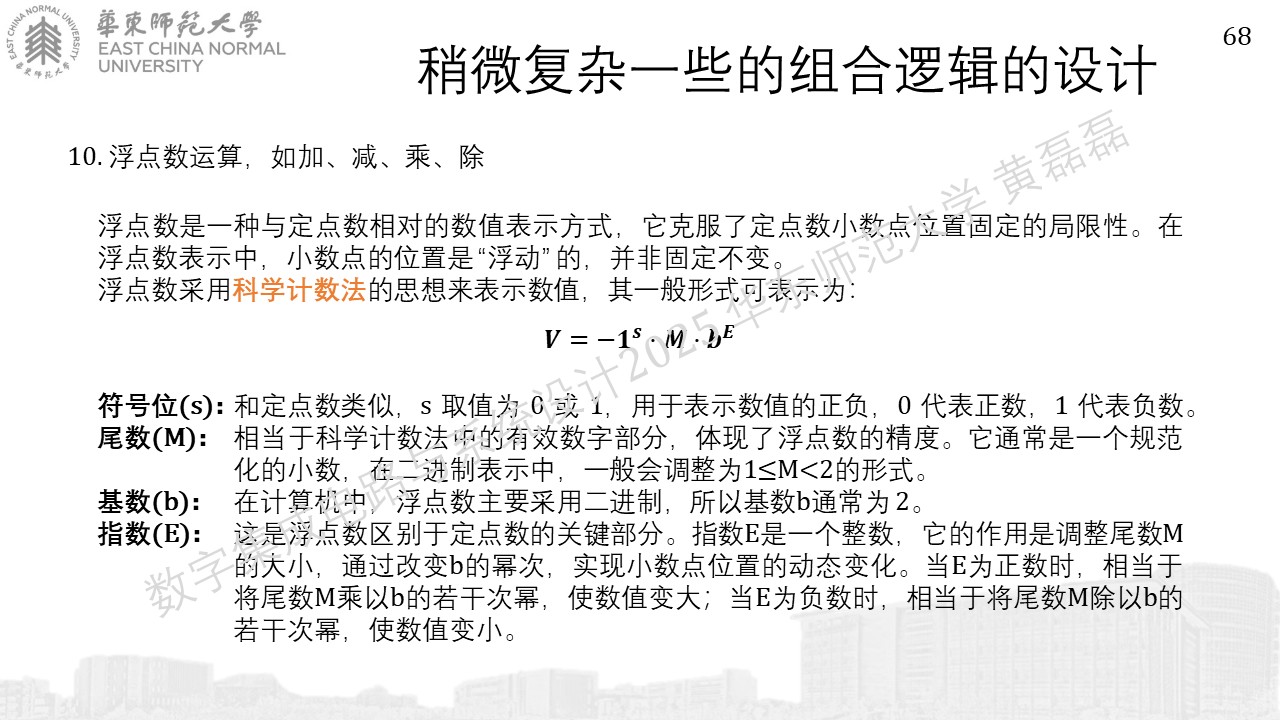

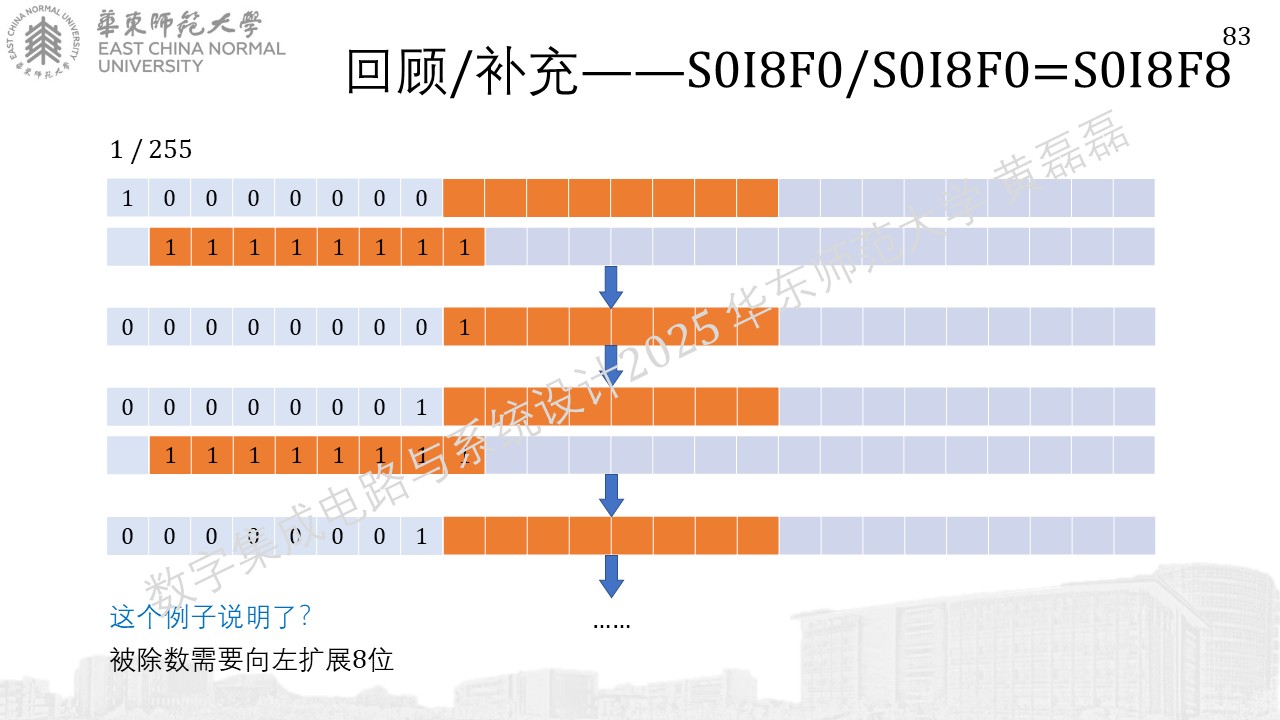

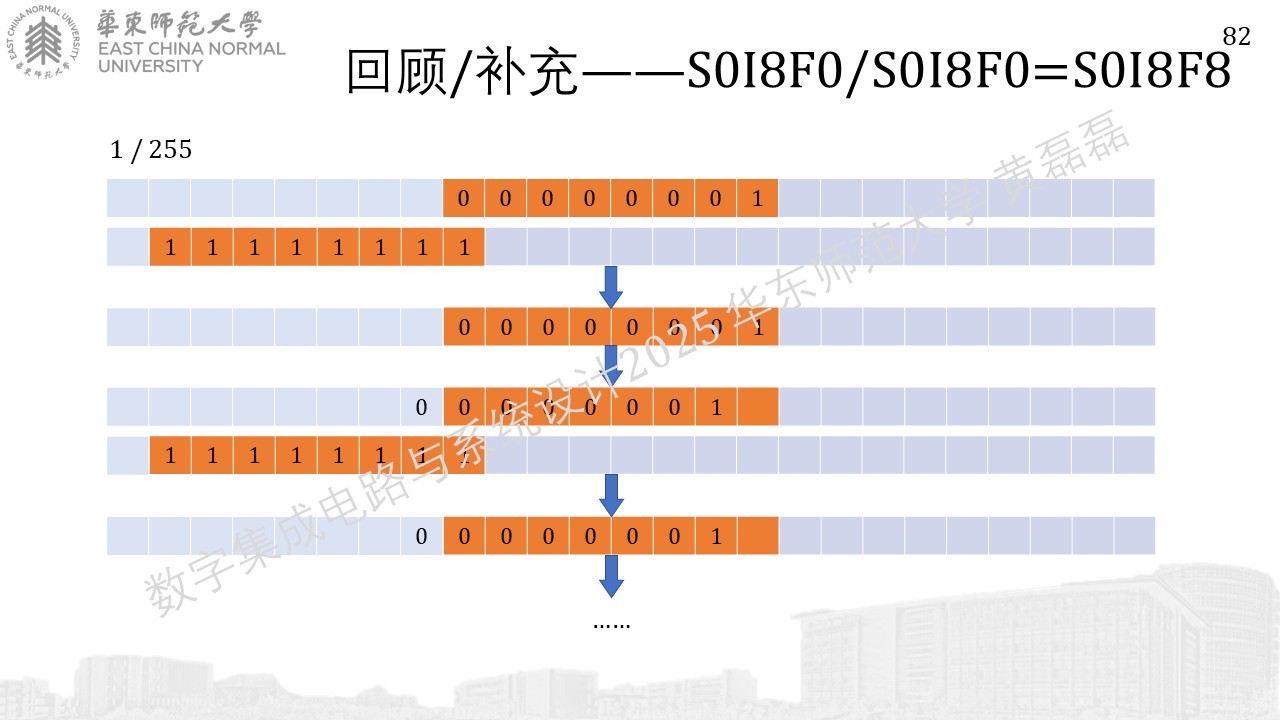

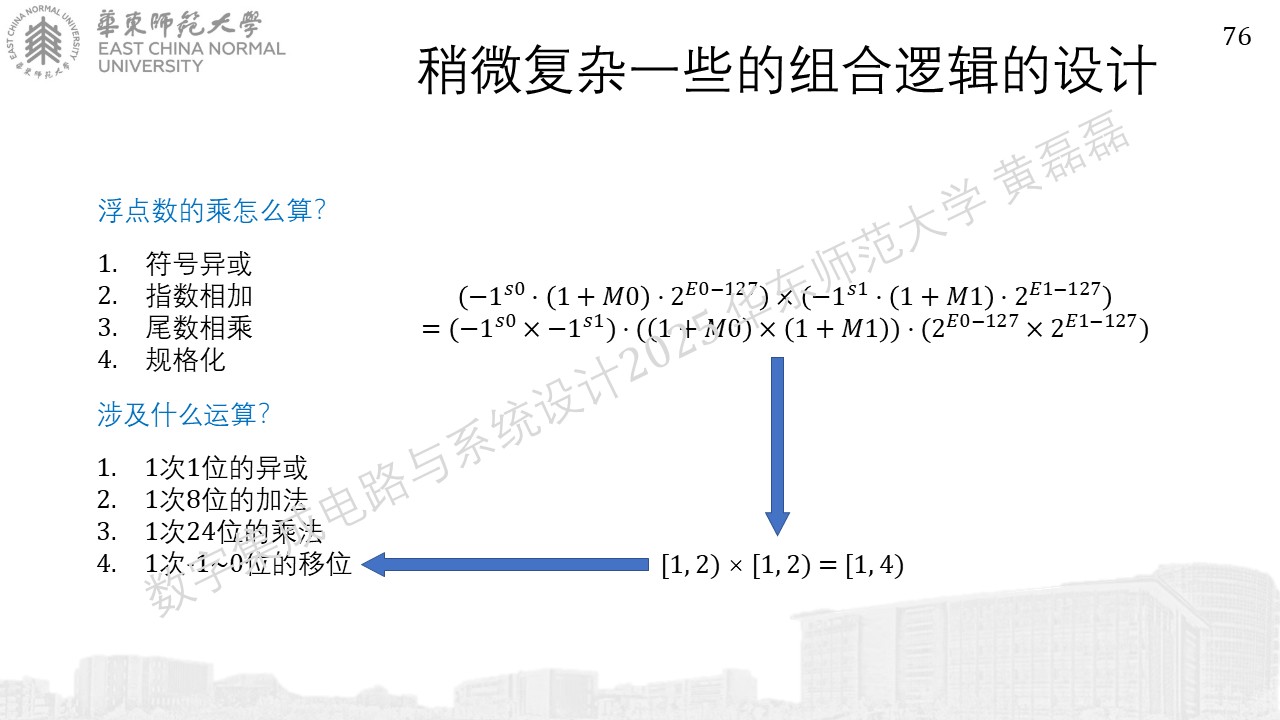

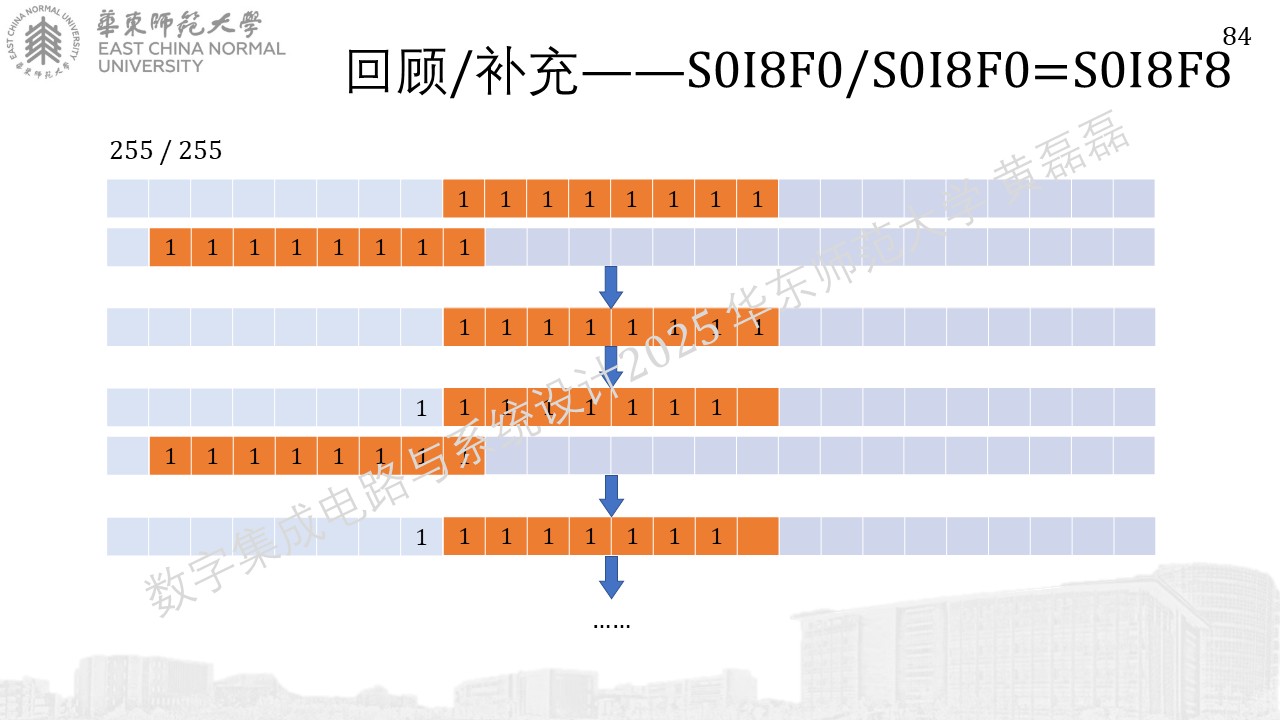

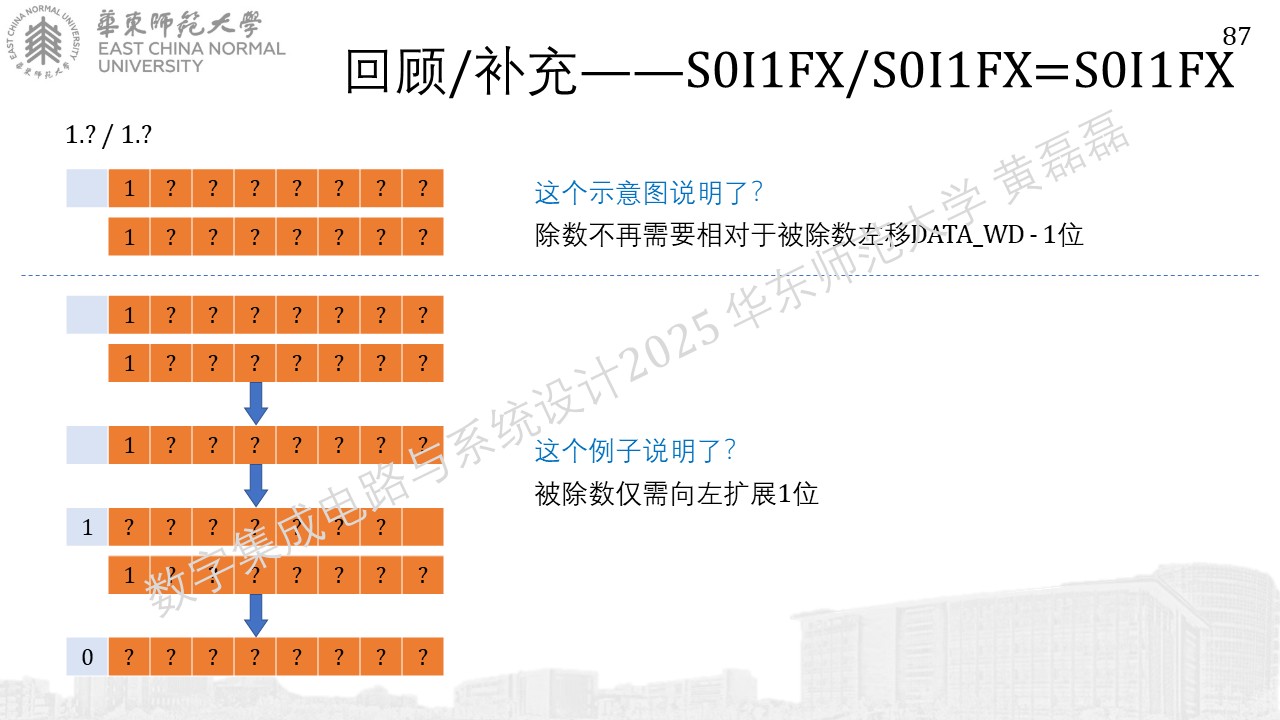

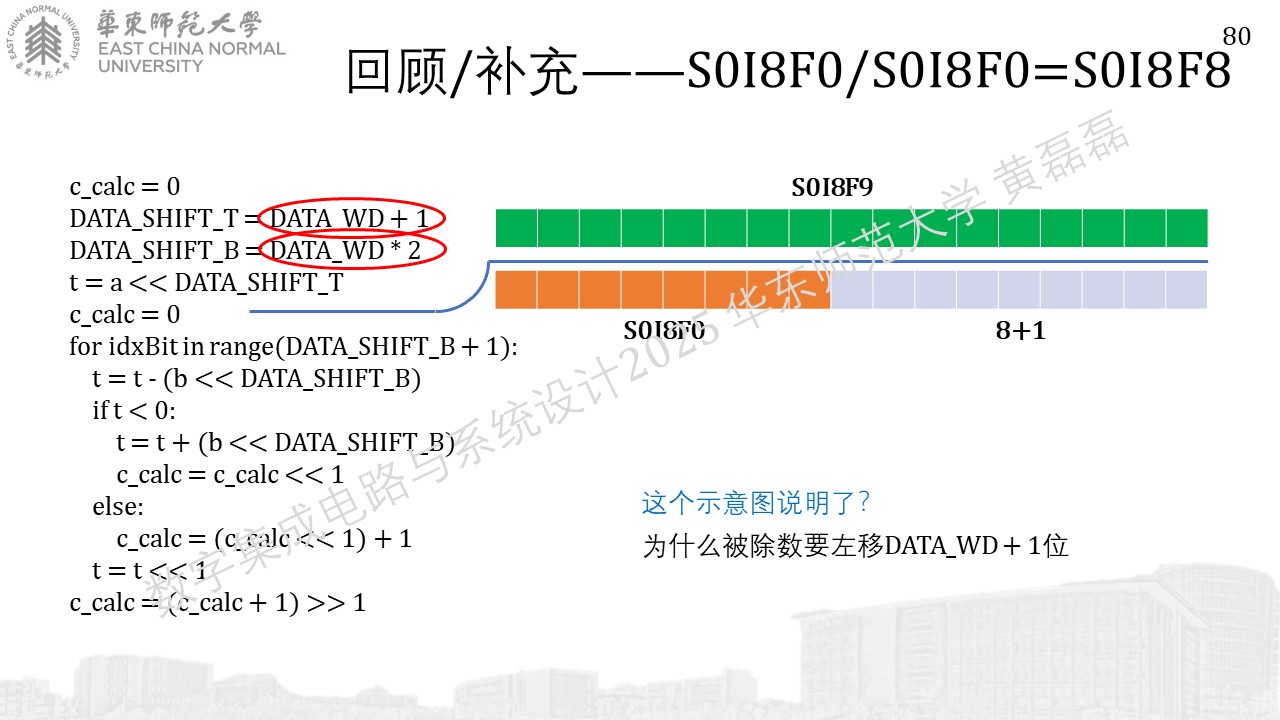

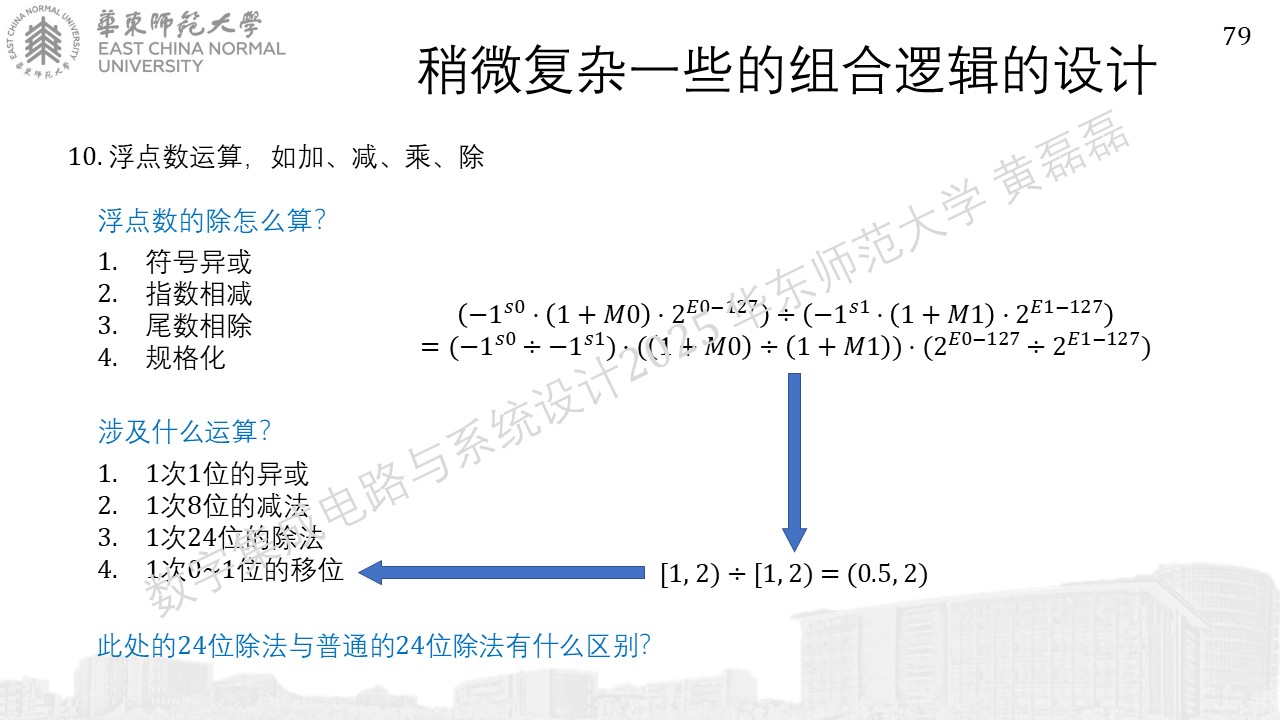

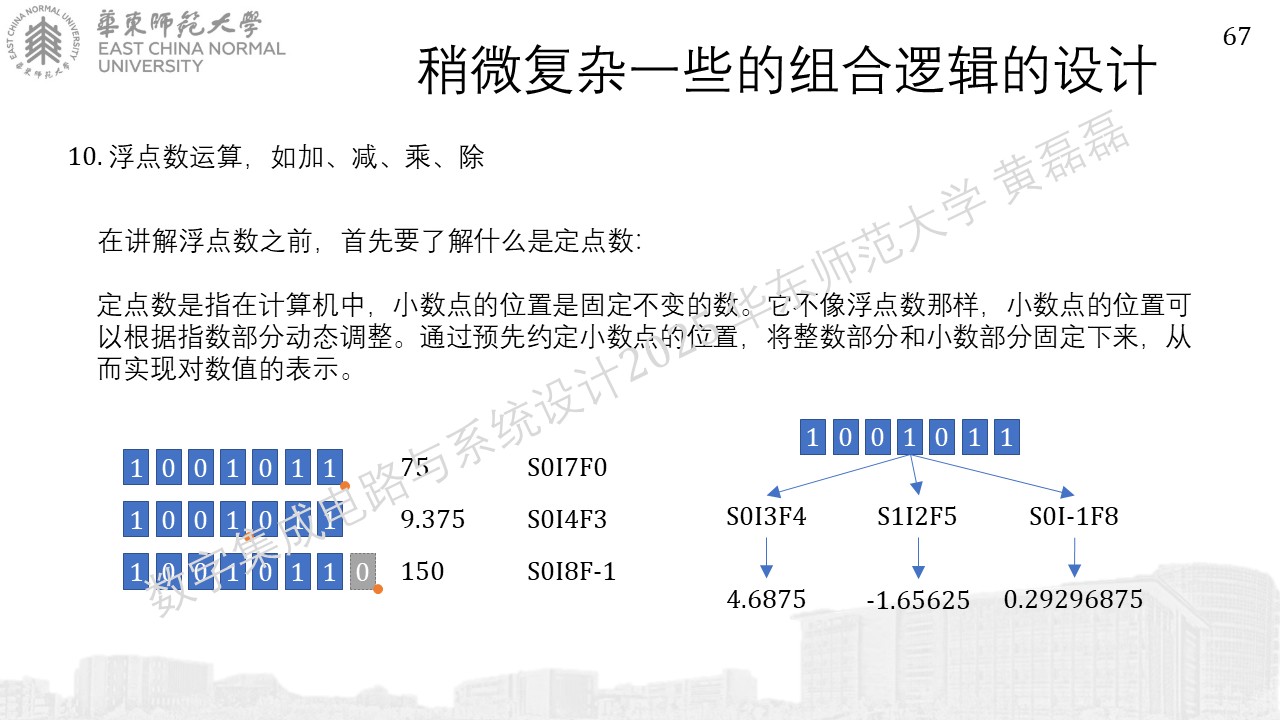

浮点数运算

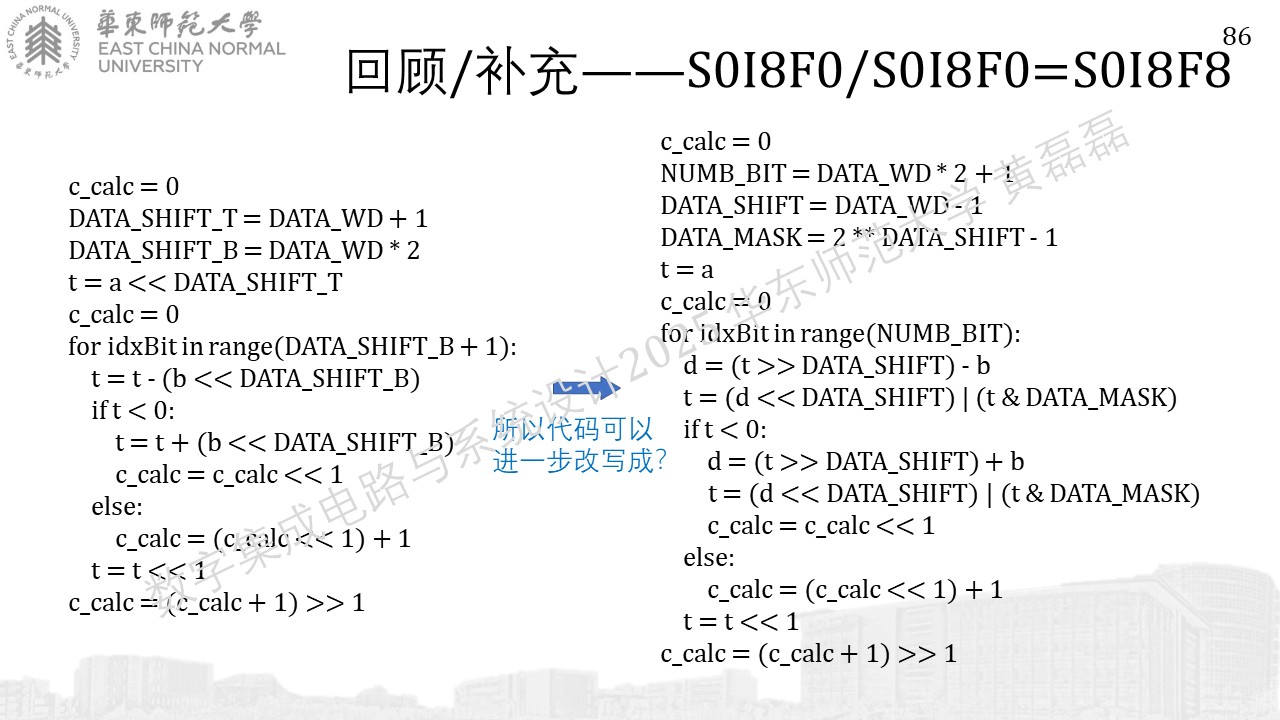

../_images/%E5%B9%BB%E7%81%AF%E7%89%87671.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87681.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87691.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8770.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%877110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87727.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87731.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87741.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87751.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87761.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87771.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87781.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87791.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8780.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%878110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87827.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87831.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87841.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87851.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87861.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87871.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87881.JPG
