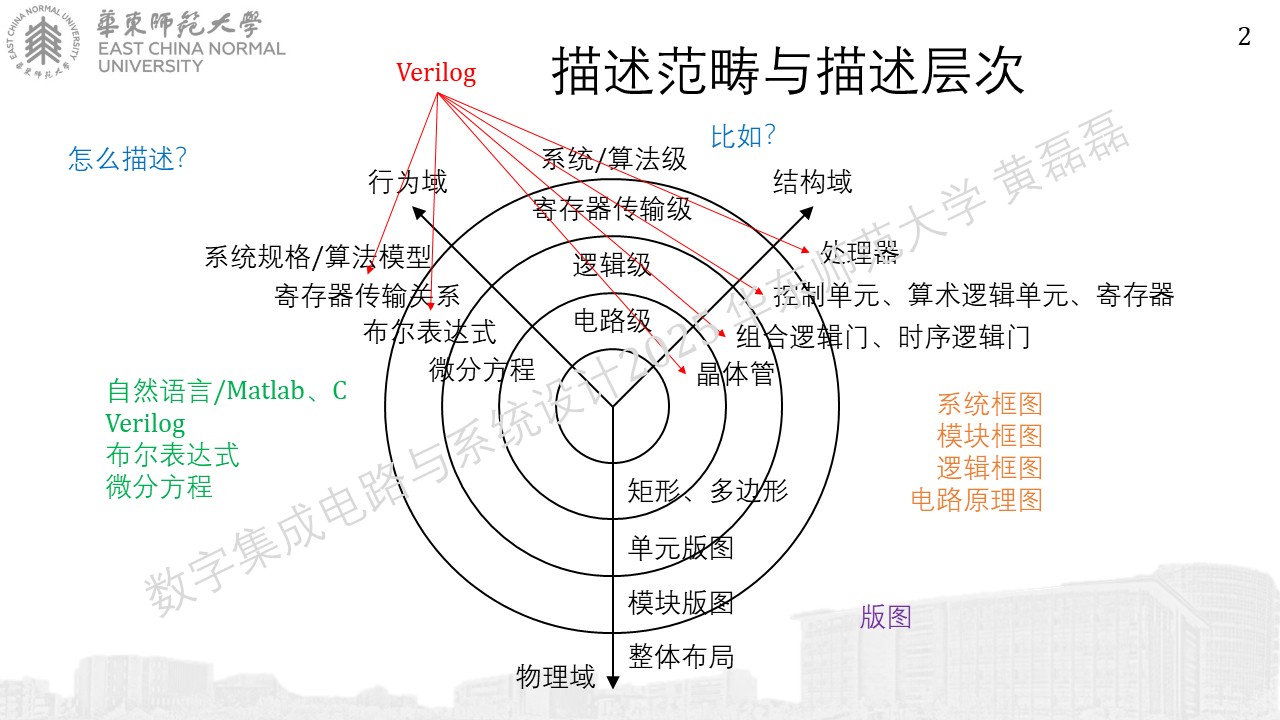

第03讲 - 设计建模 - 语法要素

../_images/%E5%B9%BB%E7%81%AF%E7%89%87120.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87217.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87317.JPG

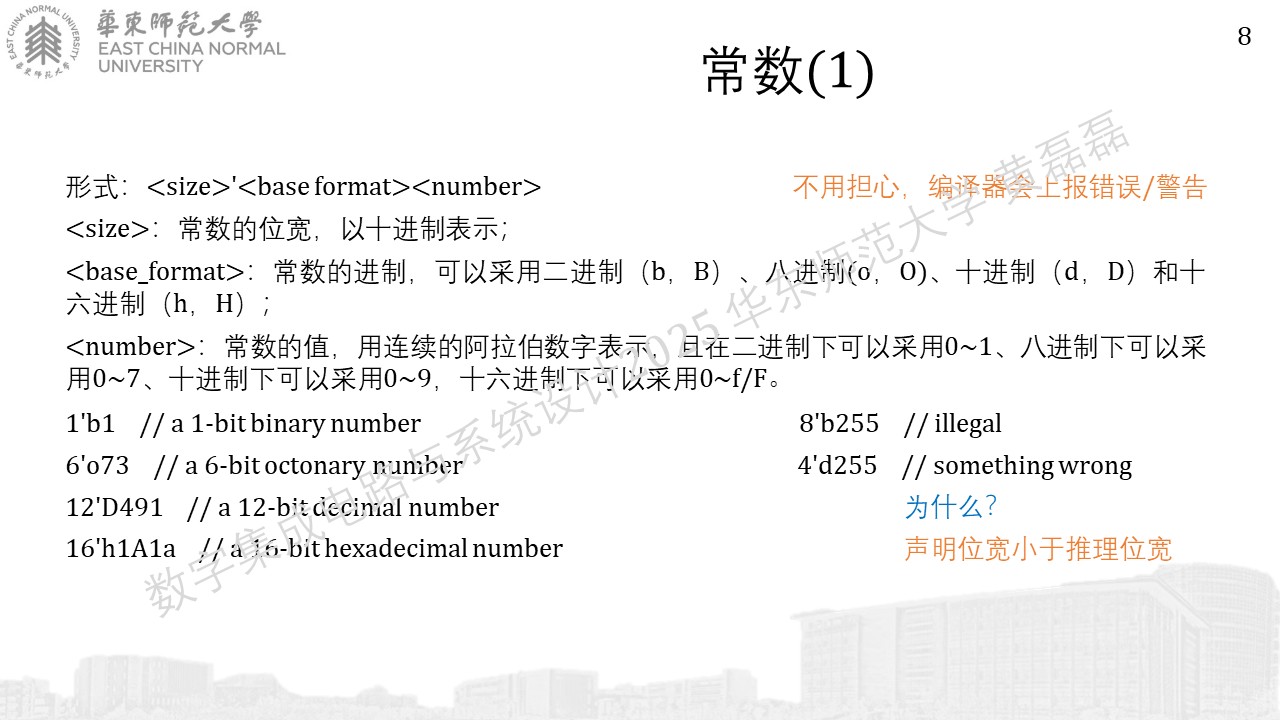

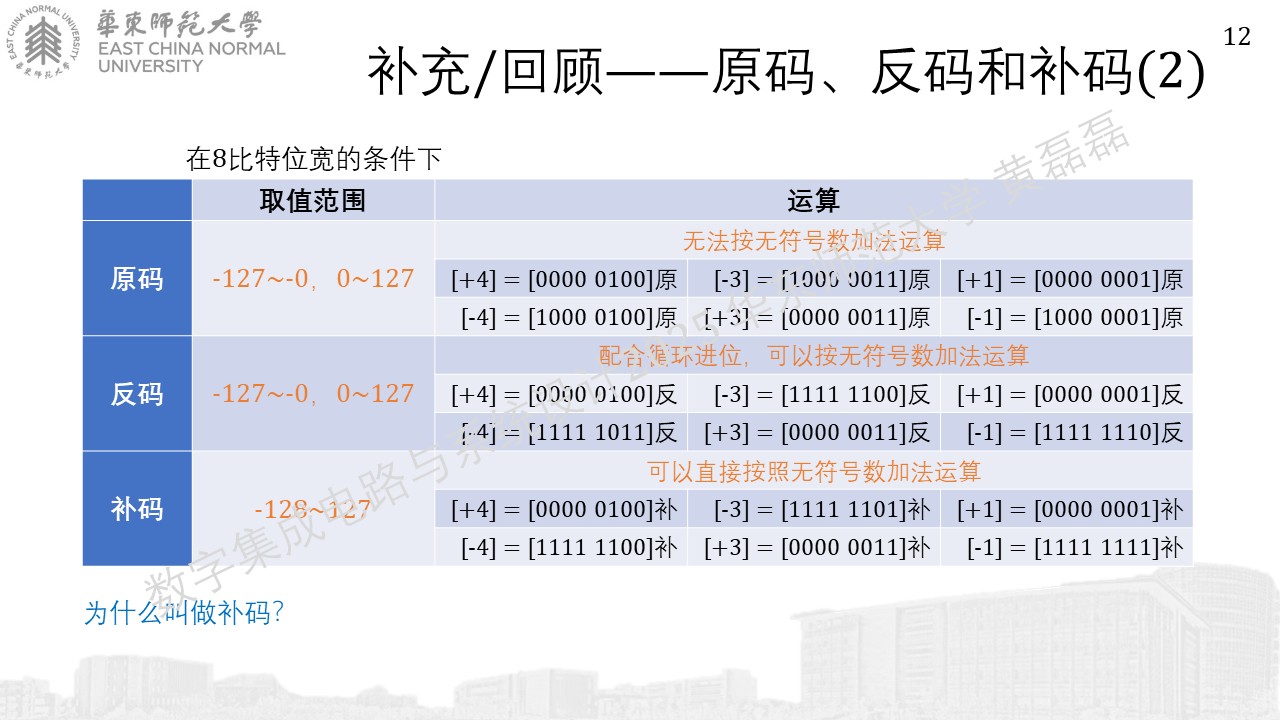

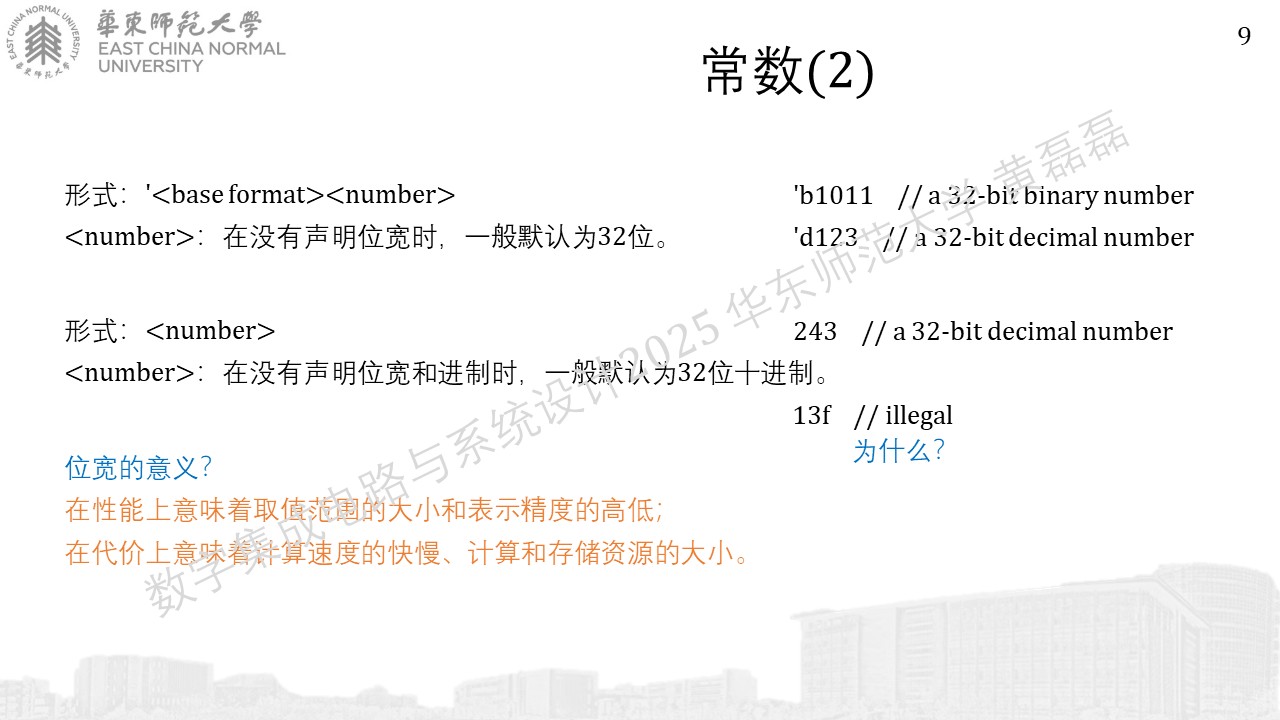

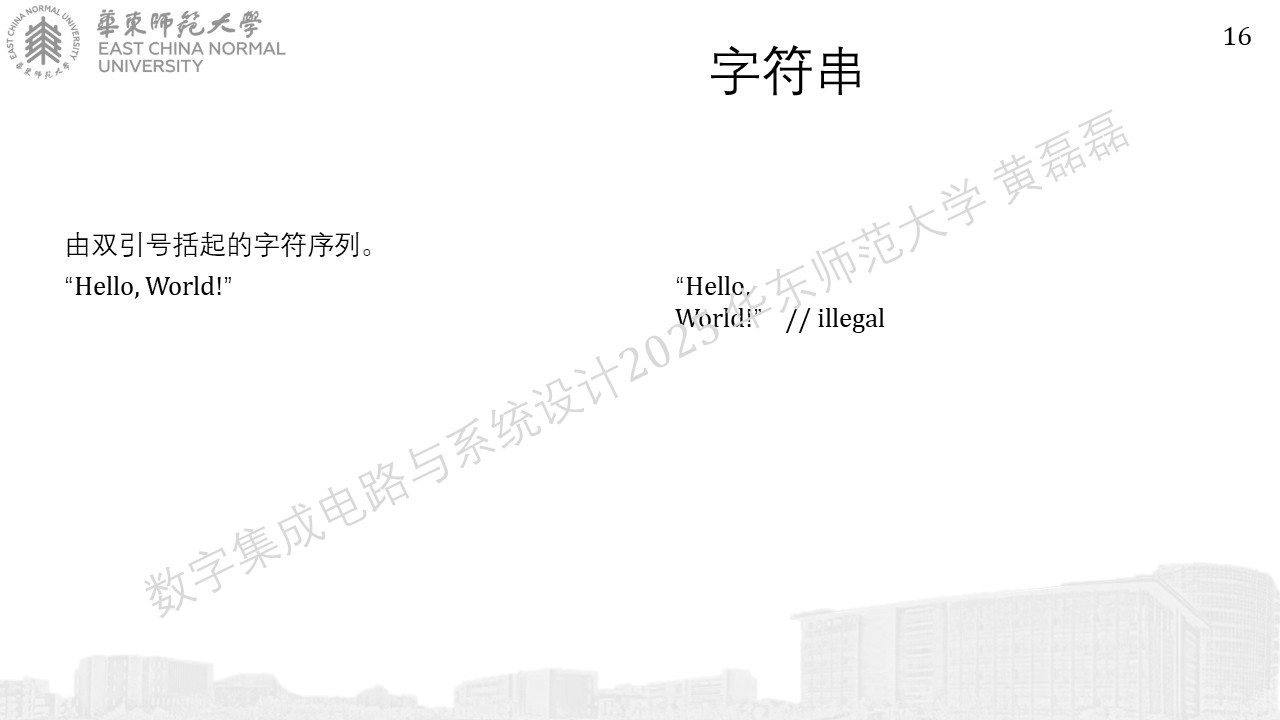

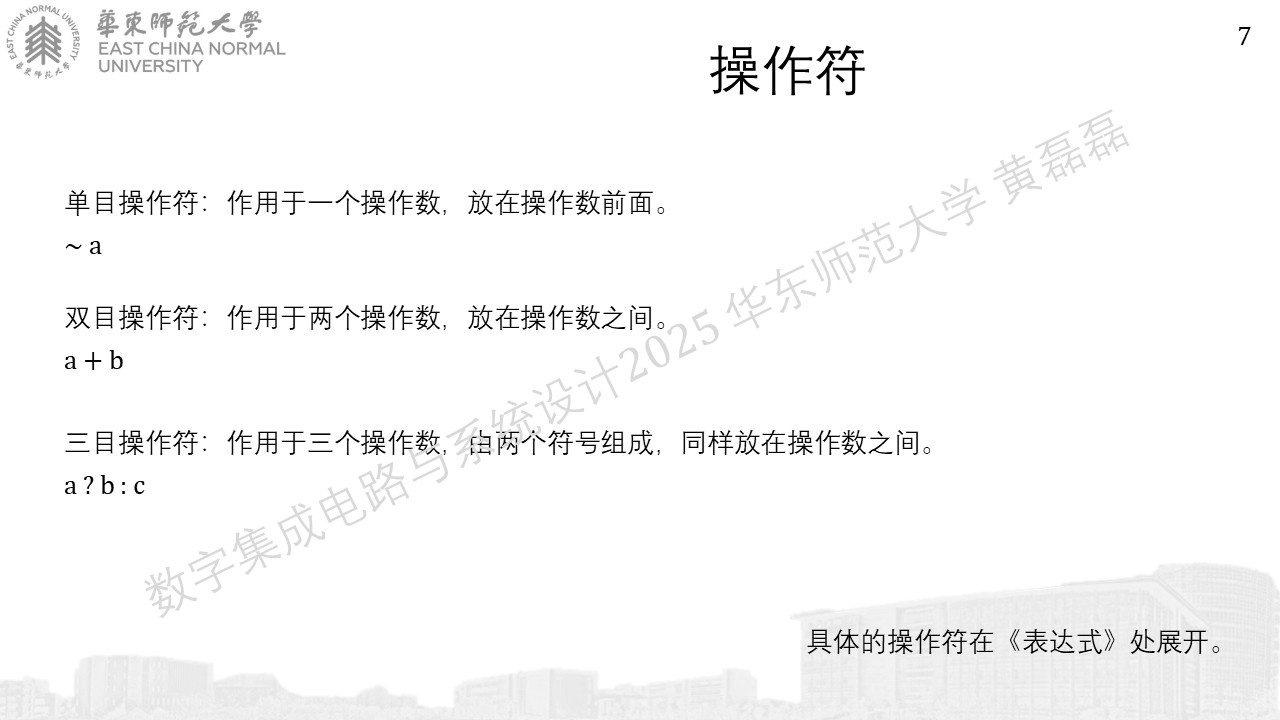

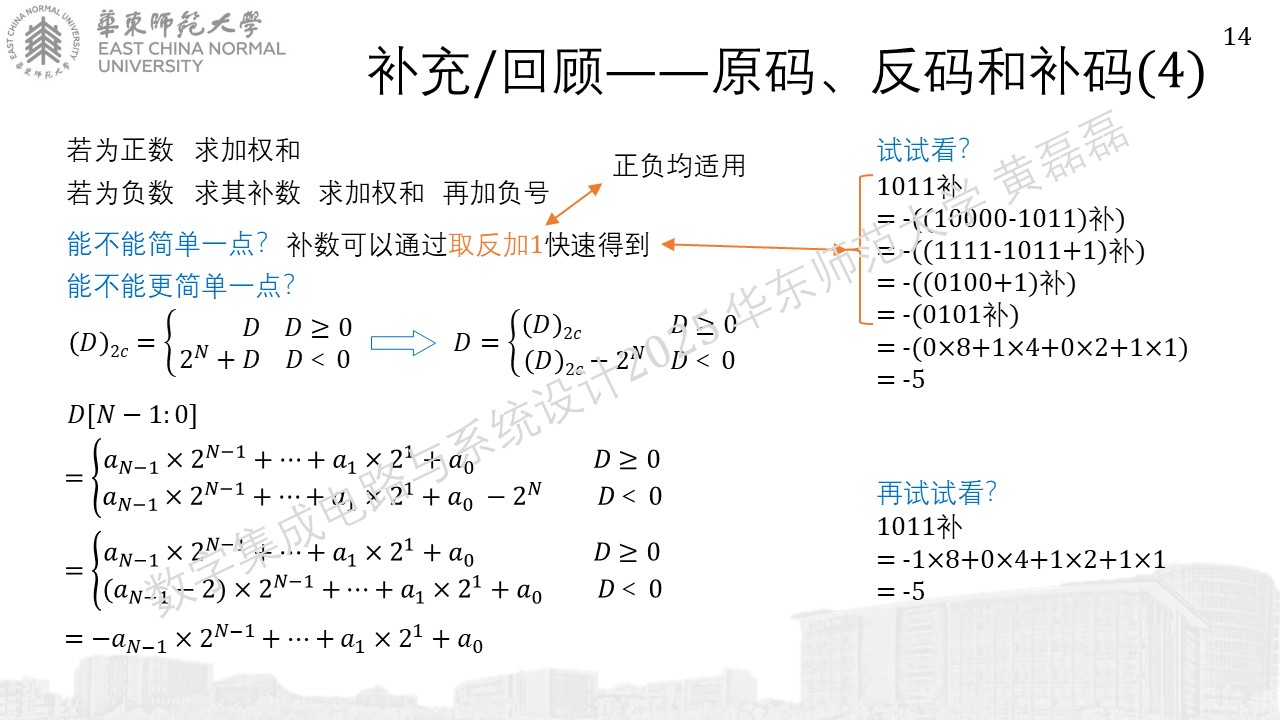

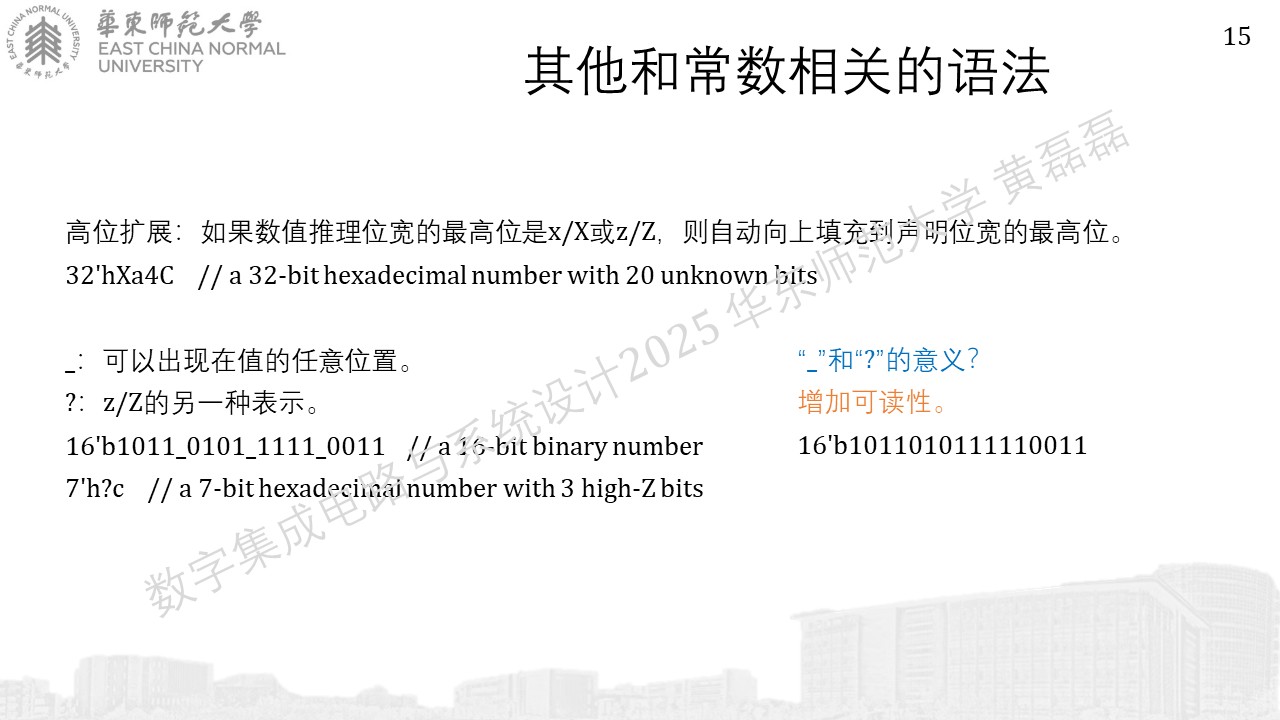

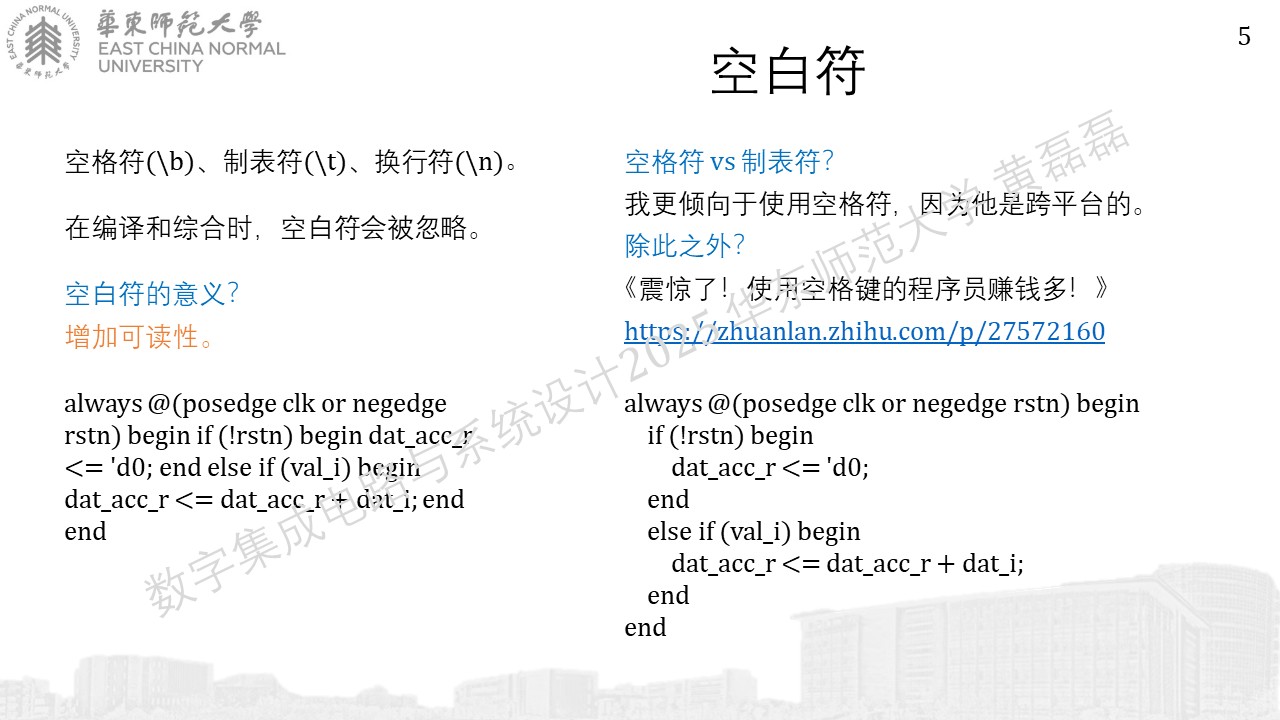

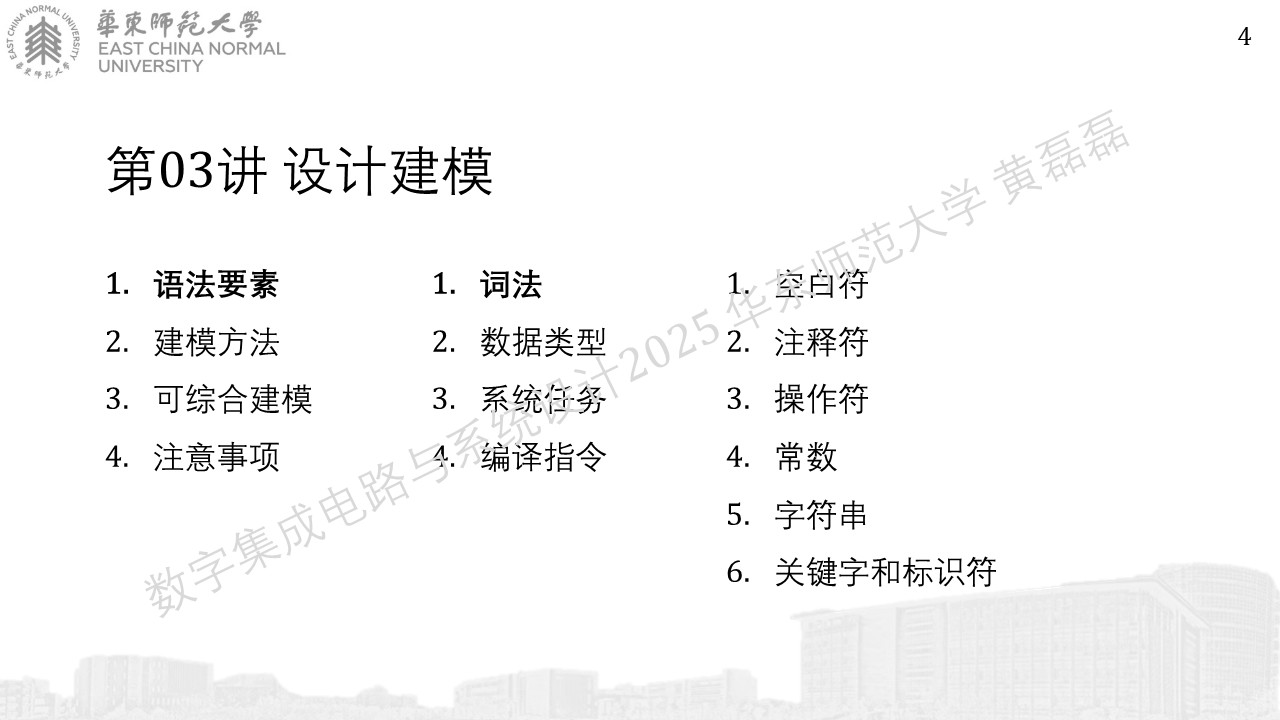

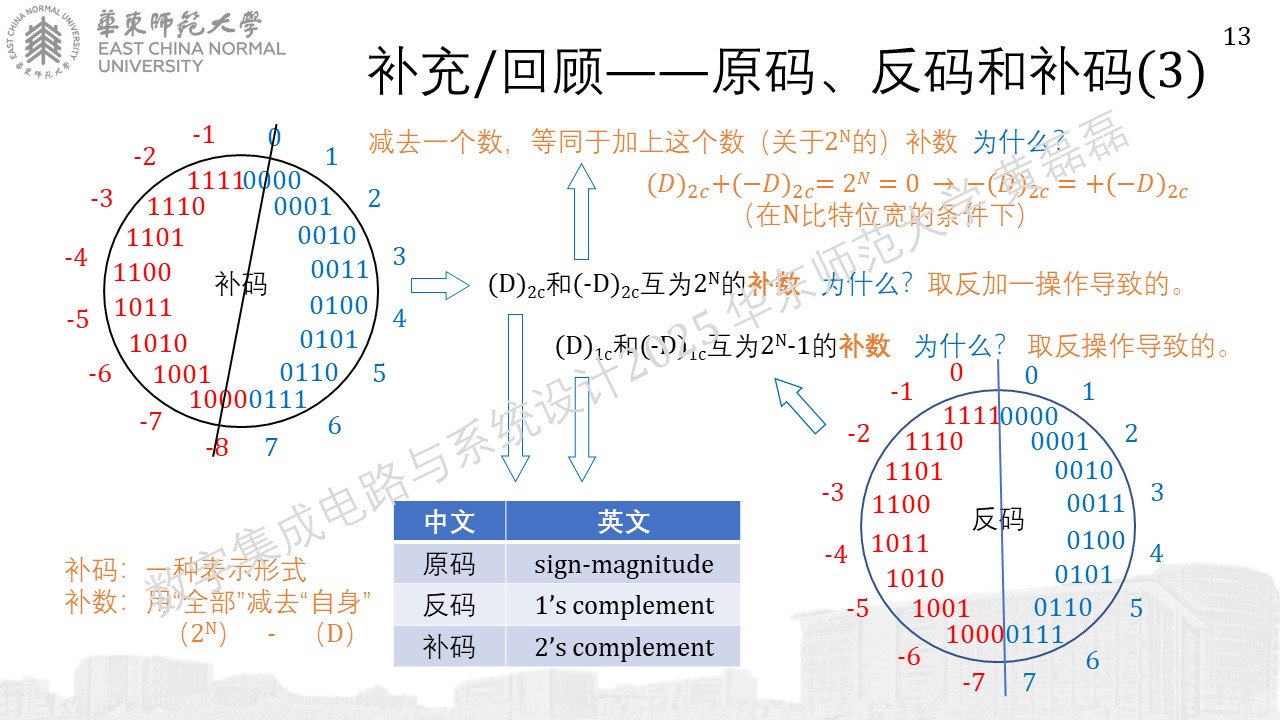

词法

../_images/%E5%B9%BB%E7%81%AF%E7%89%87417.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8757.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8767.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8777.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8786.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%8795.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87105.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87126.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87136.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87146.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87156.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87166.JPG

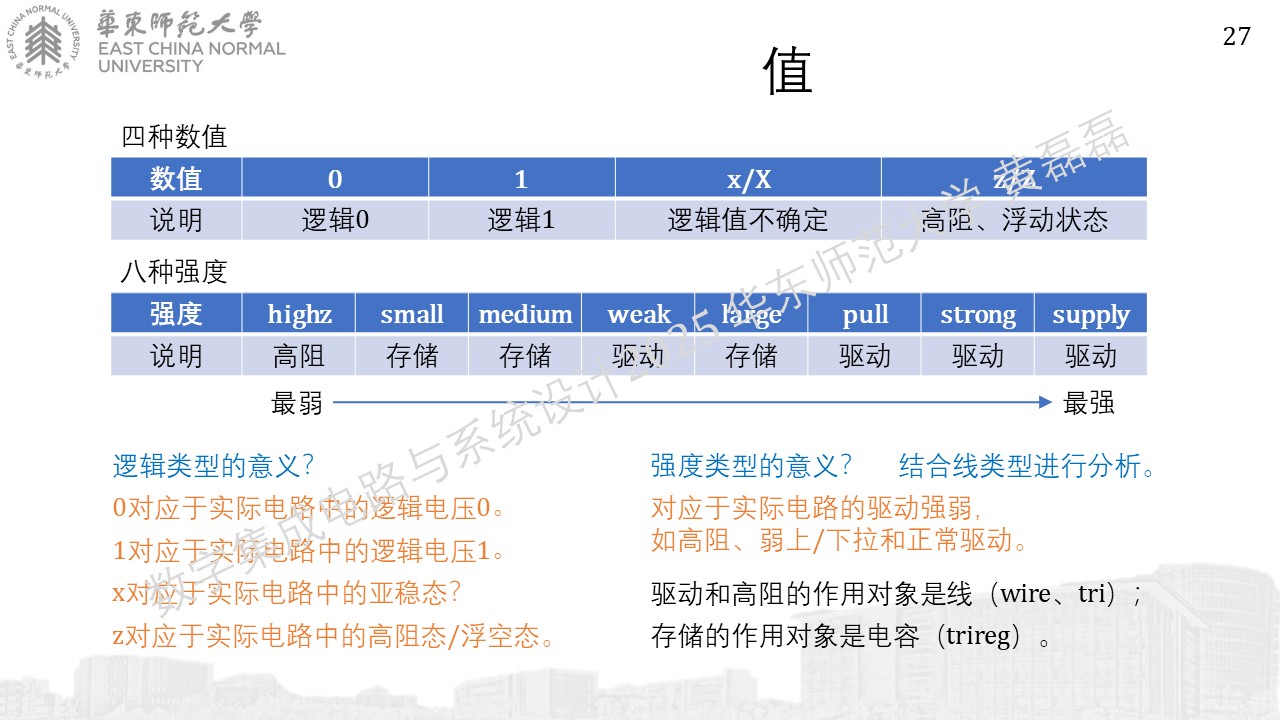

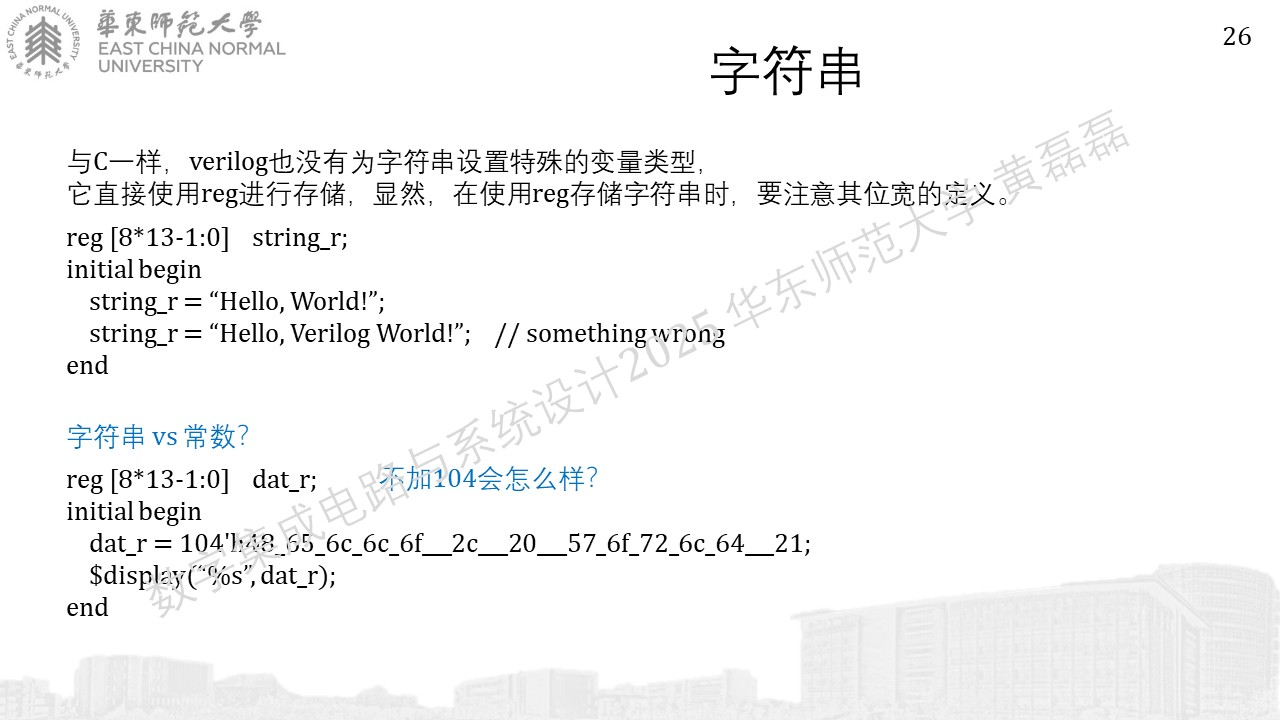

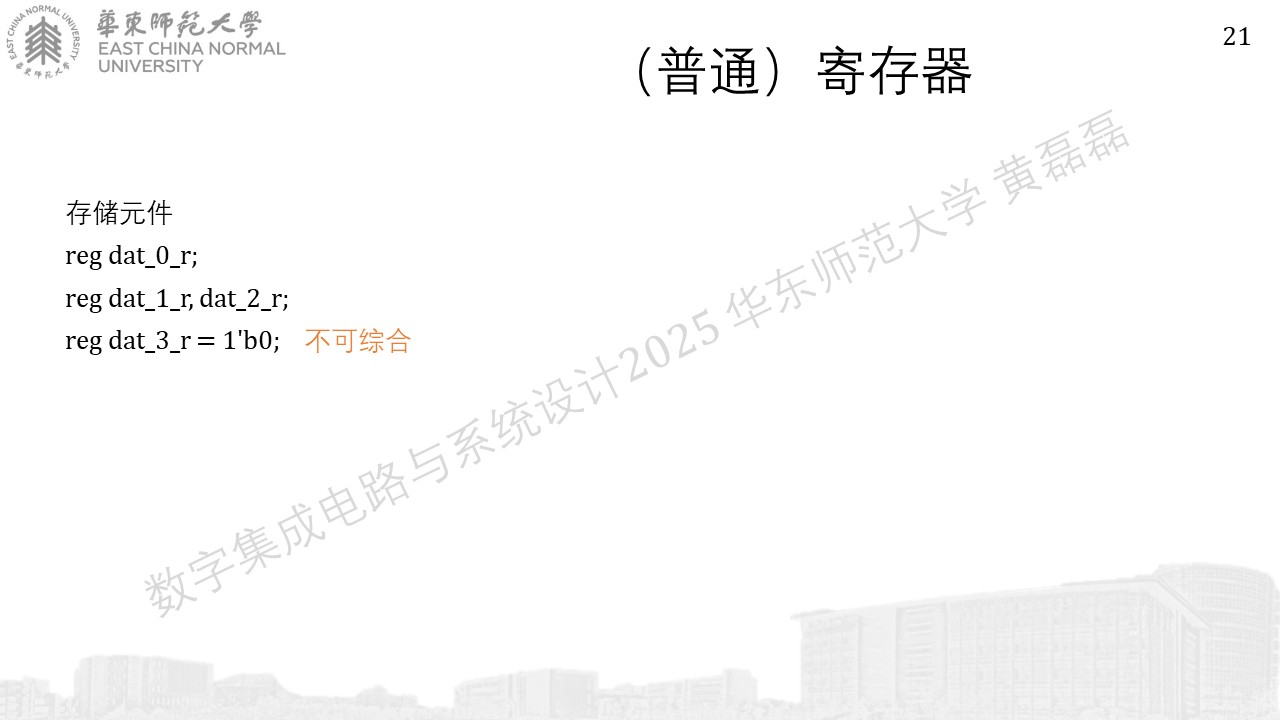

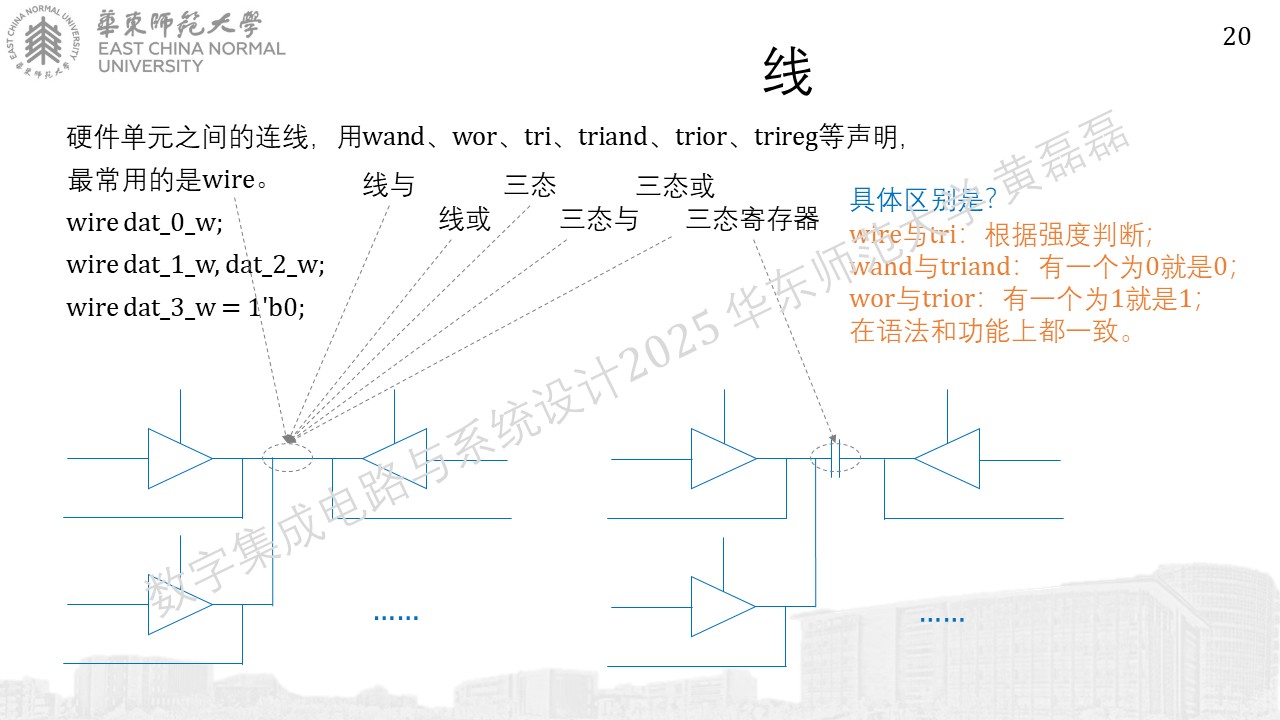

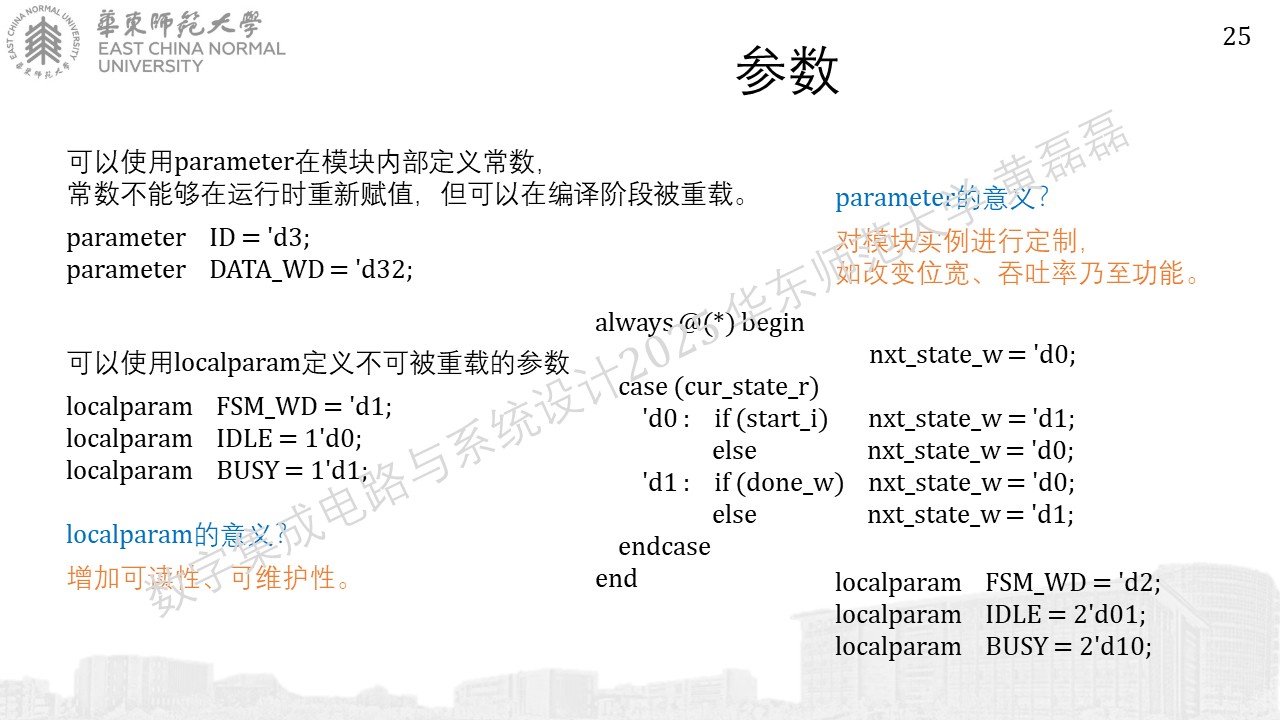

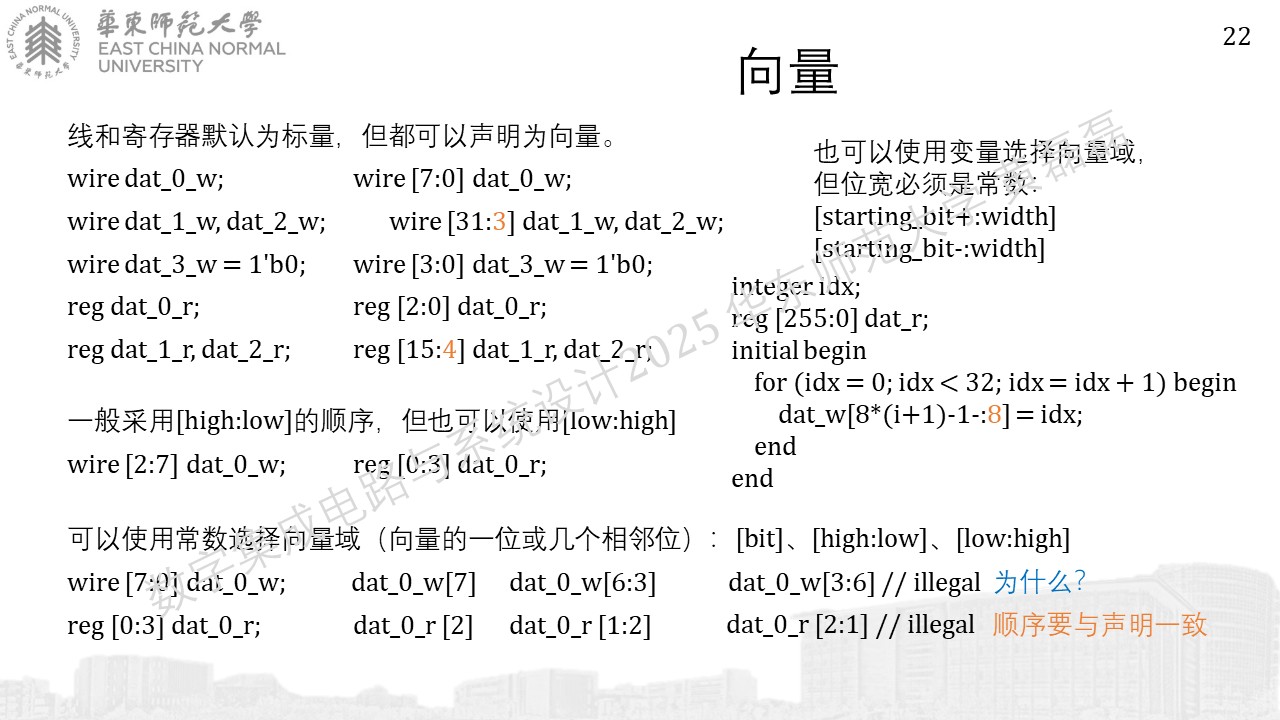

数据类型

../_images/%E5%B9%BB%E7%81%AF%E7%89%87176.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87186.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87196.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87206.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87218.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87222.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87232.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87242.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87252.JPG

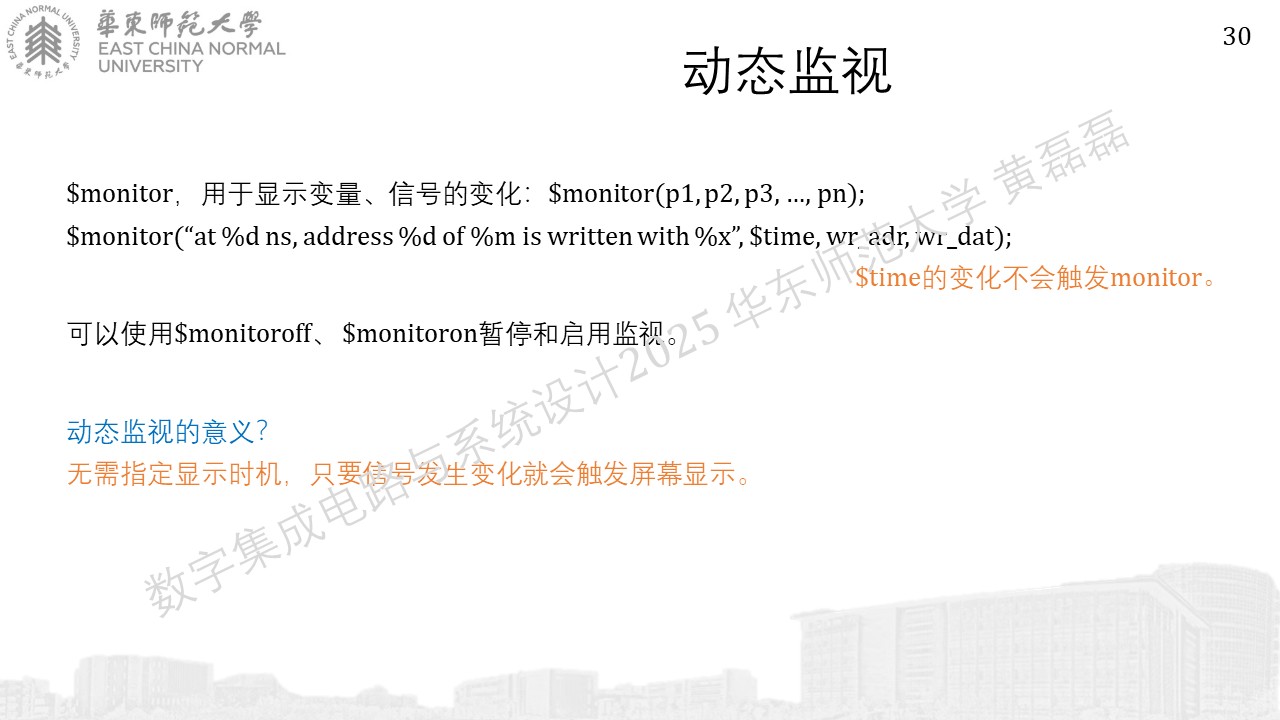

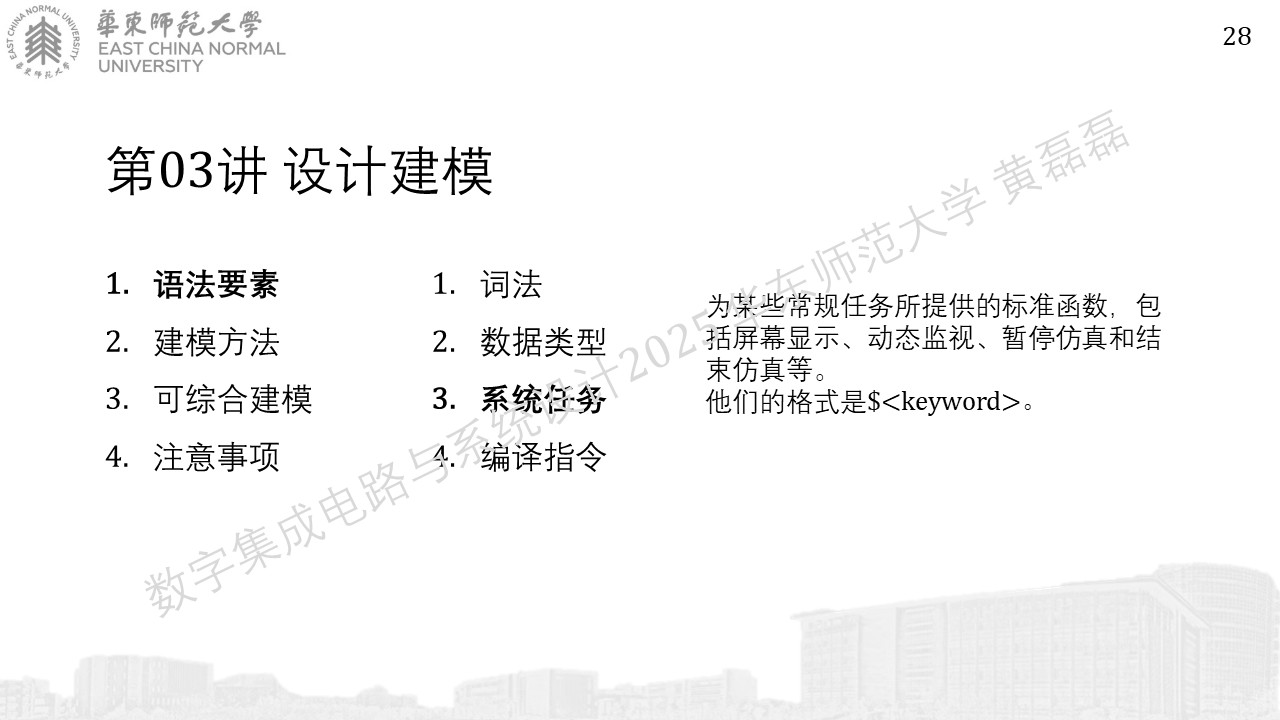

系统任务

../_images/%E5%B9%BB%E7%81%AF%E7%89%87262.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87272.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87282.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87292.JPG

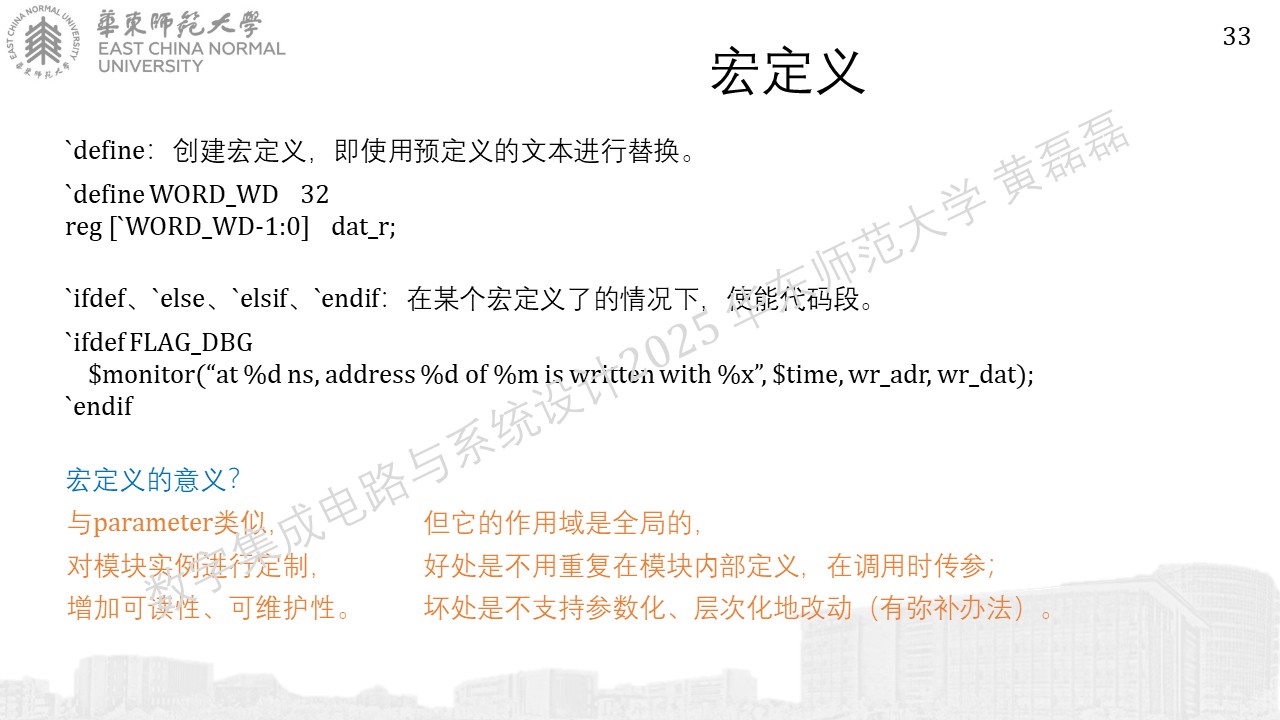

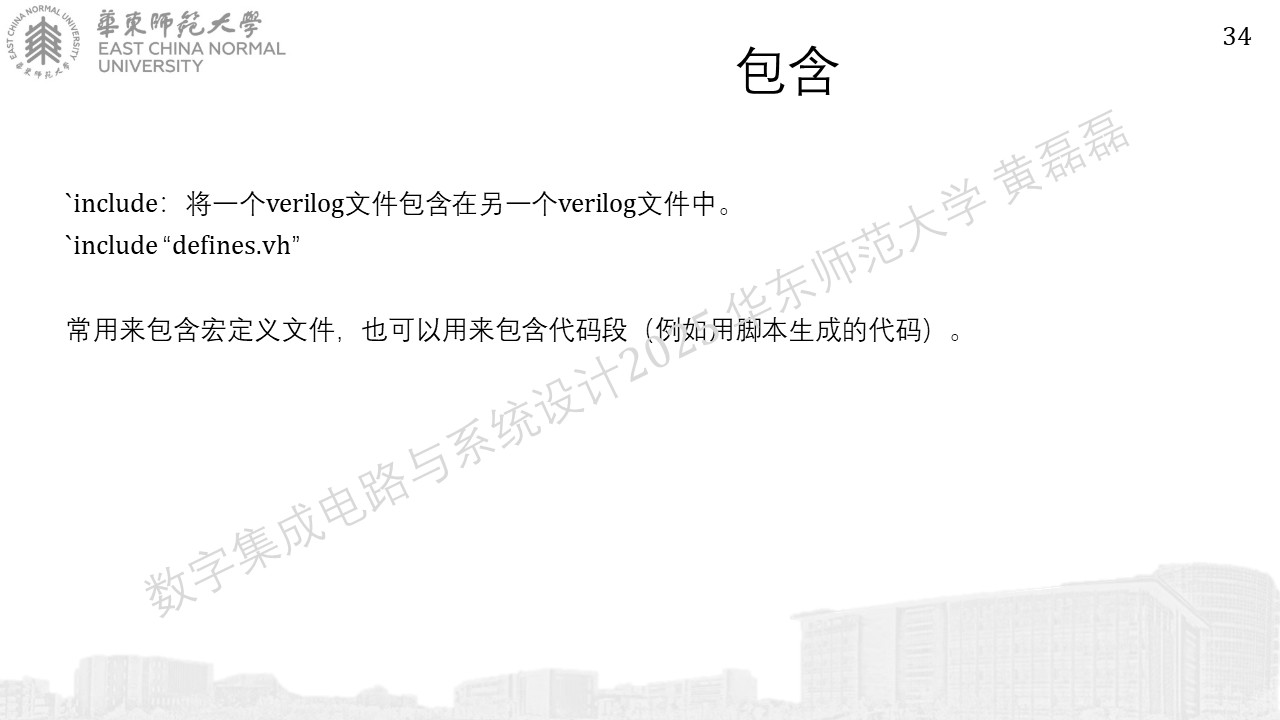

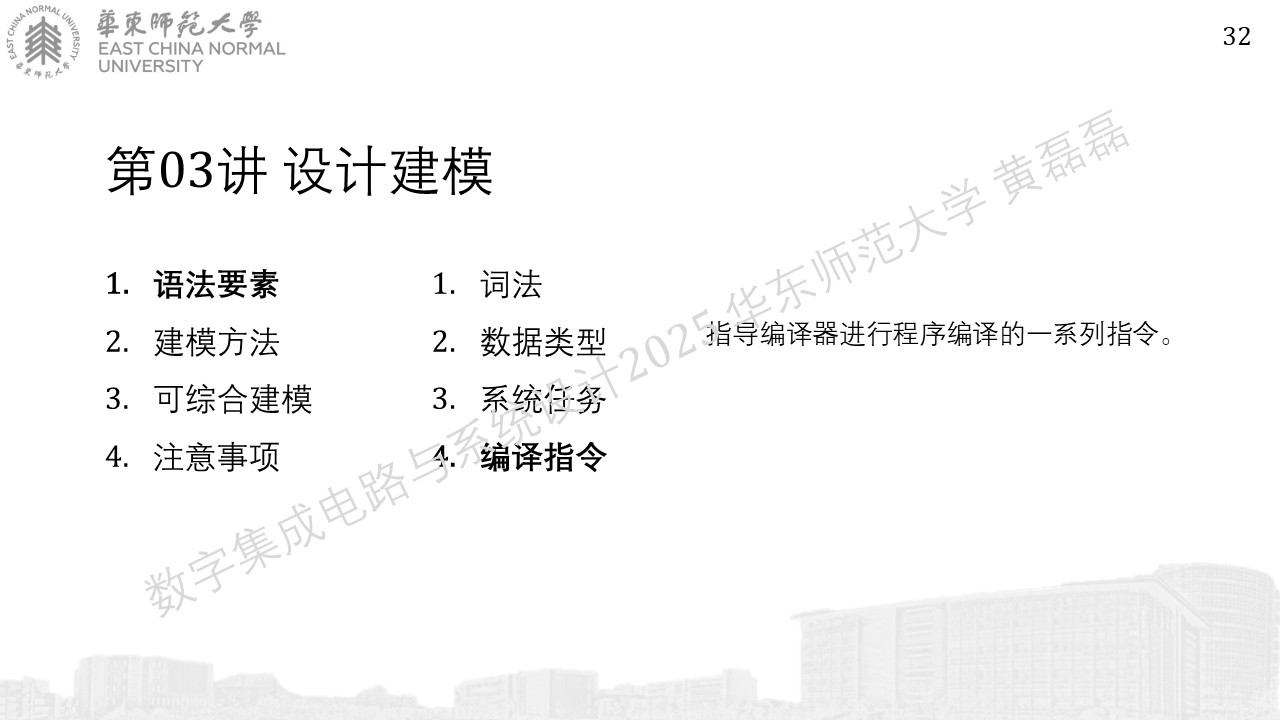

编译指令

../_images/%E5%B9%BB%E7%81%AF%E7%89%87302.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87318.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87322.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87332.JPG
