第02讲 - 设计流程 - 设计策略

../_images/%E5%B9%BB%E7%81%AF%E7%89%871100.JPG

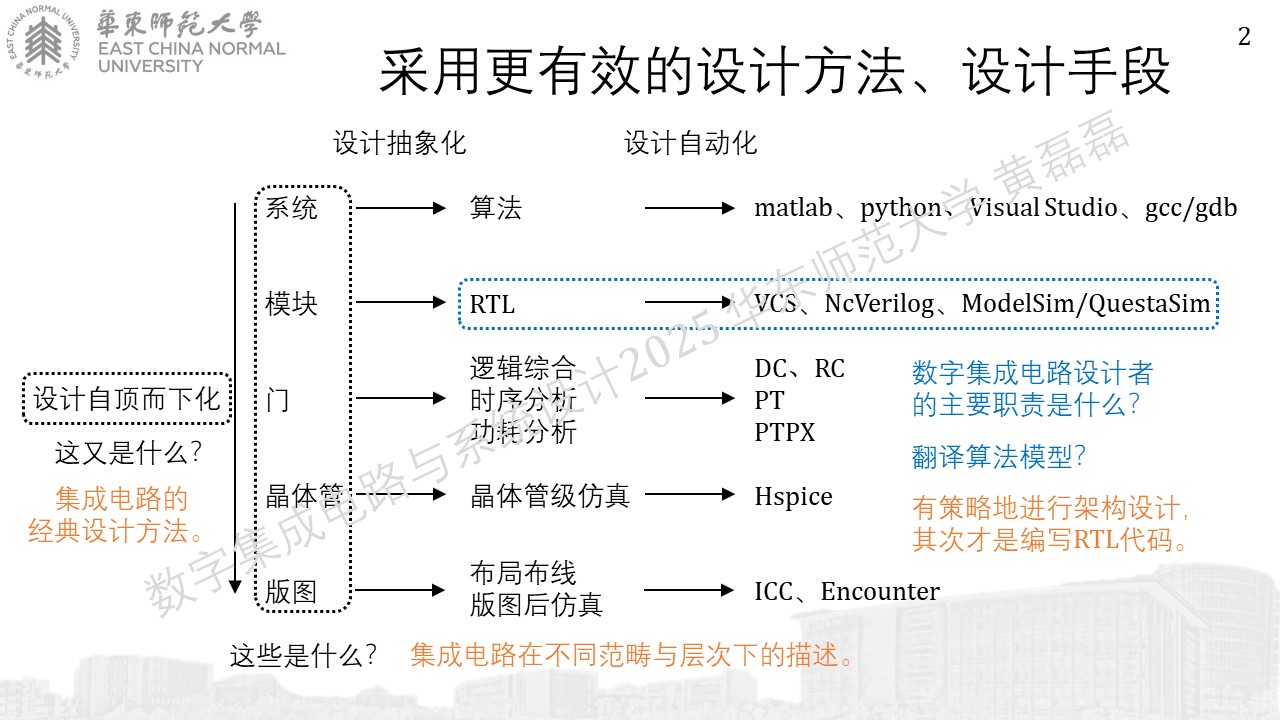

导入

../_images/%E5%B9%BB%E7%81%AF%E7%89%87248.JPG

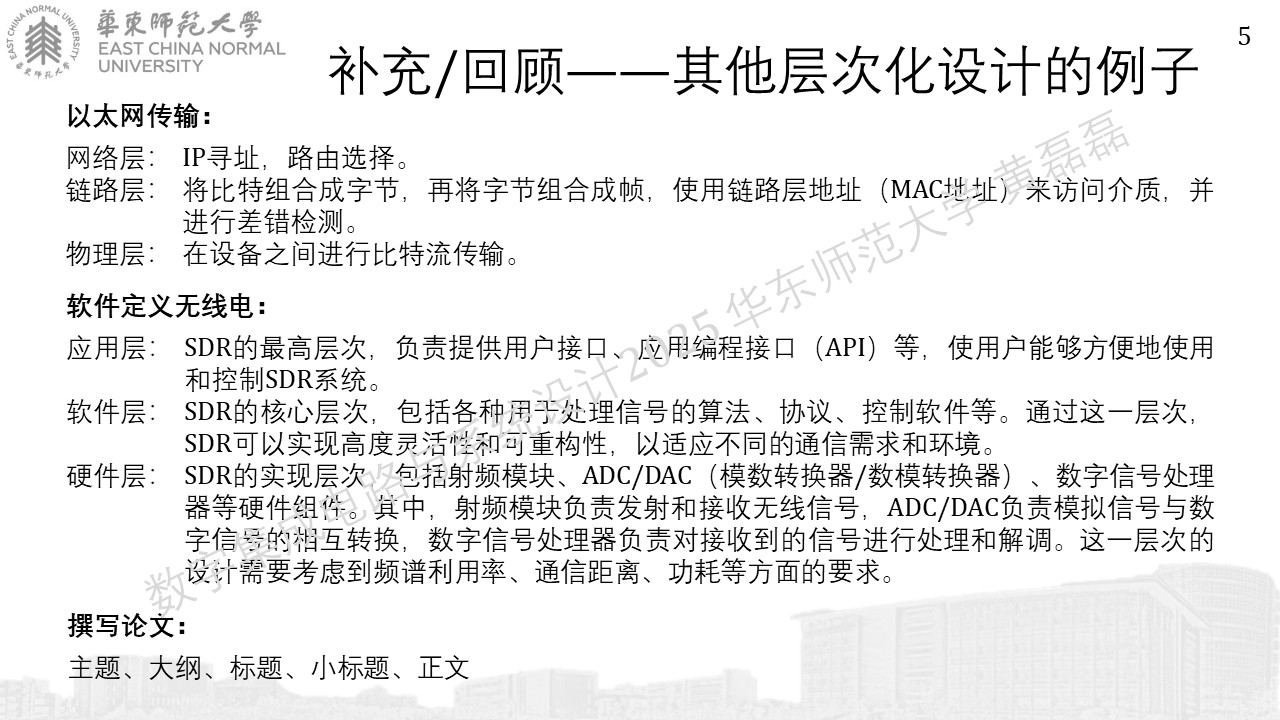

层次化

../_images/%E5%B9%BB%E7%81%AF%E7%89%87325.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87419.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87518.JPG

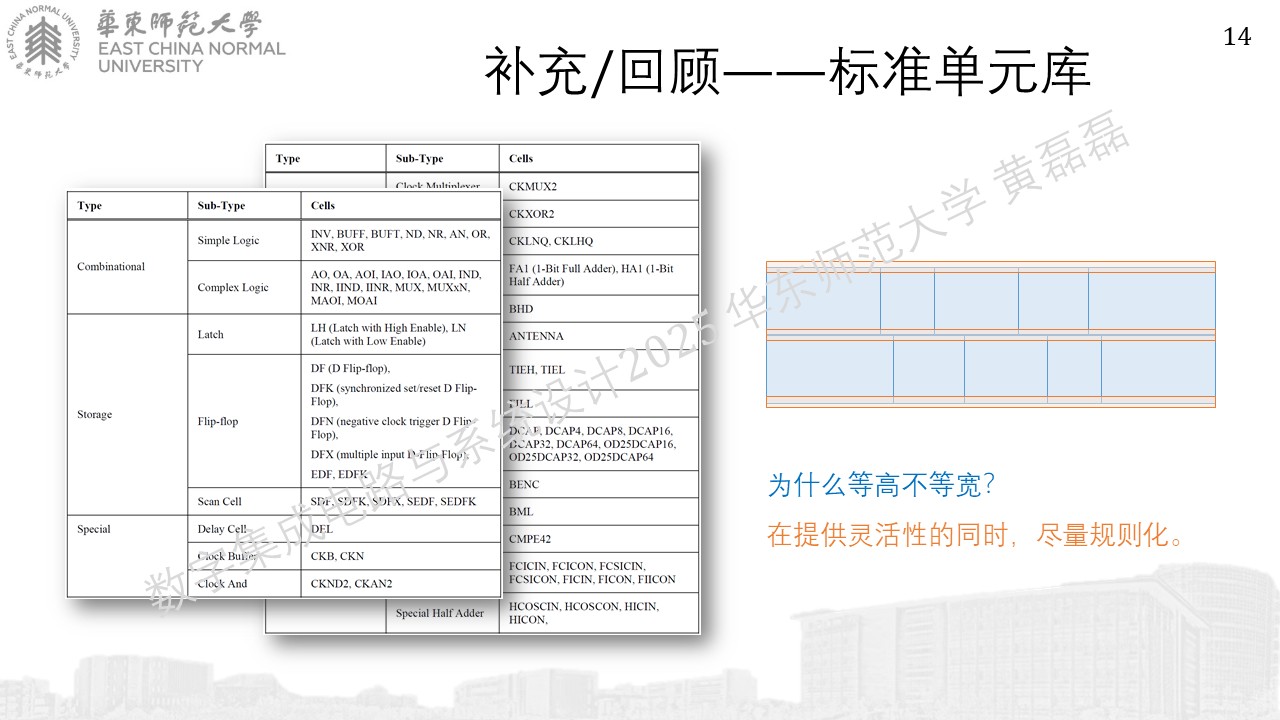

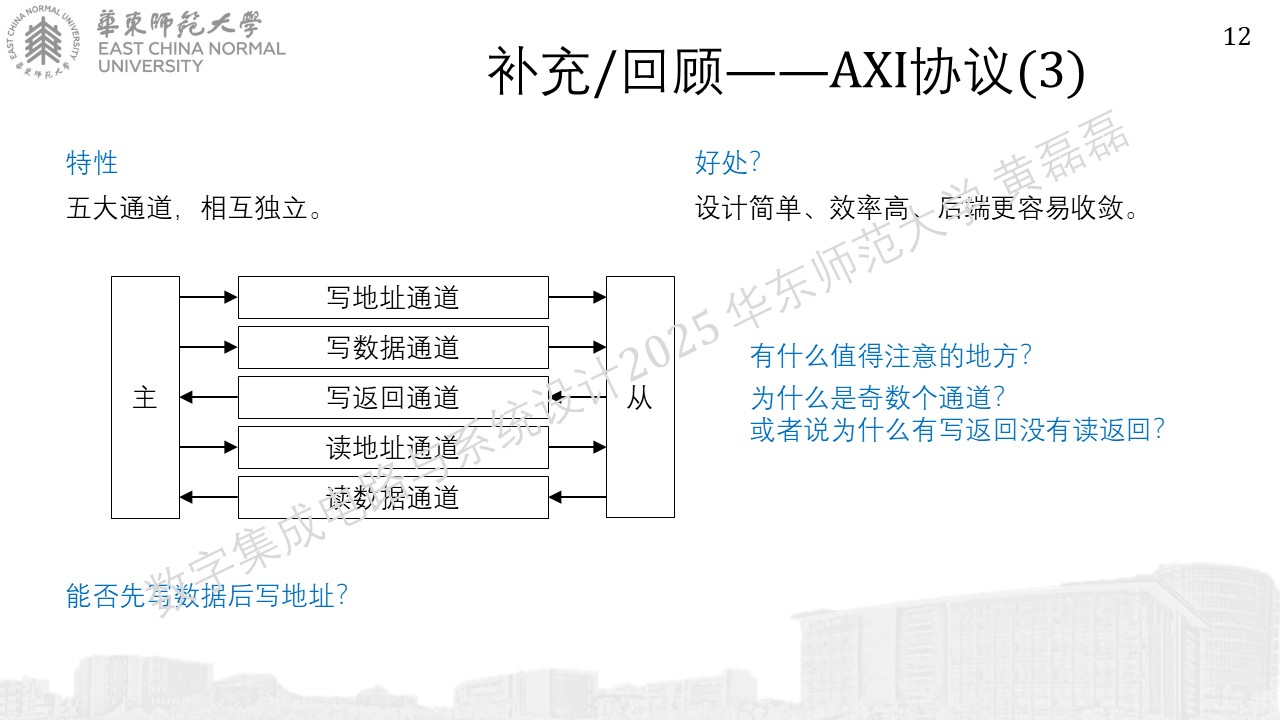

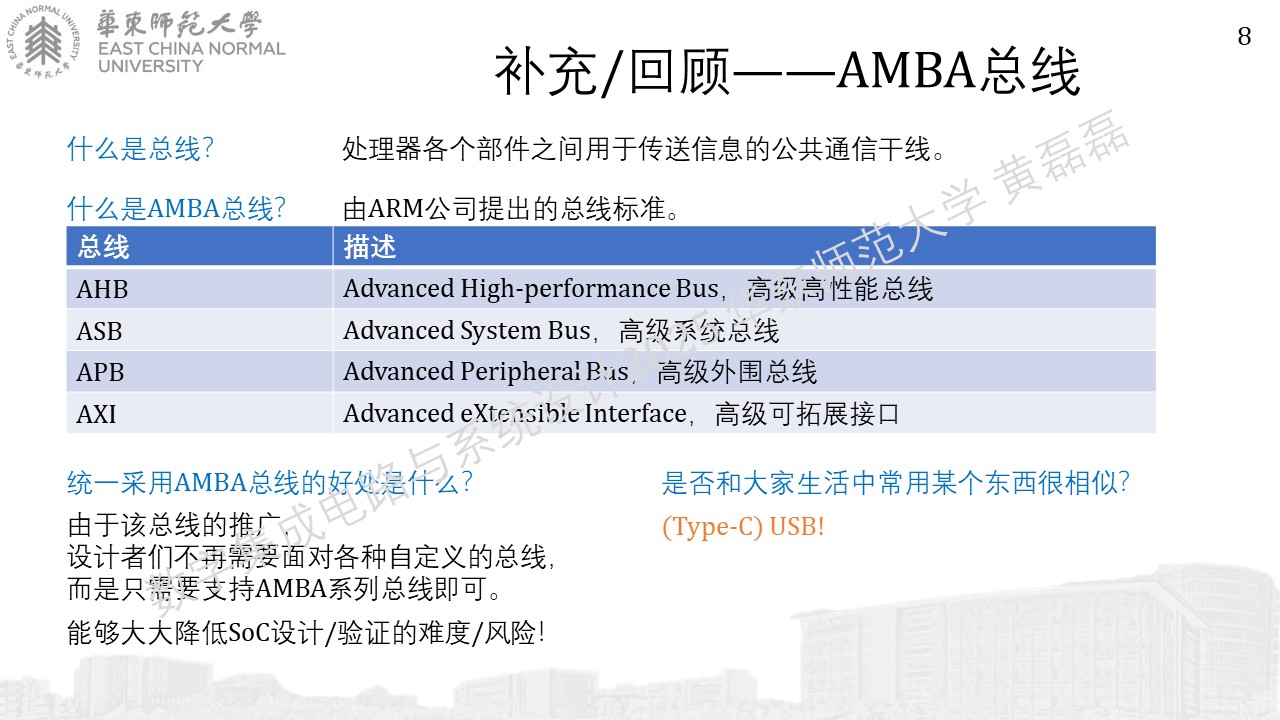

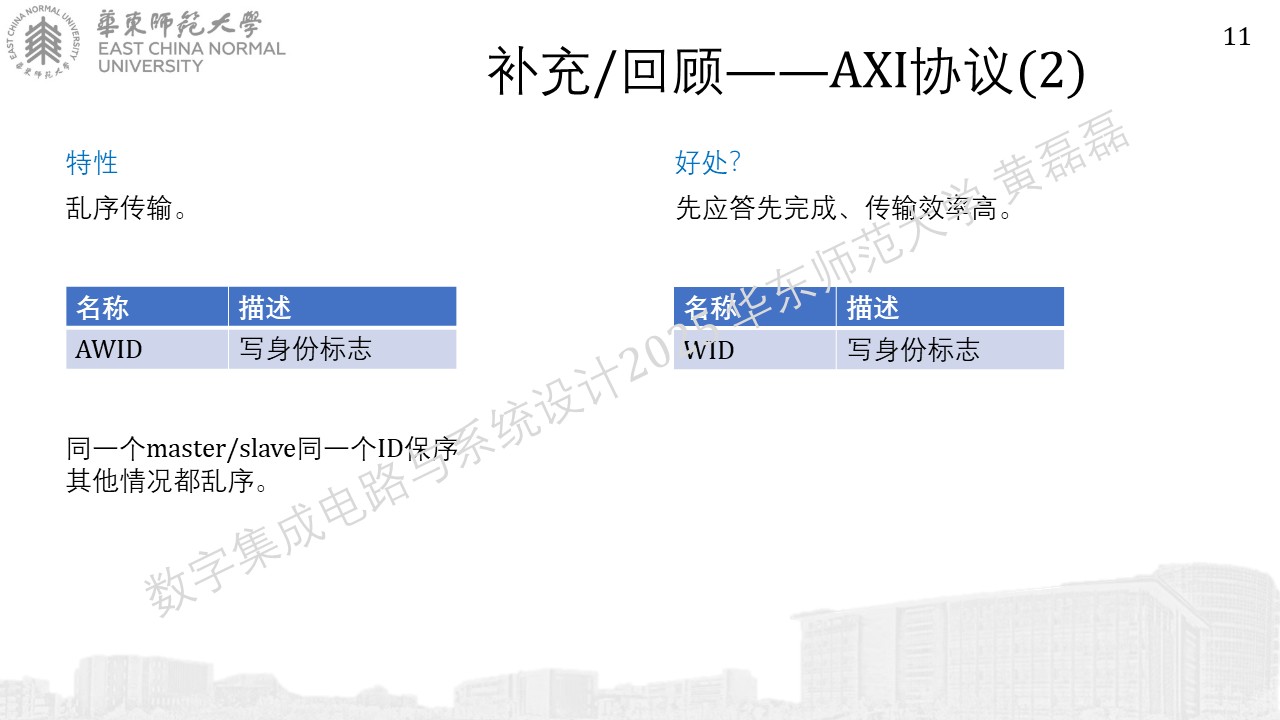

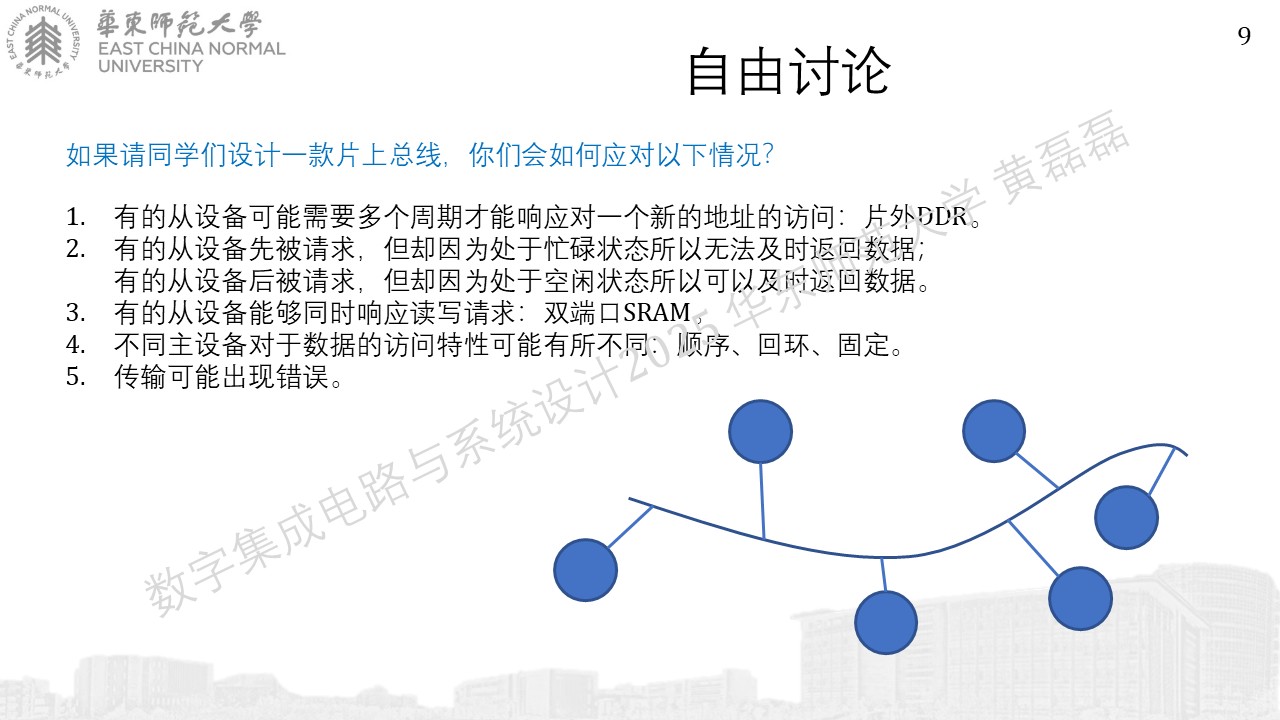

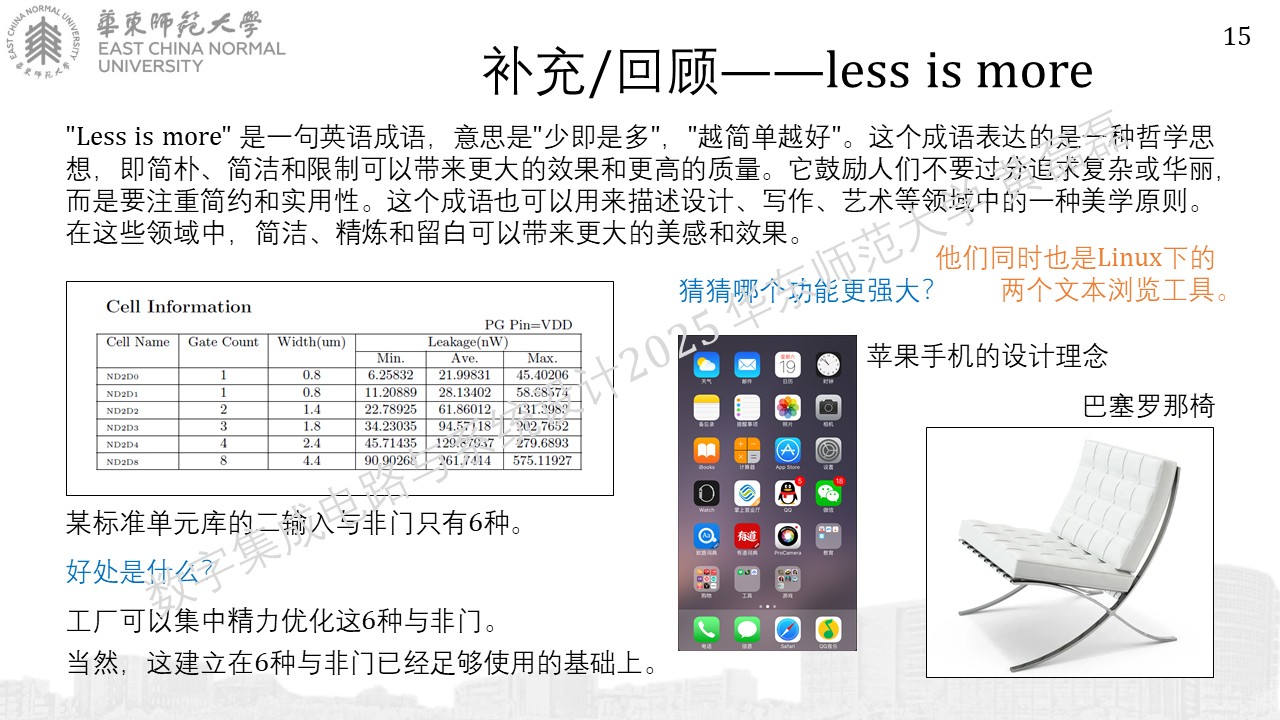

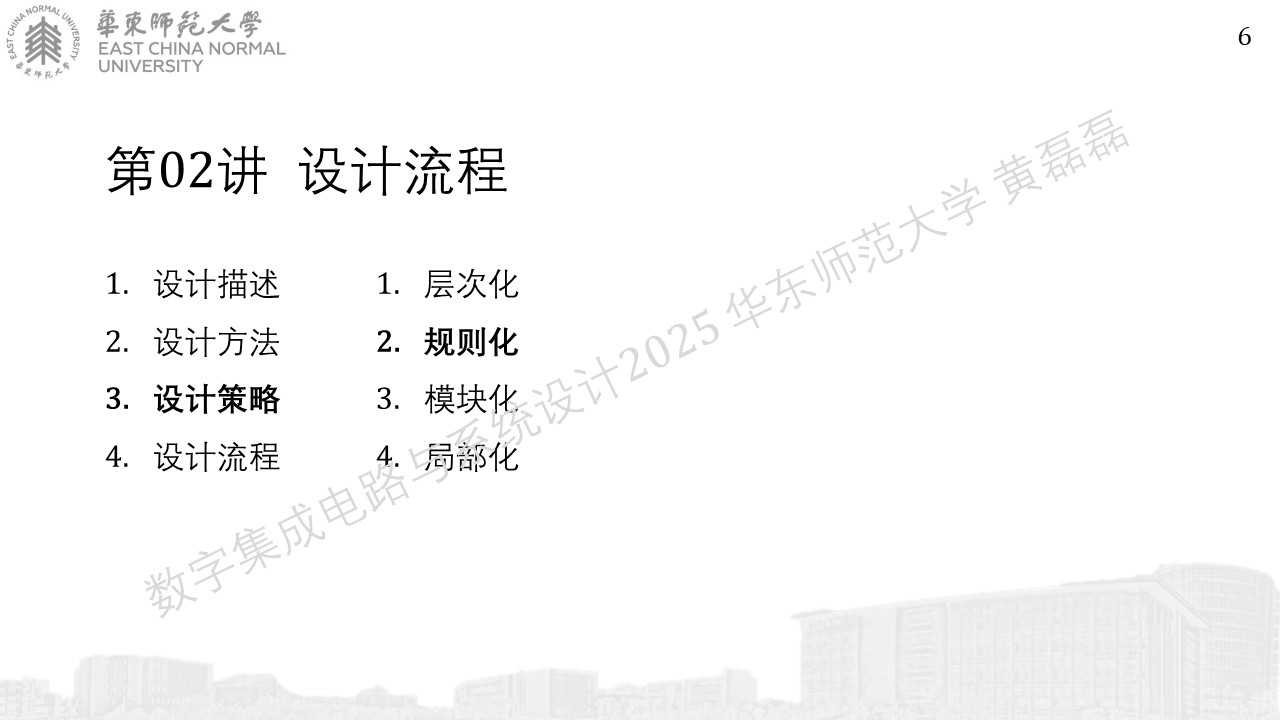

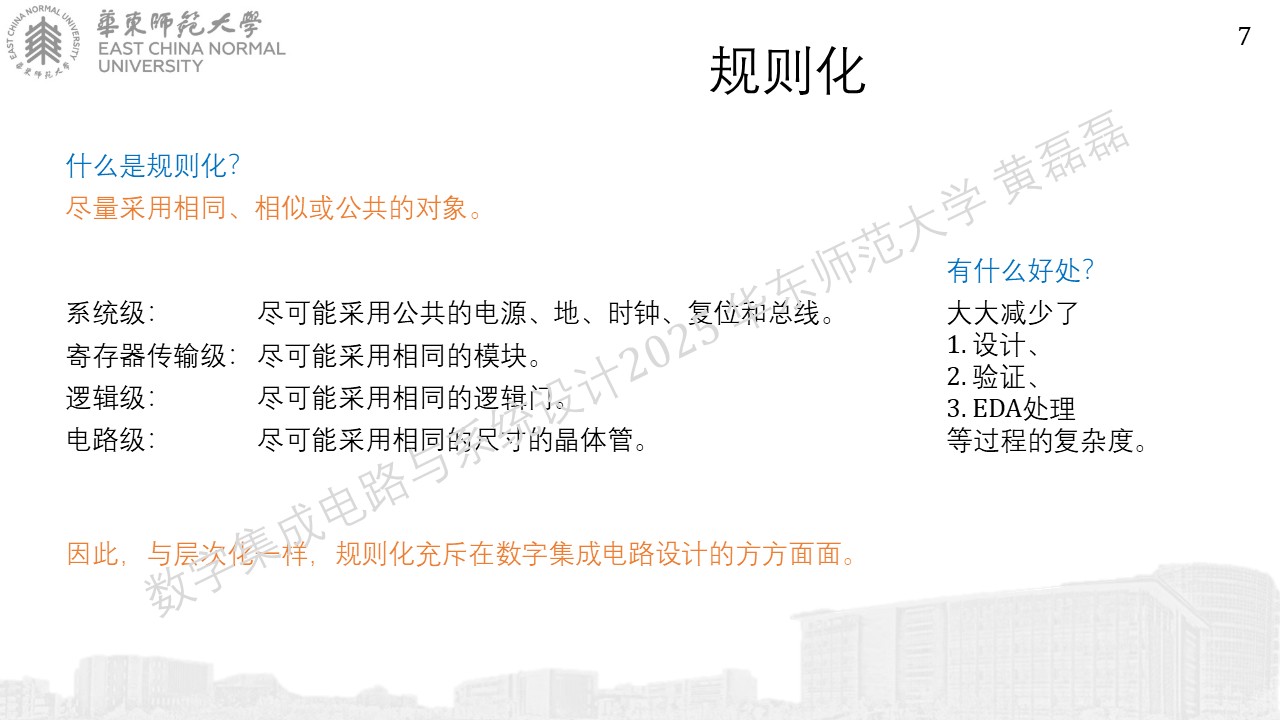

规则化

../_images/%E5%B9%BB%E7%81%AF%E7%89%87616.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87716.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87816.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87916.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871016.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871120.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871218.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871316.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871416.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871516.JPG

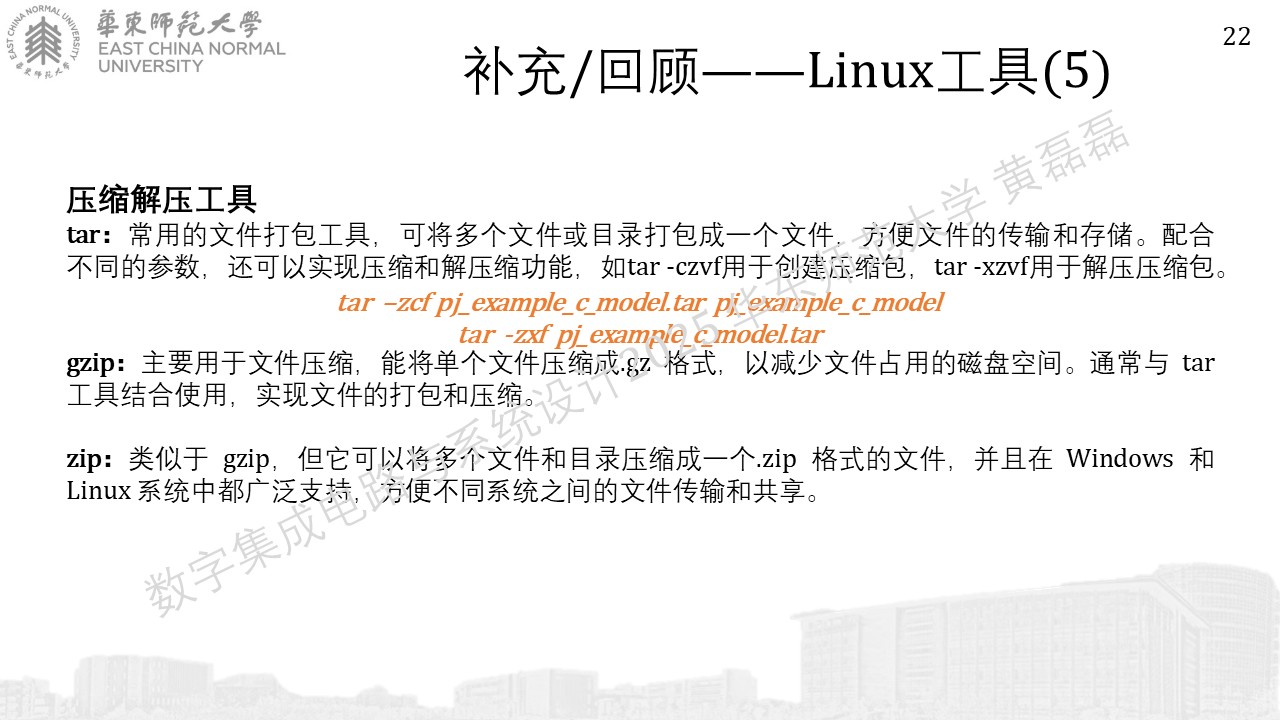

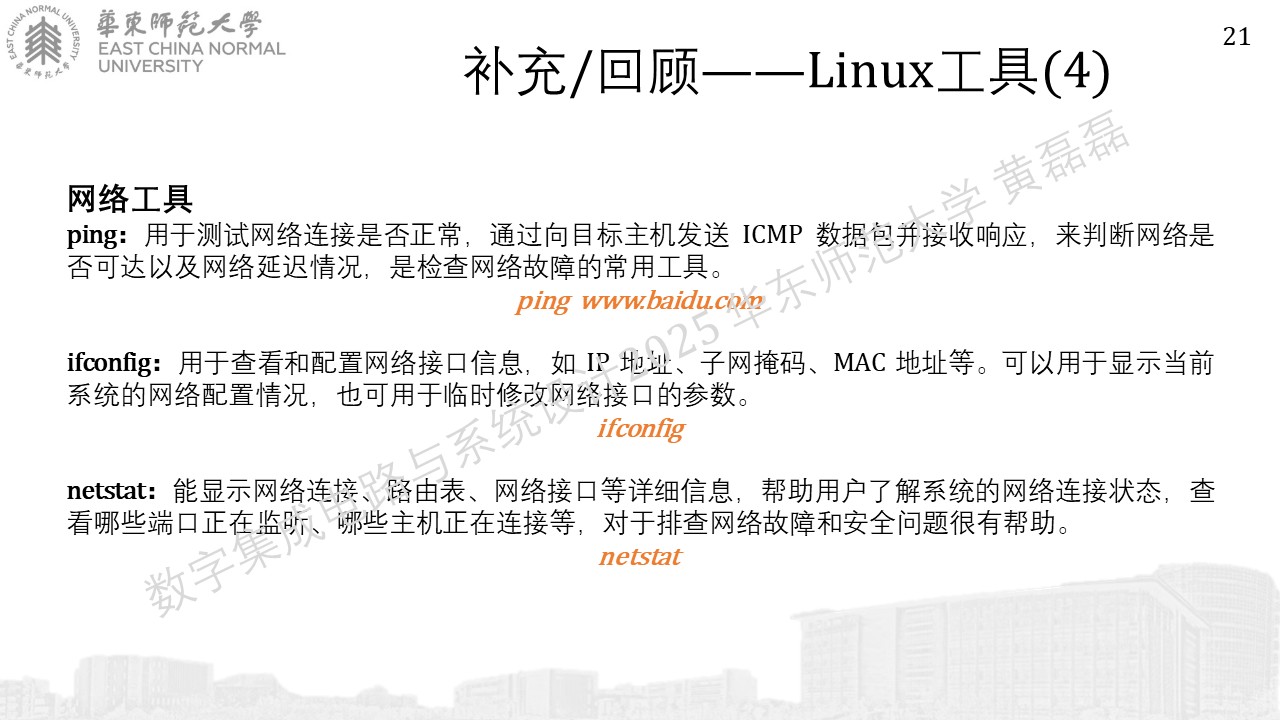

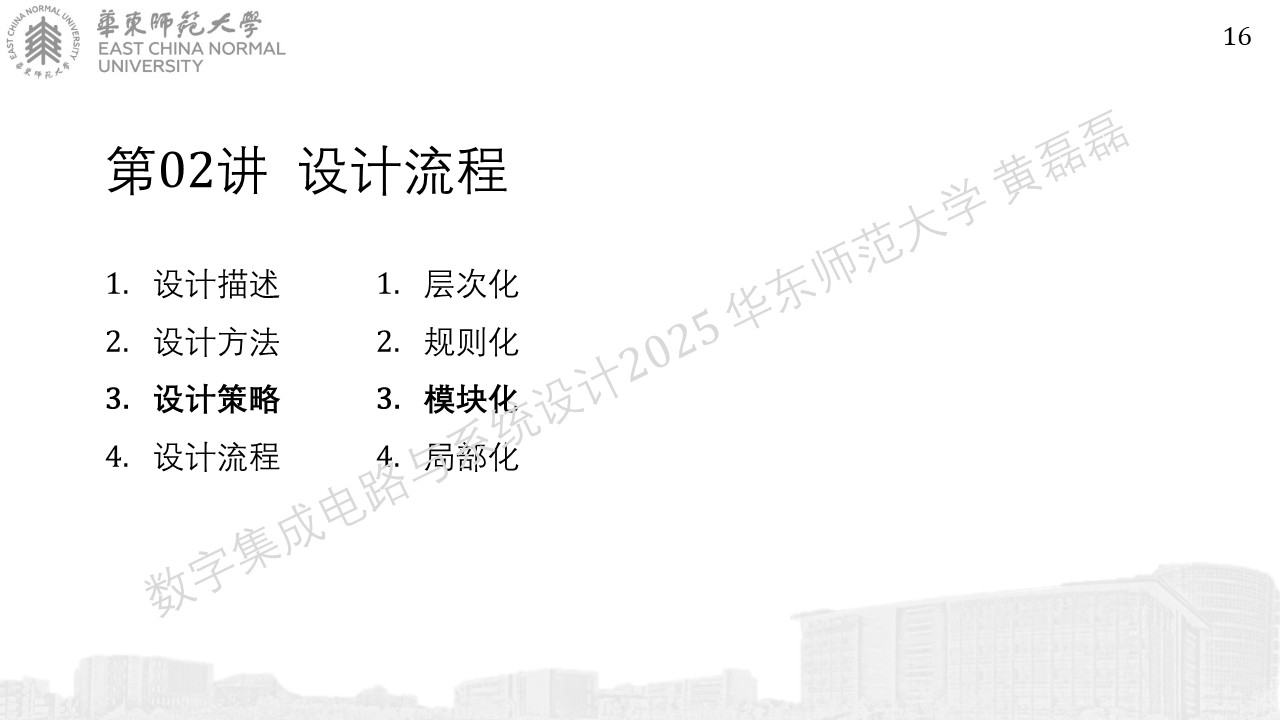

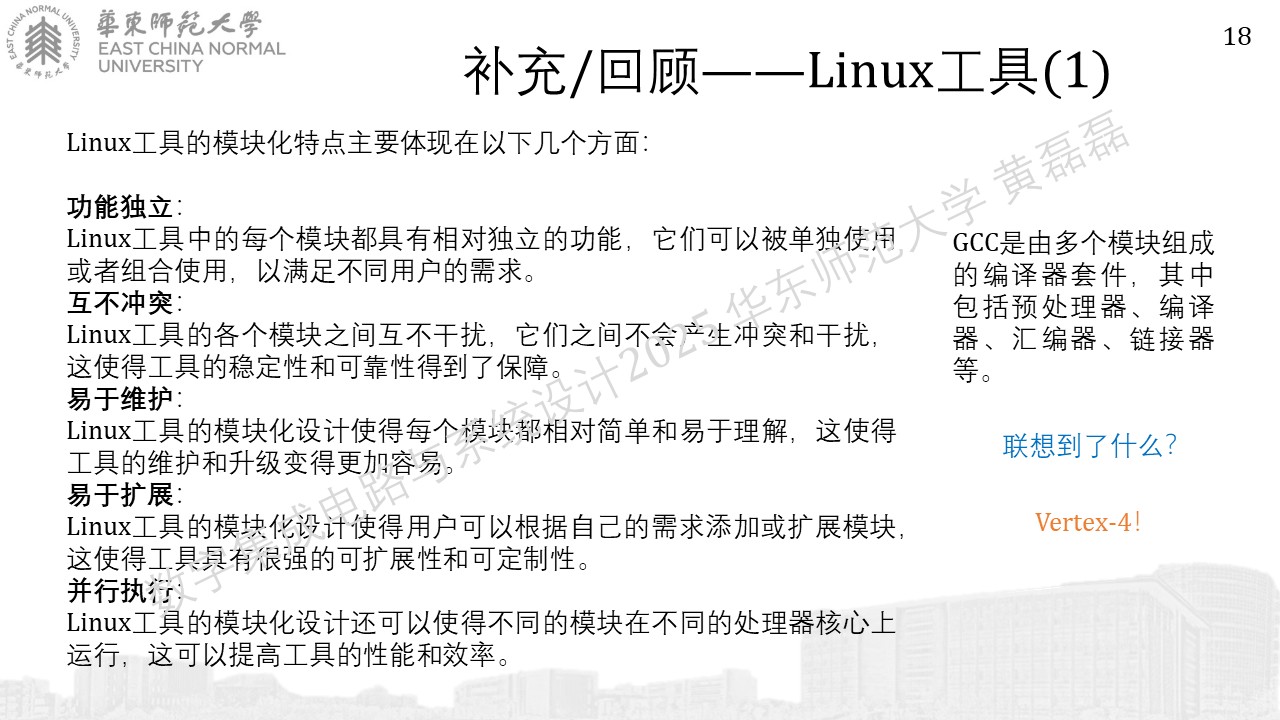

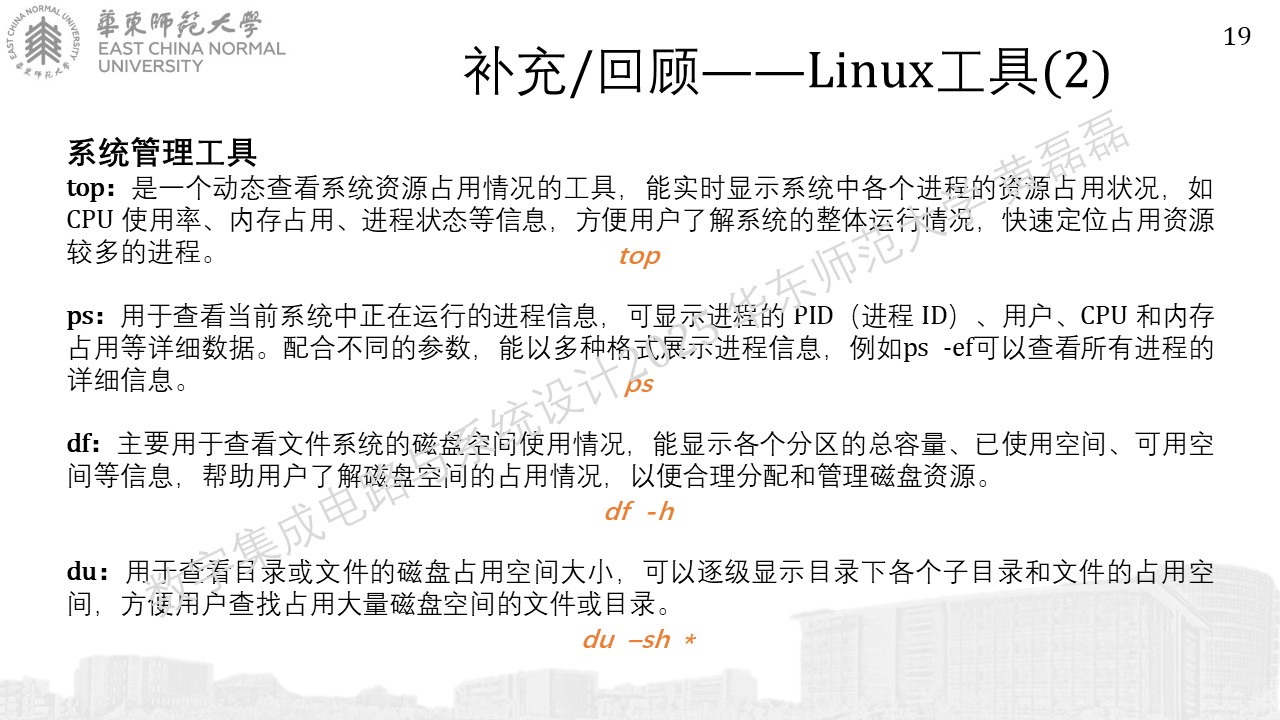

模块化

../_images/%E5%B9%BB%E7%81%AF%E7%89%871616.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871716.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871814.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%871913.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872012.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872114.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872212.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%872310.JPG

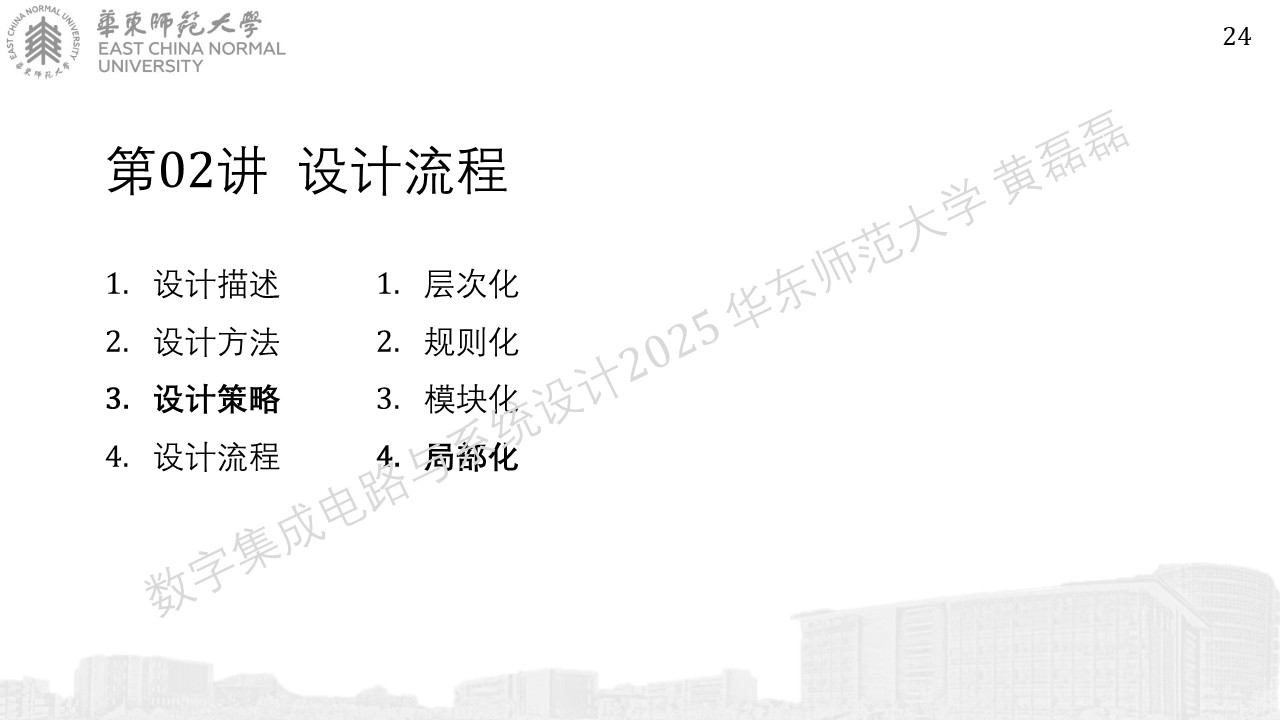

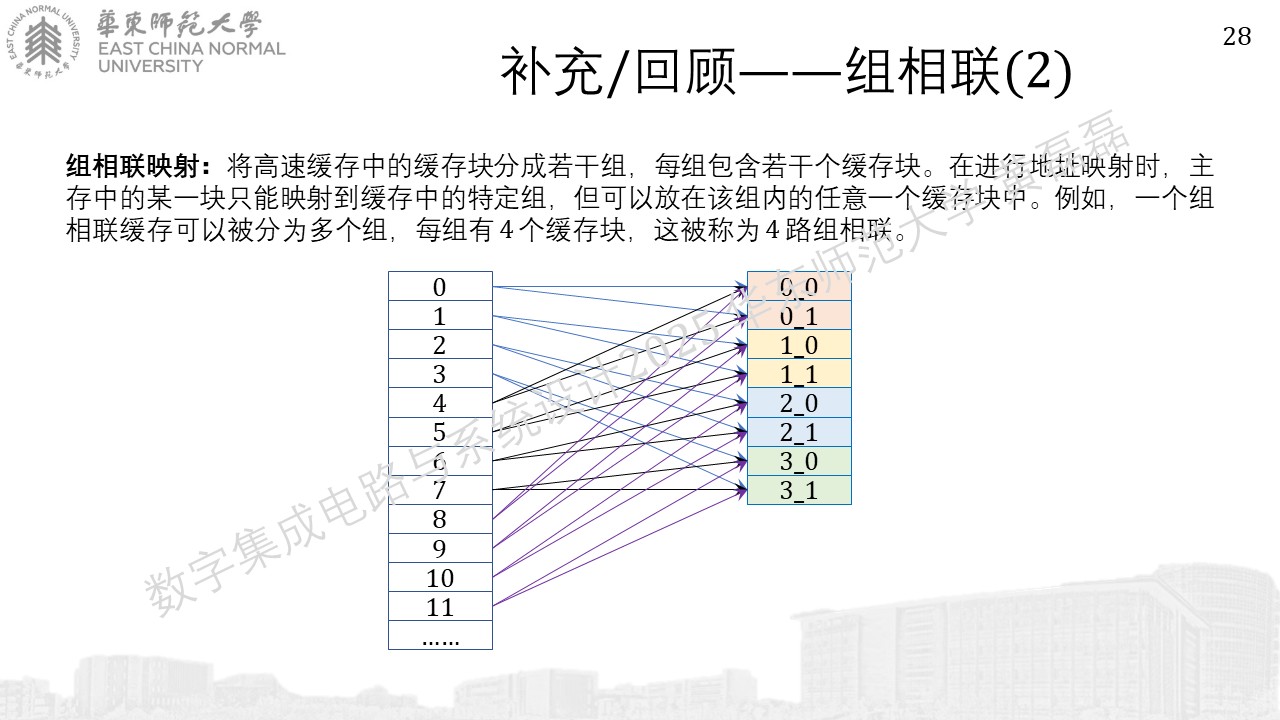

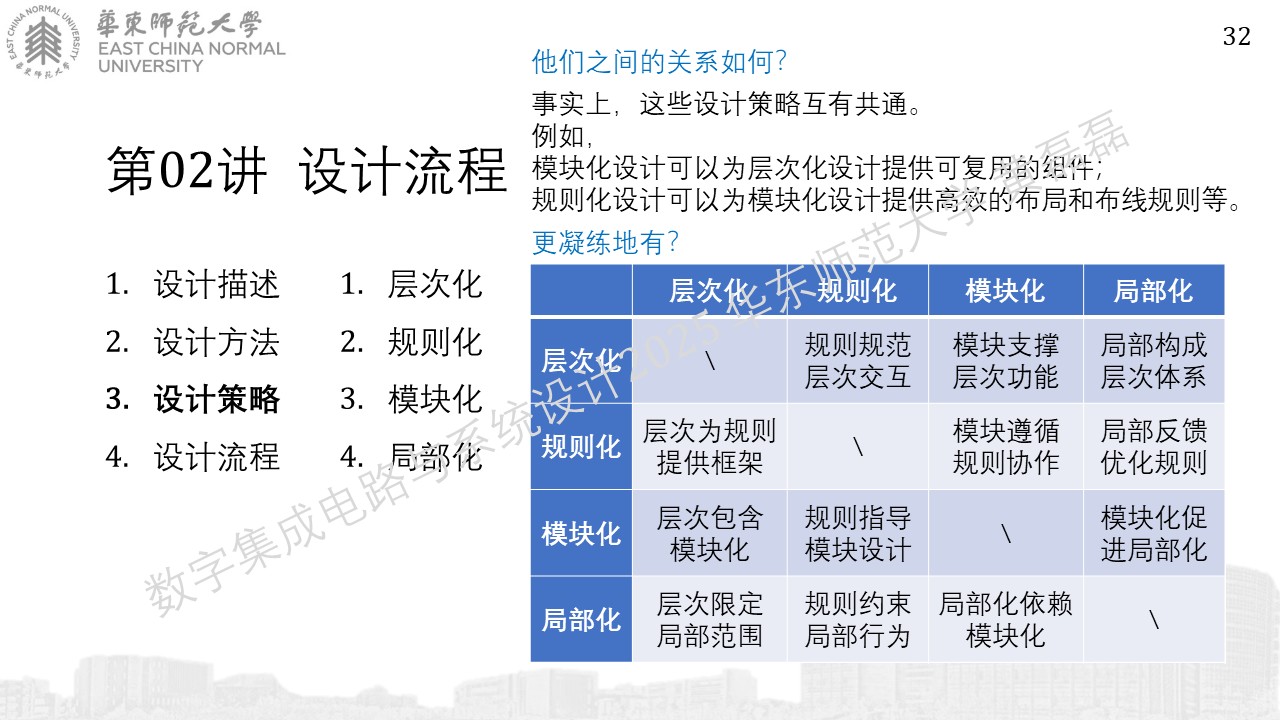

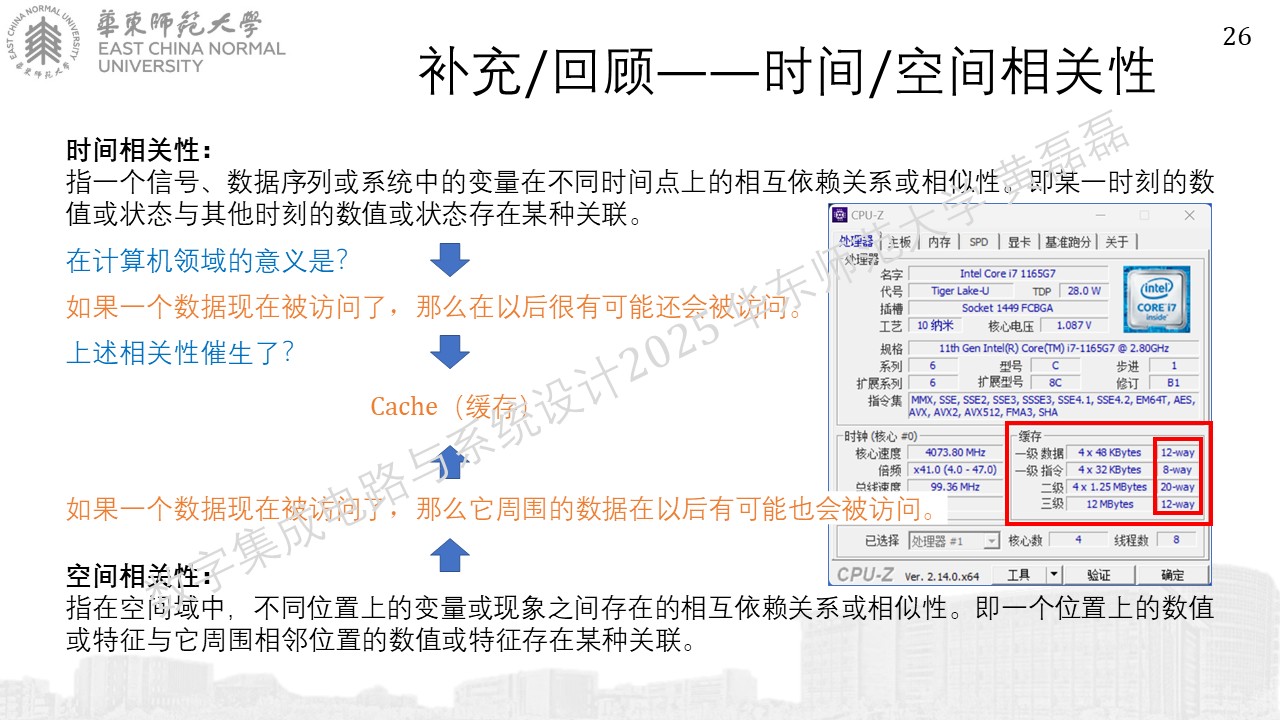

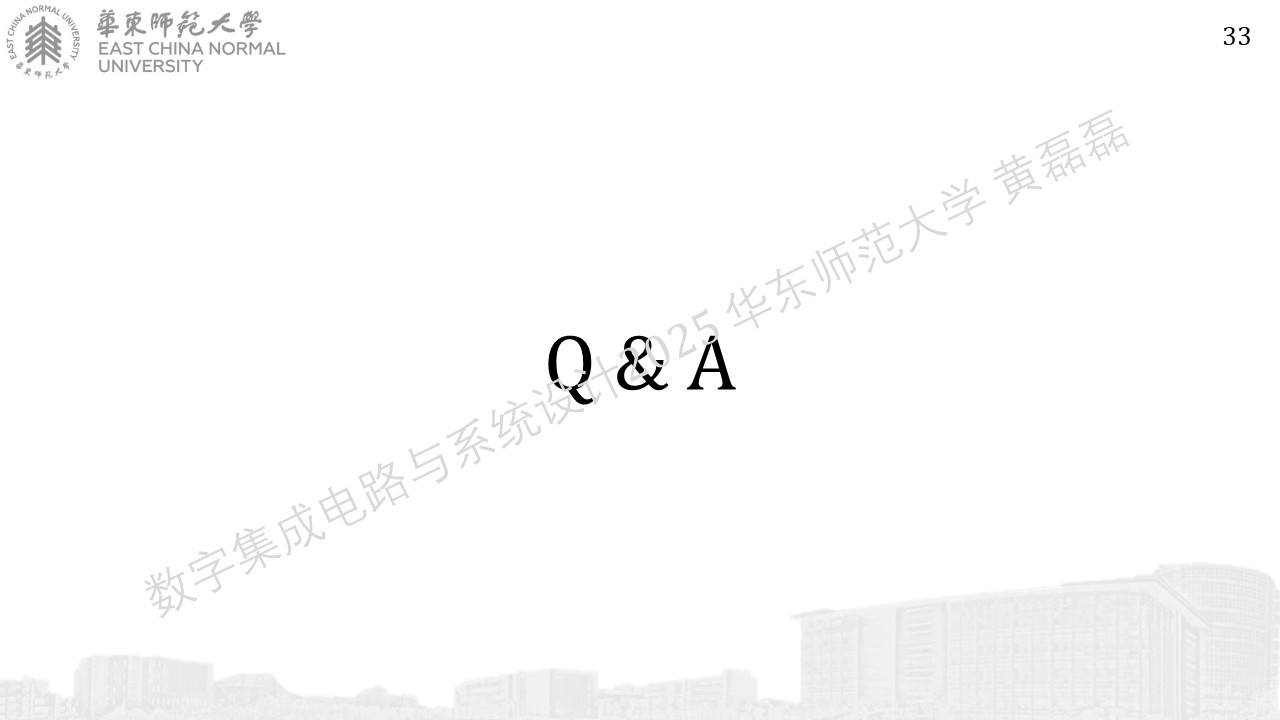

局部化

../_images/%E5%B9%BB%E7%81%AF%E7%89%87249.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87258.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87268.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87277.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87286.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87295.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87305.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%873110.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87326.JPG ../_images/%E5%B9%BB%E7%81%AF%E7%89%87335.JPG
